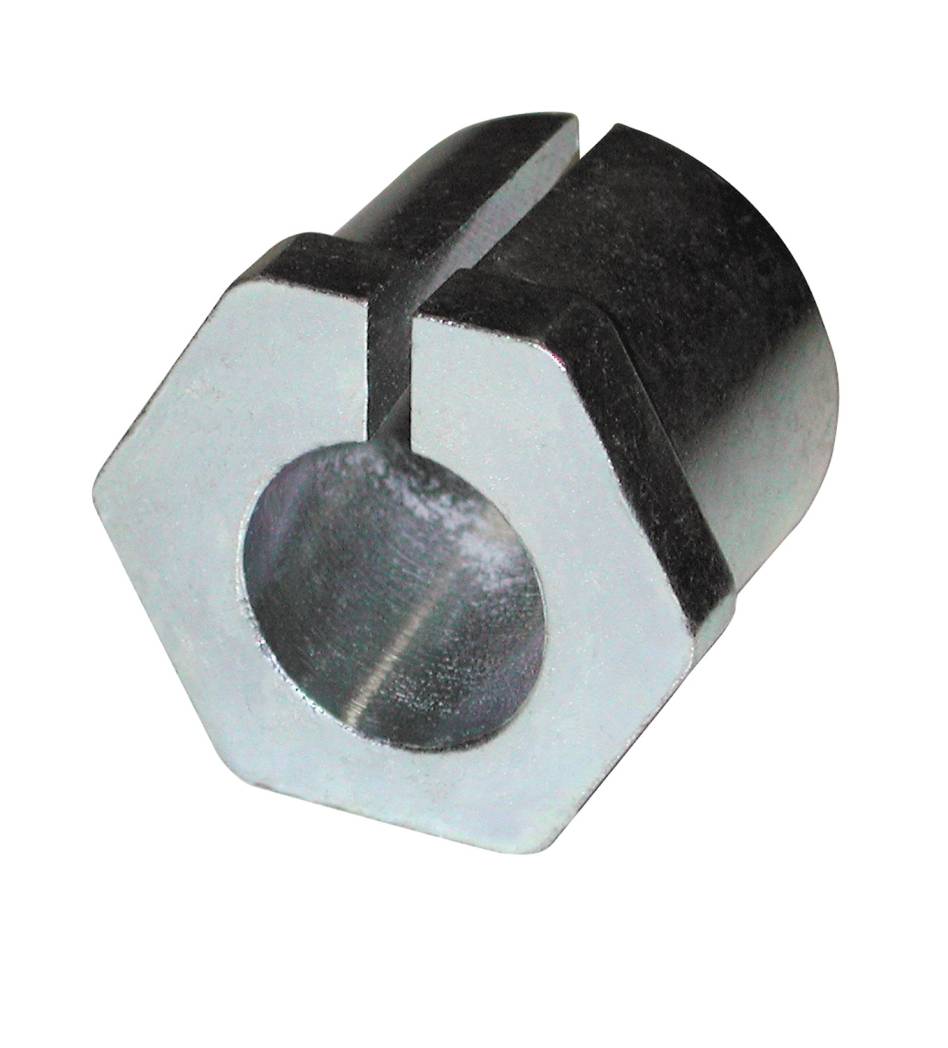

23194 | SPC Performance Camber/Caster Sleeve For Ford, Mazda | 3-1/2 Degree
Camber/Caster Sleeve For Ford, Mazda | 3-1/2 Degree
Description
These popular sleeves are widely used to adjust caster and/or camber on many Ford and Mazda 2/4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present.
Use 77880 or 88830 sleeve puller to remove the existing sleeve. To save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve.
- Easily adjust caster and/or camber on many Ford and Mazda RWD & 4WD trucks
- Use SPC 77880 or 88830 sleeve puller to remove the existing sleeve
- RWD3.50° (3-1/2°)
- FWD 2.75°
To save time during alignment, use the 23199 zero sleeve to determine initial readings.
Adjustment range: Cam./Cas. ±.25 degree to ±3.50 degree
Installation time: .5 hr/side
Required: 1 per wheel
Recommended Tools
77880 - Sleeve Puller,
88830 - Sleeve Puller,
87175 - Special Socket
ASSOCIATED PARTS
77880 87175 23180 23181 23182 23183 23184 23185 23186 23187 23188 23189 23190 23191 23192 23193 23199 24180
Note: Sleeves adjust to a smaller degree on Ford 4WD light trucks.
| Series Part # | 2WD Adjust Total Change | 4WD Adjust Total Change |
| 23181 | .25 degree | .20 degree |
| 23182 | .50 degree | .40 degree |
| 23183 | .75 degree | .60 degree |
| 23184 | 1.00 degree | .75 degree |
| 23185 | 1.25 degree | .90 degree |
| 23186 | 1.50 degree | 1.10 degree |
| 23187 | 1.75 degree | 1.25 degree |
| 23188 | 2.00 degree | 1.40 degree |
| 23189 | 2.25 degree | 1.60 degree |
| 23190 | 2.50 degree | 1.80 degree |
| 23191 | 2.75 degree | 2.00 degree |
| 23192 | 3.00 degree | 2.25 degree |
| 23193 | 3.25 degree | 2.50 degree |
| 23194 | 3.50 degree | 2.75 degree |
| 23199 | 0.00 degree |
Application List
Bronco II 1989 - 1990
E-150 2003 - 2014
E-150 Club Wagon 2003 - 2005
E-150 Econoline 1992 - 2008
E-150 Econoline Club Wagon 1992 - 2002
E-250 2003 - 2014
E-250 Econoline 1992 - 2002
E-350 Club Wagon 2003 - 2005
E-350 Econoline 1992 - 2008
E-350 Econoline Club Wagon 1992 - 2002
E-350 Super Duty 2001 - 2014
Econoline 1999 - 2006
Econoline Van 2010 - 2014
Econoline Wagon 2010 - 2014
Excursion 2000 - 2005
Explorer 1991 - 1994
F-150 1987 - 1996 -
F-250 1987 - 2009
F-250 Super Duty 1999 - 2015
F-350 1987 - 2015
F-350 Super Duty 1999 - 2015
Ranger 1990 - 1997
Mazda:
B2300 1994 - 1997
B3000 1994 - 1997
B4000 1994 - 1997
Navajo 1991 - 1994
