49-19320 | ReadyLift 3 Inch Suspension Lift Kit With Falcon 1.1 Shocks (2019-2024 Ram 2500 4WD Diesel)

2019-2024 Ram 2500 Pickup 4WD

49-19320
Pricing: $1,949.94
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2019-2024 RAM 2500 DIESEL 4WD 3'' COIL SPRING LIFT KIT

The new Ram HD 3" Coil Spring Lift Kit is specifically designed for Heavy-Duty applications utilizing ReadyLIFT-engineered new front coil springs and Falcon 1.1 Monotube front & rear shocks. The 3" kits are equipped with front and rear Falcon shocks, Heavy-Duty front coil springs, and bump stop spacers.  The 2500 kit includes rear spacers to achieve a neutral, lifted stance.  The 3" kits allow up to a 35x12.50 tire and 20x9 wheel with a 0 offset. ReadyLIFT's kit provides plenty of clearance for larger aggressive tires and wheels delivering a muscular, tough look, all while improving the factory ride quality.

  • Front Coil Spring 3" Lift/Leveling Suspension
  • Max Lift 3 in - Max Tire Diameter 35 in.
  • For 2019-2024 Ram 2500
  • 4-Corner Falcon 1.1 Monotube Shocks
  • Rear Spacers
  • Diesel Motor Ram HD's only.

Note:

  • Not compatible with Power Wagon or Snow Prep/Ambulance Package.
  • Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.





Application List

2019 Ram 2500 Limited 4WD
2019 Ram 2500 Power Wagon
2019 Ram 2500 Laramie 4WD
2019 Ram 2500 Big Horn 4WD
2019 Ram 2500 Lone Star 4WD
2019 Ram 2500 Tradesman 4WD
2019 Ram 2500 Laramie Longhorn 4WD
2019 Ram 2500 Laramie Limited 4WD
2020 Ram 2500 Limited 4WD
2020 Ram 2500 Power Wagon
2020 Ram 2500 Laramie 4WD
2020 Ram 2500 Big Horn 4WD
2020 Ram 2500 Lone Star 4WD
2020 Ram 2500 Tradesman 4WD
2020 Ram 2500 Laramie Longhorn 4WD
2020 Ram 2500 Laramie Limited 4WD
2021 Ram 2500 Limited 4WD
2021 Ram 2500 Power Wagon
2021 Ram 2500 Laramie 4WD
2021 Ram 2500 Big Horn 4WD
2021 Ram 2500 Lone Star 4WD
2021 Ram 2500 Tradesman 4WD
2021 Ram 2500 Laramie Longhorn 4WD
2021 Ram 2500 Limited Longhorn 4WD
2022 Ram 2500 Limited 4WD
2022 Ram 2500 Power Wagon
2022 Ram 2500 Laramie 4WD
2022 Ram 2500 Big Horn 4WD
2022 Ram 2500 Lone Star 4WD
2022 Ram 2500 Tradesman 4WD
2022 Ram 2500 Limited Longhorn 4WD
2023 Ram 2500 Limited 4WD
2023 Ram 2500 Power Wagon
2023 Ram 2500 Laramie 4WD
2023 Ram 2500 Rebel
2023 Ram 2500 Big Horn 4WD
2023 Ram 2500 Lone Star 4WD
2023 Ram 2500 Tradesman 4WD
2023 Ram 2500 Limited Longhorn 4WD
2024 Ram 2500 Limited 4WD
2024 Ram 2500 Power Wagon
2024 Ram 2500 Laramie 4WD
2024 Ram 2500 Rebel
2024 Ram 2500 Big Horn 4WD
2024 Ram 2500 Lone Star 4WD
2024 Ram 2500 Tradesman 4WD
2024 Ram 2500 Limited Longhorn 4WD

Tires & Wheels

35" Maximum tire diameter

35x12.50 for no rub on a 20" x 9" wide wheel with 0 offset

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

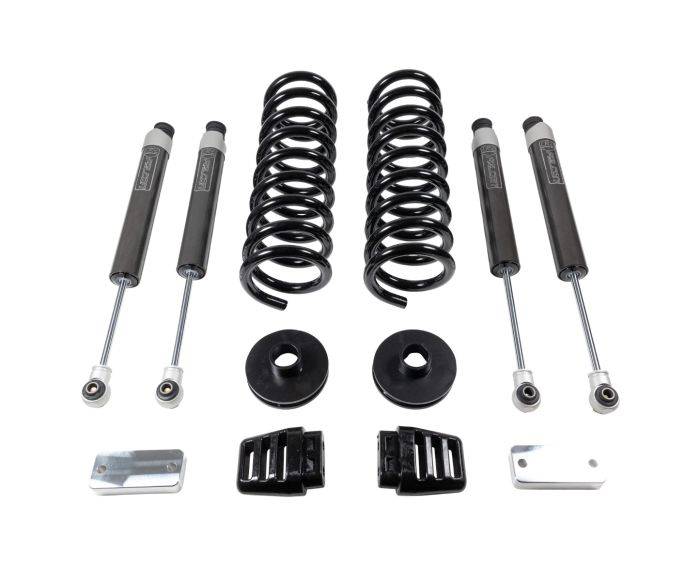

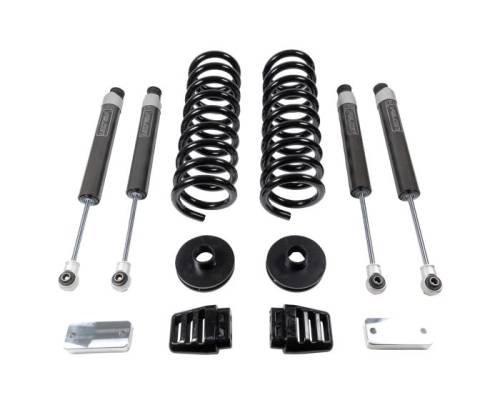

Components

Front Leveling Springs
Front Falcon Shocks
Rear Falcon Shocks
Rear Spacers
Bump Stops Extensions

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 89.0 lbs.
  • W11.5000” x H12.5000” x L30.0000”
  • Free Ground Shipping | Exclusions Apply*
