49-23420 | ReadyLift 4 Inch Suspension Lift Kit With Falcon 1.1 Shocks (2023-2024 F250, F350 Diesel)

2023-2024 Ford F250 Super Duty 4WD | 2023-2024 Ford F350 Super Duty 4WD | Diesel Models ONLY

49-23420
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $2,209.94
Qty:

Description

ReadyLIFT Suspension is pleased to announce A new Super Duty lift kit.  We are now shipping our first 4" Coil Spring Lift Kit, #49-23420, fitting 2023-2024 Ford Super Duty F250/F350 4WD Power Stroke® trucks. The new 4” lifts include front and rear Falcon 1.1 Monotube series performance shocks with our venerable front track bar relocation bracket, tubular radius arms or radius drops, and rear fabricated blocks. This gives Super Duty owners an excellent alternative for lifting their trucks to fit larger tires. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on a head-turning stance!  Many consider this lift height the ’sweet spot’ for Super Duty driving dynamics and maximum tire size while maintaining everyday usefulness.

This optimum lift height allows for up to 37" tall tires. The coil spring kit delivers a great ride and handling performance! The key ingredients to improving Super Duty ride and handling are the new, specially engineered coil springs teamed with Falcon 1.1 shocks and a track bar relocation bracket! This combination is more than just a lift kit, this is a performance and ride-enhancing kit that will really delight consumers with how well it rides and performs both on and off-road.


Fits 2023-UP Ford Super Duty Power Stroke 4WD.
4" Coil Spring Lift Kit with (4) Monotube Falcon 1.1 Shocks.
Radius Arm Drops for correct caster angle in kit.
Bolt-on lift kit - no structural modifications required.
Allows for up to 37" tall tires on 9" wide wheels with +18 offset.
Diesel trucks with rear single-wheel only.

Trucks equipped with the "Onboard Scale" option will require the Auto-Leveling Headlight Bracket.
PN: 67-23410 - Ford Super Duty Auto-Leveling Headlight 3.5''-6'' Lift Bracket Kit

NOTE:
Tremor versions will not gain the full 4 inches over stock ride height.
Not recommended for 2WD or gas trucks.
Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.
New auto headlight brackets are only for stock radius Arms.

Application List

2023-2024 Ford F-250 Super Duty Limited
2023-2024 Ford F-250 Super Duty Platinum
2023-2024 Ford F-250 Super Duty XL 4WD
2023-2024 Ford F-250 Super Duty XLT
2023-2024 Ford F-250 Super Duty King Ranch
2023-2024 Ford F-250 Super Duty Lariat
2023-2024 Ford F-350 Super Duty Limited
2023-2024 Ford F-350 Super Duty Platinum
2023-2024 Ford F-350 Super Duty XL 4WD
2023-2024 Ford F-350 Super Duty XLT 4WD
2023-2024 Ford F-350 Super Duty King Ranch
2023-2024 Ford F-350 Super Duty Lariat 4WD

Tires & Wheels

Recommended tire size: 37" - 12.5"

Recommended wheel: 17" and up x 9" wide, +25 offset / 6" backspacing (minor trimming of the front valance may be necessary)

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

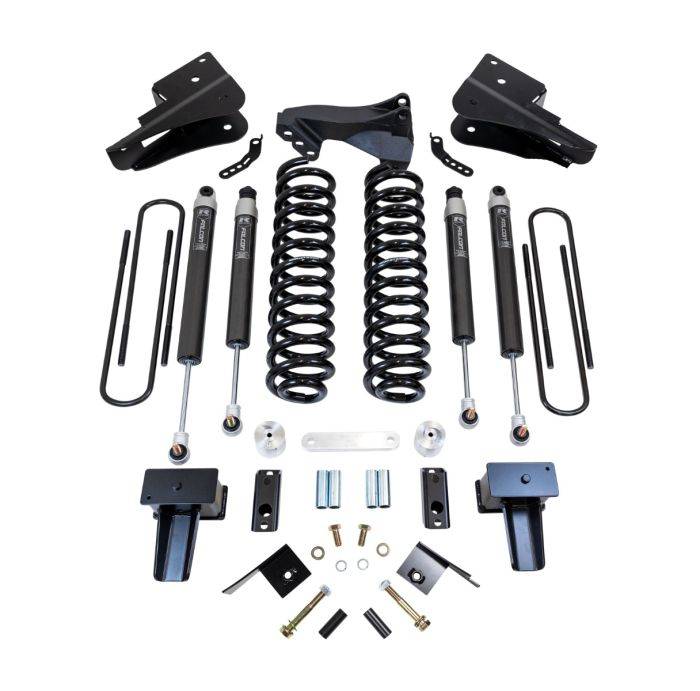

Components

4" Lift Springs
Falcon 1.1 Monotube Front and Rear Shocks
Track Bar Relocation Bracket
Radius Arm Drops
Sway Bar Drops
Bump Stop Extensions
Carrier Bearing Drop
Front Brake Line Brackets
Fabricated Rear Lift Blocks
Hardware Pack

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W11.5000” x H12.5000” x L30.0000”
  • $150.00
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
