69-52310 | ReadyLift 3 Inch SST Suspension Lift Kit (2022-2024 Tundra)

2022-2024 Toyota Tundra 2WD/4WD

69-52310
Pricing: $1,169.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3" SST LIFT KIT - 2022-2024 TOYOTA TUNDRA 2WD/4WD

Toyota's newest Tundra has become a popular choice for new truck owners. And like the Tundra's before it, new 2022-2024 owners want a quality bolt-on mild lift system that will increase ground clearance and add room for larger wheels and tires, all while maintaining the great factory ride and handling. Introducing the ReadyLIFT 69-52310 3" SST Lift Kit exclusively engineered for the new 2022-2024 Toyota Tundra pickups. This new SST lift kit is a second-generation version of our popular 69-5475 3" SST lift kit for the 2021 and older models. Many of the same premium features found in that kit have migrated to the new 69-52310 kit such as our popular tubular control arms with corrected ball joint pivot angles. Fabricated steel front strut spacers 2" tall precision fabricated steel rear lift spacers with new longer U-bolts give the 2022-2024 Tundra a nice, nearly level stance with 3" of lift in front, and the kit includes new rear shock extensions so you can retain use of your factory rear shocks.
  • No modifications required.
  • 3" front lift with a 2" tall rear spacer kit.
  • Allows for up to 35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset.
  • Includes strong tubular steel Control Arms with heavy-duty ball joints.
  • No Cutting of OEM Parts or Welding Maintains Factory Ride

Note:
Kit does not fit Tundra TRD PRO, trucks equipped with Load-Leveling Rear Height Control Air Suspension.
The factory TRD Skid plate will not bolt back up once the kit is installed.

The all-new 69-52310 2022-2023 Toyota Tundra 3" SST lift kit is an excellent choice for those who want to run larger tires such as 35s.
The maximum tire size for use with this kit is a 35x12.5 on a 18"x9" wide wheel with +12 offset.

Application List

2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra

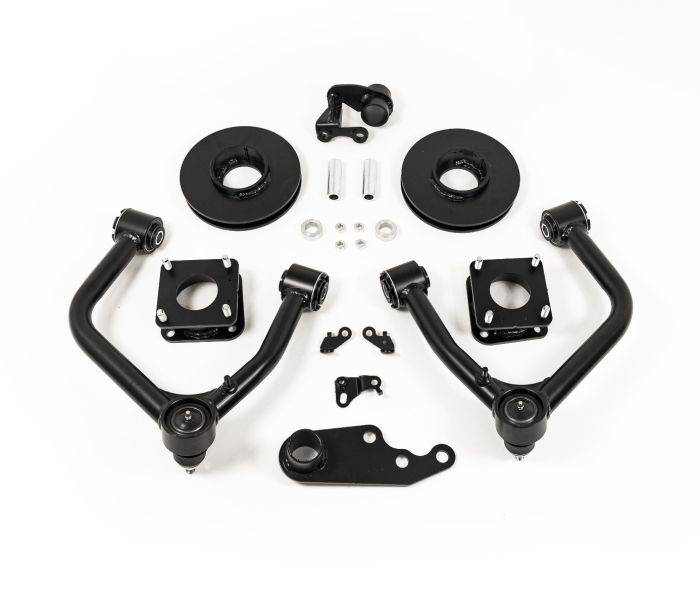

Components

Front Strut Spacer
Rear Spring Spacer
Rear Shock Extension
Upper Control Arm Left Hand Side
Upper Control Arm Right-hand Side
Front Differential Drop Left Hand Side
Front Differential Drop Right Hand Side
Crush Sleeve, Differential Drop Polyurethane Bushing
End Link Spacer Brake Line Relocation Bracket Left Hand Side
Brake Line Relocation Bracket Right Hand Side
Rear Brake Line Spacer
Rear Brake Line Relocation Bracket
Hardware Pack

Tires & Wheels

35" Maximum tire diameter

35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 49.0 lbs.
  • W7.2500” x H23.0000” x L23.0000”
  • Free Ground Shipping | Exclusions Apply*
