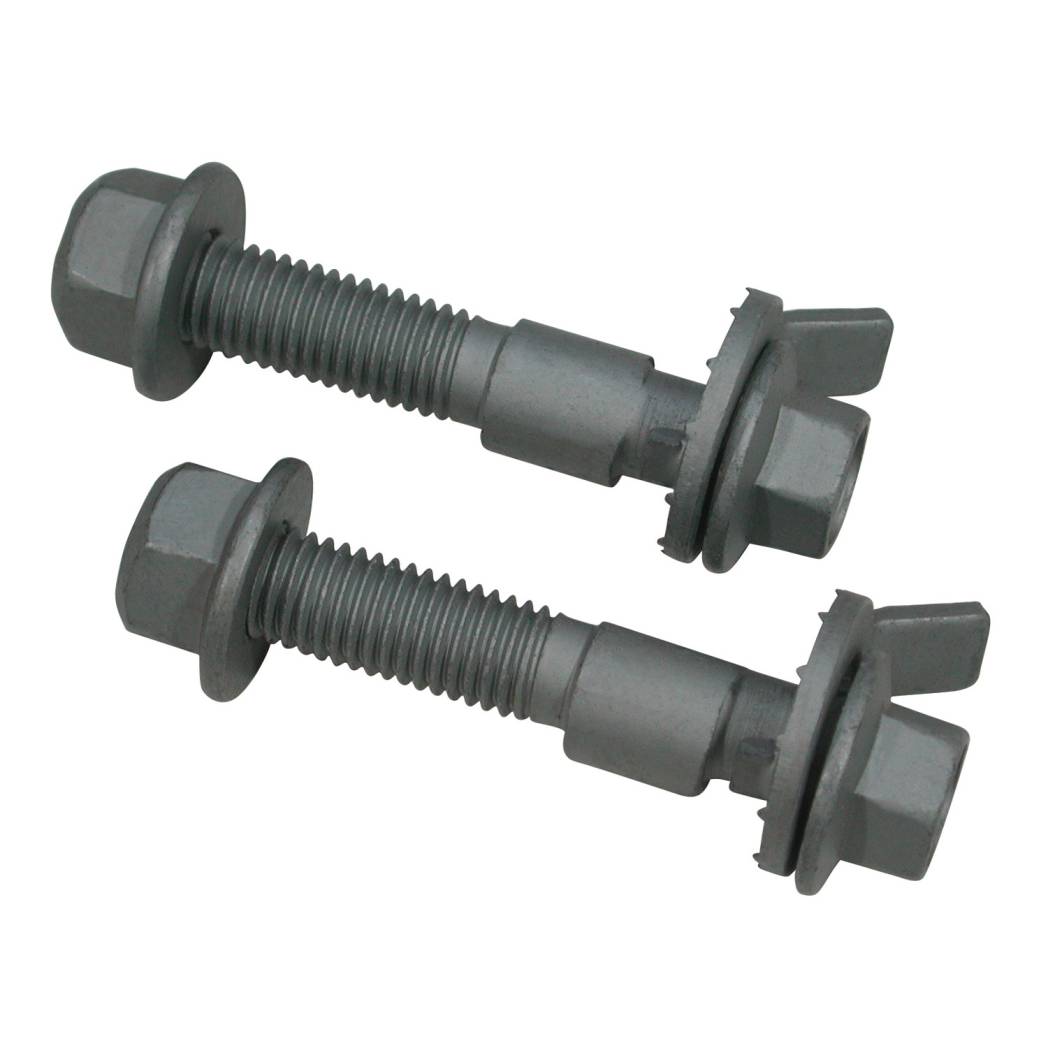

81280 | SPC Performance EZ Cam XR Sturt Bolts For Acura, BMW, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Eagle, Ford, GMC Honda, Hyundai | 16MM, 1-3/4 Degree

FOR DOMESTIC/IMPORT-TWO BOLT STRUTS.

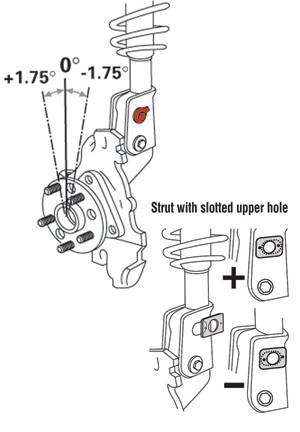

Make non-adjustable two-bolt struts adjustable up to +/- 1.75° camber change. Head markings show where the cam is for maximum change and an easy-to-manipulate toothed washer lets you set positive or negative change.

Simply remove the upper OE bolt, loosen the lower bolt, install and adjust the adjust the EZ Cam to the desired change and then tighten everything to specification.

This is an easy fix for camber issues and a perfect companion sale for any strut job. Save time, money and effort by making aligning two-bolt struts a one-man job without grinding.

SPC's patented EZCams:

• Make camber changes a cost-effective, quick one-person job without grinding
• SPC’s 12.9 grade bolt provides the best clamp load with the highest safety factor in the industry
• Use a Hex Chromate-free finish for 700 hr salt spray results vs the competitors’ ~20 hr, to avoid any hydrogen embrittlement issues, and to be environmentally friendly
• Have markings on the bolt head to show you where the lobe is for easy orientation during adjustment.
• Gain additional ±1.75° camber change with EZCam
• Makes camber adjustment a one man job
• Measure OE thread size for proper fitment

Save time and keep the 81240, 81250, 81260, 81270, 81280, 81290 and 81295 in stock. Measure the OE threads, or order our EZSizer Magnet (p/n 20503) to quickly determine the EZCam you need, and replace the OE bolt to make the strut adjustable for life. The 81139 Magnetic Camber Gauge is a great companion tool for the EZCam, attach it to the rotor and watch camber change as you roll the cam bolt.

US Patent Nos. 8,544,861 8,469,375 D783,393 Additional Patents Pending China Patent No. ZL 2019630012294.X

Front Adjustment range: Camber ±1.75°
Installation time: .4 hr/side
Required: 1 kit per axle
