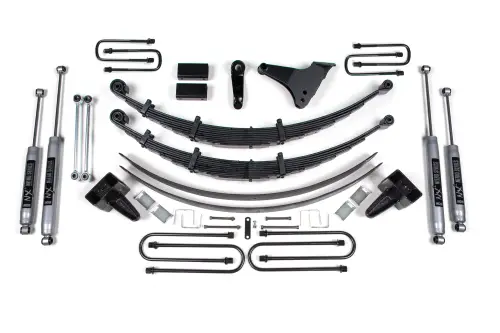

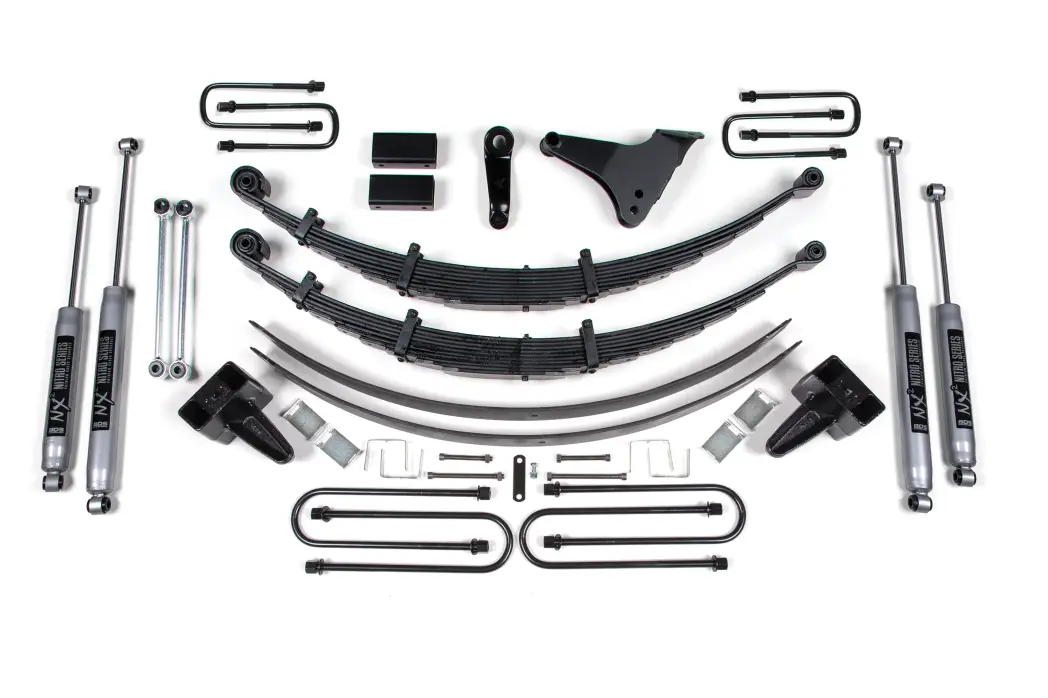

BDS1302H | BDS Suspension 6" Lift Kit For Ford F-250 / F-350 Super Duty 4WD | 1999-2004 | Front U Bolt Square, Rear Block Kit Without Factory Overload, NX2 Nitro Series

6" Lift Kit For Ford F-250 / F-350 Super Duty 4WD | 1999-2004 | Front U Bolt Square, Rear Block Kit Without Factory Overload, NX2 Nitro Series

BDS1302H
Pricing: $2,270.86
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Take your 1999-2004 Ford F250 and F350 Super Duty truck to the next level with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36" tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks. Optional replacement full leaf spring packs for an improved ride on or off-road.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
  • Cast steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

  • 36 x 12.5 with 16 x 10 and 4 in. Backspace

Front U-Bolt Type

This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case. The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar. Please make the appropriate selection for your particular vehicle.

Rear Lift Option

Block Kit

  • Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
  • Blocks made of steel for high strength.
  • Designed to provide correct pinion angles.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

IMPORTANT NOTES

  1. These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
  2. Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
  3. The Superduty came from the factory with a 2", 3", or 4" rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
  4. Will not fit dually applications.
  5. If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the options section.
  6. The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.

INSTALLATION

Est. Install Time :

8-10 hrs

Difficulty Level :

Moderate

SPECIFICATION

  • Front Lift Method : Leaf Spring
  • Rear Lift Method : Block & Add-A-Leaf
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
1999FordF-250 Super DutyALL4WDALLALLALL
1999FordF-350 Super DutyALL4WDALLALLALL
2000FordF-250 Super DutyALL4WDALLALLALL
2000FordF-350 Super DutyALL4WDALLALLALL
2001FordF-250 Super DutyALL4WDALLALLALL
2001FordF-350 Super DutyALL4WDALLALLALL
2002FordF-250 Super DutyALL4WDALLALLALL
2002FordF-350 Super DutyALL4WDALLALLALL
2003FordF-250 Super DutyALL4WDALLALLALL
2003FordF-350 Super DutyALL4WDALLALLALL
2004FordF-250 Super DutyALL4WDALLALLALL
2004FordF-350 Super DutyALL4WDALLALLALL

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
