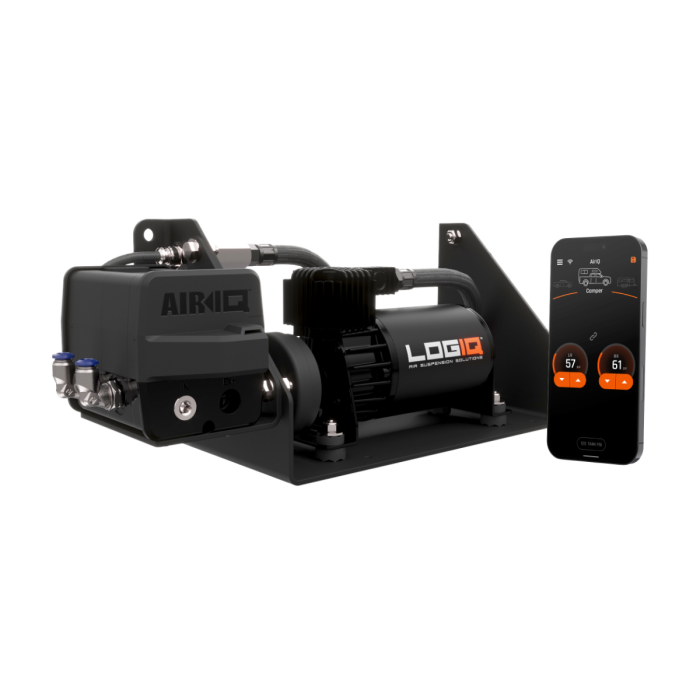

50-41200 | ReadyAir AIRIQ SD2 Air Management Package (Pre-Assembled | 2 Channel | 275SD Compressor)

AIR MANAGEMENT PACKAGE. PRE-ASSEMBLED, 2-CHANNEL, 275SD COMPRESSOR

50-41200
Pricing: $1,039.94
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Upgrade to independent corner control with dual channel valving to manage offset loads with ease.

Standard Duty Air Compressor
• 2-Channel AirIQ Bluetooth Management System
• 25% Duty Cycle 150 psi Compressor with 2.03 CFM @ 0 psi
• Dual Axis Control Front to Rear + Side to Side
• Pre-assembled with Plumbing Kit and Wiring + Easy Mount

Logiq AirIQ Complete Air Management
AirIQ Complete Air Management packages for load leveling are factory assembled and tested for guaranteed performance. Our ready-to-bolt-on packages fix weight-related rear squat, with options for side-to-side leveling and on-board air. Nothing rivals the ease and performance of AirIQ.

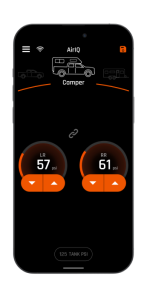

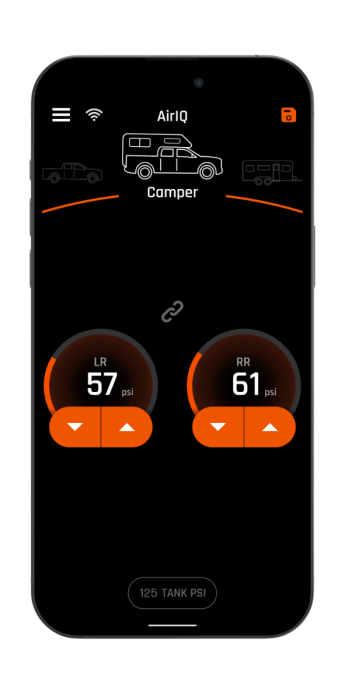

Easy-to-Use App
The AirIQ Bluetooth App delivers user-friendly control of your air suspension and is available free for iOS and Android devices. The App yields precise adjustment of air pressures resulting in effortless height management with the ability to save up to 8 custom presets for different loads.

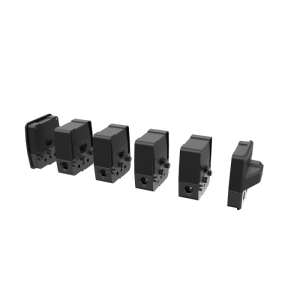

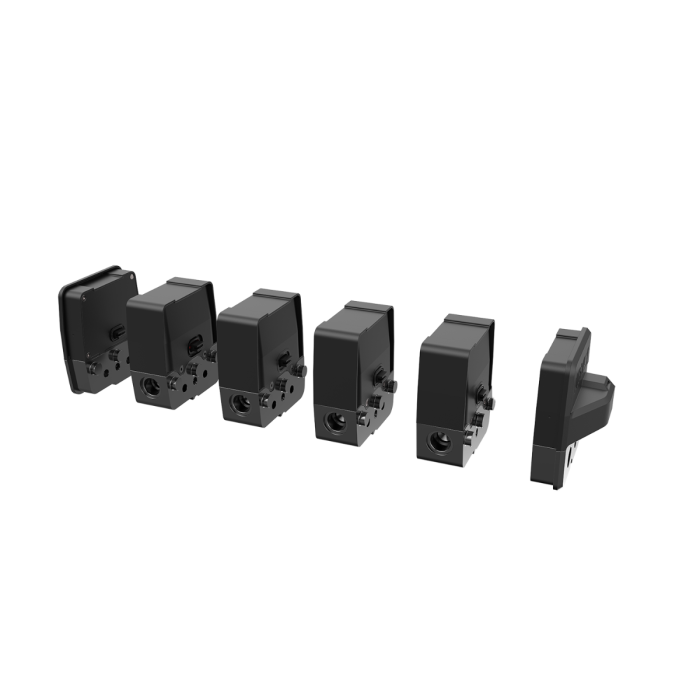

AirIQ Modular Design
The modular design of AirIQ can contain anywhere from 1-4 corner modules and can be customer upgraded at anytime. Never throw away to upgrade again...

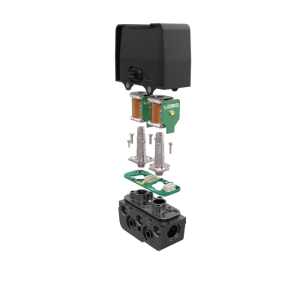

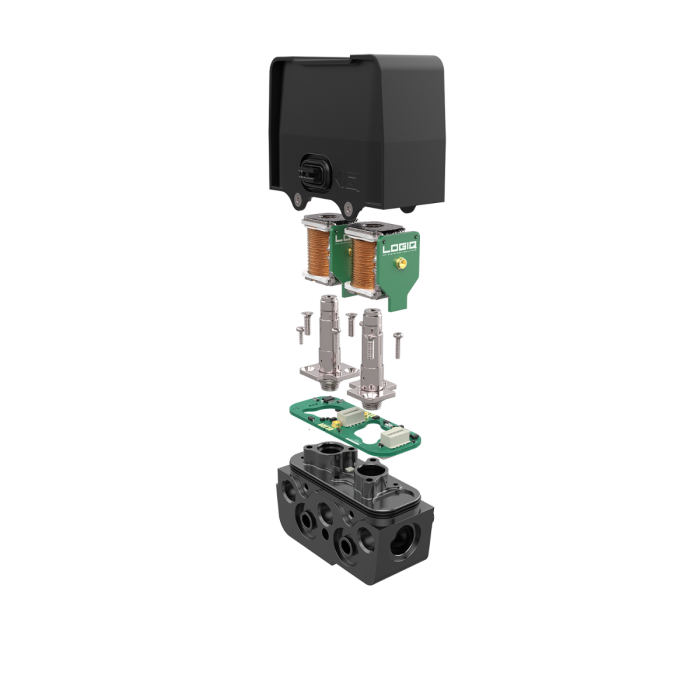

Smart Corner Modules
Each corner module contains OEM quality solenoid valves, an onboard precision pressure sensor, and a microprocessor running intelligent algorithms for accurate leveling.

Application List

Universal

Components

AirIQ (SD1/SD2/HD2)
Air Management
System with 20 ft
wiring harness
pre-installed
(4) 5/16"-18 x 5" Hex Bolt
(4) 5/16"-18 x 3/4" Hex Bolt
(8) 5/16"-18 Nylock Flanged Nut
(8) 5/16" Flat Washer
(1) 30A Fuse & Holder (12AWG)
(1) 10A Fuse & Holder (16AWG)
(1) Butt Splice (22-16 AWG)
(1) Butt Splice (12-10 AWG)
(4) Frame Brackets
(1) (2) 3/8” Ring Terminal 16 AWG
(2) 3/8” Ring Terminal 12 AWG
(1) Small Fuse Tap & Terminal
(1) Large Fuse Tap & Terminal
(18 ft) 3/8" Wire Loom
(20 ft) 1/4" Air Line
(40) 8" Zip Ties
(1) Airline Cutter

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 40.0 lbs.
  • W24.0000” x H12.0000” x L24.0000”
  • Free Ground Shipping | Exclusions Apply*
