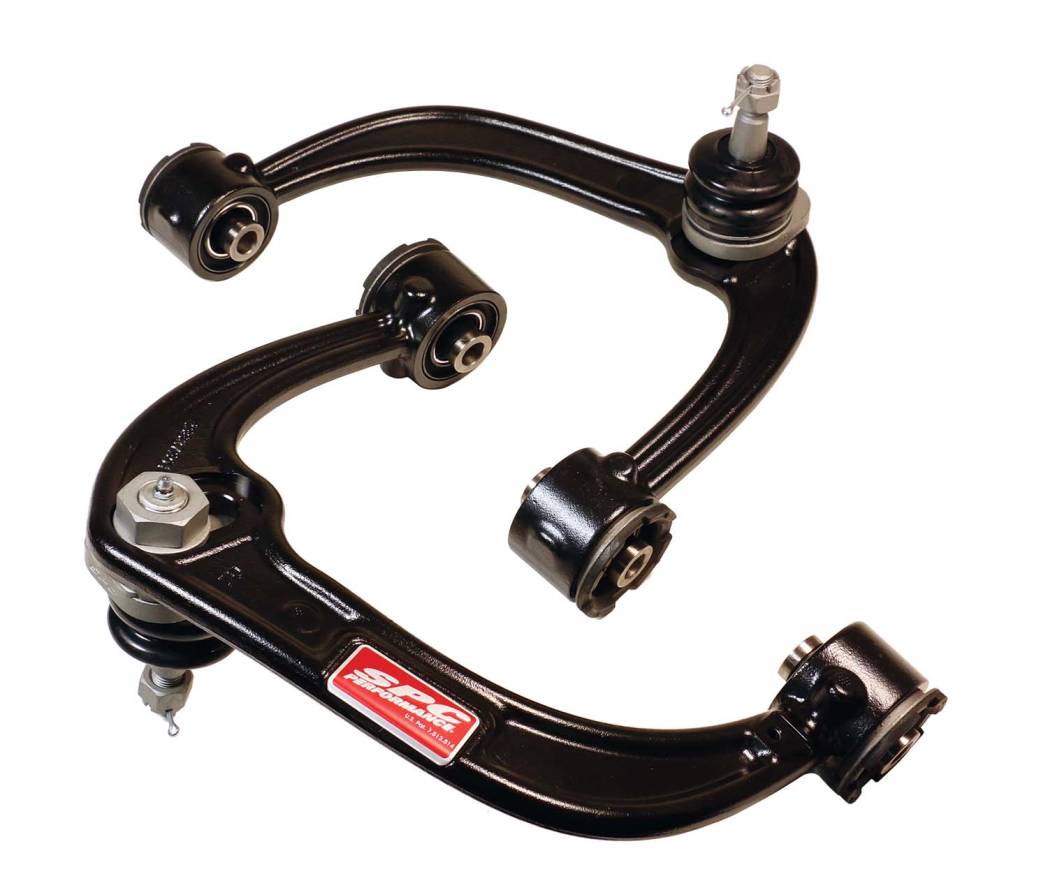

25675 | SPC Performance Adjustable Camber/Caster Upper Control Arms For Ford/Lincoln | Pair

Restore drivability on lowered Ford F150 trucks with SPC's adjustable front upper control arms. These arms give ±2.0° of camber and -1.0˚ to +3.0˚ of caster adjustability while also giving more ball joint articulation on trucks lowered up to 2.5".

Featuring an upgraded greaseable ball joint and rubber-isolated xAxis™ bushings, these arms are designed to correct alignment angles while maintaining factory ride quality. SPC's fully forged steel design provides the strength and durability needed for the most demanding environments. These remove and replace arms are sold in pairs.

• Get more droop travel: SPC's arm has improved clearance to get around the spring bucket. With 80° of articulation in the upgraded ball joint and free pivoting cross-axis bushings, SPC's arm gives you maximum droop and compression travel.
• Get your drivability and tracking back: When you lower your truck you affect caster and camber. SPC's arms have +1° of caster built into them. Using its patented ball joint design the arm will get you ±2.0° of camber and -1.0˚ to +3.0˚ of caster, so you can put your alignment angles back to specification.
• Improve tire clearance: Use adjustment in the SPC arm and on the OE lower arm to maximize alignment angles and move oversized tires forward in the wheel well to minimize or avoid fender trimming.

Do you need replacement cams for the lower control arm? Check out SPC p/n 86250, adjustable cam nut/bracket or 86252, HD cam bolt assemblies.

Adjustment range: Camber ±2.0°
Caster -1.0° to +3.0˚
Installation time: .8 hr/side

1. SPC Adjustable Front Upper Control Arms are the industry standard in off-road and racing
2. applications
3. Patented design for extra camber and caster adjustment

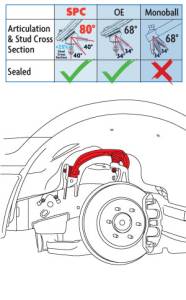

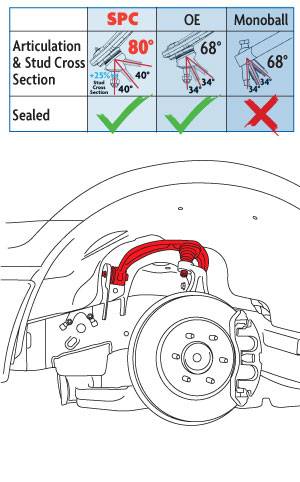

4. SPC ball joints are oversized and provide 80° of travel

NOTE: These arms are designed specifically for trucks lowered up to 2.5". For lifted trucks check out part number 25680 instead.

ASSOCIATED PARTS

25680 86250 86252 86255 35104
