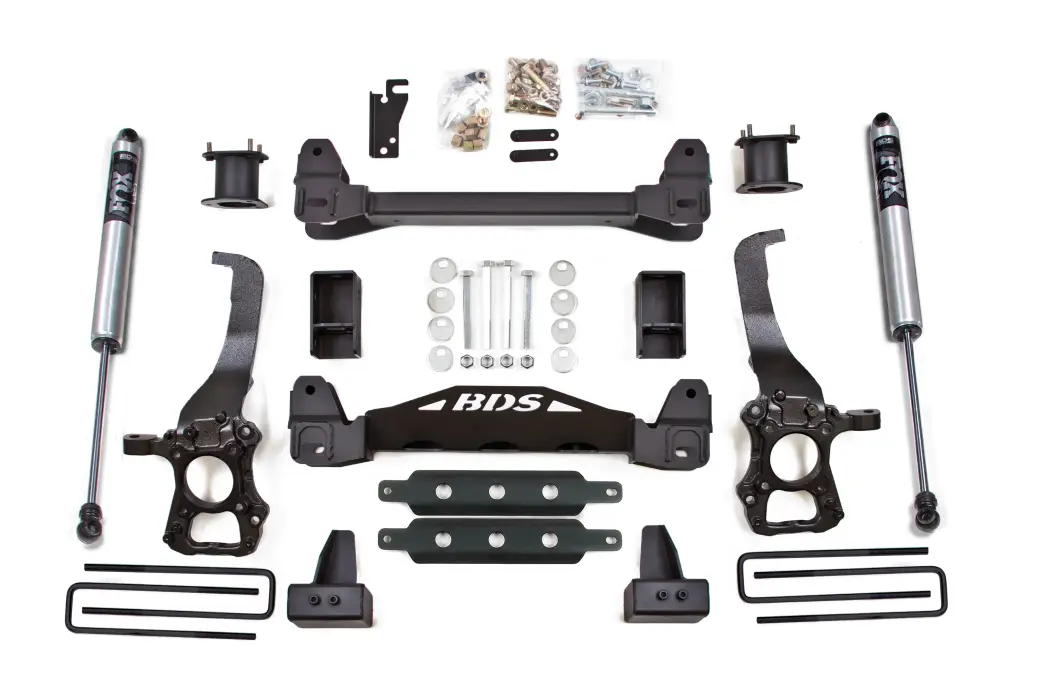

BDS1504FS | BDS Suspension 4 Inch Lift Kit For Ford F-150 2WD | 2014 | Fox 2.0 Performance Series

4 Inch Lift Kit For Ford F-150 2WD | 2014 | Fox 2.0 Performance Series

BDS1504FS
Pricing: $3,237.01
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Improve the performance and capability of your 2014 Ford F150 2WD truck by installing a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength cast steel lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

Features & Benefits

  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.5 in. Backspace

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  2. E-brake bracket required for factory powersteps (123018)
  3. Will not fit HD models (7 lug).
  4. For a level to tail low appearance use #023416 with Kit#1504H. Block kits replace factory 1-1/4" block.

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Metric/Standard Socket Wrench Set, Cut-off Tool

Specification

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 4"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2014FordF-150FX2RWDALLALLALL
2014FordF-150King RanchRWDALLALLALL
2014FordF-150LariatRWDALLALLALL
2014FordF-150LimitedRWDALLALLALL
2014FordF-150PlatinumRWDALLALLALL
2014FordF-150STXRWDALLALLALL
2014FordF-150XLRWDALLALLALL
2014FordF-150XLTRWDALLALLALL

Components

1 BDS023425 2014 F150 4wd 4in Strut Spacer Box Kit
1 BDS023624 09 Ford F150 2wd Front Box Kit (3of3)
1 BDS023625 2009-2014 Ford F150 4-6in Box Kit (1of4)
1 BDS023626 2009-2014 Ford F150 4-6in Box Kit (2of4)
2 FOX98224828 Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1

Tires & Wheels

35 x 12.5 with 18 x 9 and 4.5 in. Backspace
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
