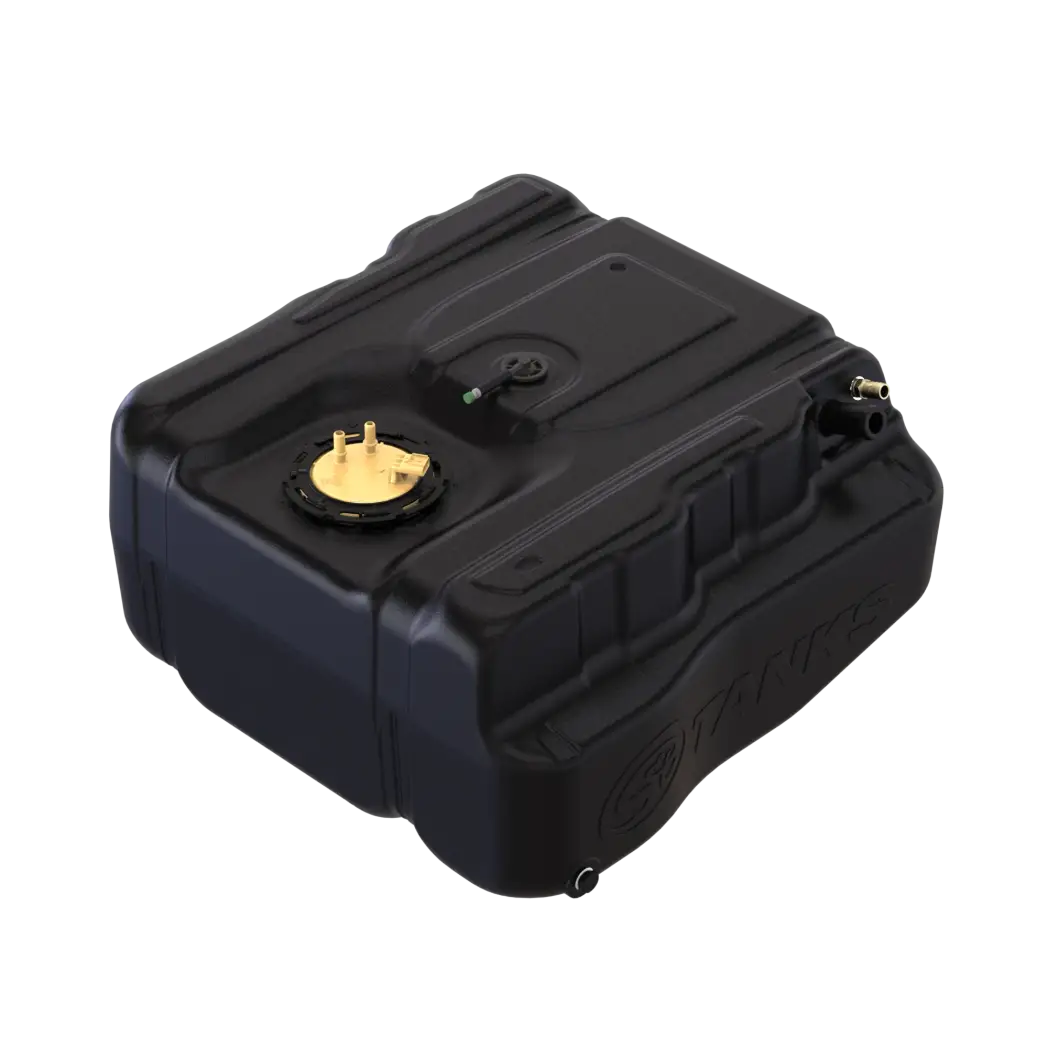

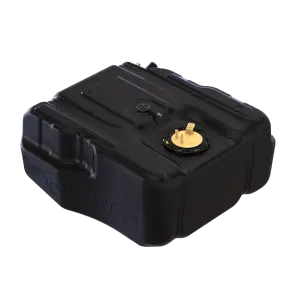

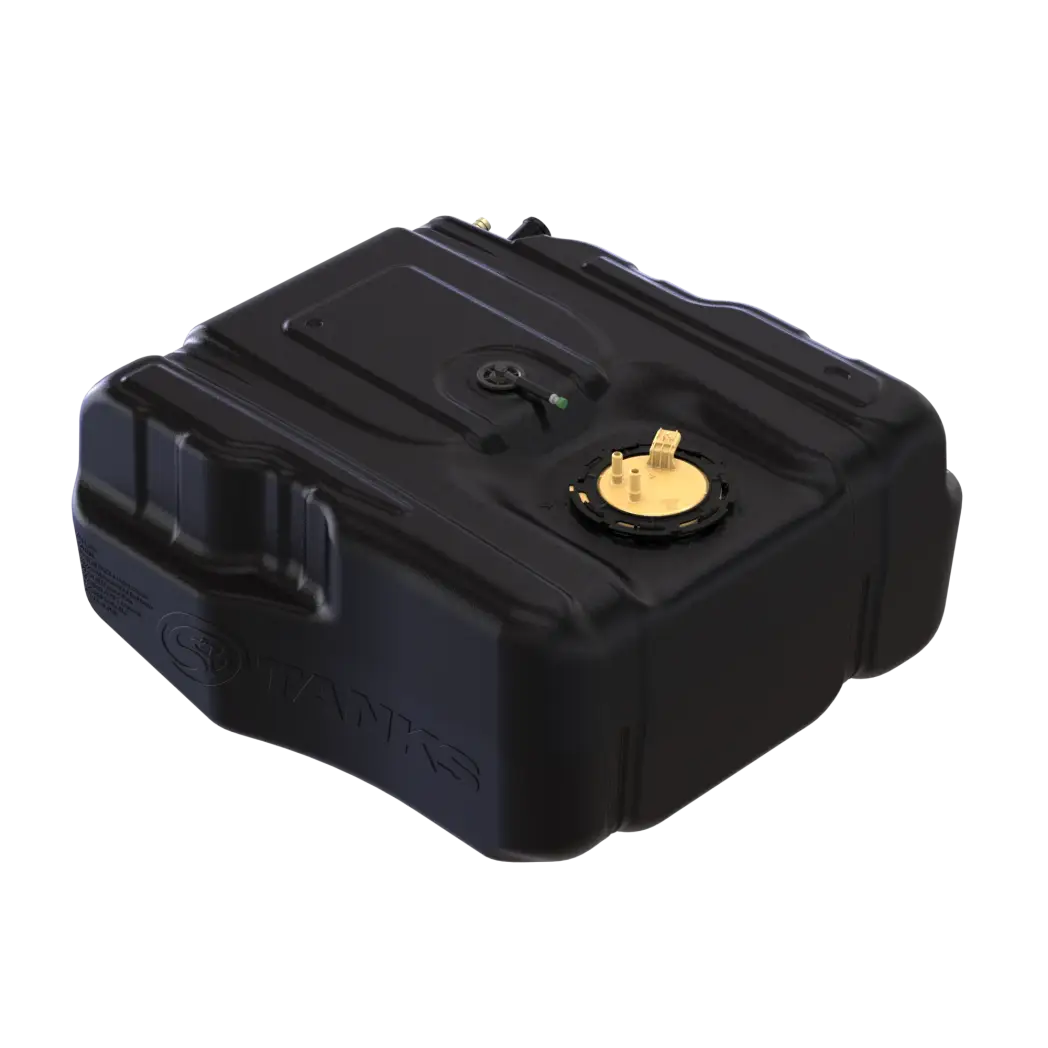

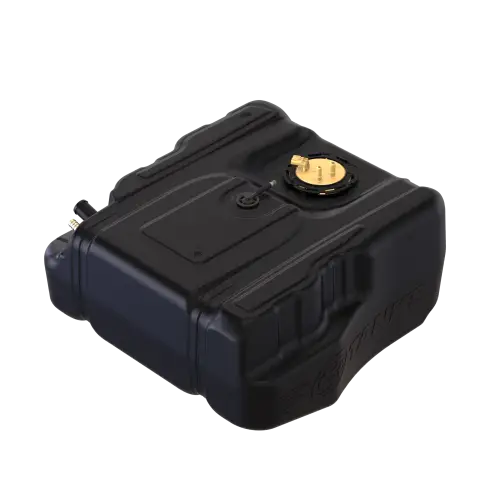

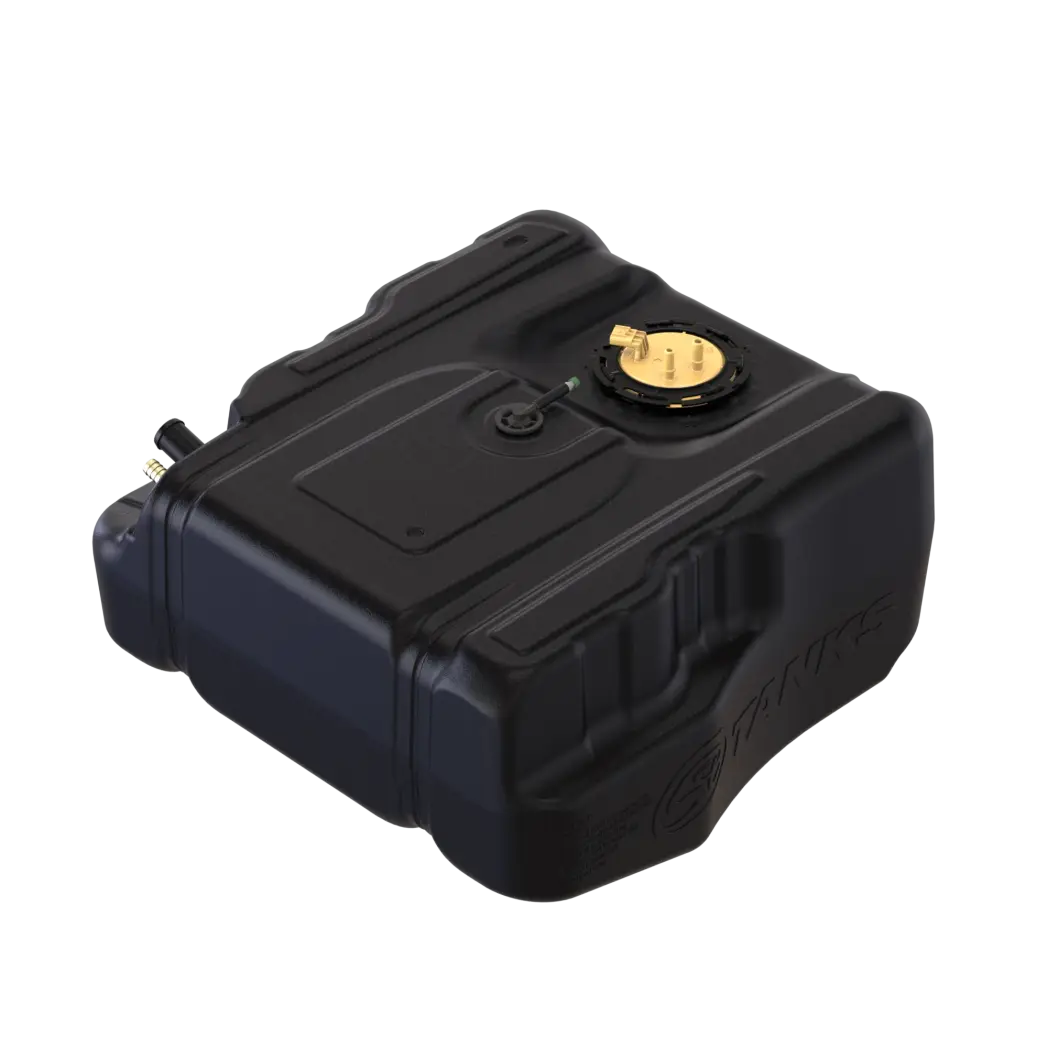

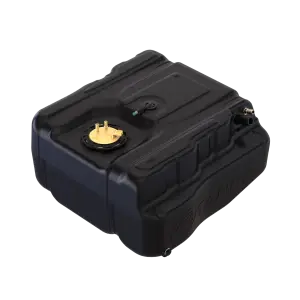

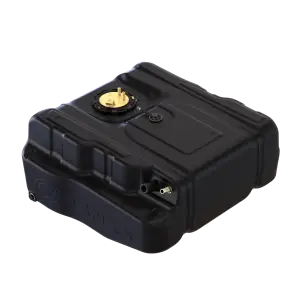

10-1001 | S&B Filters 40 Gallon Replacement Fuel Tank After Axle (2011-2016 Ford Powerstroke 6.7L Cab Chassis)

Important Note: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically.
Skid plates and straps are NOT included.
These parts are reused.

COMPATIBLE WITH GOOSENECK AND 5TH WHEEL | YES
COMPATIBLE WITH OE SKID PLATE | YES
DIMENSIONS | 30.21" X 31.22" X 14.95"
DRAIN | YES
EMBEDDED FITTING THREAD SIZE | 1/2" NPT
GROUND CLEARANCE COMPARE TO OE TANK | SAME
SENDING UNIT | OE
STRAPS INCLUDED | NO
SUMP | NO
S&B CAPACITY (APPROXIMATE) | 40 GALLONS
TANK TYPE | AFT
TRANSFER PUMP READY | NO
WEIGHT DRY | 25LBS

THE PROBLEM
The 2011-2016 Ford F350, F450 & F550 Cab and Chassis trucks are equipped with an after-axle 40 gallon fuel tank. These OEM tanks have a failure prone coating inside the tank. Once the coating becomes unstable inside the tank, the laminate peels off and gets picked up into the fuel system. If not addressed, the containments can ruin the entire fuel system on the truck.

THE SOLUTION
S&B Tanks are made out of Crosslink Polyethylene. This material will not delaminate and is the SOLUTION to fixing issues with tank delamination. If you truck is not showings signs of delamination, this tank is a great way to protect fuel system.

OEM STYLE LOCKING RING
Easily sercure your OEM sending unit into the S&B tank by transfering over your orginal Ford locking ring. This is a faster and easier way to put sercure the sending unit into the S&B Tank.
