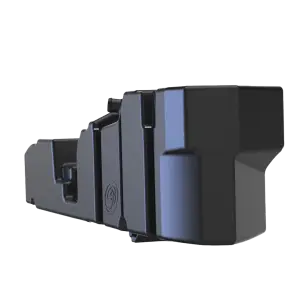

10-1006 | S&B Filters 62 Gallon Replacement Fuel Tank (2004-2010 GM Duramax 6.6L Crew Cab Short Bed)

Important Note about the Fuel Gauge Operation:
The distance to empty (DTE) on GM trucks can’t be reprogrammed, so it will show about half the mileage that is really left.
This occurs with all aftermarket high-capacity fuel tanks.

The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically.

The bottom of the S&B tank has more surface area than the OE, so there will be a greater fuel reserve when the low fuel indicator comes on.

COMPATIBLE WITH GOOSENECK AND 5TH WHEEL | YES
COMPATIBLE WITH OE SKID PLATE | NO
DIMENSIONS | 79.25" X 17.74" X 20.82"
DRAIN | YES
EMBEDDED FITTING THREAD SIZE | 1/2" NPT
GROUND CLEARANCE COMPARE TO OE TANK | 5" LOWER
SENDING UNIT | S&B
STRAPS INCLUDED | YES
SUMP | YES
S&B CAPACITY (APPROXIMATE) | 62 GALLONS
TANK TYPE | MIDSHIP
TRANSFER PUMP READY | YES
WEIGHT DRY | 50LBS

HOLDS 10 MORE GALLONS THAN COMPETITOR TANKS!
S&B's 62-gallon fuel tank directly replaces the OEM 26-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 10 more gallons than competitor tanks allowing you to save time, go further, and get more out of your truck! Go big or go home!

AFTERMARKET LIFT PUMP
This tank features a built-in sump which can be used for aftermarket lift pump installation, if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer's instructions only. The S&B sump will not cure typical "1/4 tank issues" common with aftermarket lift pumps. S&B sump fittings are required to be used to prevent leaking.

INCLUDED OEM STYLE SENDING UNIT.
Includes a premium OEM style sending unit. ($300 value)
