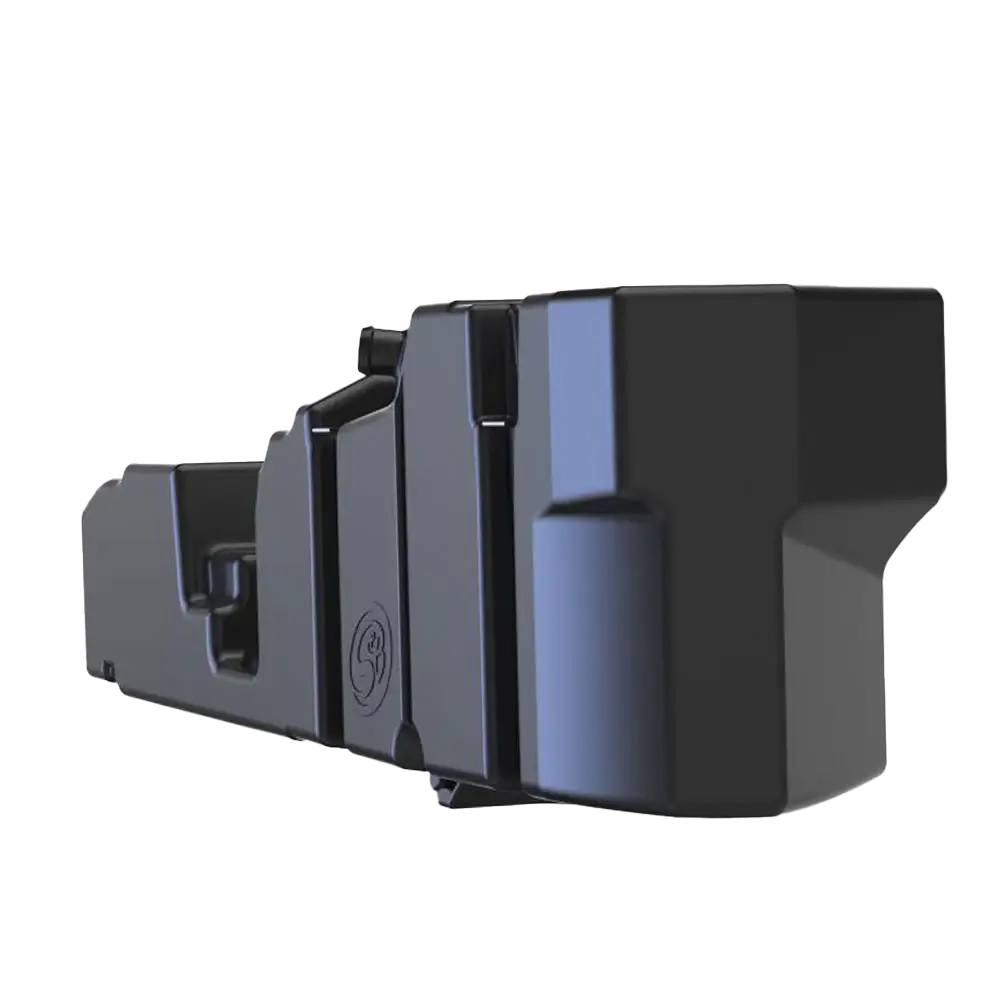

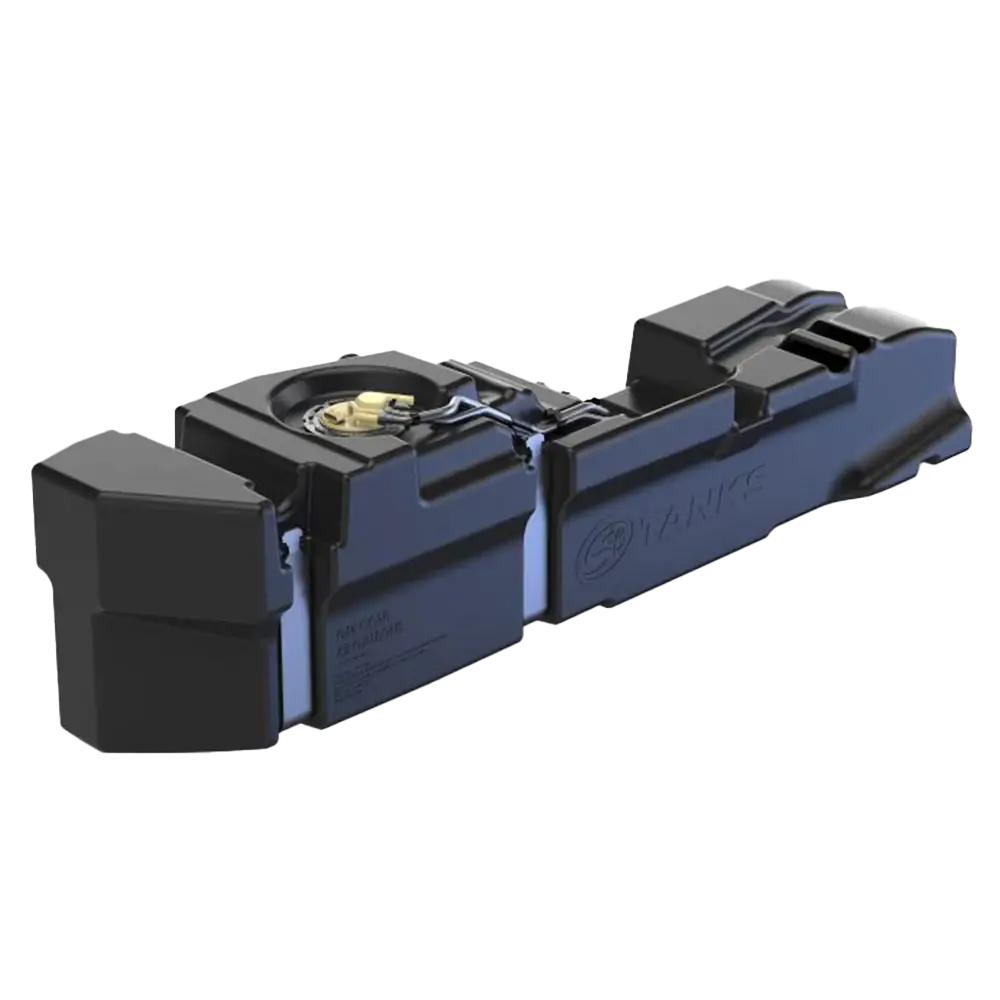

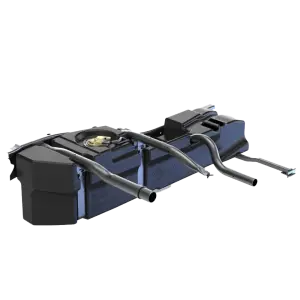

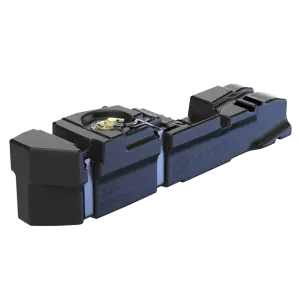

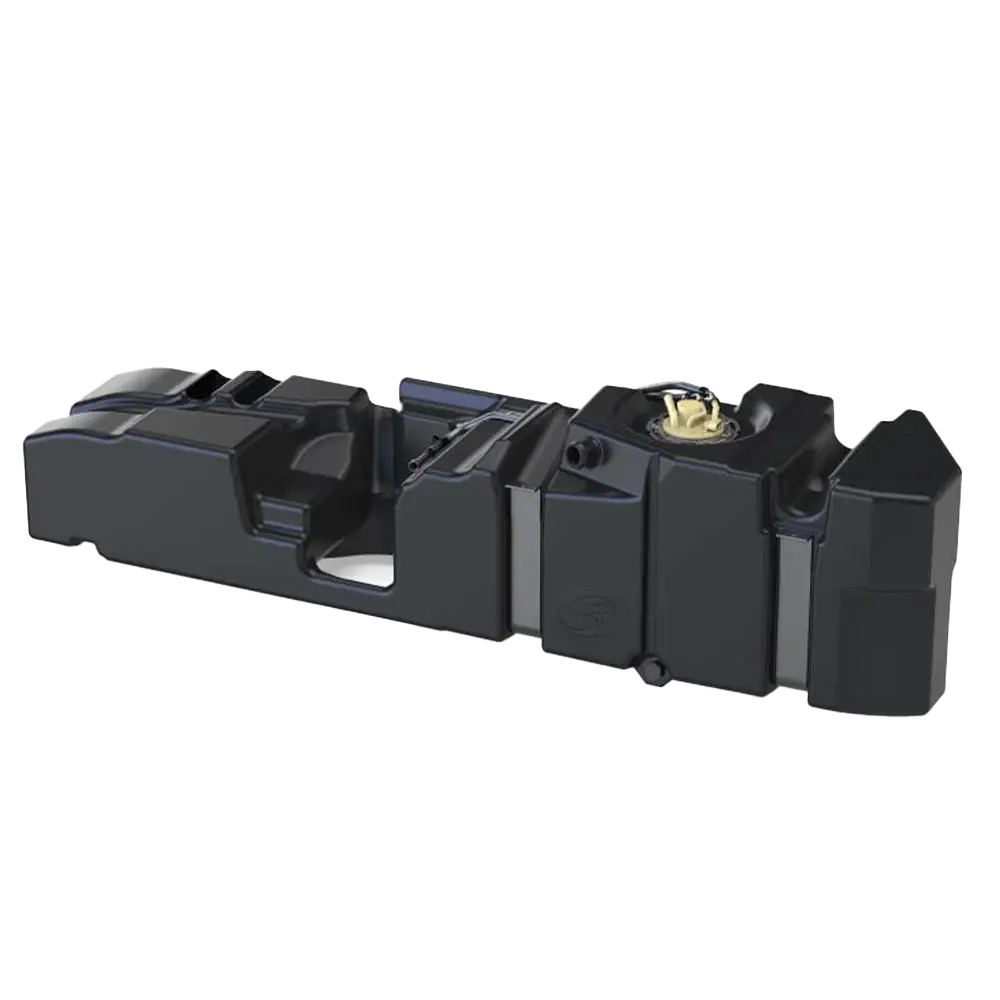

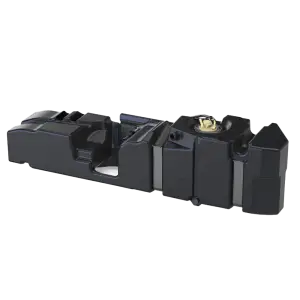

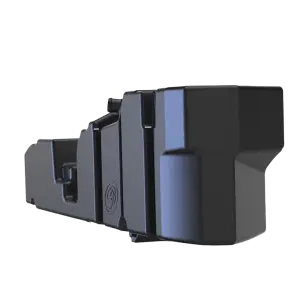

10-1023 | S&B Filters 62 Gallon Replacement Fuel Tank (2001-2004 GM Duramax 6.6L LB7 Crew Cab Short Bed)

2001-2004 Chevrolet Silverado 2500 HD, 3500 HD | 2001-2004 GMC Sierra 2500 HD, 3500 HD | 6.6L LB7 Diesel Crew Cab Short Bed

10-1023
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $1,807.66
Qty:

Description

Important Note about the Fuel Gauge Operation:
The distance to empty (DTE) on GM trucks can’t be reprogrammed, so it will show about half the mileage that is really left.
This occurs with all aftermarket high-capacity fuel tanks.

The bottom of the S&B tank has more surface area than the OE, so there will be a greater fuel reserve when the low fuel indicator comes on.

The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically.

Note:
This fuel tank fits 2001-2004 LB7 trucks only.
2004.5-up trucks with LLY, LBZ, and LMM engines use part # 10-1006.

COMPATIBLE WITH GOOSENECK AND 5TH WHEEL | YES
COMPATIBLE WITH OE SKID PLATE | NO
DIMENSIONS | 79.25" X 17.74" X 20.82"
DRAIN | YES
EMBEDDED FITTING THREAD SIZE | 1/2" NPT
GROUND CLEARANCE COMPARE TO OE TANK | 5" LOWER
SENDING UNIT | S&B
STRAPS INCLUDED | YES
SUMP | YES
S&B CAPACITY (APPROXIMATE) | 62 GALLONS
TANK TYPE | MIDSHIP
TRANSFER PUMP READY | YES
WEIGHT DRY | 62LBS

DOUBLE YOUR RANGE!
S&B's 62-gallon fuel tank directly replaces the OEM 26-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 10 more gallons than competitor tanks allowing you to save time, go further, and get more out of your truck!

AFTERMARKET LIFT PUMP
This tank features a built in sump which can be used for aftermarket lift pump installation, if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer's instructions only. The S&B sump will not cure typical "1/4 tank issues" common with aftermarket lift pumps.

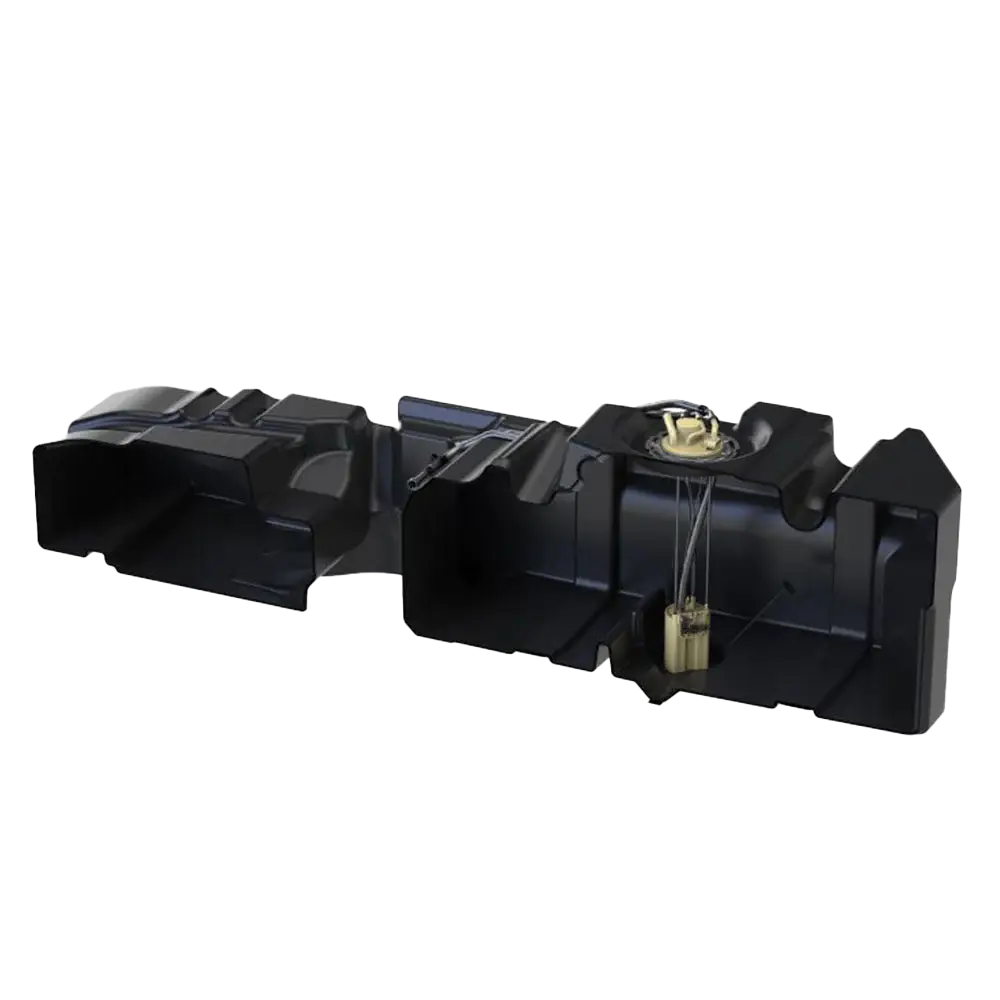

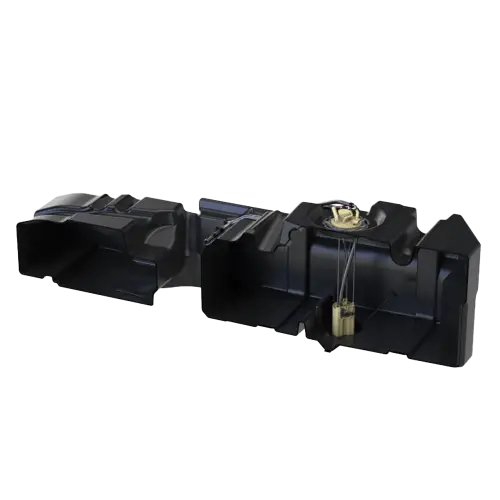

INCLUDED OEM STYLE SENDING UNIT.
Includes a premium OEM style sending unit. ($300 value)

Application List

2001-2004 CHEVROLET SILVERADO 2500 6.6L, DIESEL, LB7
2001-2004 CHEVROLET SILVERADO 3500 6.6L, DIESEL, LB7
2001-2004 GMC SIERRA 2500 6.6L, DIESEL, LB7
2001-2004 GMC SIERRA 3500 6.6L, DIESEL, LB7
