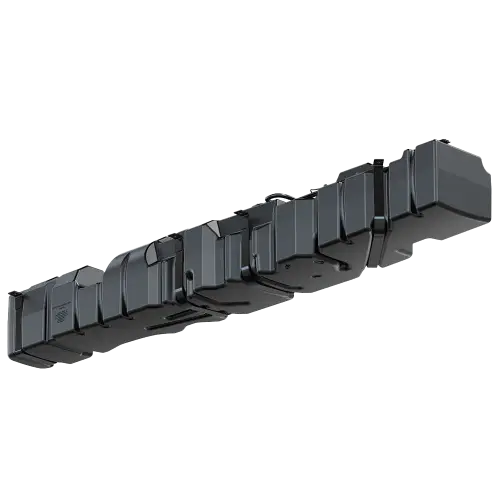

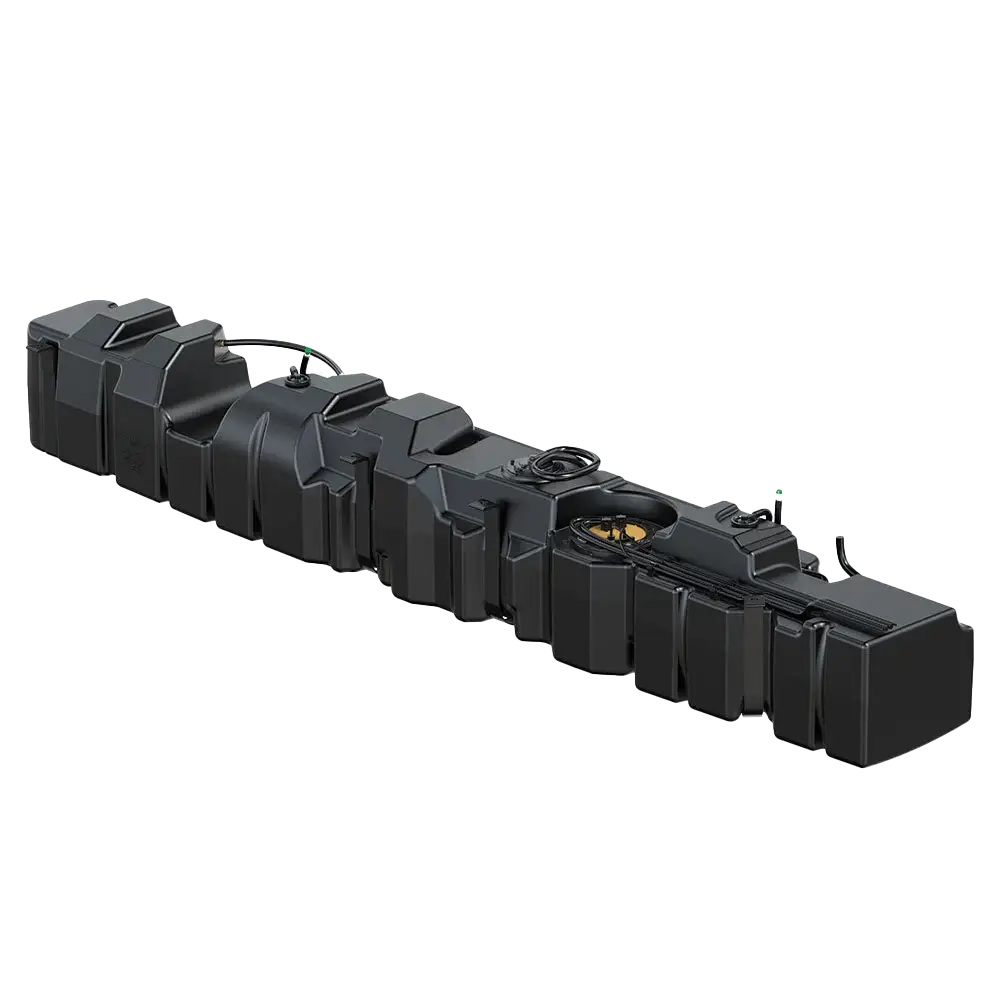

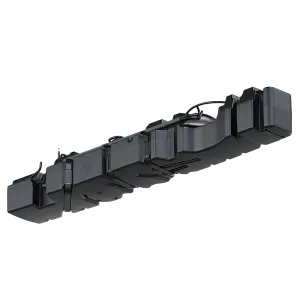

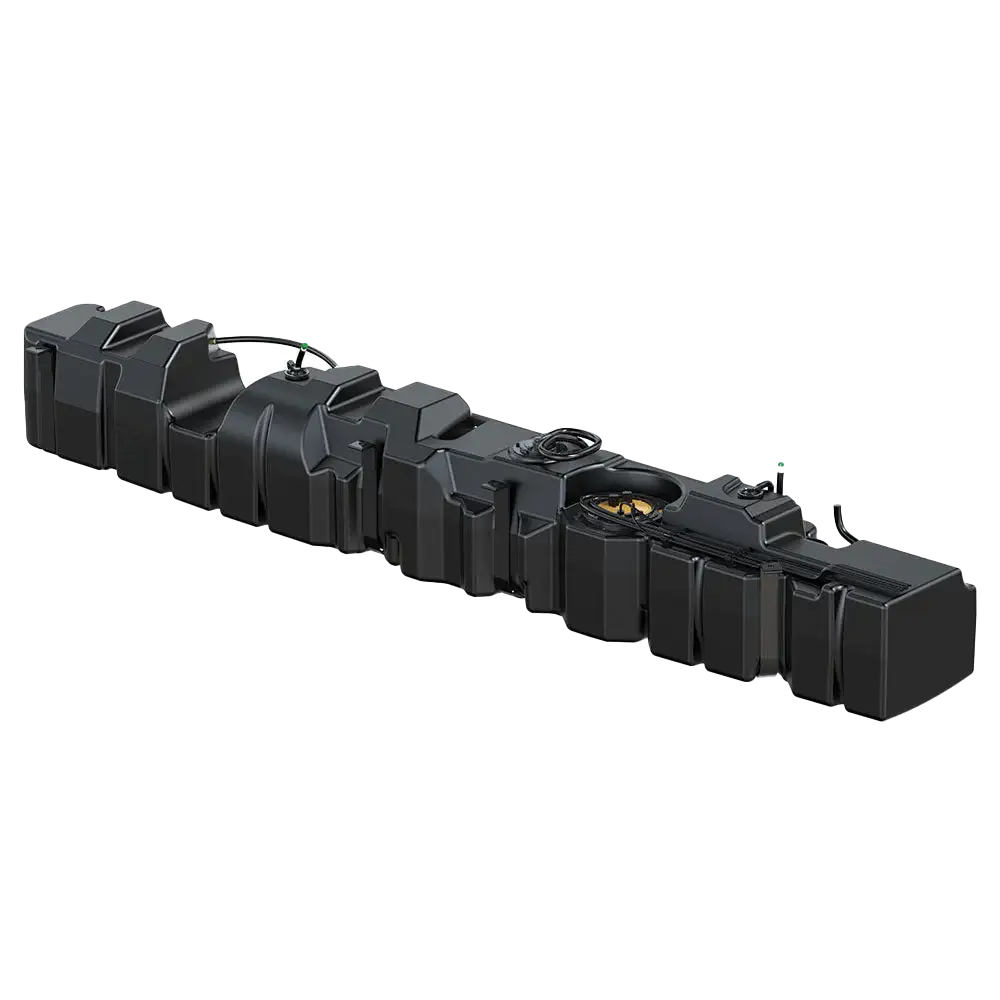

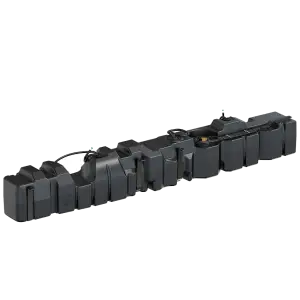

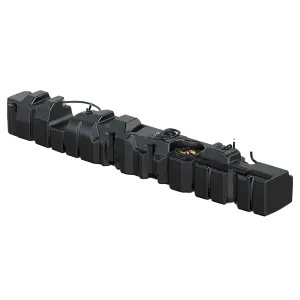

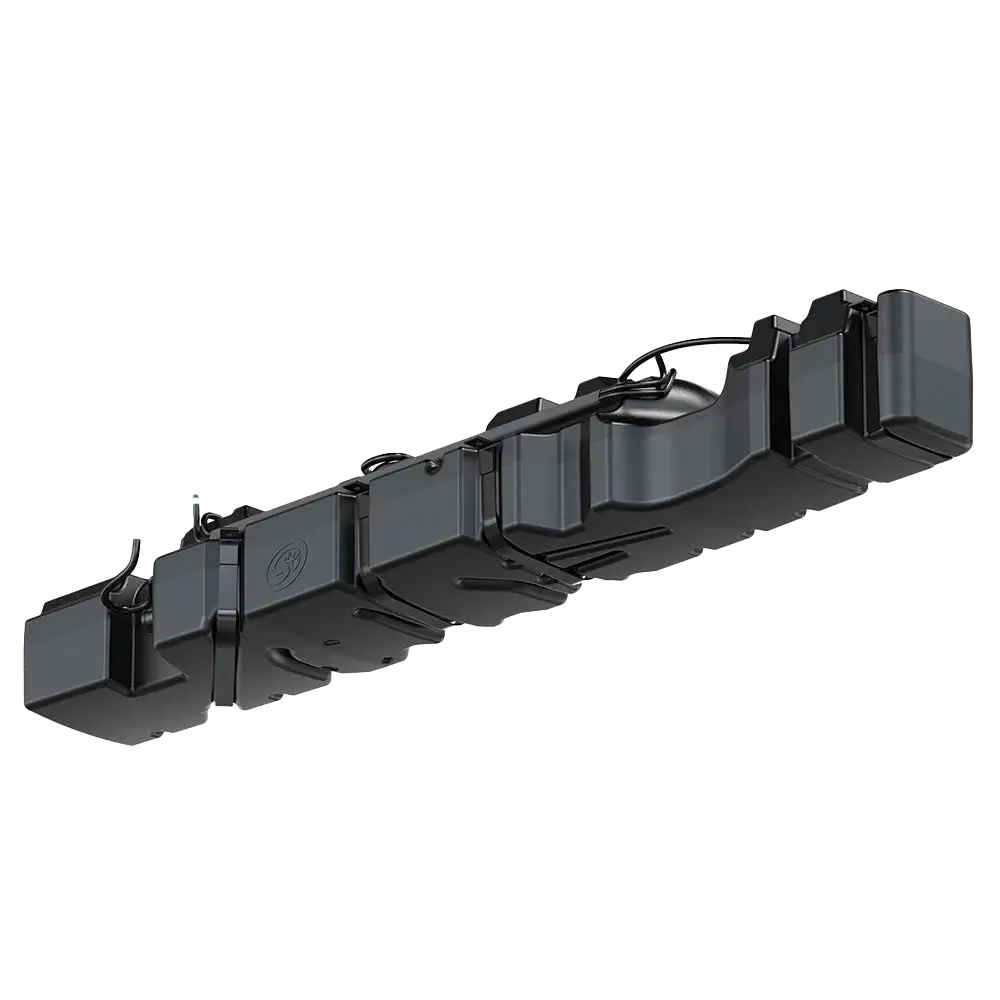

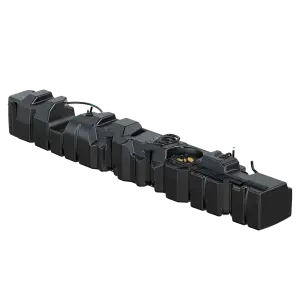

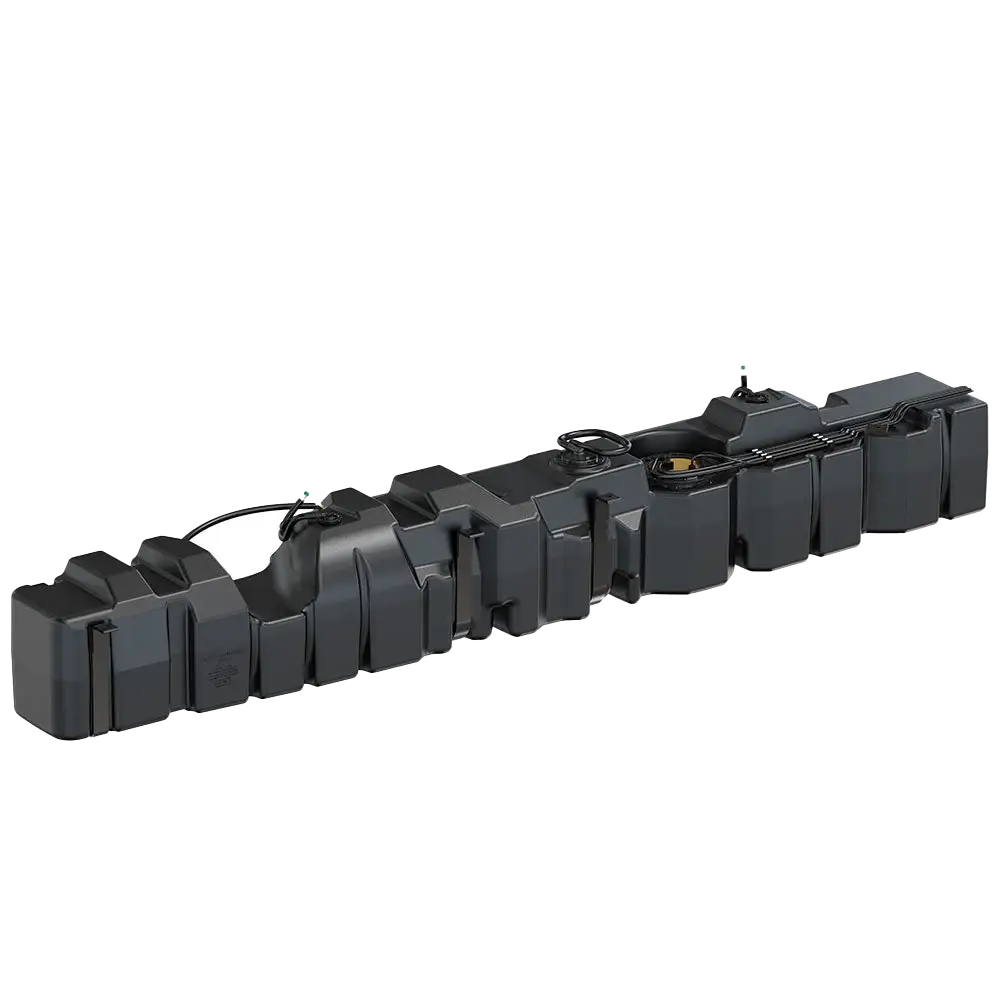

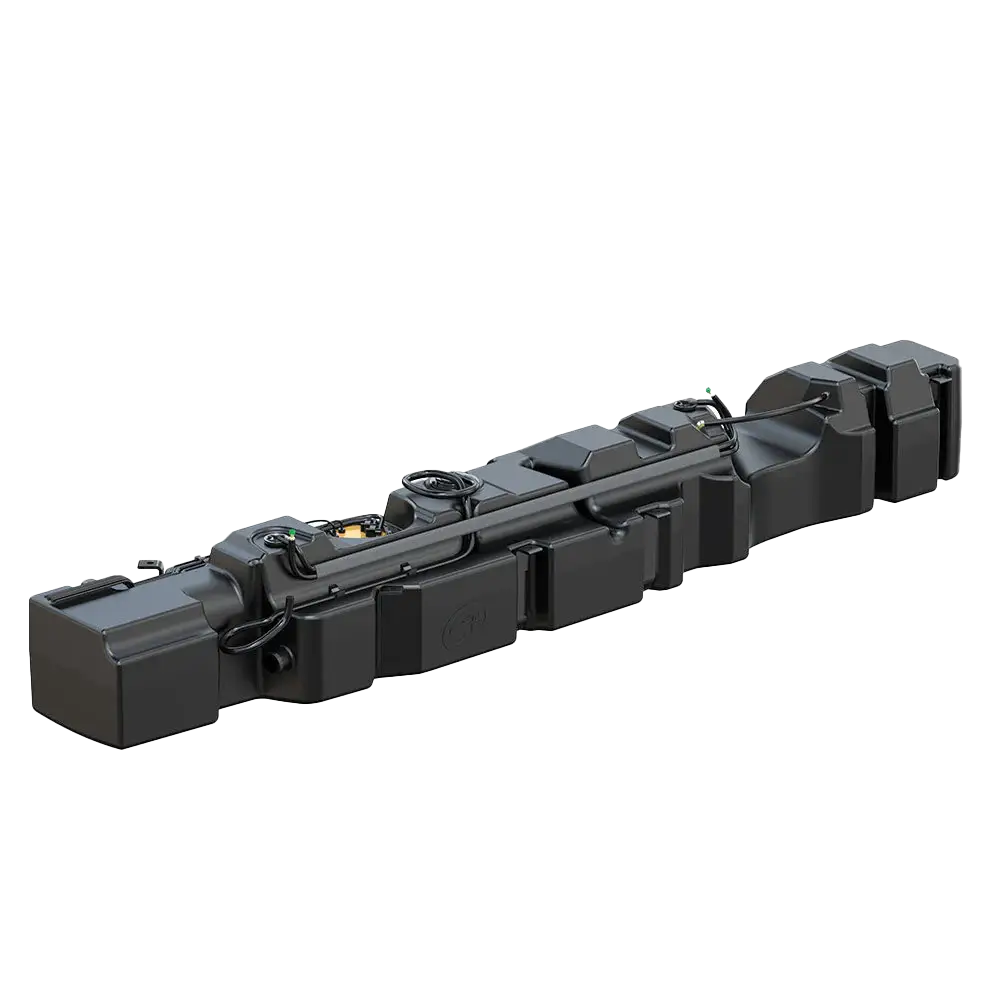

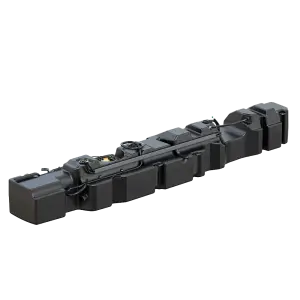

10-1025 | S&B Filters 47 Gallon Replacement Fuel Tank (2019-2022 Sprinter 2500, 3500 Diesel | 144" & 170" Wheel Base)

This tank will NOT fit:
144” Dually Vans
170” Crew Vans (1 row of seats)
With plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.

Important:
The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap).
Please call S&B, send a message with your VIN, or consult with your installer to confirm if your van has J51.

DIMENSIONS | 98.28" X 15.41" X 14.17"
DRAIN | NO
GROUND CLEARANCE COMPARE TO OE TANK | 1.5"
OEM CAPACITY | 24 GALLONS
SENDING UNIT | OE
STRAPS INCLUDED | YES
SUMP |NO
S&B CAPACITY (APPROXIMATE) | 47 GALLONS
TANK TYPE | MIDSHIP
WEIGHT DRY | 45LBS

PLUG AND PLAY INSTALLATION
The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 47 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward (10.2 inches) and rearward (24.5 inches) of the original tank.

YOUR FUEL GAUGE WORKS AS NORMAL.
Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. The guage will stay on full for the first 5-7 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (47 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty.

BUILT TO LAST. BACKED BY A LIFETIME WARRANTY.
Made out of ¼” thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.
