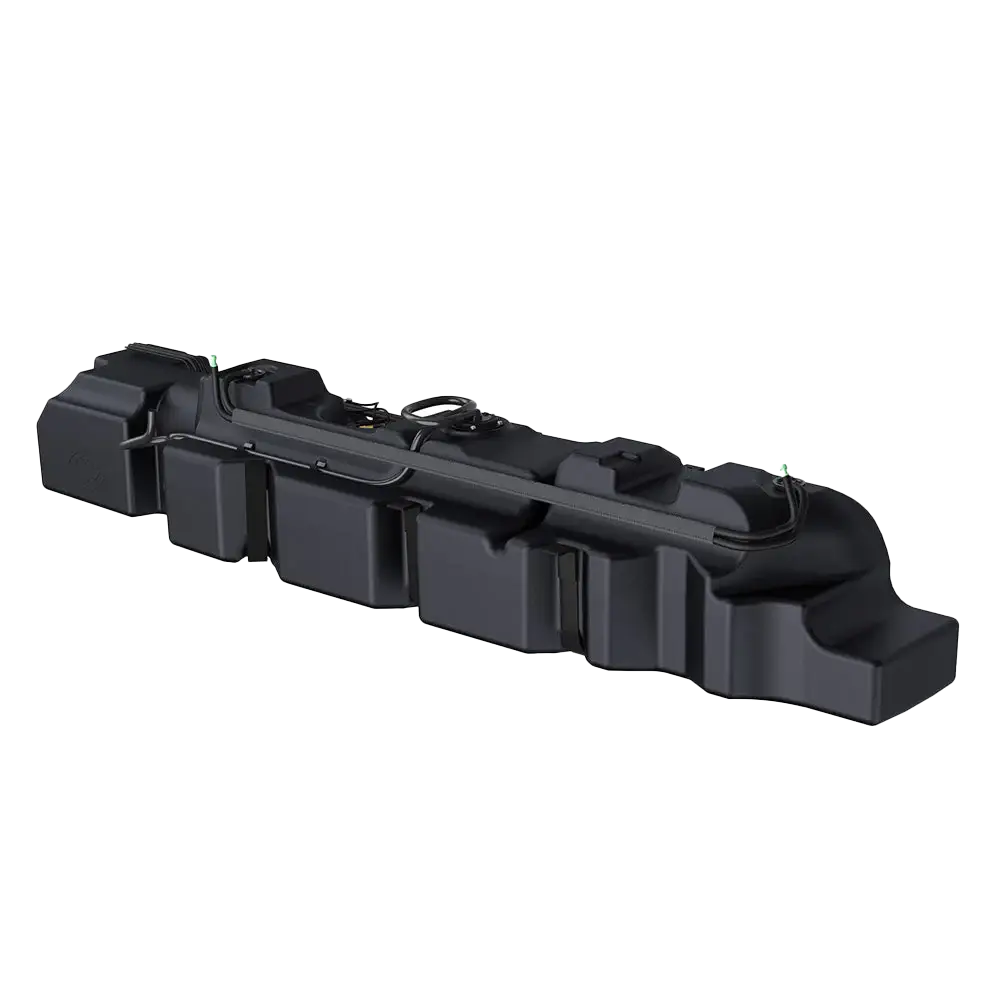

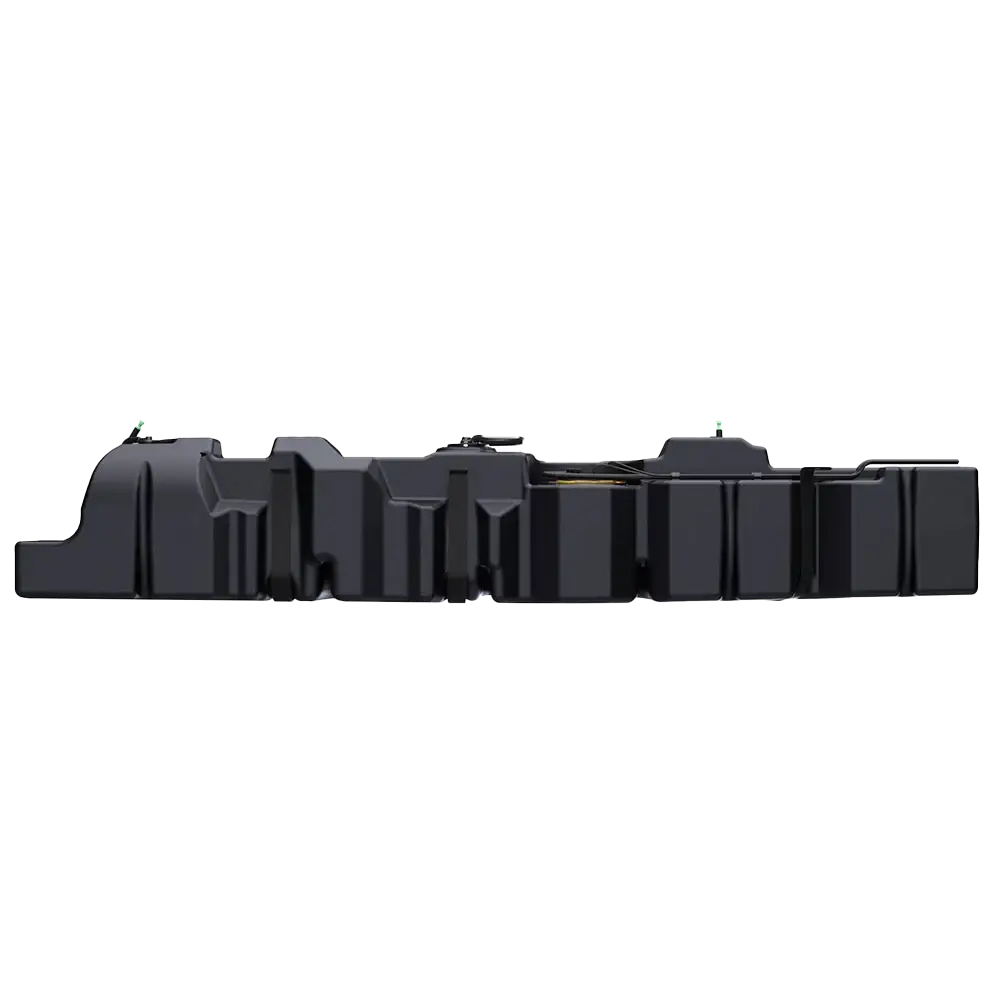

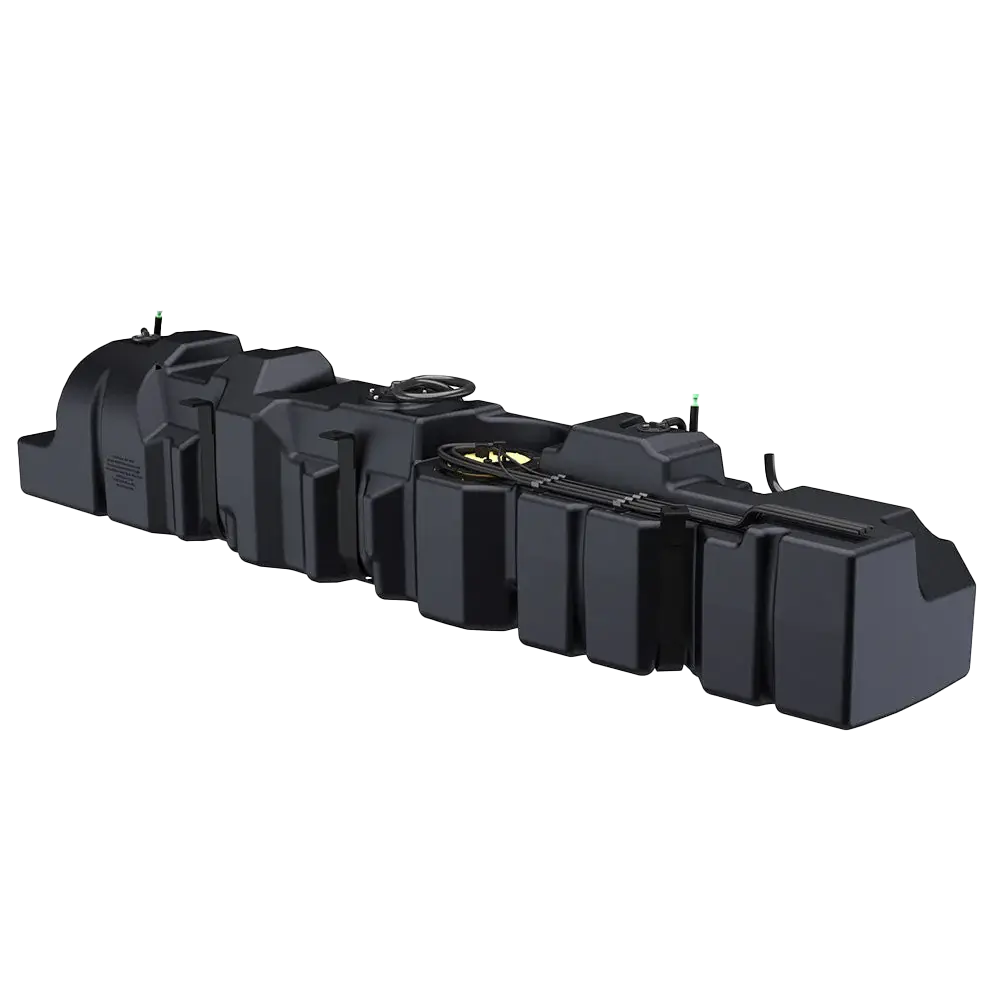

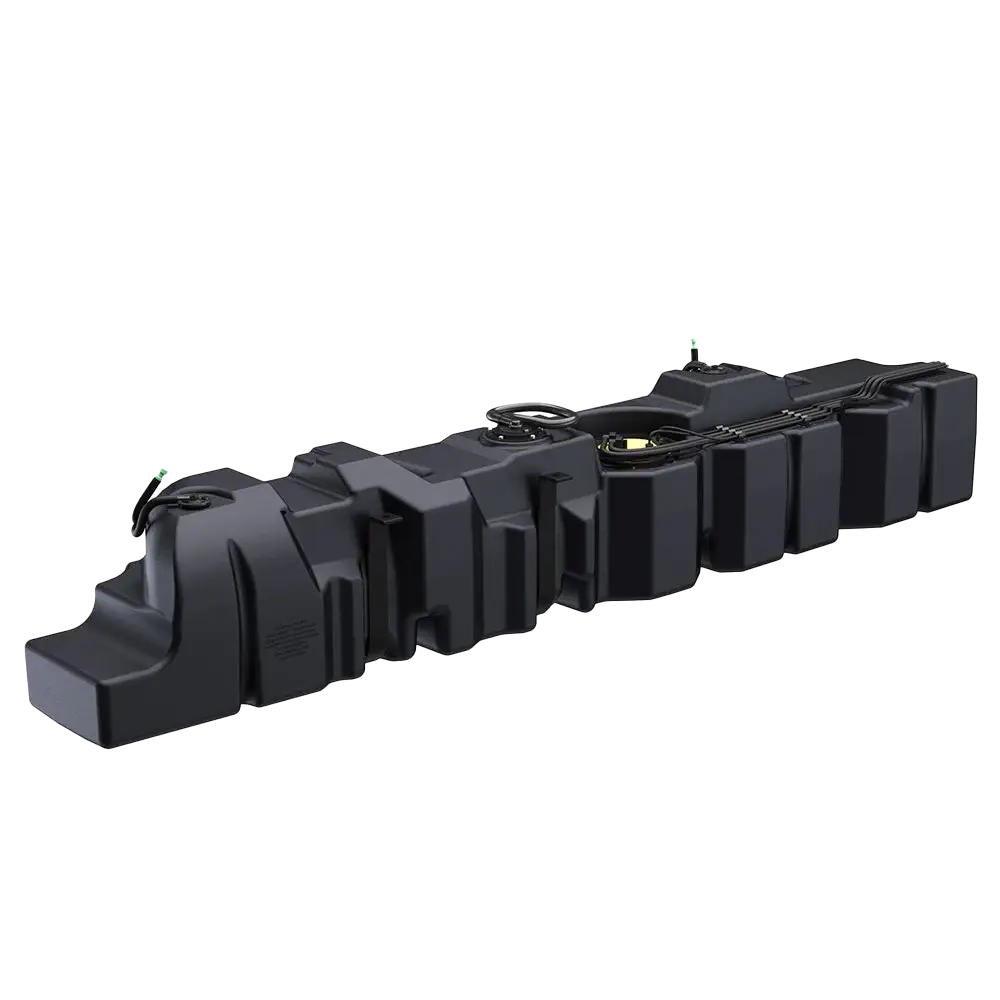

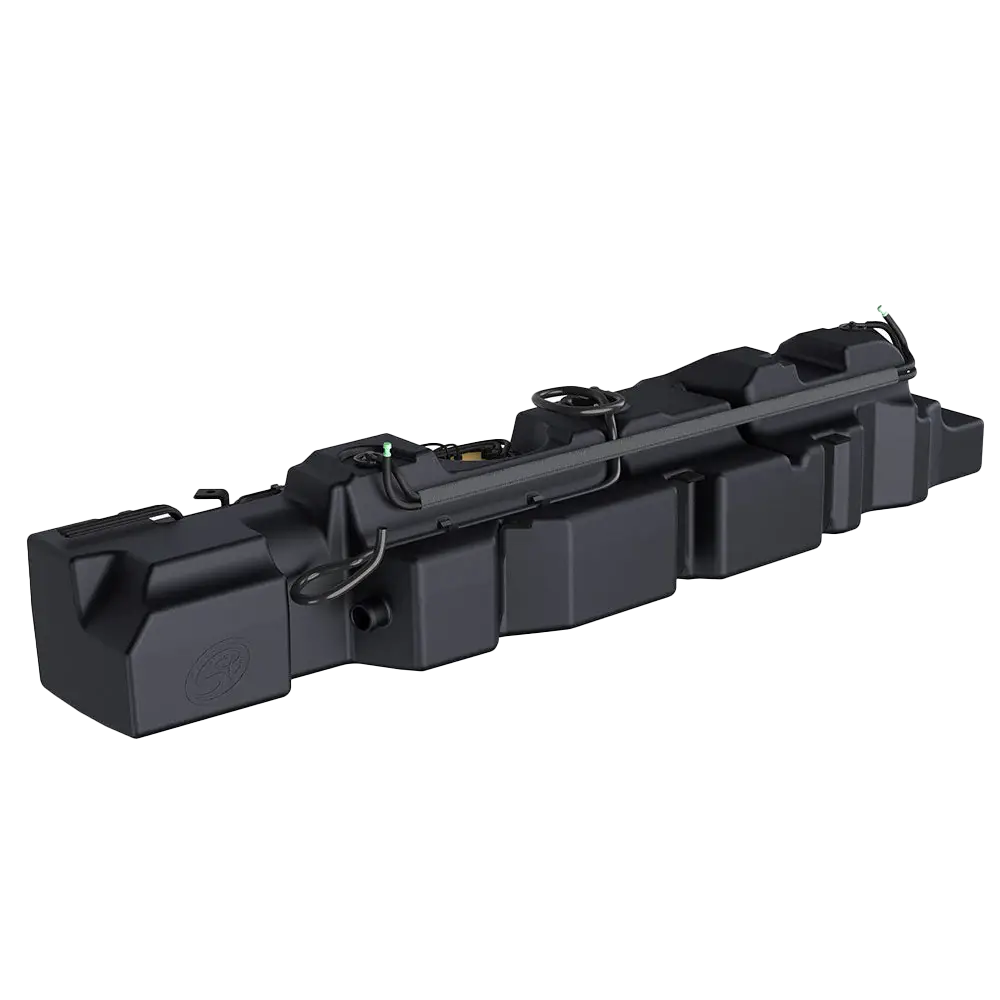

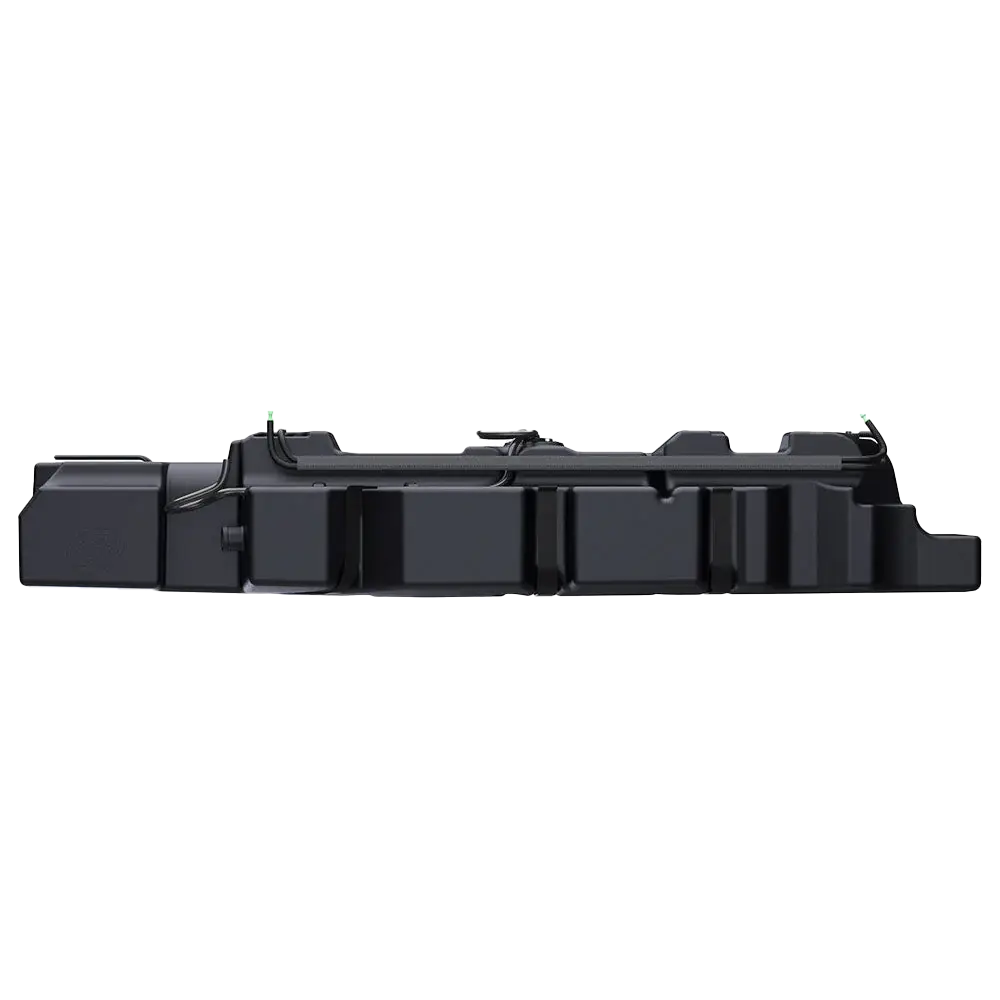

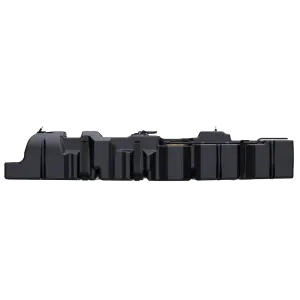

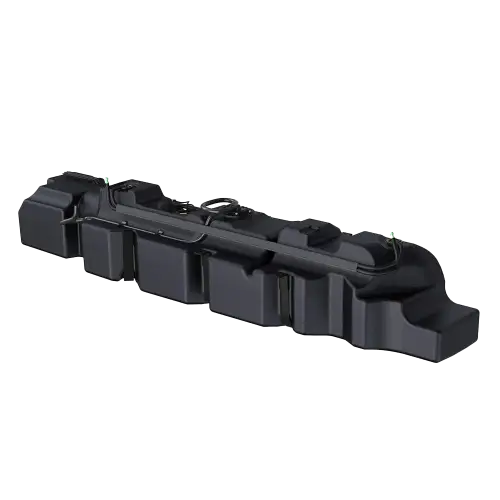

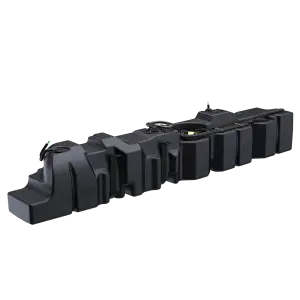

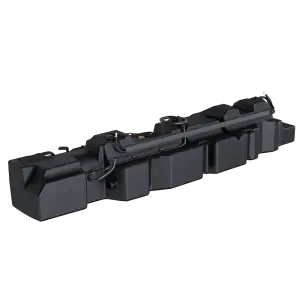

10-1027 | S&B Filters 40 Gallon Replacement Fuel Tank (2019-2022 Winnebago Revel 3.0L Diesel)

Fits 170" & 144" Crew Vans, Sanctuary, Tranquility, Entegra Launch, Jayco Terrain, 2020+ Revels with AGM and Lithium batteries and any builds that have plumbing or interference behind the original fuel tank.

Important:
The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap).
All 2020+ Revels should have been built with this option but please confirm by sending us your vin or consulting with your installer.

DIMENSIONS | 79.91 X 15.94 X 14.18
DRAIN | NO
GROUND CLEARANCE COMPARE TO OE TANK | 1.5"
OEM CAPACITY | 24 GALLONS
SENDING UNIT | OE
STRAPS INCLUDED | YES
SUMP |NO
S&B CAPACITY (APPROXIMATE) | 40 GALLONS
TANK TYPE | MIDSHIP
WEIGHT DRY | 37LBS

PLUG AND PLAY INSTALLATION
The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 40 gallon tank. The tank mounts in the stock location using the included straps. The tank occupies the space forward (11.2 inches) and rearward (5.2 inches) of the original tank.

YOUR FUEL GAUGE WORKS AS NORMAL.
Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. The guage will stay on full for the first 5-7 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (40 gallons) you will have 800 miles to empty but your vehicle will show you have 480 miles to empty.

A LIFETIME WARRANTY.
Made out of ¼” thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.
