BDS1521H | BDS Suspension 4 Inch Lift Kit With Radius Arm For Ford F-250 / F-350 Super Duty 4WD | 2017-2019 | Gas, 5 Inch Block With 2 Leaf Main, NX2 Nitro Series Shocks
4 Inch Lift Kit With Radius Arm For Ford F-250 / F-350 Super Duty 4WD | 2017-2019 | Gas, 5 Inch Block With 2 Leaf Main, NX2 Nitro Series Shocks
Description
Improve the ride on your 2017-2019 Ford F250 and F350 Super Duty gas powered truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

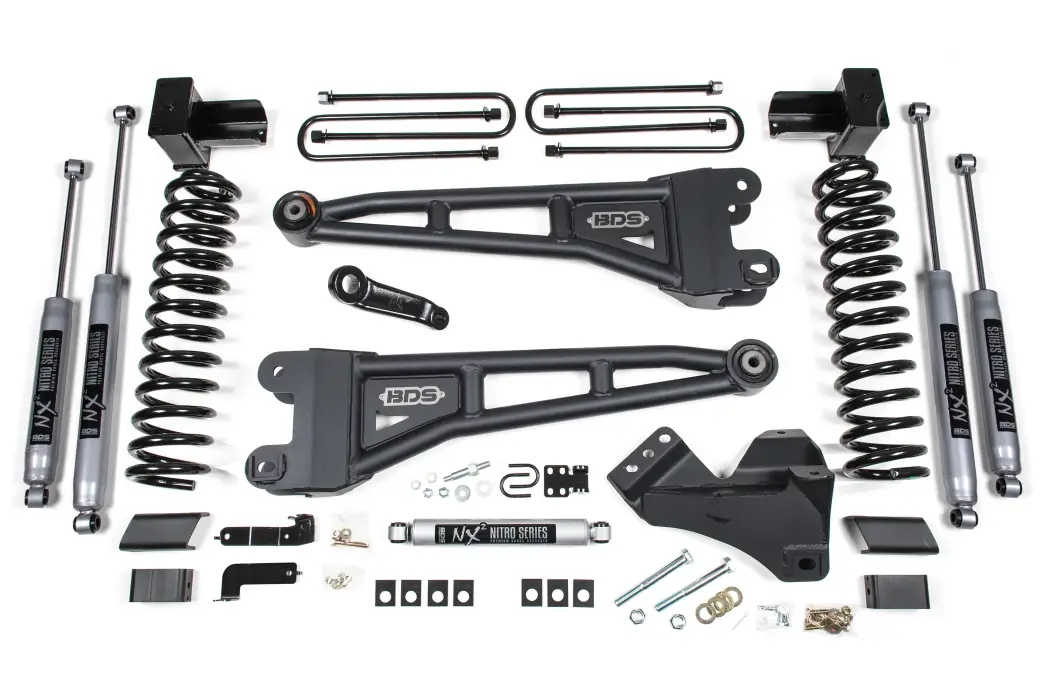

Up front the lift kit includes gasoline-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Features & Benefits
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option
5 Inch Block
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.
Leaf Springs
- Reduces axle wrap and creates a more controlled and stable feel
- Multi-leaf progressive design for smooth ride
- Maintains factory payload weight ratings
- Anti-friction pads provide a smooth and quiet ride
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Important Notes
- Front exhaust modification may be required to clear front drive shaft
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- 37 x 12.50 tires may require minor trimming.
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
Installation
Est. Install Time :
4-5 hrsDifficulty Level :
ModerateSpecialty Tools Needed :
Torque Wrench, Pitman Arm Puller
Specification
- Front Lift Method : Coil Spring
- Rear Lift Method : Block
- Shocks Included : Yes
- Front Lift Height : 4"
- Rear Lift Height : 5"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2017 | Ford | F-250 Super Duty | ALL | 4WD | FLEX | N/A | ALL |
2017 | Ford | F-350 Super Duty | King Ranch | 4WD | FLEX | N/A | ALL |
2017 | Ford | F-350 Super Duty | Lariat | 4WD | FLEX | N/A | ALL |
2017 | Ford | F-350 Super Duty | Platinum | 4WD | FLEX | N/A | ALL |
2017 | Ford | F-350 Super Duty | XL | 4WD | FLEX | N/A | ALL |
2017 | Ford | F-350 Super Duty | XLT | 4WD | FLEX | N/A | ALL |
2018 | Ford | F-250 Super Duty | King Ranch | 4WD | FLEX | N/A | ALL |
2018 | Ford | F-250 Super Duty | Lariat | 4WD | FLEX | N/A | ALL |
2018 | Ford | F-250 Super Duty | Platinum | 4WD | FLEX | N/A | ALL |
2018 | Ford | F-250 Super Duty | XL | 4WD | FLEX | N/A | ALL |
2018 | Ford | F-250 Super Duty | XLT | 4WD | FLEX | N/A | ALL |
2018 | Ford | F-350 Super Duty | King Ranch | 4WD | FLEX | N/A | ALL |
2018 | Ford | F-350 Super Duty | Lariat | 4WD | FLEX | N/A | ALL |
2018 | Ford | F-350 Super Duty | Platinum | 4WD | FLEX | N/A | ALL |
2018 | Ford | F-350 Super Duty | XL | 4WD | FLEX | N/A | ALL |
2018 | Ford | F-350 Super Duty | XLT | 4WD | FLEX | N/A | ALL |
2019 | Ford | F-250 Super Duty | King Ranch | 4WD | FLEX | N/A | ALL |
2019 | Ford | F-250 Super Duty | Lariat | 4WD | FLEX | N/A | ALL |
2019 | Ford | F-250 Super Duty | Platinum | 4WD | FLEX | N/A | ALL |
2019 | Ford | F-250 Super Duty | XL | 4WD | FLEX | N/A | ALL |
2019 | Ford | F-250 Super Duty | XLT | 4WD | FLEX | N/A | ALL |
2019 | Ford | F-350 Super Duty | King Ranch | 4WD | FLEX | N/A | ALL |
2019 | Ford | F-350 Super Duty | Lariat | 4WD | FLEX | N/A | ALL |
2019 | Ford | F-350 Super Duty | Platinum | 4WD | FLEX | N/A | ALL |
2019 | Ford | F-350 Super Duty | XL | 4WD | FLEX | N/A | ALL |
2019 | Ford | F-350 Super Duty | XLT | 4WD | FLEX | N/A | ALL |
Component List
1 BDS013517 2017-2019 F250 5" Rear Block Kit-2LeafMain
1 BDS033412 2005-2022 Ford F250/F350 Gas 4" Coil Spring Kit
1 BDS123251 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
1 BDS85431 2017-2023 F250/F350 Single Stabilizer
2 BDS85700 Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2
2 BDS85718 Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1
Tire & Wheels
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace
Details
- BDS1521H
- BDS1521H
- 840416402544
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
