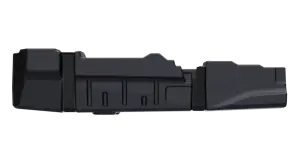

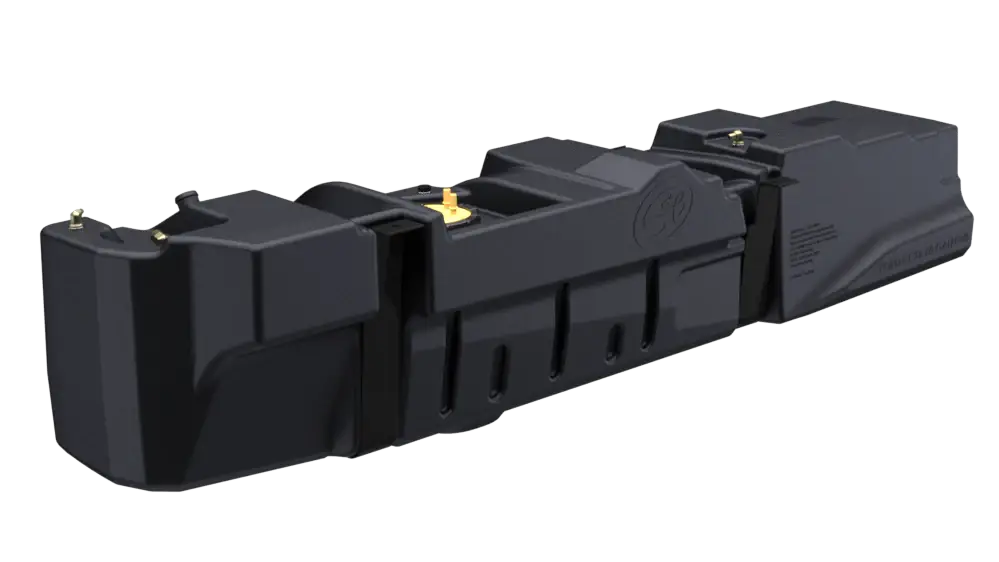

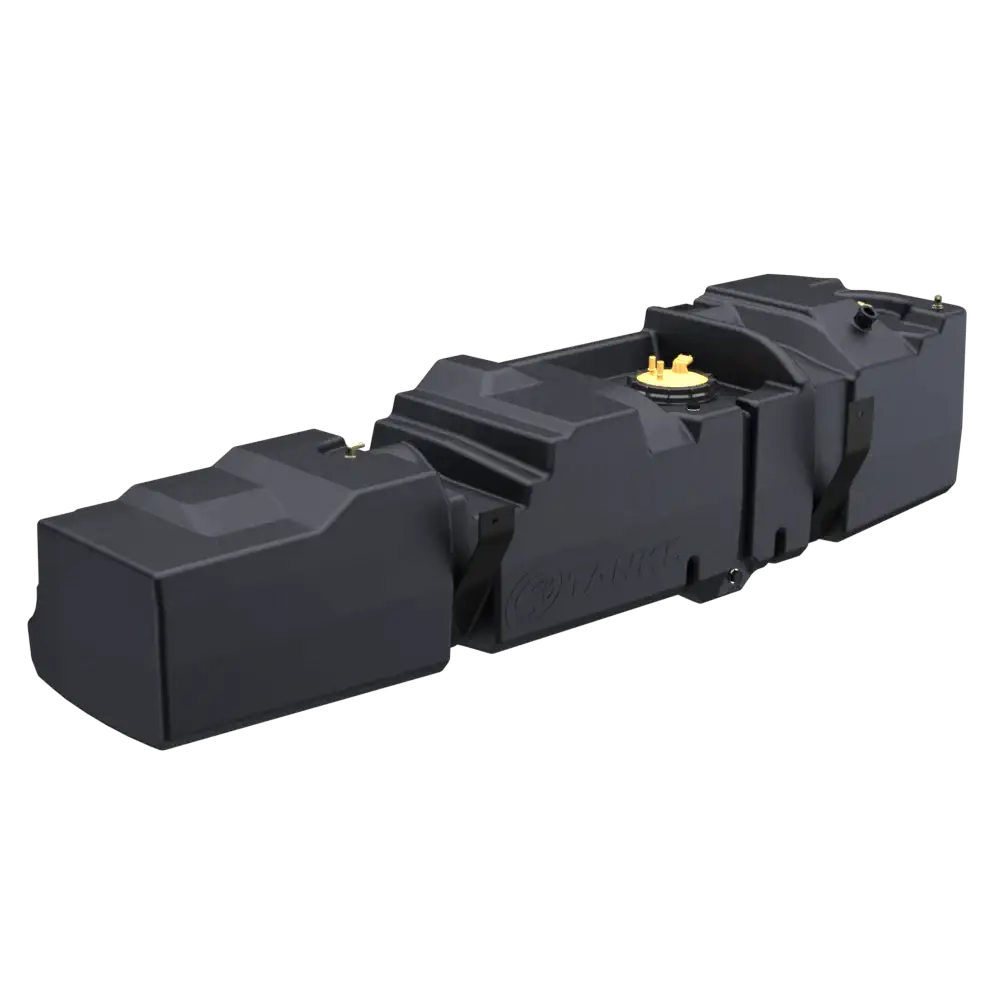

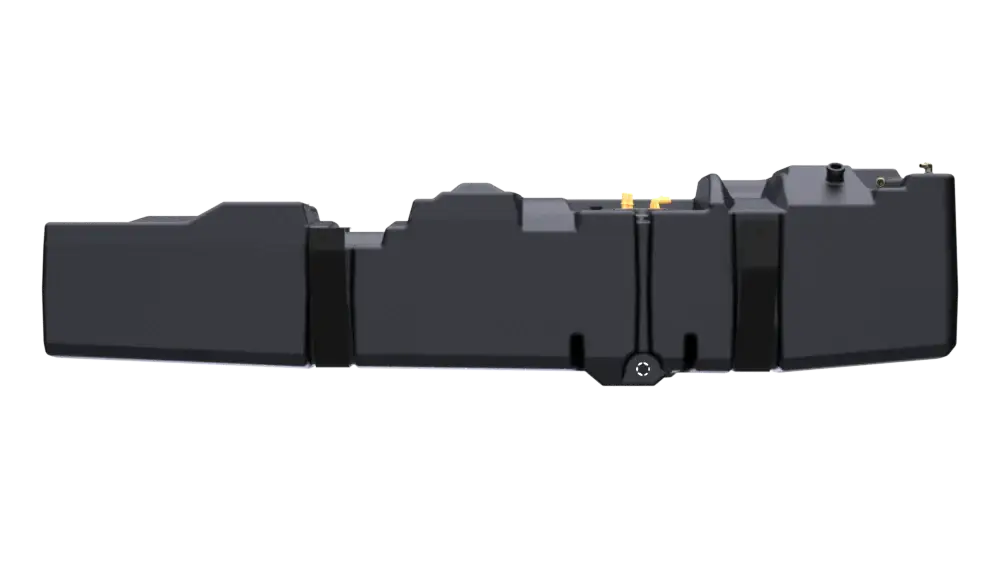

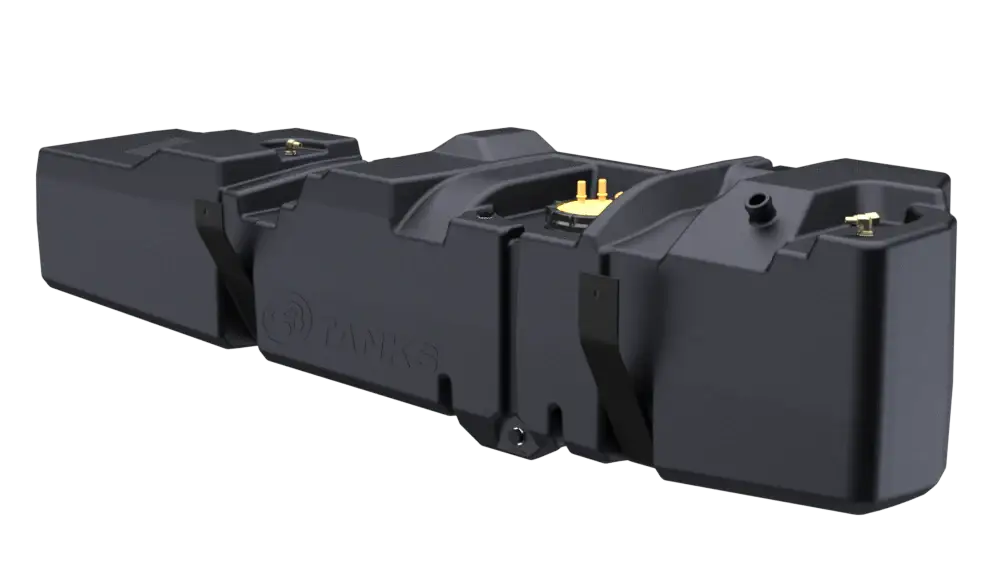

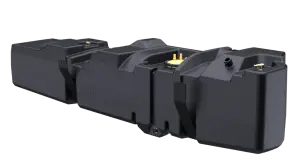

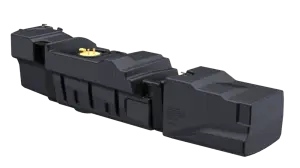

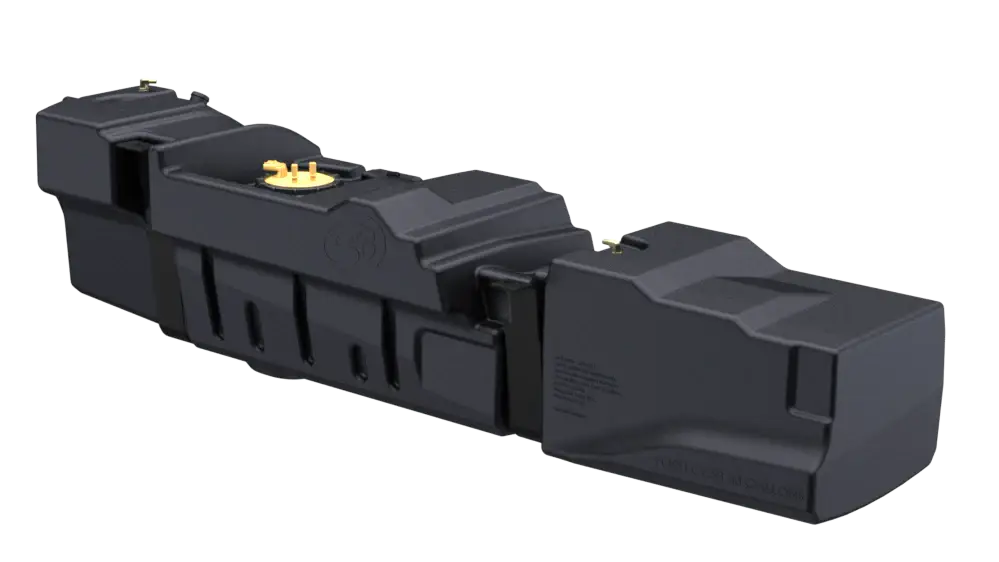

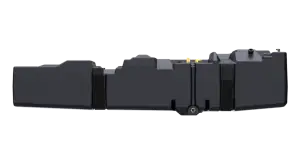

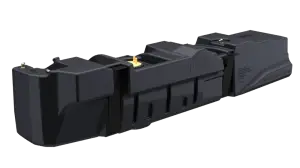

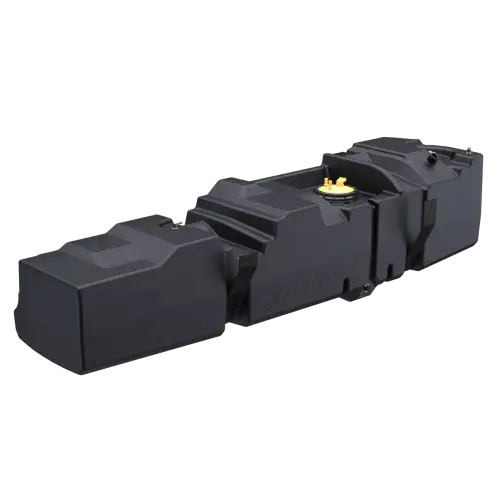

10-1011 | S&B Filters 60 Gallon Replacement Tank (1999-2007 F250, F350 Super Duty 6.0L, 7.3L Crew Cab Short Bed)

Important Notes:
The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically. This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.

If your truck has the V shaped crossmember connected to the carrier-bearing crossmember(see important note in instructions), the S&B Tank will not fit with this in place.

S&B Sump Fittings/Drain Plug fittings are required when using our sump feed/return port or after drilling out the bottom port to use as a drain. Fittings are under related products.

COMPATIBLE WITH GOOSENECK AND 5TH WHEEL | YES
COMPATIBLE WITH OE SKID PLATE | NO
DIMENSIONS | 79" X 17.37" X 19.37"
DRAIN | YES
EMBEDDED FITTING THREAD SIZE | 1/2" NPT
GROUND CLEARANCE COMPARE TO OE TANK | 2.9" LOWER THAN STOCK.
OEM CAPACITY | 29 GALLONS
SENDING UNIT | OE
STRAPS INCLUDED | YES
SUMP | YES
S&B CAPACITY (APPROXIMATE) | 60 GALLONS
TANK TYPE | MIDSHIP
TRANSFER PUMP READY | YES
WEIGHT DRY | 45LBS
