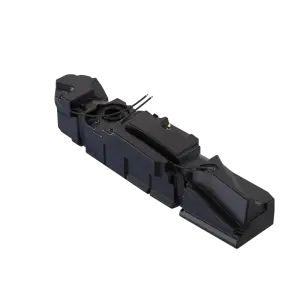

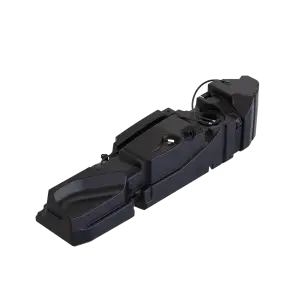

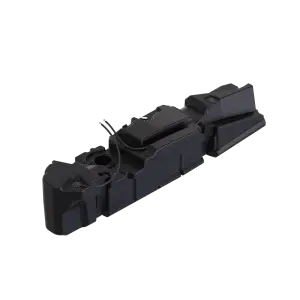

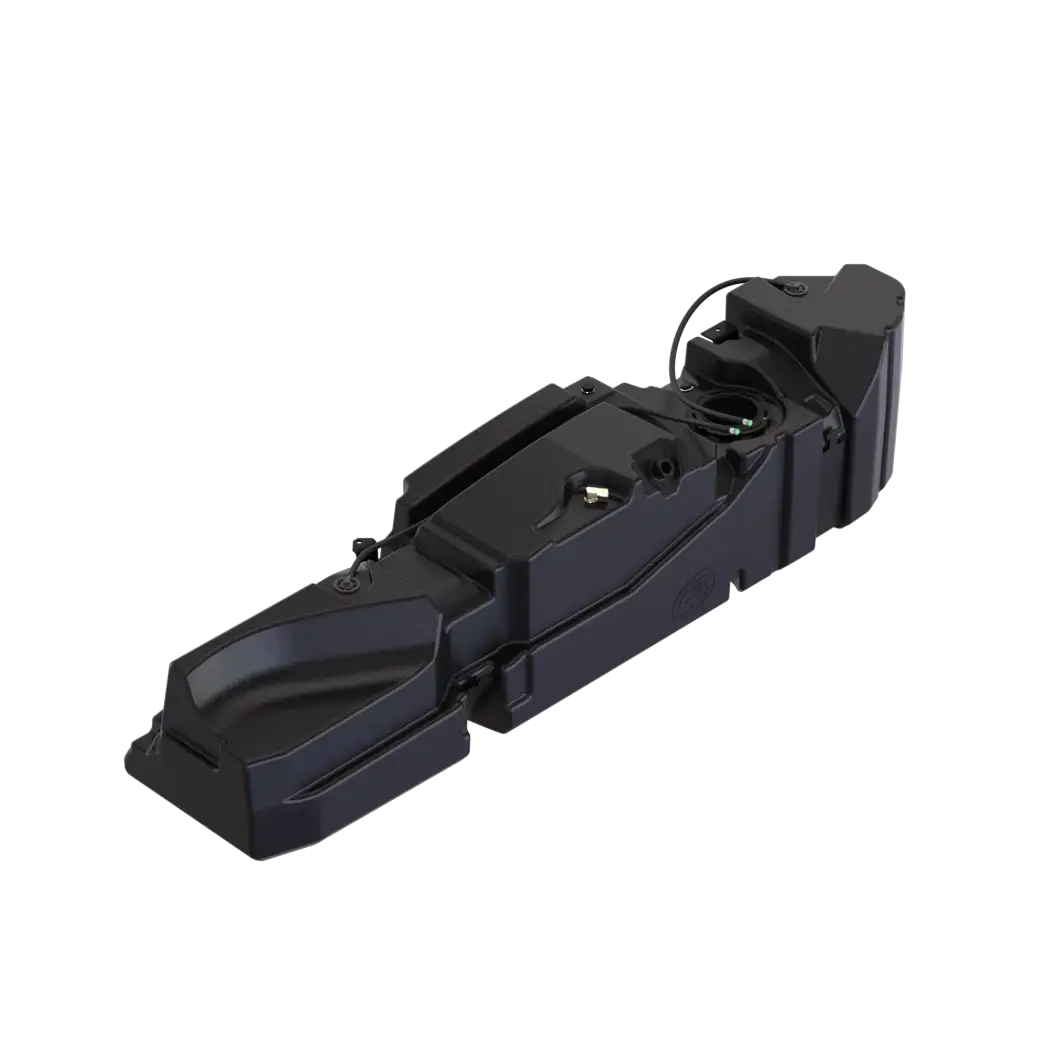

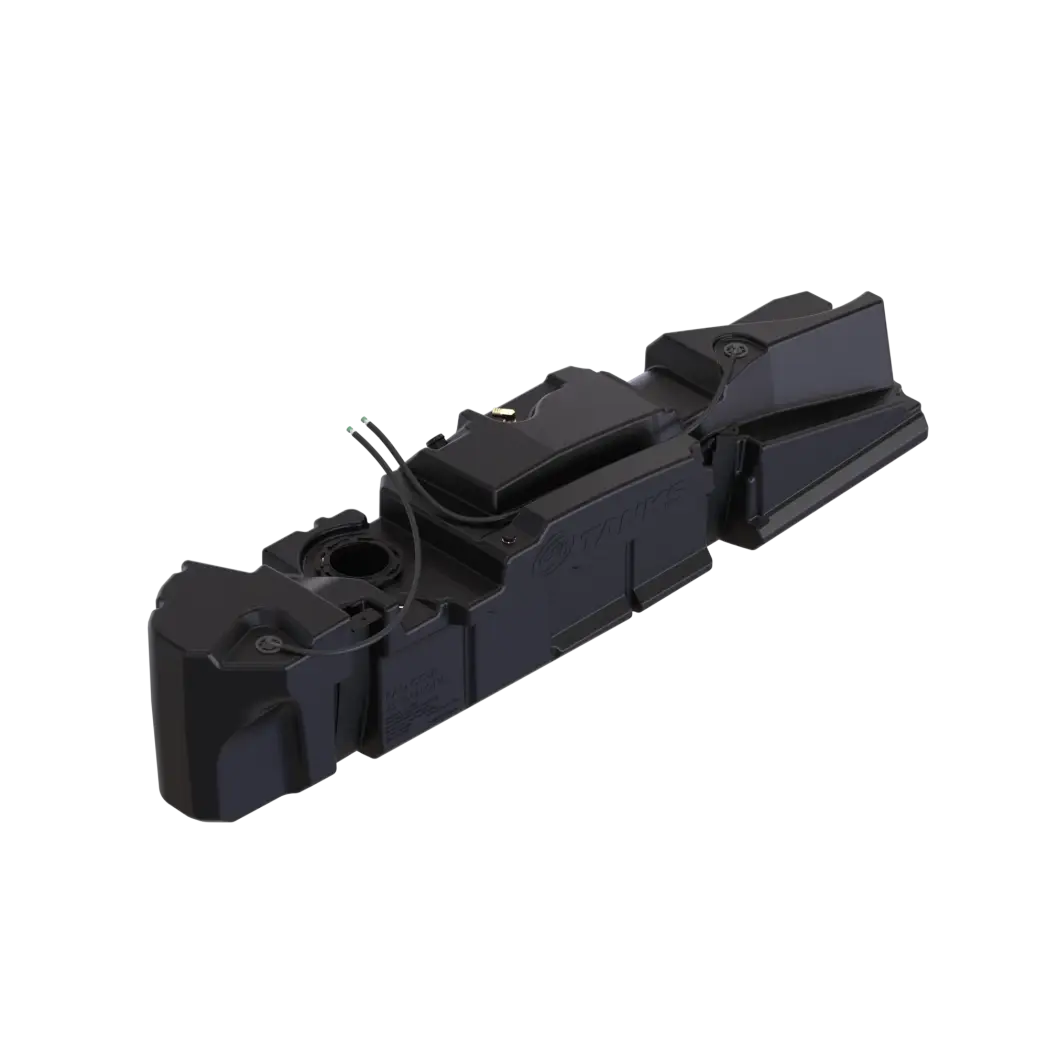

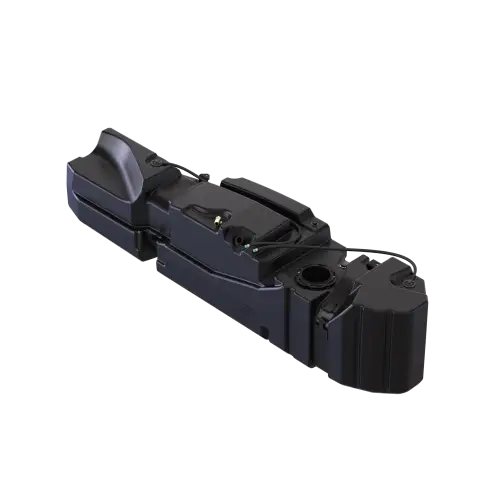

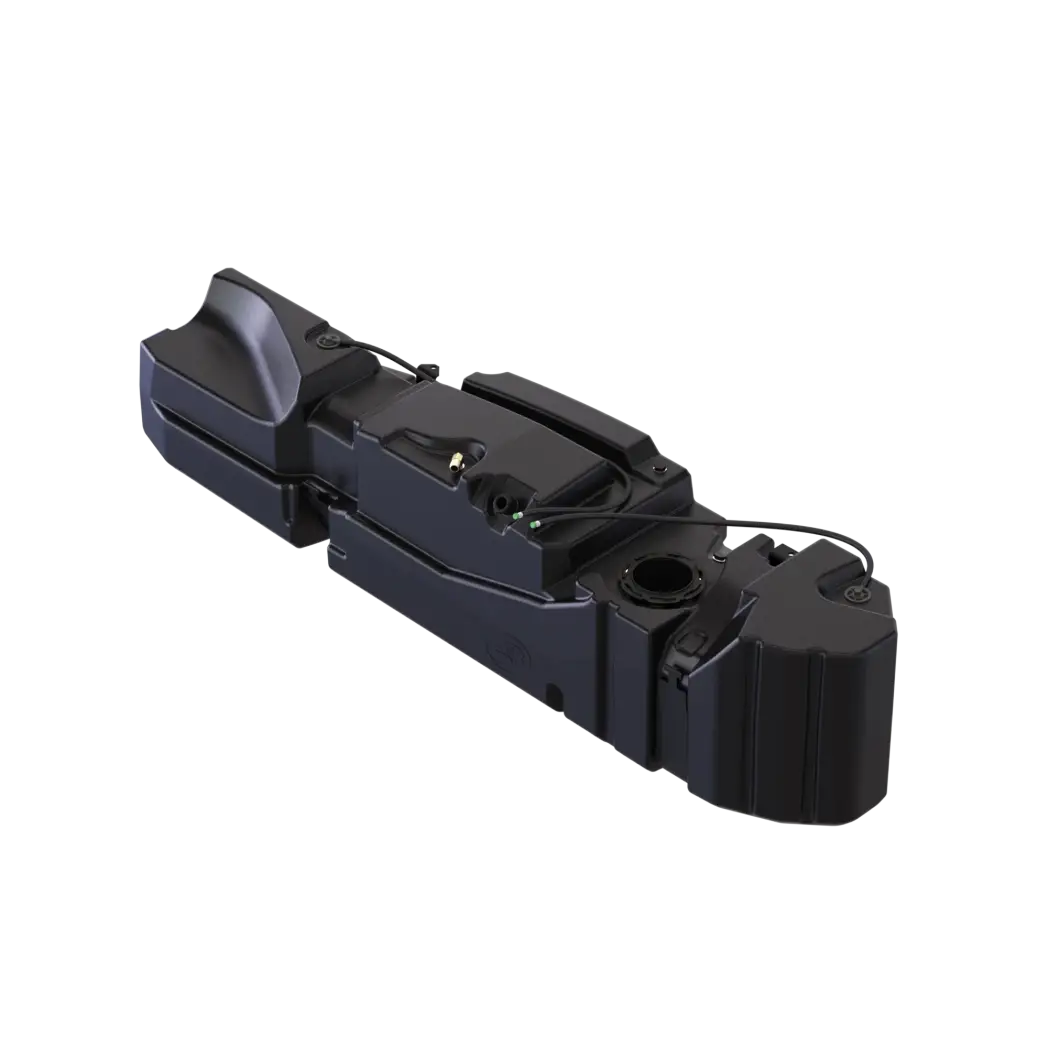

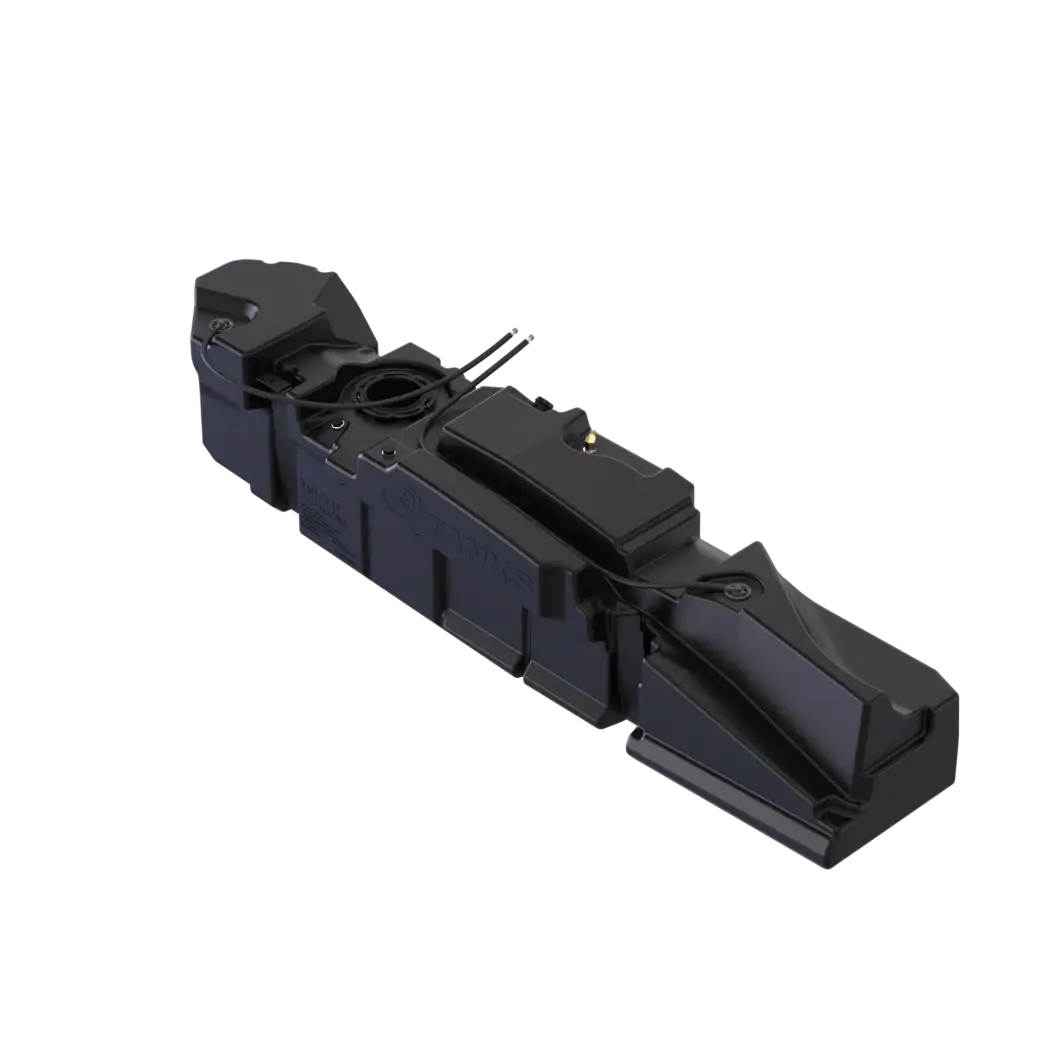

10-1018 | S&B Filters 60 Gallon Replacement Fuel Tank (2005-2012 Ram 2500, 3500 Pickup Diesel Crew Cab Long Bed)

Important Notes:
The fuel gauge will continue to work however the distance to empty will not be accurate. There is no way to update the fuel tank size for the distance to empty to be accurate.
OEM sending unit & float are reused because the S&B Tank is taller the gauge will stay on full for the first 8-10 gallons.
The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically.

COMPATIBLE WITH GOOSENECK AND 5TH WHEEL | YES
COMPATIBLE WITH OE SKID PLATE | NO
DIMENSIONS | 63.62" X 17.84" X 22.07"
DRAIN | NO
EMBEDDED FITTING THREAD SIZE | 1/2" NPT
GROUND CLEARANCE COMPARE TO OE TANK | 2.4 " LOWER
SENDING UNIT | OE
STRAPS INCLUDED | YES
SUMP | NO
S&B CAPACITY (APPROXIMATE) | 52 GALLONS
TANK TYPE | MIDSHIP
TRANSFER PUMP READY | YES
WEIGHT DRY | 40LBS

HOLDS 2 MORE GALLONS THAN COMPETITOR TANKS!
S&B's 52-gallon fuel tank directly replaces the OEM 31-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 2 more gallons than competitor tanks allowing you to save time, go futher, and get more out of your truck! Go big or go home!

LOCKED IN FOR A TRUE SEAL.
The S&B Fuel Tank was designed to use the OEM locking ring. This ensures a perfect
seal and securely retains the fuel pump onto the tank.

BUILT TO LAST.
S&B Tanks are made out of an extremely strong crosslink polyethylene and backed by our lifetime warranty.
