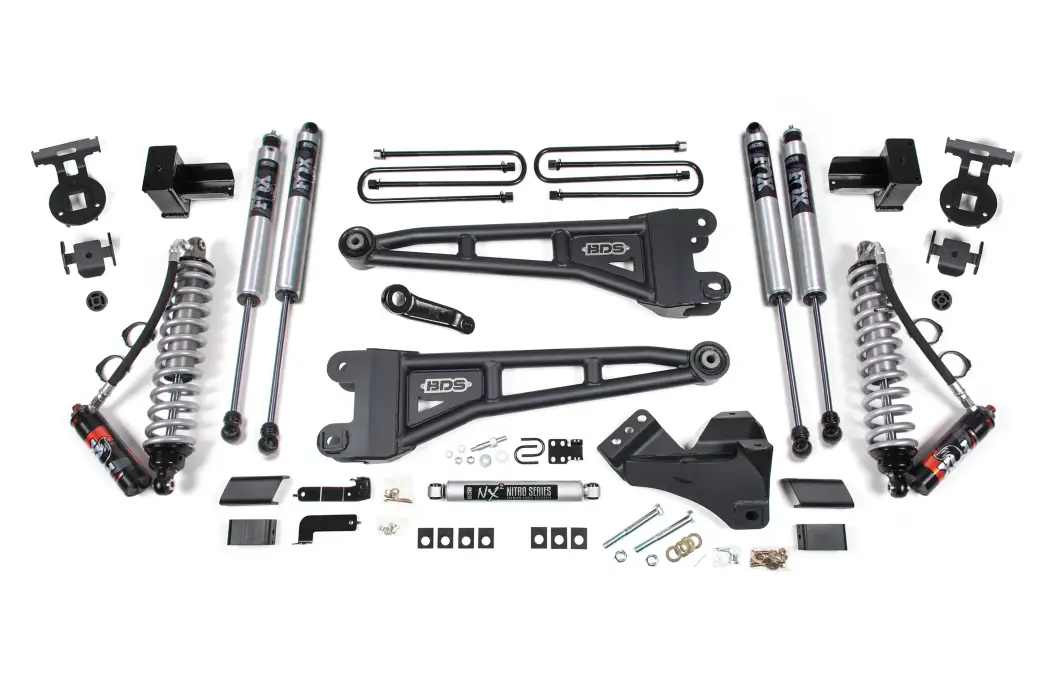

BDS1524FPE | BDS Suspension 4 Inch Lift With Radius Arm Fox 2.5 Performance Elite Coil-over Conversion For Ford F-250 / F-350 Super Duty 4WD | 2017-2019 | Diesel, Rear 5 Inch Block With 3 Leaf Main

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Steering Correction

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Rear Lift Option

5 Inch Block

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

Leaf Springs

• Reduces axle wrap and creates a more controlled and stable feel
• Multi-leaf progressive design for smooth ride
• Maintains factory payload weight ratings
• Anti-friction pads provide a smooth and quiet ride

Important Notes

1. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
2. 37 x 12.50 tires may require minor trimming.
3. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
4. If your truck is equipped with a factory rear sway bar add: 123005
