33340 | Rough Country 4 Inch Lift Kit | M1 Struts | Ram 1500 4WD (2012-2018 & Classic)

2012 - 2023 Ram 1500 Pickup

33340
Pricing: $2,109.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

4 Inch Lift Kit | Ram 1500 4WD (2012-2018 & Classic)

Give your RAM 1500 the perfect blend of performance, protection, and style with Rough Country's 4-inch Suspension Lift. Designed to offer an affordable way to maximize off-road performance and run up to 35-inch tires, these kits offer high quality, heavy-duty equipment for new model RAM 1500's. Utilizing heavy-duty, laser cut, steel equipment engineered by Rough Country, these 4-inch Suspension Lifts are complete kits that include everything needed for outstanding off-road performance. High-clearance front and rear cross-members provide enough room for off-road climbs and runs. A heavy-duty skid plate shields the vehicle's differential, protecting you from hazardous terrain. A durable set of driver and passenger side lifted cast knuckles are also included, helping to promote proper geometry once the vehicle is lifted. For true trailblazers, this kit also ships with a set of rear N3 Nitrogen-charged shock absorbers - valved specifically for a blend of on and off-road performance. Includes Rough Country's Lifetime Replacement Guarantee!

Features

Give your RAM 1500 the perfect blend of performance, protection, and style with Rough Country's 4-inch Suspension Lift. Designed to offer an affordable way to maximize off-road performance and run up to 35-inch tires, these kits offer high quality, heavy-duty equipment for new model RAM 1500's.
  • Maintains factory ride quality.
  • Increased ground clearance.
  • Levels the front with the rear of the vehicle.
  • Optional N3 Loaded Struts

  • Includes pre-loaded coil
  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty
  • Optional V2 Monotube Shocks

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

Fitment Notes

  • Will fit Eco Diesel engine models.
  • Kit is not recommended for AWD models.
  • Does NOT fit models with factory air ride suspension.
  • "TRX" models will achieve approximately 1" of additional lift.
  • Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.

Specifications

  • Est. Install Time: 4-6 hours

Application List

2012 - 2018 Ram 1500
2019 - 2023 Ram 1500 Classic

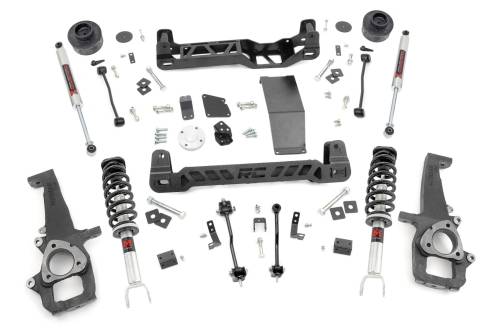

Components

Front:
Lifted knuckles
(2) Upper strut spacers
Optional: (2) Premium N3 Loaded Struts
Front crossmember
Rear crossmember
Differential drop brackets
Driveshaft spacer
Sway-bar links
Skid plate
Hardware
Rear:
Upper coil spacers
Sway-bar links
Bump-stop brackets
Brake line brackets
Hardware
Shocks:
(2) Premium N3 (Rear)

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 230.7 lbs.
  • Free Ground Shipping | Exclusions Apply*
