11055 | Rough Country 5 Inch Lift Kit Torsion Drop Vertex Shocks (2020-2024 Silverado, Sierra 2500 HD 4WD)
2020-2024 Chevrolet Silverado 2500 HD 4WD | 2020-2024 GMC Sierra 2500 HD 4WD
Description
5 Inch Lift Kit | Torsion Drop | Vertex Reservoir Shocks | Chevy/GMC 2500HD (20-24)
Ultimate Upgrade. Give your GM 2500 an unbeatable stance and better ride quality with Rough Country's 5-inch Lift Kit with Torsion Drop. This kit is a unique offering of suspension lifts, delivering the desired torsion drop look and ride you want while still offering unmatched ground clearance. The Torsion Drop brackets are designed to ensure that your vehicle's track width is not widened and allows you to maintain the factory feel of handling corners and turns. So take your everyday ride and make it one of a kind with our 5-inch Lift Kit with Torsion Drop!
Premium Construction. This 5-Inch rugged lift kit is made of heavy-duty laser-cut steel components, powder-coated for a long-lasting finish. It includes replacement knuckles, 1/4" thick steel cross members for the front and rear, and 1/4" thick Torsion Drop Bar Brackets. You also get valved N3 Series shock absorbers and rear Fabricated Steel Blocks that are stronger and offer a longer lifespan than cast blocks. This setup will give you a level stance and the ride height you need to run those larger tires with ease.
Installation and Warranty. This kit is packed with all hardware needed for installation and includes full sway bar links, a durable, thick Skid Plate, and brake line relocation brackets. Although some minor cutting and drilling are required, there is no drilling or modifying of the differential, and no drivetrain or exhaust modifications are required. Rough Country's products are backed with a limited lifetime replacement warranty. This means that you have the security of knowing that Rough Country's products will work as they should, even after years of use.
Features
- Maintains factory ride quality.
- Maintains the stock track width.
- Unmatched ground clearance.
- Axles maintain factory position and angle.
- No drilling or modifying of the differential.
- No drivetrain or exhaust modifications required.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes - Important
- Does NOT fit dually models.
- Does NOT fit equipped with rear overload springs.
- Does NOT fit models equipped with Magnetic Ride Control (MRC or Magneride) suspension.
- Does NOT work with factory wheels.
- Gas models may require modification to the exhaust for driveshaft clearance.
Specs
SKU | 11055 |
---|---|
Est. Install Time | 8 - 10 hours |
Application List
2020-2024 Chevrolet Silverado 2500 HD Custom 4WD
2020-2024 GMC Sierra 2500 HD Denali 4WD
2024-2024 GMC Sierra 2500 HD Denali Ultimate 4WD
2020-2024 Chevrolet Silverado 2500 HD High Country 4WD
2020-2024 Chevrolet Silverado 2500 HD LT 4WD
2020-2024 Chevrolet Silverado 2500 HD LTZ 4WD
2022-2024 GMC Sierra 2500 HD Pro 4WD
2020-2024 GMC Sierra 2500 HD SLE 4WD
2020-2024 GMC Sierra 2500 HD SLT 4WD
2020-2024 Chevrolet Silverado 2500 HD WT 4WD

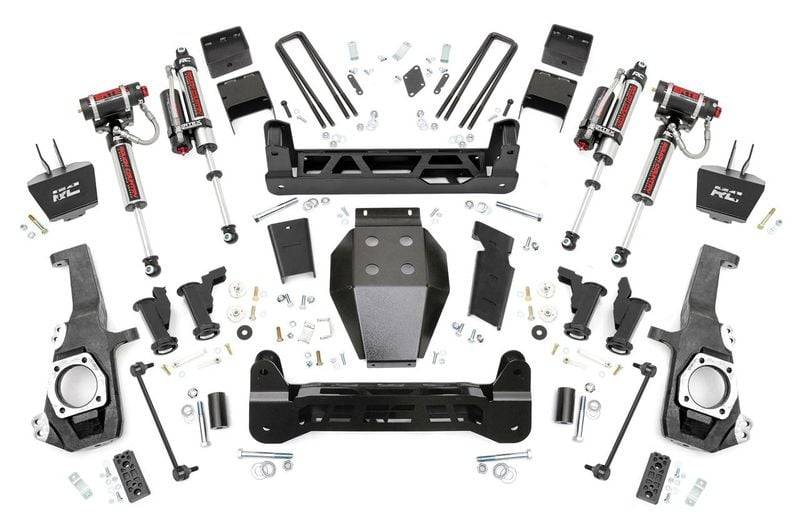

Components
Lifted knuckles
Front crossmember
Rear crossmember
Differential drop brackets
Differential skid plate
Torsion bar drop brackets
Sway-bar links
Sway-bar brackets
Upper shock brackets
Brake line relocation bracket
Hardware
Rear
Lift blocks
U-bolts
Bump-stop brackets
Brake line brackets
E-brake line bracket
Hardware
Shocks
(4) Vertex Reservoir Shocks
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
35x12.50R20 | 20x9 | 8x180 | -12 | - |
35x11.50R20 | 20x9 | 8x180 | -12 | - |
295/65R20 | 20x9 | 8x180 | -12 | - |
295/60R20 | 20x9 | 8x180 | -12 | - |
285/60R20 | 20x9 | 8x180 | -12 | - |
275/65R20 | 20x9 | 8x180 | -12 | - |
35x12.50R20 | 20x9 | 8x180 | +0 | - |
295/60R20 | 20x9 | 8x180 | +0 | - |
285/60R20 | 20x9 | 8x180 | +0 | - |
35x12.50R20 | 20x9 | 8x180 | +1 | - |
295/60R20 | 20x9 | 8x180 | +1 | - |
285/60R20 | 20x9 | 8x180 | +1 | - |
35x12.50R20 | 20x10 | 8x180 | -19 | Minor Trimming |
295/60R20 | 20x10 | 8x180 | -19 | Minor Trimming |
285/60R20 | 20x10 | 8x180 | -19 | - |
35x12.50R20 | 20x10 | 8x180 | -18 | Minor Trimming |
295/60R20 | 20x10 | 8x180 | -18 | Minor Trimming |
285/60R20 | 20x10 | 8x180 | -18 | - |
35x12.50R20 | 20x12 | 8x180 | -44 | Trimming Required |
295/50R22 | 22x10 | 8x180 | -19 | Minor Trimming |
285/55R22 | 22x10 | 8x180 | -19 | - |
295/50R22 | 22x10 | 8x180 | -18 | Minor Trimming |
285/55R22 | 22x10 | 8x180 | -18 | - |
35x12.50R22 | 22x12 | 8x180 | -44 | Trimming Required |
Details
- 11055
- 11055
- 840269942778
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 283.6 lbs.
- Free Ground Shipping | Exclusions Apply*
