27740RED | Rough Country 3.5 Inch Lift Kit | UCA | M1 Struts | Chevrolet/GMC 1500 (07-13)

2007 - 2013 Chevrolet Silverado 1500 | 2007 - 2013 GMC Sierra 1500

27740RED
Pricing: $1,508.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3.5 Inch Lift Kit | Chevy/GMC 1500 (07-16)

This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! This kit includes Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.
This kit also features Forged Aluminum Control Arms with POM ball joints that offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.

Features

This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! Our Nitrogen charged N3 Shocks offer the best in balanced performance for on and off-road use, featuring a 10-stage velocity sensitive valving custom tuned for this specific application. That means these shocks are specifically valved for use with this specific vehicle and lift combo, giving you unparalleled performance for any driving situation.

  • Increased ground clearance.
  • Can be returned to stock height!
  • Differential drops maintain proper axle angle.
  • Control arms include POM ball joints for greater range of motion and easier installation.
  • Ball joints are pre-installed to ease installation.
  • Rear fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
  • Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

Optional N3 Loaded Struts

  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Nitrogen-charged
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

Optional V2 Monotube Shocks

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

Optional Vertex Coilovers

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

Fitment Notes

  • This kit fits models with both cast steel or aluminum factory control arms.
  • Does NOT fit models with factory stamped steel control arms.
  • Requires cutting and grinding.
  • New lift block replaces the factory equipped block.
  • If truck is equipped with a mass damper on the front differential, the damper must be removed.
  • Does NOT fit AWD models.
  • Does NOT fit 2007 "Classic / old body style" models.
  • Does NOT fit GMC Denali models with Magnetic Ride Control.
  • Retain your factory wheels with our 0.25" wheel spacers available here! SKU: 1065

Specifications

  • Est. Install Time: 5-6 hours

Application List

2007 - 2016 Chevy Silverado 1500
2007 - 2016 GMC Sierra 1500

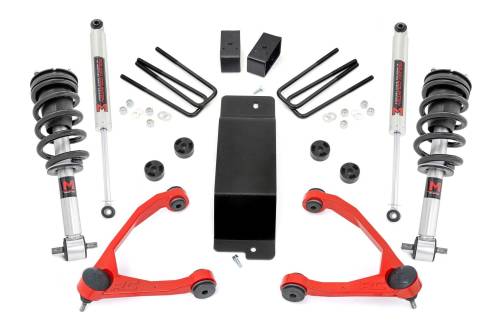

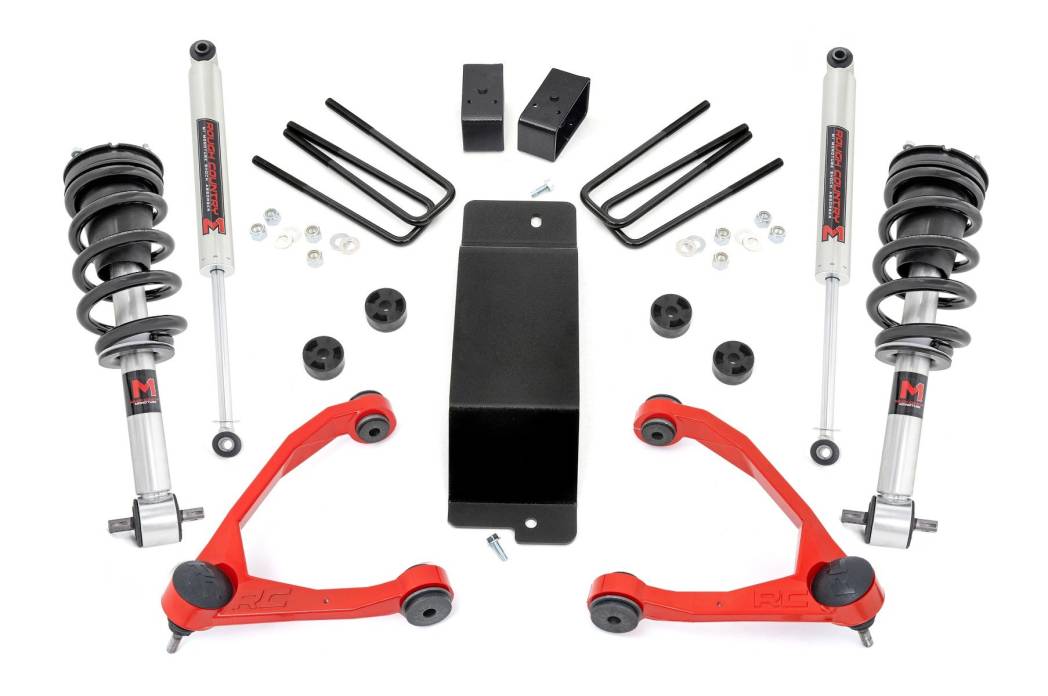

Components

Front:
Strut spacers
Forged upper control arms
Upper POM ball joints
Differential drop spacers
Differential skid plate
Hardware
Rear:
3in fabricated lift blocks
U-bolts
Hardware
Shocks:
(2) Rear Premium N3 Shocks
