95740RED | Rough-Country 3.5 Inch Knuckle Lift Kit | M1 | Chevrolet/GMC 2500HD/3500HD (11-19)
2011-2019 Chevrolet Silverado 2500 HD, 3500 HD 2WD/4WD | 2011-2019 GMC Sierra 2500 HD, 3500 HD 2WD/4WD | NO Factory Rear Overload Springs
Description
3.5 Inch Lift Kit | M1 Monotube Shocks | Chevy/GMC 2500HD/3500HD (11-19) | NO Factory Rear Overload Springs
mproved Ground Clearance and Ride Quality. Take your workhorse to the next level with Rough Country's 3.5" Knuckle Lift kit. Rough Country's 3.5" Knuckle Kit provides an improved ground clearance and is designed for on or off-road driving. This suspension offers Rough Country's full lineup of shocks ranging from our N3 series to Vertex adjustable coil-overs.
Innovative Design and Construction. This suspension kit combines the use of durable steel knuckles and forged upper control arms to reduce cv angles and ball joint angles. Featuring a set of forged torsion bar keys that offer uncompromised strength and rigidity gaining lift height is no issue. Utilizing our forged upper control arms and differential drop spacers this kit allows you to retain factory-like geometry and provides enough clearance to run 33" tires with appropriate wheel backspacing.
Installation. With no cutting or drilling required to install, installation couldn't be easier. With an estimated timeframe of 4-6 hours this full kit can be installed at home using standard tools and can be completed efficiently and quickly!
Lifetime Replacement Warranty. Rough Country's 3.5" Knuckle Kit is backed with a lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!
Features
- Easy bolt-on installation.
- No cutting, drilling or welding.
- Increased ground clearance.
- Levels the front with the rear of the vehicle.
- Torsion bar keys are forged for uncompromised strength.
- Keys are indexed to not stress OE components.
- Knuckles help to reduce possible CV bind.
- Upper control arms help maintain factory-like geometry while keeping a full range of motion.
- Upper control arms feature OEM style Clevite rubber bushings.
Notes - Important
- Does NOT fit models with Magnetic Ride Control.
- Does NOT fit Dually models.
Specs
Est. Install Time | 4-6 hours |
---|
Application List
StartYear | EndYear | Make | Model | Submodel | Drive |
---|---|---|---|---|---|
2015 | 2019 | Chevrolet | Silverado 2500 HD | High Country | 4WD |
2015 | 2019 | Chevrolet | Silverado 2500 HD | High Country | RWD |
2011 | 2019 | Chevrolet | Silverado 2500 HD | LT | 4WD |
2011 | 2019 | Chevrolet | Silverado 2500 HD | LT | RWD |
2011 | 2019 | Chevrolet | Silverado 2500 HD | LTZ | 4WD |
2011 | 2019 | Chevrolet | Silverado 2500 HD | LTZ | RWD |
2011 | 2019 | Chevrolet | Silverado 2500 HD | WT | 4WD |
2011 | 2019 | Chevrolet | Silverado 2500 HD | WT | RWD |
2015 | 2019 | Chevrolet | Silverado 3500 HD | High Country | 4WD |
2015 | 2019 | Chevrolet | Silverado 3500 HD | High Country | RWD |
2011 | 2019 | Chevrolet | Silverado 3500 HD | LT | 4WD |
2011 | 2019 | Chevrolet | Silverado 3500 HD | LT | RWD |
2011 | 2019 | Chevrolet | Silverado 3500 HD | LTZ | 4WD |
2011 | 2019 | Chevrolet | Silverado 3500 HD | LTZ | RWD |
2011 | 2019 | Chevrolet | Silverado 3500 HD | WT | 4WD |
2011 | 2019 | Chevrolet | Silverado 3500 HD | WT | RWD |
2015 | 2019 | GMC | Sierra 2500 HD | Base | 4WD |
2015 | 2019 | GMC | Sierra 2500 HD | Base | RWD |
2011 | 2019 | GMC | Sierra 2500 HD | Denali | 4WD |
2011 | 2019 | GMC | Sierra 2500 HD | Denali | RWD |
2011 | 2019 | GMC | Sierra 2500 HD | SLE | 4WD |
2011 | 2019 | GMC | Sierra 2500 HD | SLE | RWD |
2011 | 2019 | GMC | Sierra 2500 HD | SLT | 4WD |
2011 | 2019 | GMC | Sierra 2500 HD | SLT | RWD |
2011 | 2014 | GMC | Sierra 2500 HD | WT | 4WD |
2011 | 2014 | GMC | Sierra 2500 HD | WT | RWD |
2015 | 2019 | GMC | Sierra 3500 HD | Base | 4WD |
2015 | 2019 | GMC | Sierra 3500 HD | Base | RWD |
2011 | 2019 | GMC | Sierra 3500 HD | Denali | 4WD |
2011 | 2019 | GMC | Sierra 3500 HD | Denali | RWD |
2011 | 2019 | GMC | Sierra 3500 HD | SLE | 4WD |
2011 | 2019 | GMC | Sierra 3500 HD | SLE | RWD |
2011 | 2019 | GMC | Sierra 3500 HD | SLT | 4WD |
2011 | 2019 | GMC | Sierra 3500 HD | SLT | RWD |
2011 | 2014 | GMC | Sierra 3500 HD | WT | 4WD |
2011 | 2014 | GMC | Sierra 3500 HD | WT | RWD |

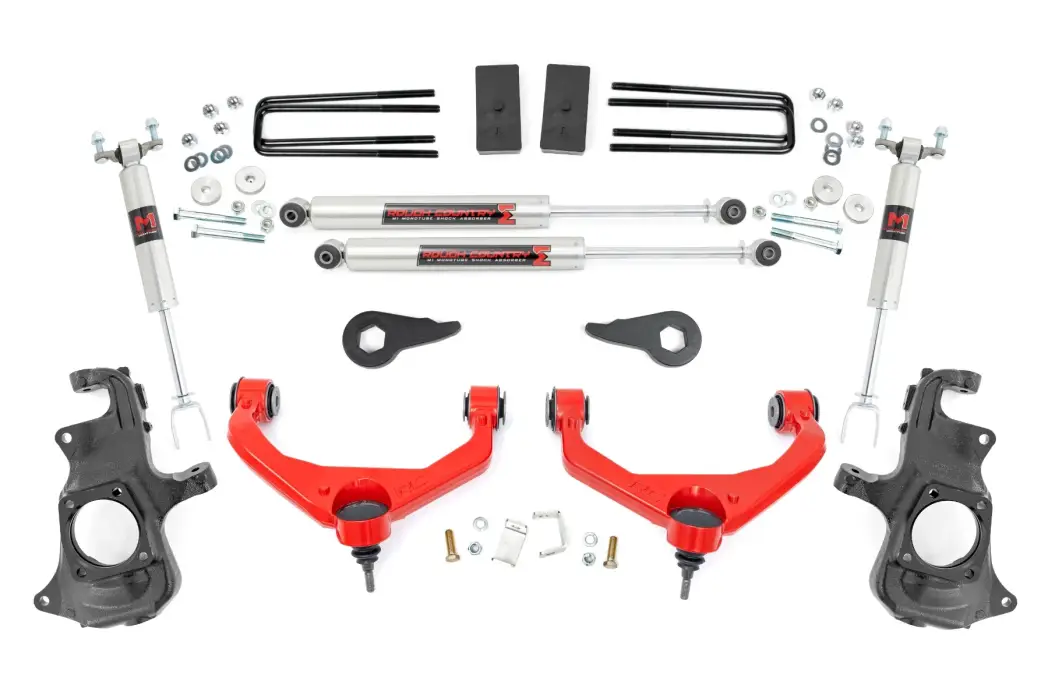

Components
Forged Torsion Bar Keys
Upper control arms
Lifted Knuckles
Differential Spacers
Rear
Lift Blocks
U-bolts
Hardware
Shocks
(4) M1 Monotube Shocks
Shocks
Whether you're tackling tough terrain or smooth city streets, Rough Country's Nitrogen-charged M1 Monotube Shock Absorber leads the way, delivering impeccable ride quality and performance mile after mile. Rough Country's Monotube M1 Shocks feature an internal floating piston design that keeps the shock oil and high-pressure nitrogen separate. The result is a lightning-fast reaction with no cavitation - just unbridled vibration damping at each and every obstacle. The M1 Monotube Shock Absorber is more than an upgrade - it's a true performance shock. Each shock features a steel body that is brushed and glavanized boasting a passivation sealing technology that is sure to withstand the elements. The internal 46mm digressive piston offers countless years of durability. The M1 is designed to be mounted body-up for a more interesting look on the vehicle.
Features
2-inch seamless extruded tube.
46mm digressive piston.
Self-adjusting, deflective-disc independent rebound and compression.
18mm centerless-ground, case-hardened, chromed, and super-polished rod.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Digressive valving instantly reacts to changing surface conditions.
Zinc plated for resistance against harsh elements.
Available in various lift heights for multiple applications.
Durable vulcanized natural rubber bushings.
Free Shipping
3-year Manufacturer's Warranty
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
295/70R18 | Factory 18 | 8x180 | - | - |
295/60R20 | Factory 20 | 8x180 | - | - |
33x12.50R18 | 18x8.5 | 8x180 | +0 | - |
33x12.50R18 | 18x8.5 | 8x180 | +1 | - |
33x12.50R18 | 18x9 | 8x180 | +0 | - |
305/60R18 | 18x9 | 8x180 | +0 | - |
285/65R18 | 18x9 | 8x180 | +0 | - |
275/65R18 | 18x9 | 8x180 | +0 | - |
33x12.50R18 | 18x9 | 8x180 | +1 | - |
305/60R18 | 18x9 | 8x180 | +1 | - |
285/65R18 | 18x9 | 8x180 | +1 | - |
275/65R18 | 18x9 | 8x180 | +1 | - |
33x12.50R18 | 18x9 | 8x180 | +18 | - |
33x12.50R18 | 18x9 | 8x180 | +20 | - |
33x12.50R20 | 20x9 | 8x180 | +0 | - |
305/55R20 | 20x9 | 8x180 | +0 | - |
295/60R20 | 20x9 | 8x180 | +0 | Minor Trimming |
285/55R20 | 20x9 | 8x180 | +0 | - |
33x12.50R20 | 20x9 | 8x180 | +1 | - |
305/55R20 | 20x9 | 8x180 | +1 | - |
295/60R20 | 20x9 | 8x180 | +1 | Minor Trimming |
285/55R20 | 20x9 | 8x180 | +1 | - |
305/55R20 | 20x9 | 8x180 | +18 | - |
305/55R20 | 20x9 | 8x180 | +20 | - |
33x12.50R20 | 20x10 | 8x180 | -19 | Minor Trimming |
305/55R20 | 20x10 | 8x180 | -19 | Minor Trimming |
285/55R20 | 20x10 | 8x180 | -19 | Minor Trimming |
33x12.50R20 | 20x10 | 8x180 | -18 | Minor Trimming |
305/55R20 | 20x10 | 8x180 | -18 | Minor Trimming |
285/55R20 | 20x10 | 8x180 | -18 | Minor Trimming |
33x12.50R20 | 20x12 | 8x180 | -44 | Trimming Required |
305/55R20 | 20x12 | 8x180 | -44 | Trimming Required |
285/55R20 | 20x12 | 8x180 | -44 | Trimming Required |
33x12.50R22 | 22x10 | 8x180 | -19 | Minor Trimming |
305/45R22 | 22x10 | 8x180 | -19 | - |
285/45R22 | 22x10 | 8x180 | -19 | Minor Trimming |
33x12.50R22 | 22x10 | 8x180 | -18 | Minor Trimming |
305/45R22 | 22x10 | 8x180 | -18 | - |
285/45R22 | 22x10 | 8x180 | -18 | Minor Trimming |
33x12.50R22 | 22x12 | 8x180 | -44 | Trimming Required |
285/45R22 | 22x12 | 8x180 | -44 | Trimming Required |
