54440 | Rough Country 3 Inch Lift Kit with M1 Monotube Struts / Rear Shocks (2009-2013 F150 4WD)

2009-2013 Ford F150 Pickup 4WD

54440
Pricing: $1,480.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3 Inch Lift Kit | Aluminum Control Arms | M1 Monotube Struts /M1 Monotube Rear Shocks | Ford F-150 4WD (2009-2013)

Rough Country's 3in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 09 and up F-150 pickups.

This kit features a set of high-quality, forged aluminum Upper Control Arms designed to make alignment adjustments easier and durable rubber bushings. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear.

Rough Country’s 3-inch Bolt-On Kit features N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of durable lifted struts and fabricated rear blocks to provide lift height from front to rear. Once installed, this kit gives your truck plenty of ride height for up to 34in tires while offering a clean, level look from front to rear. Retain your stock wheels with this kit when you use Rough Country’s 0.25-inch wheel spacer.

This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.

Features

  • Easy Bolt-On installation.
  • Includes loaded struts for no-fuss installation.
  • No Cutting or Drilling required!
  • Includes New forged aluminum upper control arms.
  • Control arms keep ball joints at optimum angles for less wear and tear.
  • Control arms include durable rubber bushings for enhanced durability.
  • Increased ground clearance.
  • Levels the front and rear of the truck.
  • Can be returned to stock.

Notes - Important

  • Does NOT fit regular/standard cab models.
  • SKU: 51013 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
  • Spacer kit '51013' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
  • Designed to work with aluminum factory lower control arms. Replacement control arms or replacement factory steel control arms may interfere with the CV boot.
  • Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
  • For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.

Specs

Est. Install Time  5-6 hours

Application List

Start End Make Model Submodel Drive
2009 2013 Ford F-150 FX4 4WD
2010 2012 Ford F-150 Harley-Davidson Edition AWD
2009 2013 Ford F-150 King Ranch 4WD
2009 2013 Ford F-150 Lariat 4WD
2011 2011 Ford F-150 Lariat Limited 4WD
2013 2013 Ford F-150 Limited 4WD
2009 2013 Ford F-150 Platinum 4WD
2009 2013 Ford F-150 STX 4WD
2009 2013 Ford F-150 XL 4WD
2009 2013 Ford F-150 XLT 4WD
2009 2013 Ford F-150 FX4 4WD
2010 2012 Ford F-150 Harley-Davidson Edition AWD
2009 2013 Ford F-150 King Ranch 4WD
2009 2013 Ford F-150 Lariat 4WD
2011 2011 Ford F-150 Lariat Limited 4WD
2013 2013 Ford F-150 Limited 4WD
2009 2013 Ford F-150 Platinum 4WD
2009 2013 Ford F-150 STX 4WD
2009 2013 Ford F-150 XL 4WD
2009 2013 Ford F-150 XLT 4WD

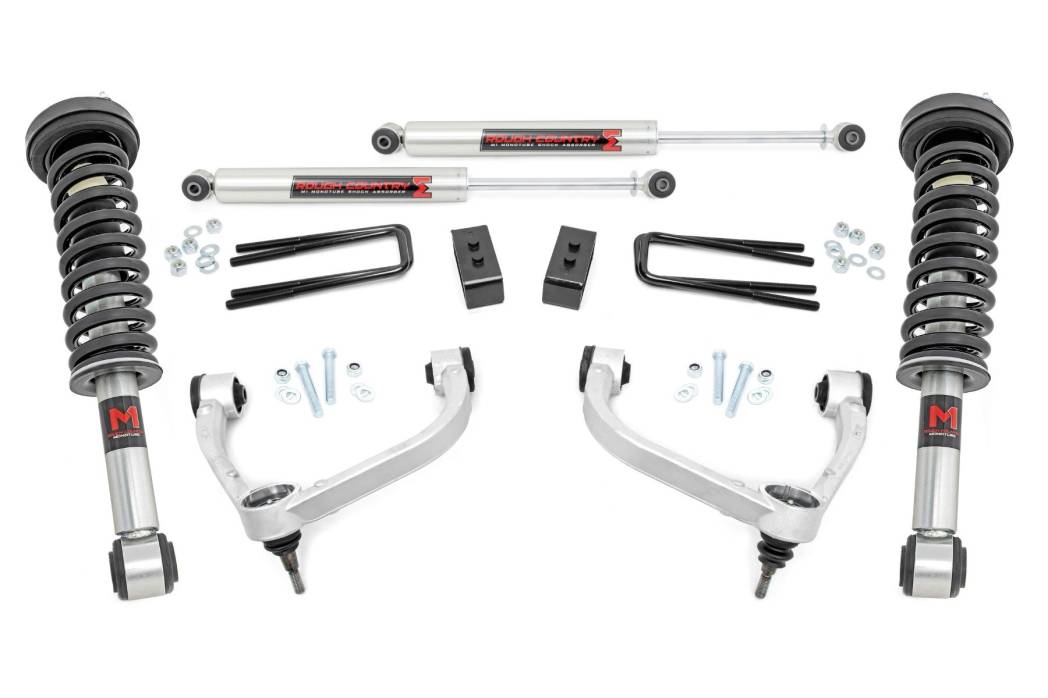

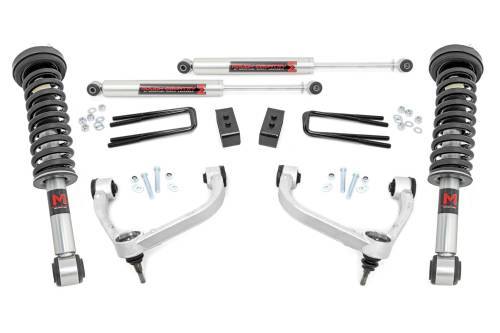

Components

FRONT
(2) Upper control arms
(2) M1 Monotube Loaded Struts
REAR
(2) Lift Blocks
(4) U-bolts
Hardware
SHOCKS
(2) M1 Monotube series [Rear]

Shocks

M1 MONOTUBE

M1 Monotube Shocks
Whether you're tackling tough terrain or smooth city streets, Rough Country's Nitrogen-charged M1 Monotube Shock Absorber leads the way, delivering impeccable ride quality and performance mile after mile. Rough Country's Monotube M1 Shocks feature an internal floating piston design that keeps the shock oil and high-pressure nitrogen separate. The result is a lightning-fast reaction with no cavitation - just unbridled vibration damping at each and every obstacle. The M1 Monotube Shock Absorber is more than an upgrade - it's a true performance shock. Each shock features a steel body that is brushed and glavanized boasting a passivation sealing technology that is sure to withstand the elements. The internal 46mm digressive piston offers countless years of durability. The M1 is designed to be mounted body-up for a more interesting look on the vehicle.

Features

2-inch seamless extruded tube.
46mm digressive piston.
Self-adjusting, deflective-disc independent rebound and compression.
18mm centerless-ground, case-hardened, chromed, and super-polished rod.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Digressive valving instantly reacts to changing surface conditions.
Zinc plated for resistance against harsh elements.
Available in various lift heights for multiple applications.
Durable vulcanized natural rubber bushings.
3-year Manufacturer's Warranty

Tires & Wheels

TireWheelBolt PatternOffsetNote
33x12.50R1717x8.56x135+0Minor Trimming
295/70R1717x8.56x135+0-
285/70R1717x8.56x135+0-
33x12.50R1717x8.56x135+1Minor Trimming
295/70R1717x8.56x135+1-
285/70R1717x8.56x135+1-
33x12.50R1717x96x135+0Minor Trimming
315/70R1717x96x135+0-
305/70R1717x96x135+0-
295/70R1717x96x135+0-
285/75R1717x96x135+0-
285/70R1717x96x135+0-
33x12.50R1717x96x135+1Minor Trimming
315/70R1717x96x135+1-
305/70R1717x96x135+1-
295/70R1717x96x135+1-
285/75R1717x96x135+1-
285/70R1717x96x135+1-
33x12.50R1818x8.56x135+0Minor Trimming
305/60R1818x8.56x135+0-
285/75R1818x8.56x135+0-
285/65R1818x8.56x135+0-
33x12.50R1818x8.56x135+1Minor Trimming
305/60R1818x8.56x135+1-
285/75R1818x8.56x135+1-
285/65R1818x8.56x135+1-
33x12.50R1818x96x135+0Minor Trimming
305/60R1818x96x135+0-
285/75R1818x96x135+0-
285/65R1818x96x135+0-
33x12.50R1818x96x135+1Minor Trimming
305/60R1818x96x135+1-
285/75R1818x96x135+1-
285/65R1818x96x135+1-
33x12.50R2020x96x135+0Minor Trimming
305/55R2020x96x135+0-
295/60R2020x96x135+0Minor Trimming
33x12.50R2020x96x135+1Minor Trimming
305/55R2020x96x135+1-
295/60R2020x96x135+1Minor Trimming
33x12.50R2020x106x135-19-
305/55R2020x106x135-19-
265/60R2020x106x135-19-
33x12.50R2020x106x135-18-
305/55R2020x106x135-18-
265/60R2020x106x135-18-
33x12.50R2222x106x135-19-
33x11.50R2222x106x135-19-
295/55R2222x106x135-19-
295/50R2222x106x135-19-
295/45R2222x106x135-19-
33x12.50R2222x106x135-18-
33x11.50R2222x106x135-18-
295/55R2222x106x135-18-
295/50R2222x106x135-18-
295/45R2222x106x135-18-

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 87.5 lbs.
  • Free Ground Shipping | Exclusions Apply*
