BDS1539H | BDS Suspension 4 Inch Lift Kit With 4-Link Conversion For Ford F-250 / F-350 Super Duty 4WD | 2017-2019 | Gas, Rear 5 Inch Block With 2 Leaf Main | NX2 Nitro Series Shocks

4 Inch Lift Kit With 4-Link Conversion For Ford F-250 / F-350 Super Duty 4WD | 2017-2019 | Gas, Rear 5 Inch Block With 2 Leaf Main | NX2 Nitro Series Shocks

BDS1539H
Pricing: $2,867.02
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Raise the bar on your 2017-2019 Ford F250 or F350 Super Duty 4WD Gas truck by installing a BDS 4 inch Lift Kit with 4-Link Upgrade. Full length 4" ProRide coil springs are used for the additional ride height and are paired with your choice of BDS NX2 series gas shocks or the premium FOX 2.0 IFP performance gas shocks for a smooth ride on any terrain. These new 4 inch 4-link systems allow for clearance of up to 37" tires. Take your 2017-2019 Ford Super Duty to the next level with BDS Suspension.

Features & Benefits

  • ProRide front dual-rate coil springs to achieve front lift height.
  • 4-Link conversion offers additional strength and caster control during wheel travel.
  • Forged pitman arm and HD track bar bracket to correct steering angle and axle positioning.
  • Rear lift block or GlideRide rear leaf spring options to level out the stance and retain load capacity.
  • NX2 gas or FOX 2.0 IFP performance gas shocks to improve ride and offroad performance.

Recommended Tires & Wheels

  • 37 x 12.5 with 17 x 9 and 5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

4-Link Conversion

By converting the factory stamped steel radius arms over to the BDS 4-link design you are able to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4" steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. These arms use large greaseable bushings and come finished in a durable textured black powder coat.

Rear Suspension Options

  • Rear Block – Rear lift comes from a high strength replacement lift block along with longer u-bolts to maintain a level stance while retaining the original spring rates.
  • Rear springs – The factory springs are swapped out in favor of a full replacement Glideride leaf pack designed for great on/off-road performance, increased load capacity with built in overload leaf.

Rear Lift Option

5 Inch Block

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

Leaf Springs

  • Reduces axle wrap and creates a more controlled and stable feel
  • Multi-leaf progressive design for smooth ride
  • Maintains factory payload weight ratings
  • Anti-friction pads provide a smooth and quiet ride

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2017FordF-250 Super DutyALL4WDFLEXN/AALL
2017FordF-350 Super DutyKing Ranch4WDFLEXN/AALL
2017FordF-350 Super DutyLariat4WDFLEXN/AALL
2017FordF-350 Super DutyPlatinum4WDFLEXN/AALL
2017FordF-350 Super DutyXL4WDFLEXN/AALL
2017FordF-350 Super DutyXLT4WDFLEXN/AALL
2018FordF-250 Super DutyKing Ranch4WDFLEXN/AALL
2018FordF-250 Super DutyLariat4WDFLEXN/AALL
2018FordF-250 Super DutyPlatinum4WDFLEXN/AALL
2018FordF-250 Super DutyXL4WDFLEXN/AALL
2018FordF-250 Super DutyXLT4WDFLEXN/AALL
2018FordF-350 Super DutyKing Ranch4WDFLEXN/AALL
2018FordF-350 Super DutyLariat4WDFLEXN/AALL
2018FordF-350 Super DutyPlatinum4WDFLEXN/AALL
2018FordF-350 Super DutyXL4WDFLEXN/AALL
2018FordF-350 Super DutyXLT4WDFLEXN/AALL
2019FordF-250 Super DutyKing Ranch4WDFLEXN/AALL
2019FordF-250 Super DutyLariat4WDFLEXN/AALL
2019FordF-250 Super DutyPlatinum4WDFLEXN/AALL
2019FordF-250 Super DutyXL4WDFLEXN/AALL
2019FordF-250 Super DutyXLT4WDFLEXN/AALL
2019FordF-350 Super DutyKing Ranch4WDFLEXN/AALL
2019FordF-350 Super DutyLariat4WDFLEXN/AALL
2019FordF-350 Super DutyPlatinum4WDFLEXN/AALL
2019FordF-350 Super DutyXL4WDFLEXN/AALL
2019FordF-350 Super DutyXLT4WDFLEXN/AALL

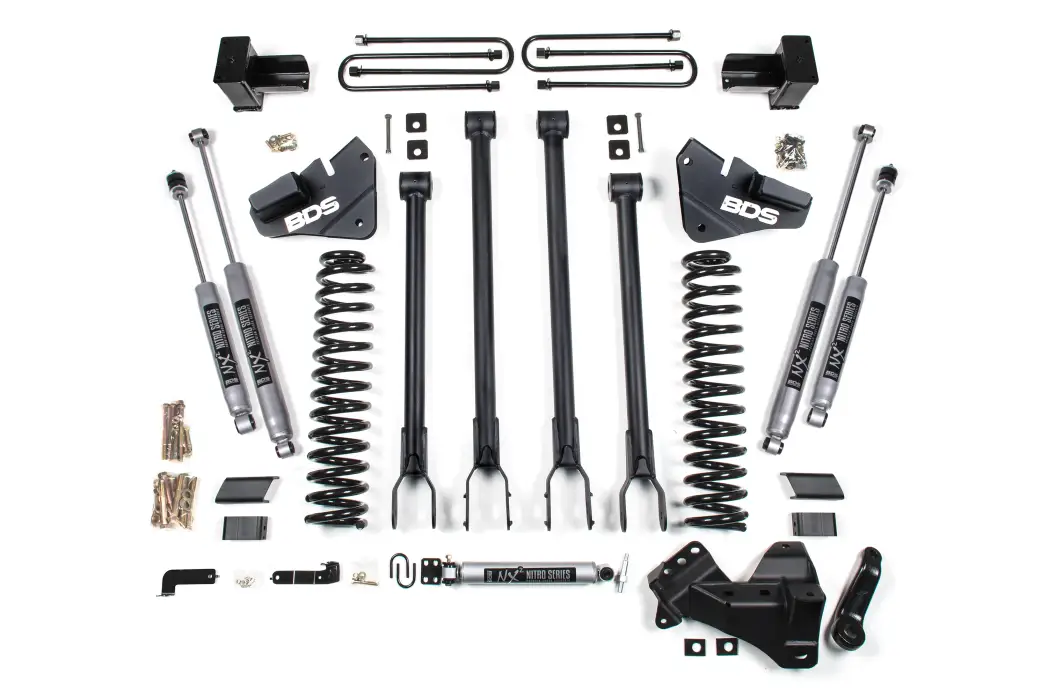

Component List

1 BDS013423 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2
1 BDS013517 2017-2019 F250 5" Rear Block Kit-2LeafMain
1 BDS013601 2017-2022 Super Duty 4-Link Box Kit 1of2
1 BDS033412 2005-2022 Ford F250/F350 Gas 4" Coil Spring Kit
1 BDS85431 2017-2023 F250/F350 Single Stabilizer
2 BDS85700 Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2
2 BDS85718 Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1

Tires & Wheels Recommendations

37 x 12.5 with 17 x 9 and 5 in. Backspace
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
