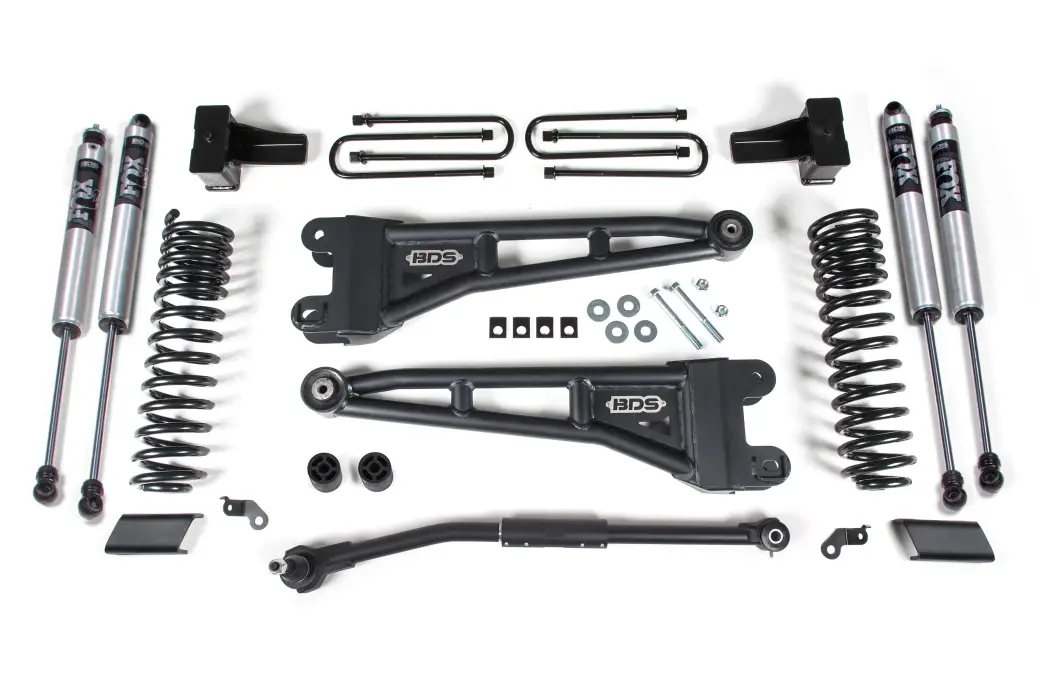

BDS1543FS | BDS Suspension 2.5 Inch Lift Kit With Radius Arm For Ford F-250 / F-350 Super Duty 4WD | 2017-2019 | Diesel | Fox 2.0 Performance Series Shocks

2.5 Inch Lift Kit With Radius Arm For Ford F-250 / F-350 Super Duty 4WD | 2017-2019 | Diesel | Fox 2.0 Performance Series Shocks

BDS1543FS
Pricing: $3,658.99
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Improve the ride and level out your Ford F250 and F350 Super Duty diesel-powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front, the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision-tuned nitrogen-charged shocks.

In the rear, this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8"" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

 Important Notes

  1. Coil springs are designed for diesel trucks. Will work on gas trucks and will net roughly 3" of front lift.
  2. Mounting larger tires on factory wheels is not recommended due to potential brake line clearance issues.
  3. Factory track bar mounting bolt requires 405 ft-lbs of torque, plan ahead on how to achieve this torque spec.

Installation

Est. Install Time :

5 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

30mm Socket, Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 2.5"
  • Rear Lift Height : 2"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2017FordF-250 Super DutyALL4WDDIESELALLALL
2017FordF-350 Super DutyKing Ranch4WDDIESELALLALL
2017FordF-350 Super DutyLariat4WDDIESELALLALL
2017FordF-350 Super DutyPlatinum4WDDIESELALLALL
2017FordF-350 Super DutyXL4WDDIESELALLALL
2017FordF-350 Super DutyXLT4WDDIESELALLALL
2018FordF-250 Super DutyALL4WDDIESELALLALL
2018FordF-350 Super DutyKing Ranch4WDDIESELALLALL
2018FordF-350 Super DutyLariat4WDDIESELALLALL
2018FordF-350 Super DutyLimited4WDDIESELALLALL
2018FordF-350 Super DutyPlatinum4WDDIESELALLALL
2018FordF-350 Super DutyXL4WDDIESELALLALL
2018FordF-350 Super DutyXLT4WDDIESELALLALL
2019FordF-250 Super DutyALL4WDDIESELALLALL
2019FordF-350 Super DutyKing Ranch4WDDIESELALLALL
2019FordF-350 Super DutyLariat4WDDIESELALLALL
2019FordF-350 Super DutyLimited4WDDIESELALLALL
2019FordF-350 Super DutyPlatinum4WDDIESELALLALL
2019FordF-350 Super DutyXL4WDDIESELALLALL
2019FordF-350 Super DutyXLT4WDDIESELALLALL

Component List

1 BDS013262 2017-2023 F250/350 2.5" Front Box Kit
1 BDS013407 2017-2023 F250 4" Rear Block Kit
1 BDS033251 2005-2022 Ford Super Duty 2.5" Coil Spring Box Kit, Front Diesel, Pair
1 BDS123251 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
2 FOX98224718 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
2 FOX98224710 Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1

Tires & Wheels Recommendations

35 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
