BDS1546FS | BDS Suspension 2.5 Inch Lift Kit For Ford Ranger 4WD | 2019-2023 | Fox 2.0 Performance Shocks
2.5 Inch Lift Kit For Ford Ranger 4WD | 2019-2023 | Fox 2.0 Performance Shocks
Description
Properly level the front of your 2019-2023 Ford Ranger truck by installing this 2.5-inch levelling kit from BDS. Specially designed for the new Ranger, this 2.5" levelling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.
To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top-mounted steel strut spacer in combination with a preload spacer. To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the factory front skid plates to be used.

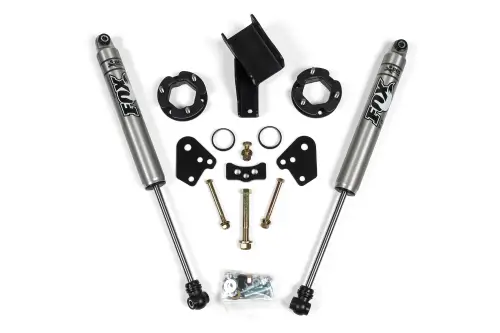

The lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation brackets and custom-tuned NX2 Nitro or FOX Performance series shocks. Give your new Ranger the extra boost with this 2.5" levelling kit from BDS Suspension.
Features & Benefits
- Easy, 100% Bolt-on installation
- Maintains factory-like ride quality
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
- 285 / 70 with 17 x 8 and in. Backspace
- 285 / 65 with 18 x 9 and in. Backspace
Rear Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- Aftermarket wheels must have a minimum of 93.1mm center hub bore.
- Tires larger than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
- Strut disassembly required, high quality wall mounted strut compressor and skilled technichian recommended.
- Will NOT work on trucks equipped with cast steel steering knuckles.
- Wil NOT work with Tremor models.
Installation
Est. Install Time :
4 hrsDifficulty Level :
ModerateSpecialty Tools Needed :
35mm Axle Nut Socket, Air Hammer (Recommended), Step Drill Bit, Cut-off Tool, Drill / Bit Set, Strut Compressor
Specification
- Front Lift Method : Strut Spacer
- Rear Lift Method : Stock
- Shocks Included : Yes
- Front Lift Height : 2.5"
- Rear Lift Height : 0"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2019 | Ford | Ranger | ALL | 4WD | ALL | ALL | ALL |
2020 | Ford | Ranger | ALL | 4WD | ALL | ALL | ALL |
2021 | Ford | Ranger | Lariat | 4WD | ALL | ALL | ALL |
2021 | Ford | Ranger | XL | 4WD | ALL | ALL | ALL |
2021 | Ford | Ranger | XLT | 4WD | ALL | ALL | ALL |
2022 | Ford | Ranger | Lariat | 4WD | ALL | ALL | ALL |
2022 | Ford | Ranger | XL | 4WD | ALL | ALL | ALL |
2022 | Ford | Ranger | XLT | 4WD | ALL | ALL | ALL |
2023 | Ford | Ranger | Lariat | 4WD | GAS | ALL | ALL |
2023 | Ford | Ranger | XL | 4WD | GAS | ALL | ALL |
2023 | Ford | Ranger | XLT | 4WD | GAS | ALL | ALL |
Component List
2 FOX98224880 Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
Tires & Wheels Recommendations
285 / 65 with 18 x 9 and in. Backspace
Details
- BDS1546FS
- BDS1546FS
- 840416403275
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 23.2 lbs.
- W3.0000” x H3.0000” x L23.5000”
- Free Ground Shipping | Exclusions Apply*
