BDS1577FPE | BDS Suspension 4 Inch Lift Kit With 4-Link Fox 2.0 Performance Elite Coil-over Conversion For Ford F-350 Super Duty DRW 4WD | 2017-2019 | Diesel
Lift Kit With 4-Link Fox 2.0 Performance Elite Coil-over Conversion For Ford F-350 Super Duty DRW 4WD | 2017-2019 | Diesel
Description
Maximize the capability of your 2017-2019 Ford F350 Dually "DRW" Super Duty diesel powered truck with this 4-inch lift kit with 4-Link and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
Features & Benefits
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Important Notes
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- 37 x 12.50 tires may require minor trimming.
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
- If your truck is equipped with a factory rear sway bar add: 123005
Installation
Est. Install Time :
10 hrsDifficulty Level :
DifficultSpecification
- Front Lift Method : Coil-Over
- Rear Lift Method : Block
- Shocks Included : Yes
- Front Lift Height : 4"
- Rear Lift Height : 3"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2017 | Ford | F-350 Super Duty | King Ranch | 4WD | DIESEL | ALL | ALL |
2017 | Ford | F-350 Super Duty | Lariat | 4WD | DIESEL | ALL | ALL |
2017 | Ford | F-350 Super Duty | Platinum | 4WD | DIESEL | ALL | ALL |
2017 | Ford | F-350 Super Duty | XL | 4WD | DIESEL | ALL | ALL |
2017 | Ford | F-350 Super Duty | XLT | 4WD | DIESEL | ALL | ALL |
2018 | Ford | F-350 Super Duty | King Ranch | 4WD | DIESEL | ALL | ALL |
2018 | Ford | F-350 Super Duty | Lariat | 4WD | DIESEL | ALL | ALL |
2018 | Ford | F-350 Super Duty | Limited | 4WD | DIESEL | ALL | ALL |
2018 | Ford | F-350 Super Duty | Platinum | 4WD | DIESEL | ALL | ALL |
2018 | Ford | F-350 Super Duty | XL | 4WD | DIESEL | ALL | ALL |
2018 | Ford | F-350 Super Duty | XLT | 4WD | DIESEL | ALL | ALL |
2019 | Ford | F-350 Super Duty | King Ranch | 4WD | DIESEL | ALL | ALL |
2019 | Ford | F-350 Super Duty | Lariat | 4WD | DIESEL | ALL | ALL |
2019 | Ford | F-350 Super Duty | Limited | 4WD | DIESEL | ALL | ALL |
2019 | Ford | F-350 Super Duty | Platinum | 4WD | DIESEL | ALL | ALL |
2019 | Ford | F-350 Super Duty | XL | 4WD | DIESEL | ALL | ALL |
2019 | Ford | F-350 Super Duty | XLT | 4WD | DIESEL | ALL | ALL |

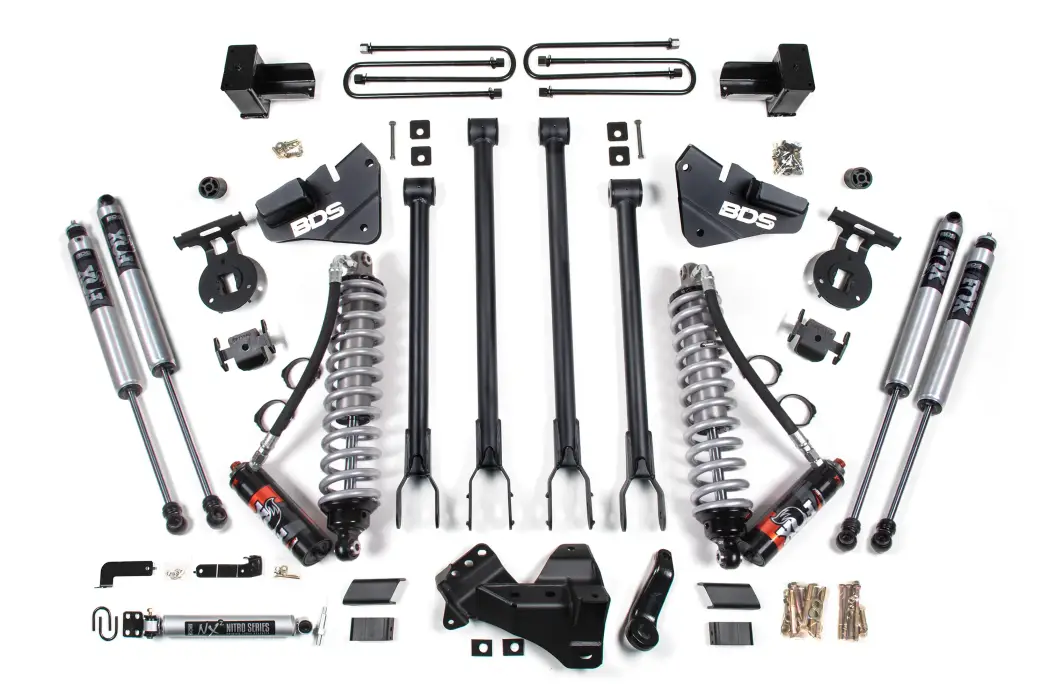

Component List
1 BDS013526 2017-2020 F350 Dually 5" Block Kit
1 BDS013601 2017-2022 Super Duty 4-Link Box Kit 1of2
1 BDS123613 2017-2022 Super Duty Coil-over Mount Kit
1 BDS85431 2017-2023 F250/F350 Single Stabilizer
1 FOX88406427 Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC
2 FOX98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
2 FOX98224718 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
Tires & Wheels
37 x 12.5 with 17 x 9 and 5 in. Backspace
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace
Details
- BDS1577FPE
- BDS1577FPE
- 840416404326
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
