BDS1593FS | BDS Suspension 6 Inch Lift Kit With Radius Arm For Ford F-250/F-350 Super Duty 4WD | 2011-2016 | Diesel | Rear Lift Factory 3 Inch Rear Blocks, Fox 2.0 Performance Series Shocks
Lift Kit With Radius Arm For Ford F-250/F-350 Super Duty 4WD | 2011-2016 | Diesel | Rear Lift Factory 3 Inch Rear Blocks, Fox 2.0 Performance Series Shocks
Description

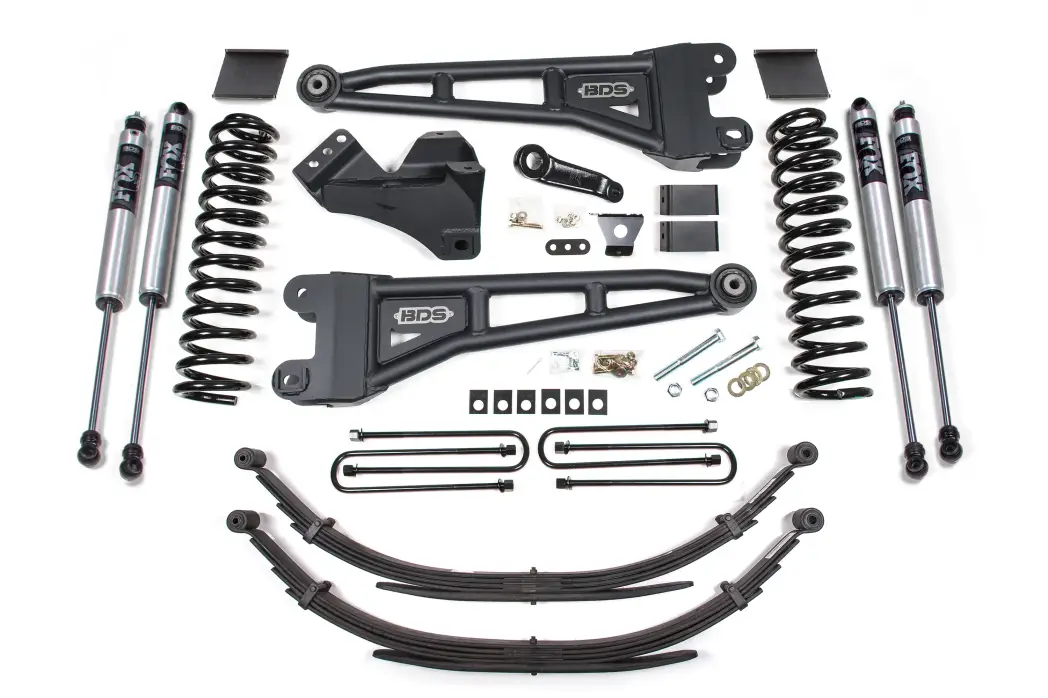

Take your 2011-2016 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.
In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Features & Benefits
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
BDS Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design where the main leaf pack is broken into two stages:
- First, the primary three leafs are functional with no additional load in the vehicle for excellent everyday ride quality. As moderate loads are applied, the secondary leafs are engaged.
- Second, if the truck is fully loaded, the bottom overload is engaged for maximum hauling capacity. This setup allows your truck to maintain ride quality unloaded without sacrificing payload.
Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.
Rear Lift Option
This lift system retains the factory rear blocks with the addition of the new BDS leaf springs to achieve a level stance. Choose the height of your factory lift blocks for proper u-bolt length.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
- Although extremely rare, front driveline vibration may occur.
- If equipped with a rear sway bar, #123009 is required.
- U-bolts will not work on dually.
Installation
Est. Install Time :
8 hrs
Difficulty Level :
Moderate
Specialty Tools Needed :
Basic Hand Tools, Torque Wrench, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller
Specification
- Front Lift Method : Coil SPring
- Rear Lift Method : Leaf Spring
- Shocks Included : Yes
- Front Lift Height : 6"
- Rear Lift Height : 4"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2011 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2011 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2012 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2012 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2013 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2013 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2014 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2014 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2015 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2015 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2016 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2016 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
Component List
1 BDS013609 2011-2016 Ford F250/F350 Rear Box Kit -- 3-1/2" Factory Block
1 BDS013614 2011-2016 Ford F250/F350 6" Radius Arm Front Box Kit
1 BDS123251 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
1 BDS033611 2005-2022 Ford F250/F350 6" (Diesel) Coil Kit
2 FOX98224750 Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
2 FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
Tires & Wheels
37 x 12.5 with 17 x 9 and 4.5 in. Backspace
37 x 12.5 with 18 x 9 and 4.5 in. Backspace
37 x 12.5 with 20 x 9 and 4.5 in. Backspace
Details
- BDS1593FS
- BDS1593FS
- 840416404746
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
