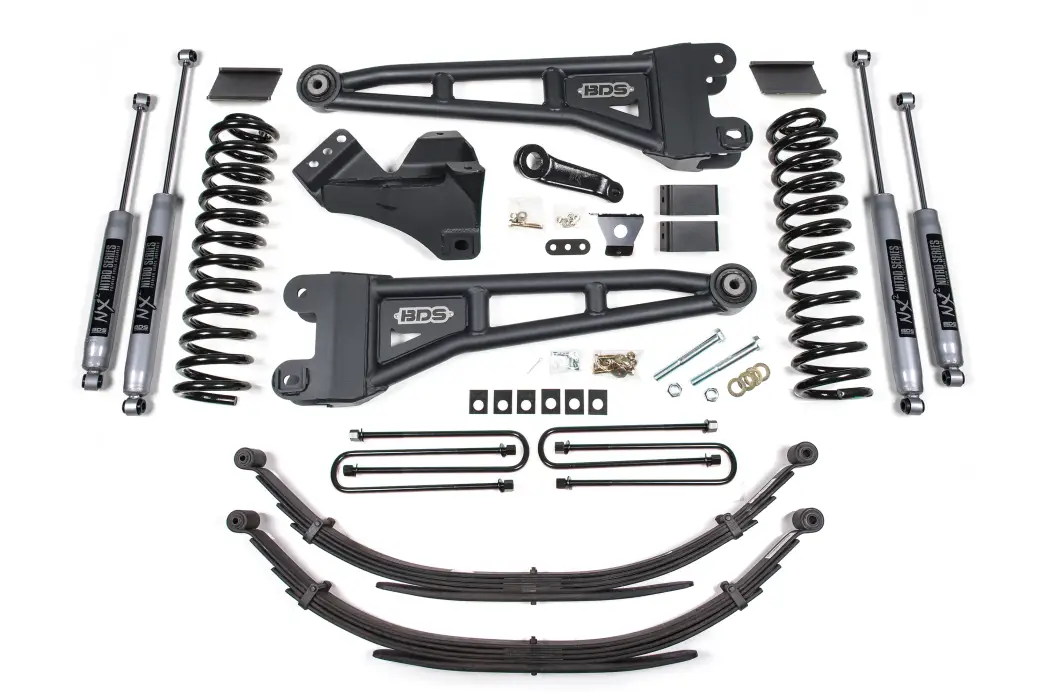

BDS1599H | BDS Suspension 4 Inch Lift Kit With Radius Arm For Ford F-250/F-350 Super Duty 4WD | 2011-2016 | Gas | Rear Lift Leaf Springs, NX2 Nitro Series Shocks

BDS1599H | BDS Suspension 4 Inch Lift Kit With Radius Arm For Ford F-250/F-350 Super Duty 4WD | 2011-2016 | Gas | Rear Lift Leaf Springs, NX2 Nitro Series Shocks

BDS1599H
Pricing: $3,375.14
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Upgrade the ride on your 2011-2016 Ford F250 and F350 Super Duty gas powered truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Rear Lift Option

4 Inch Block Kit

  • Included in the base system.
  • Made of cast iron for high strength.
  • Designed to provide correct pinion angles.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Removal of factory block required. Net rear lift height will vary depending on the height of the factory block but will result in a level stance.
  2. Front exhaust modification may be required to clear the front drive shaft (gas only).
  3. If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
  4. Although extremely rare, front and/or rear driveline vibration may occur.
  5. If equipped with a rear sway bar, #123009 is required.
  6. U-bolts will not work on dually.

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Drill / Bit Set, Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Leaf Spring
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 4"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2011FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2011FordF-250 Super DutyLariat4WDFLEXALLALL
2011FordF-250 Super DutyXL4WDFLEXALLALL
2011FordF-250 Super DutyXLT4WDFLEXALLALL
2011FordF-350 Super DutyALL4WDFLEXALLALL
2012FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2012FordF-250 Super DutyLariat4WDFLEXALLALL
2012FordF-250 Super DutyXL4WDFLEXALLALL
2012FordF-250 Super DutyXLT4WDFLEXALLALL
2012FordF-350 Super DutyALL4WDFLEXALLALL
2013FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2013FordF-250 Super DutyLariat4WDFLEXALLALL
2013FordF-250 Super DutyPlatinum4WDFLEXALLALL
2013FordF-250 Super DutyXL4WDFLEXALLALL
2013FordF-250 Super DutyXLT4WDFLEXALLALL
2013FordF-350 Super DutyALL4WDFLEXALLALL
2014FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2014FordF-250 Super DutyLariat4WDFLEXALLALL
2014FordF-250 Super DutyPlatinum4WDFLEXALLALL
2014FordF-250 Super DutyXL4WDFLEXALLALL
2014FordF-250 Super DutyXLT4WDFLEXALLALL
2014FordF-350 Super DutyALL4WDFLEXALLALL
2015FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2015FordF-250 Super DutyLariat4WDFLEXALLALL
2015FordF-250 Super DutyPlatinum4WDFLEXALLALL
2015FordF-250 Super DutyXL4WDFLEXALLALL
2015FordF-250 Super DutyXLT4WDFLEXALLALL
2015FordF-350 Super DutyALL4WDFLEXALLALL
2016FordF-250 Super DutyKing Ranch4WDFLEXALLALL
2016FordF-250 Super DutyLariat4WDFLEXALLALL
2016FordF-250 Super DutyPlatinum4WDFLEXALLALL
2016FordF-250 Super DutyXL4WDFLEXALLALL
2016FordF-250 Super DutyXLT4WDFLEXALLALL
2016FordF-350 Super DutyALL4WDFLEXALLALL

Component List

2 BDS003629 Ford F250/350 6in Rear Spring
1 BDS013409 2011-2016 Ford F250/350 Rear Box Kit
1 BDS013424 2011-2016 Ford F250/F350 4" Radius Arm Front Box Kit
1 BDS123251 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
1 BDS033412 2005-2022 Ford F250/F350 Gas 4" Coil Spring Kit
2 BDS85700 Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2
2 BDS85760 Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
