66-54150 | ReadyLift 1.5 Inch Front Leveling Kit (2024 Tacoma)
2024 Toyota Tacoma
Description
2024 Toyota Tacoma Leveling
ReadyLIFT leveling kits are the fastest, safest, least expensive way to bring the front of your vehicle level with the rear for that ideal lifted neutral stance. Our front strut assembly eliminates the hassle, time, and concern of compressing springs. ReadyLIFT leveling kit will maintain a smooth OEM ride without adding stress to stock suspension components!

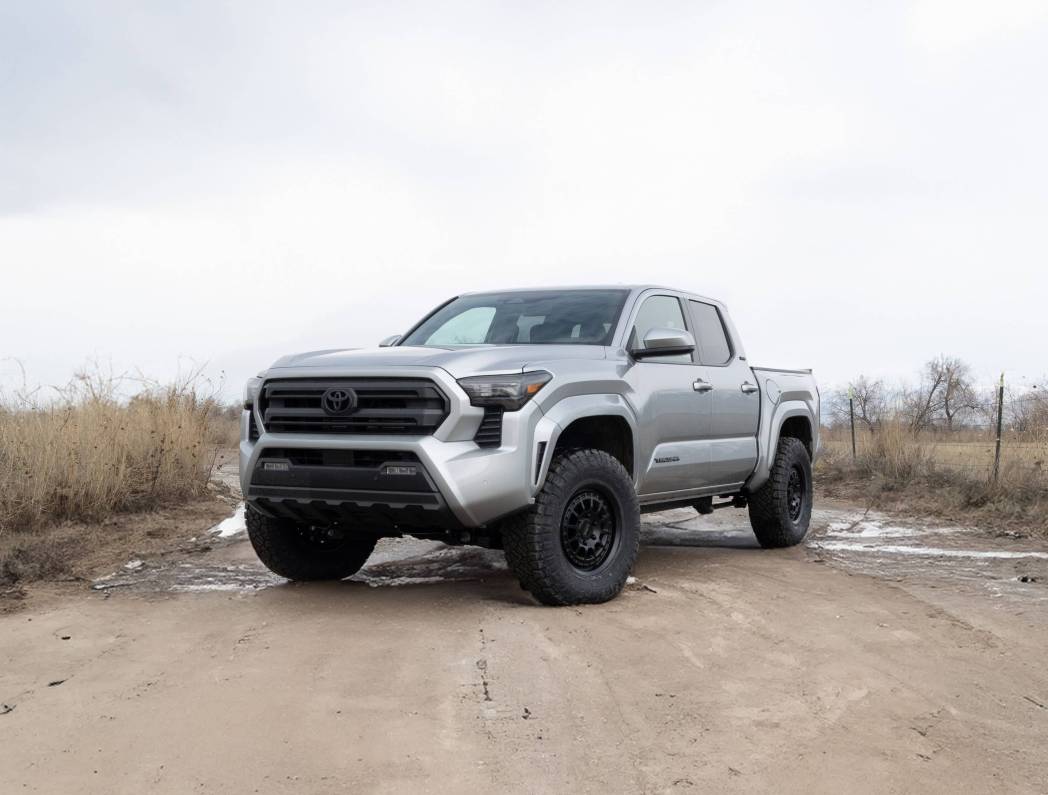

The all-new part number 66-54150 2024 Toyota Tacoma Leveling Kit is an excellent choice for those who want a level stance while running larger tires up to 34 inches. The no-trim maximum tire size for this kit is a 285/70R17 with a 17x 8 wheel and +35 offset.
FEATURES & BENEFITS:
- 1.5” Leveling Kit - Max Tire Diameter 285/70 without trimming”

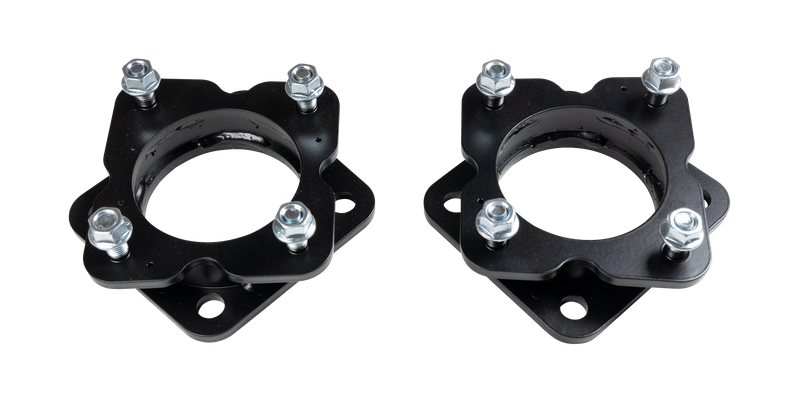

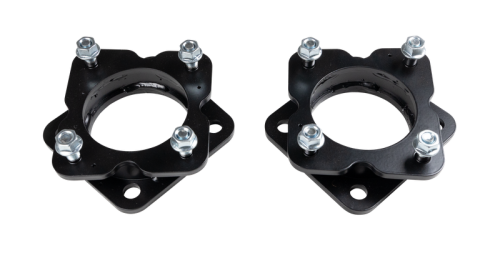

- Fabricated steel front strut spacers
- Note: Have not tested fitment on TRD Pro and Hybrid applications.
Application List
Tires & Wheels
Stock (17x7 +60) 285/70R17 No Trim (Widest tire you can put on, Knuckle clearance)
17x8 +35 285/70R17 No Trim
17x8 +35 285/75R17 No Trim under normal driving conditions (8mm clearance). Will hit fender at full bump.
17x8.5 +47 285/70R17 No Trim
17x8.5 +47 285/75R17 No Trim under normal driving conditions. Will hit fender at full bump.
17x8.5 +25 285/70R17 No Trim
17x9 +1 285/70R17 May require trimming. (4mm clearance)
Tire Size Comparison:
18x8 +35 285/65R18 No Trim
18x8 +35 285/70R18 No Trim under normal driving conditions. Will hit fender at full bump.
18x8.5 +47 285/65R18 No Trim
18x8.5 +47 285/70R18 No Trim under normal driving conditions. Will hit fender at full bump.
18x8.5 +25 285/65R18 No Trim
18x9 +1 285/65R18 May require trimming. (4mm clearance)
20x8.5 +35 295/55R20 No Trim
20x9 +18 295/55R20 No Trim
20x9 +1 295/55R20 May require trimming. (4mm clearance)
Details
- 66-54150
- 66-54150
- 194933356843
- ReadyLIFT Suspensions
- New
Categories
Shipping Information
- Item Requires Shipping
- 7.0 lbs.
- W3.5000” x H6.2500” x L11.0000”
- Free Ground Shipping | Exclusions Apply*
