BDS1907FDSC | BDS Suspension 3.5 Inch Lift Kit With Fox 2.5 Coil-over For Ford Ranger 4WD | 2019-2023 | OE Knuckle Cast Steel

Lift Kit With Fox 2.5 Coil-over For Ford Ranger 4WD | 2019-2023 | OE Knuckle Cast Steel

BDS1907FDSC
Pricing: $6,167.09
Qty:
Free Ground Shipping | Exclusions Apply*

Description

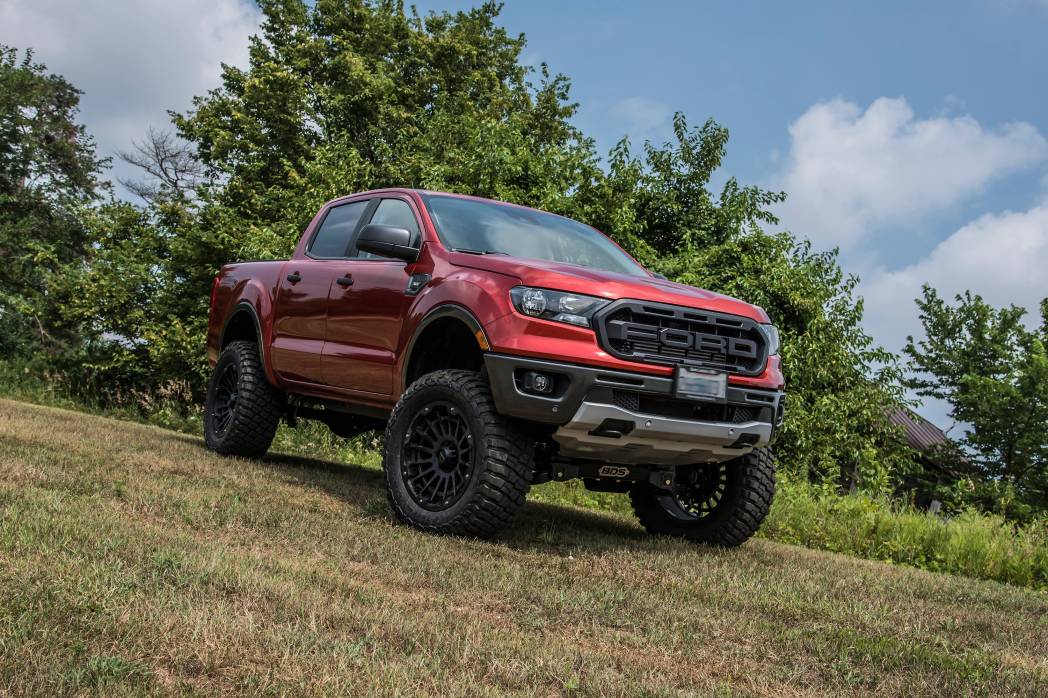

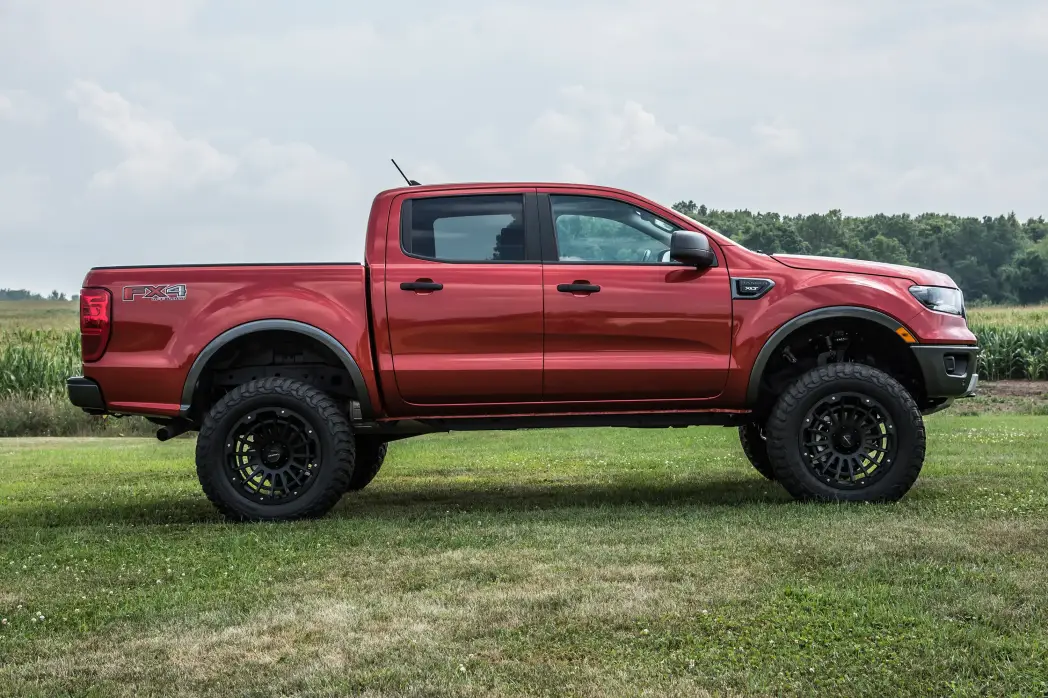

Built to outperform, BDS steps up the performance and capability of the 2019-2023 Ford Ranger trucks with 6-inch suspension lift kits with FOX 2.5 Coil-over shocks. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your Ford Ranger truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes a heavy duty replacement transfer case cross-member, high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

Features & Benefits

  • FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 33 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

DSC Adjustment

FOX 2.5 coil-overs are available with standard with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

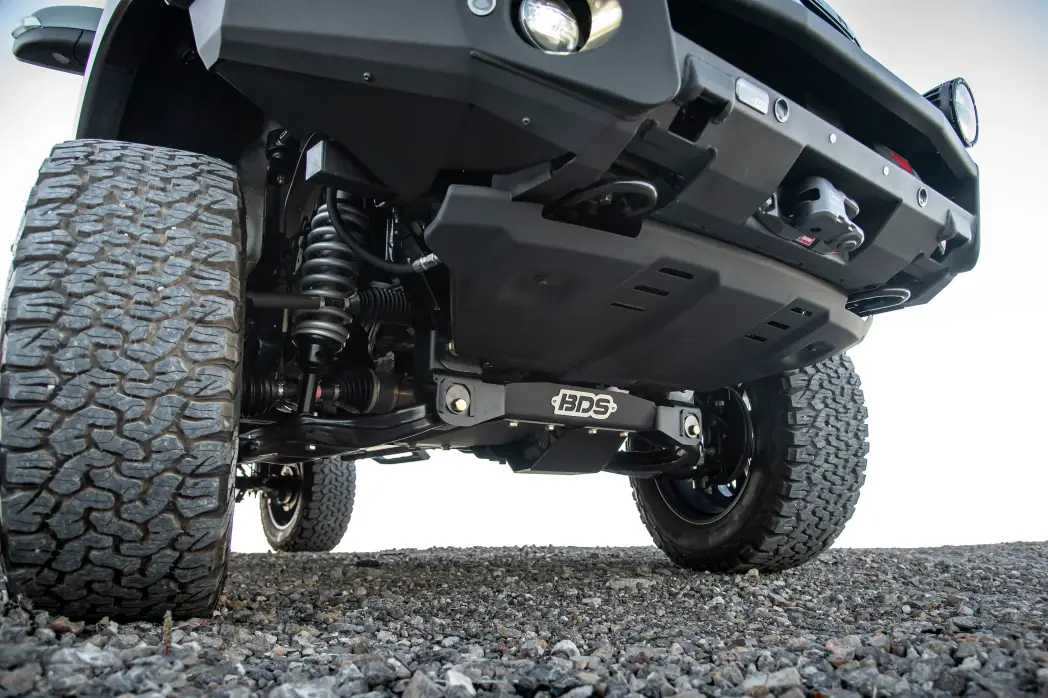

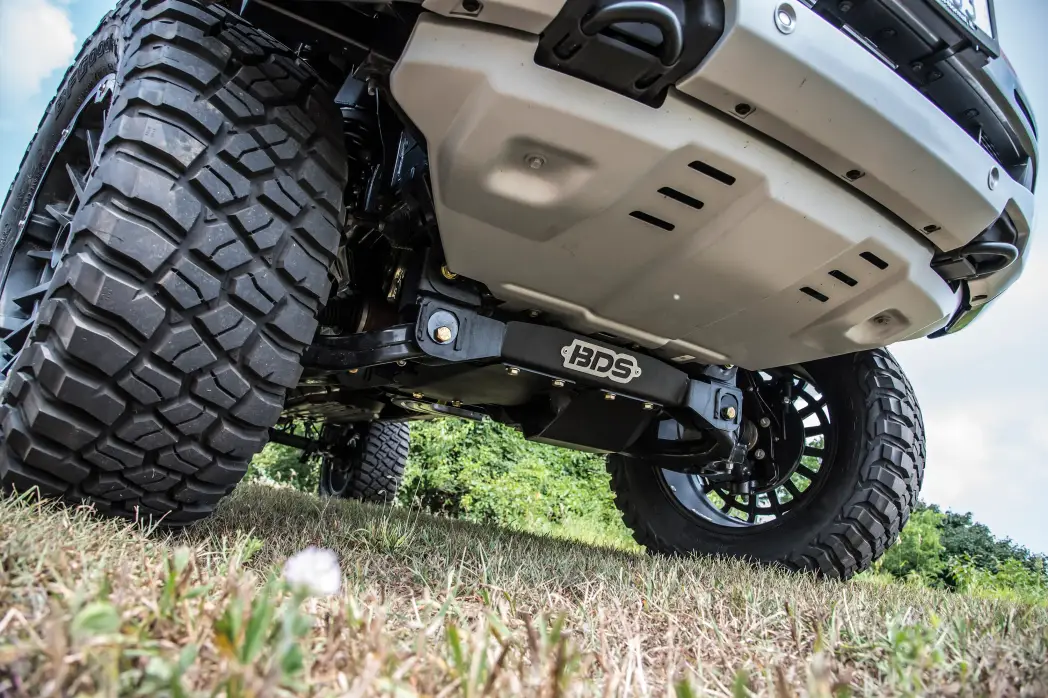

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

OE Knuckle Type

Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

Important Notes

*IMPORTANT* Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle-equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

  1. Requires frame bracket and differential modification. If using a plasma cutter for frame bracket mod, disconnecting the battery is highly recommended.
  2. Stock 17-18" wheels cannot be reinstalled.
  3. When balancing tires for 17-18" wheels, wheel weights are best positioned towards the center of the wheel to avoid interference with the tie rod end.
  4. Rack and Pinion steering is sensitive to tire choice. Aggressive tires, smaller backspacing or tires that require several wheel weights may induce steering wheel wobble.
  5. Will not work on Tremor model.

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

35mm Axle Nut Socket, Air Hammer (Recommended), Basic Hand Tools, Cut-off Tool, Jack / Jack Stands

Specification

  • Front Lift Method : Coil-Over
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 3.5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019FordRangerALL4WDALLALLALL
2020FordRangerALL4WDALLALLALL
2021FordRangerLariat4WDALLALLALL
2021FordRangerXL4WDALLALLALL
2021FordRangerXLT4WDALLALLALL
2022FordRangerLariat4WDALLALLALL
2022FordRangerXL4WDALLALLALL
2022FordRangerXLT4WDALLALLALL
2023FordRangerLariat4WDGASALLALL
2023FordRangerXL4WDGASALLALL
2023FordRangerXLT4WDGASALLALL

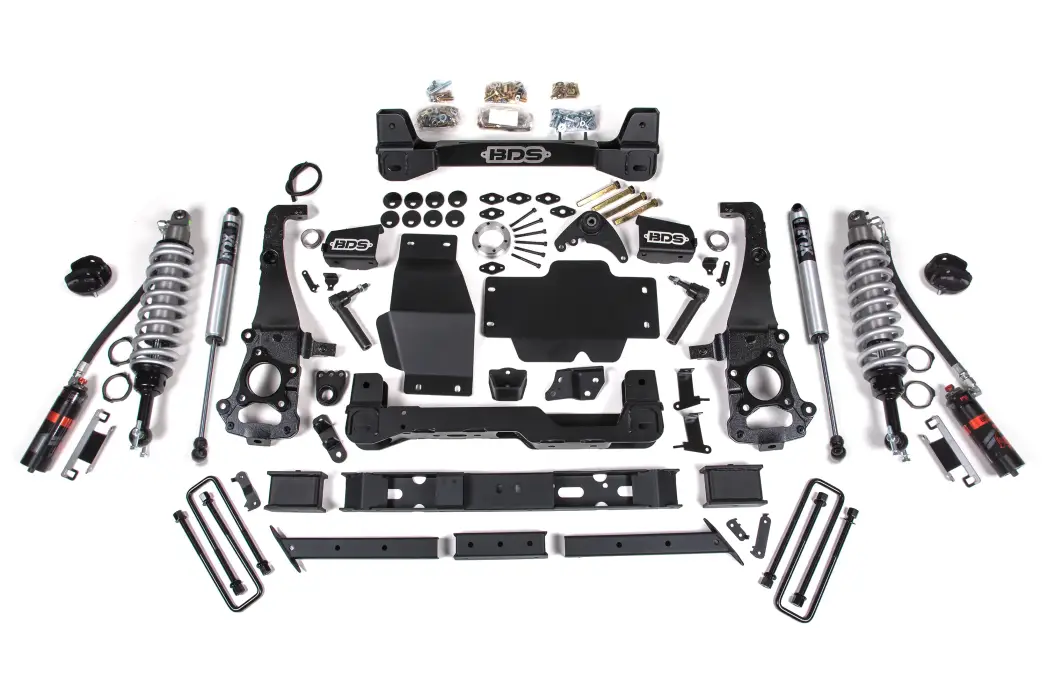

Component List

1 BDS023674 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Driver
1 BDS023675 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Passenger
1 BDS023662 2019-2023 Ford Ranger Front Box Kit (1of2)
1 BDS023663 2019-2023 Ford Ranger Front Box Kit (2of2)
1 BDS123600 2019-2023 Ford Ranger Coilover Mount Box Kit
1 BDS023669 2019-2023 Ford Ranger 6" Rear Box Kit
1 FOX88406262 Kit: BDS 19-20 Ford Ranger, Front, 2.5 FRS, R/R, 4.4", 6" Lift, DSC
2 FOX98224821 Fox 2.0 Shock 26.85 x 16.75 EB1/EB1

Tires & Wheels

(Trimming may be required)
33 x 12.5 with 17 x 9 and 4.5 in. Backspace
33 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
