BDS1907H | BDS Suspension 6 Inch Lift Kit For Ford Ranger 4WD | 2019-2023 | OE Knuckle Cast Steel | Rear NX2 Nitro Series Shocks

BDS1907H | BDS Suspension 6 Inch Lift Kit For Ford Ranger 4WD | 2019-2023 | OE Knuckle Cast Steel | Rear NX2 Nitro Series Shocks

BDS1907H
Pricing: $2,069.90
Qty:
Free Ground Shipping | Exclusions Apply*

Description

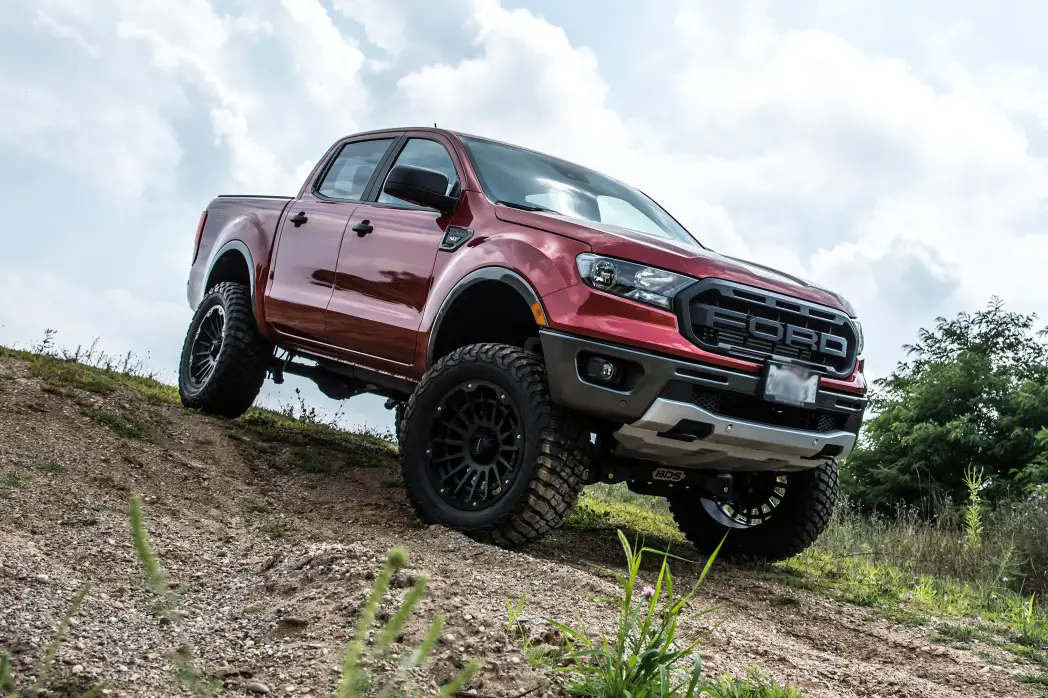

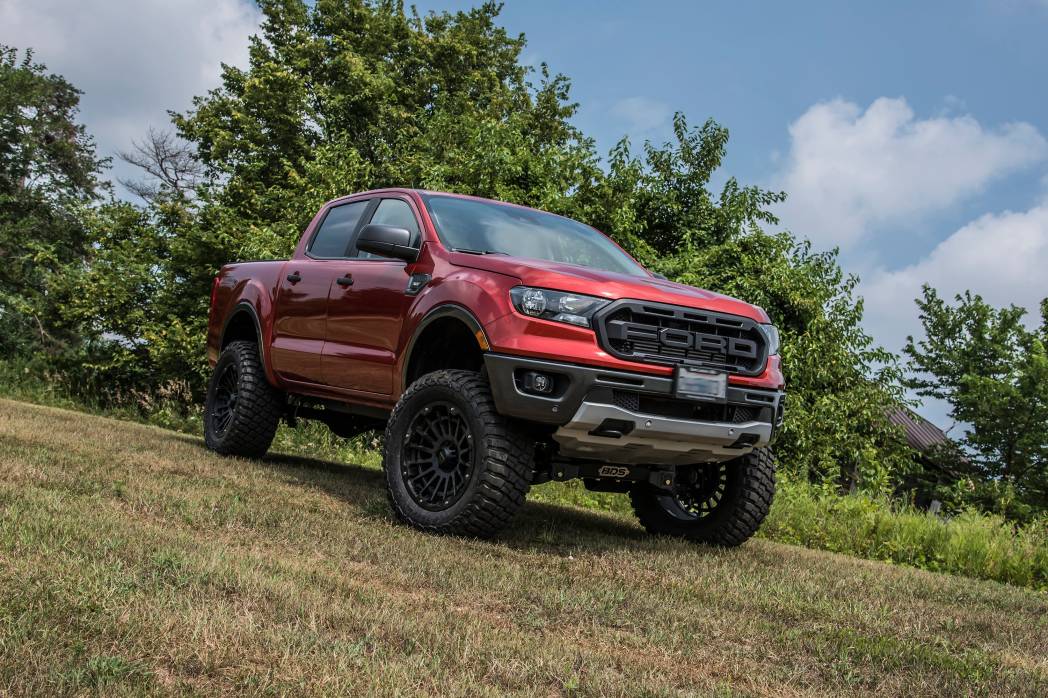

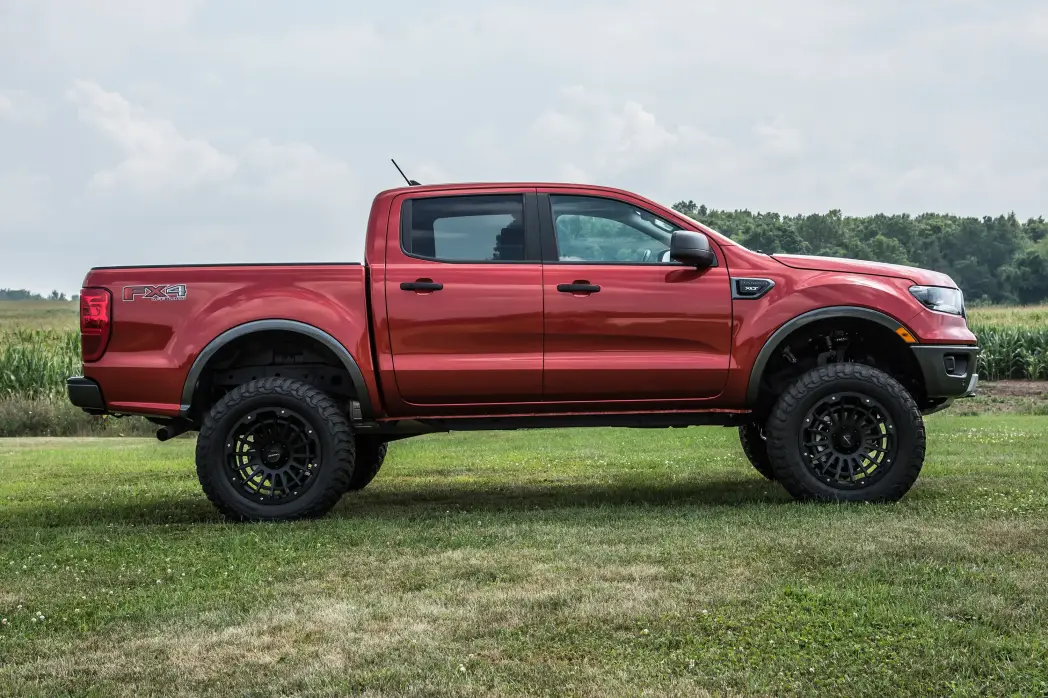

BDS steps up the performance and capability of the 2019-2023 Ford Ranger trucks with 6-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes a heavy duty replacement transfer case cross-member, high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

Features & Benefits

  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 33 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

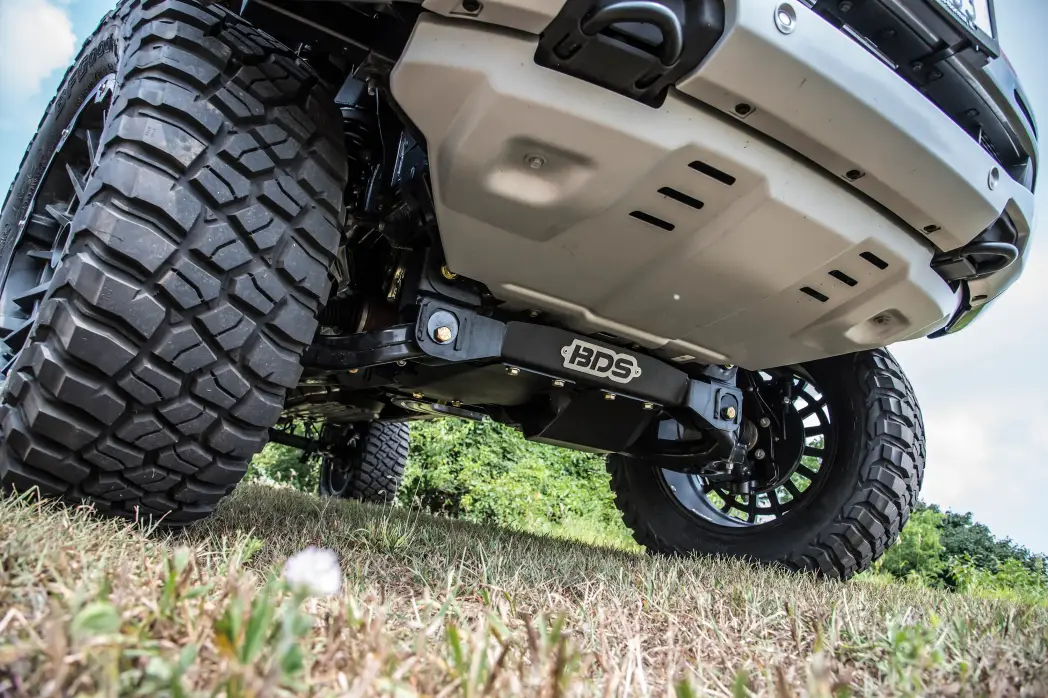

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

OE Knuckle Type

Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

*IMPORTANT* Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle-equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

  1. Requires frame bracket and differential modification. If using a plasma cutter for frame bracket mod, disconnecting the battery is highly recommended.
  2. Stock 17-18" wheels cannot be reinstalled.
  3. When balancing tires for 17-18" wheels, wheel weights are best positioned towards the center of the wheel to avoid interference with the tie rod end.
  4. Rack and Pinion steering is sensitive to tire choice. Aggressive tires, smaller backspacing or tires that require several wheel weights may induce steering wheel wobble.
  5. Will not work on Tremor model.

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

35mm Axle Nut Socket, Air Hammer (Recommended), Basic Hand Tools, Ball Joint Separation Tool, Cut-off Tool, Jack / Jack Stands

Specification

  • Front Lift Method : Strut Spacer
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 3.5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019FordRangerALL4WDALLALLALL
2020FordRangerALL4WDALLALLALL
2021FordRangerLariat4WDALLALLALL
2021FordRangerXL4WDALLALLALL
2021FordRangerXLT4WDALLALLALL
2022FordRangerLariat4WDALLALLALL
2022FordRangerXL4WDALLALLALL
2022FordRangerXLT4WDALLALLALL
2023FordRangerLariat4WDGASALLALL
2023FordRangerXL4WDGASALLALL
2023FordRangerXLT4WDGASALLALL

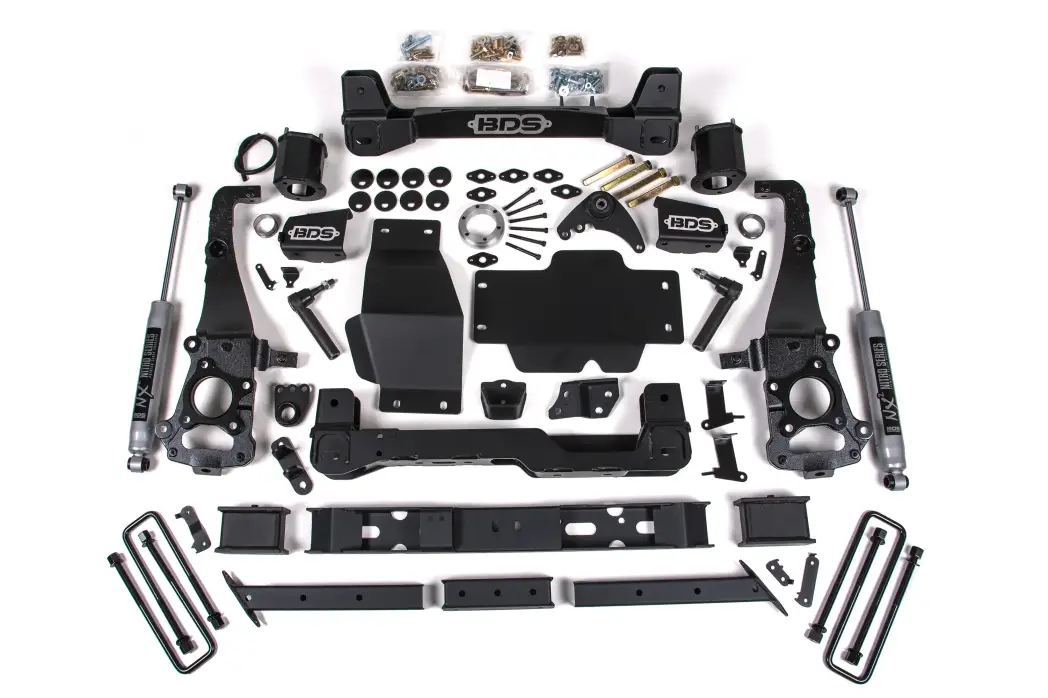

Component List

1 BDS023674 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Driver
1 BDS023675 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Passenger
1 BDS023662 2019-2023 Ford Ranger Front Box Kit (1of2)
1 BDS023663 2019-2023 Ford Ranger Front Box Kit (2of2)
1 BDS023664 2019-2023 Ford Ranger 6" Strut Spacer Box Kit
1 BDS023669 2019-2023 Ford Ranger 6" Rear Box Kit
2 BDS85821 Shock - 26.2 x 15.67 x 2-3/8 - EB1-EB1

Tires & Wheels

(Trimming may be required)
33 x 12.5 with 17 x 9 and 4.5 in. Backspace
33 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
