BDS1909H | BDS Suspension 4 Inch Lift Kit For Ford F-150 2WD | 2015-2020 | Rear 3 Inch Block Kit, Rear NX2 Nitro Series Shocks

Lift Kit For Ford F-150 2WD | 2015-2020 | Rear 3 Inch Block Kit, Rear NX2 Nitro Series Shocks

BDS1909H
Pricing: $2,435.96
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Improve the performance and capability of your 2015-2020 Ford F150 2WD truck by installing a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

Features & Benefits

  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Lift Option

4 Inch Block Kit

  • Level to tail high appearance

3 Inch Block Kit

  • Tail low to level stance

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. 18" wheels with 5-5.5" total backspacing should be tested prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  2. 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  3. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
  4. Requires frame bracket modification.
  5. This system WILL WORK on Diesel Models.
  6. Will not fit HD models (7 lug).
  7. This kit is FMVSS No.126 Compliant

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Cut-off Tool, Reciprocating Saw

Specification

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 3"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2015FordF-150ALLRWDALLALLALL
2016FordF-150ALLRWDALLALLALL
2017FordF-150King RanchRWDALLALLALL
2017FordF-150LariatRWDALLALLALL
2017FordF-150LimitedRWDALLALLALL
2017FordF-150PlatinumRWDALLALLALL
2017FordF-150SSVRWDALLALLALL
2017FordF-150XLRWDALLALLALL
2017FordF-150XLTRWDALLALLALL
2018FordF-150King RanchRWDALLALLALL
2018FordF-150LariatRWDALLALLALL
2018FordF-150LimitedRWDALLALLALL
2018FordF-150PlatinumRWDALLALLALL
2018FordF-150SSVRWDALLALLALL
2018FordF-150XLRWDALLALLALL
2018FordF-150XLTRWDALLALLALL
2019FordF-150King RanchRWDALLALLALL
2019FordF-150LariatRWDALLALLALL
2019FordF-150LimitedRWDALLALLALL
2019FordF-150PlatinumRWDALLALLALL
2019FordF-150SSVRWDALLALLALL
2019FordF-150XLRWDALLALLALL
2019FordF-150XLTRWDALLALLALL
2020FordF-150King RanchRWDALLALLALL
2020FordF-150LariatRWDALLALLALL
2020FordF-150LimitedRWDALLALLALL
2020FordF-150PlatinumRWDALLALLALL
2020FordF-150SSVRWDALLALLALL
2020FordF-150XLRWDALLALLALL
2020FordF-150XLTRWDALLALLALL

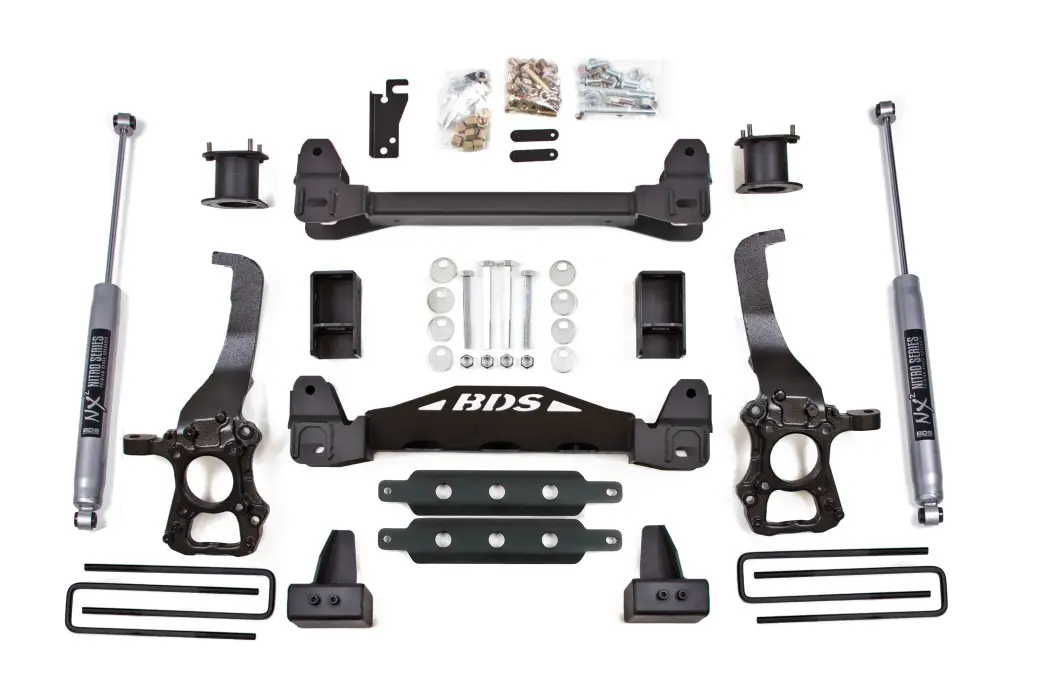

Component List

1 BDS023404 2014-2020 Ford F150 4in Spacer Box Kit
1 BDS023634 2015-2020 Ford F150 Knuckle Box Kit - DS
1 BDS023635 2015-2020 Ford F150 Knuckle Box Kit - PS
1 BDS023644 2015-2020 Ford F150 2wd Box Kit
2 BDS85828 Shock- 30.95 x 18.20 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 18 x 9 and 5.5 in. Backspace
35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
