BDS1913FSL | BDS Suspension 2 Inch Leveling Kit With Fox 2.0 Coil-over For Ford F-150 4WD | 2021-2024 | WITH Adaptive Headlight UCA Sensor

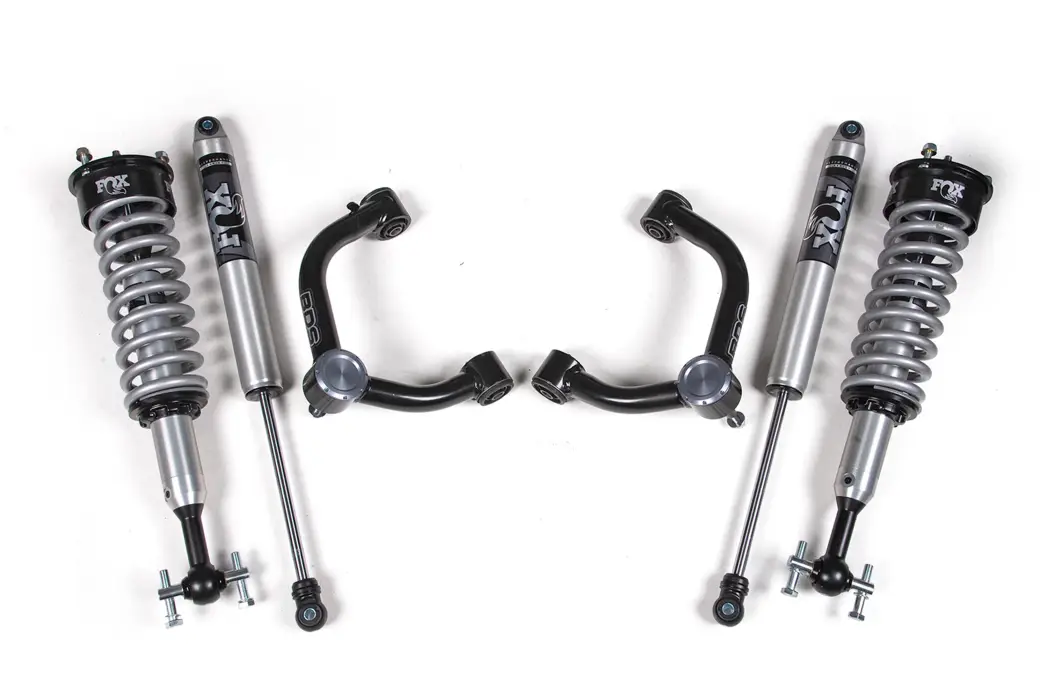

FOX 2.0 Coil-Over Shocks

These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Important Notes

1. Works with bar pin lower strut mounts. For eye-style lower strut mounts use 2009-13 model kits.
2. Control arms with sensors are designed to keep the sensor arm in the stock position (the same position as the OE control arm).
3. Not designed to work with trucks with CCD.
4. Do NOT hit the aluminum knuckle on later model trucks with a hammer to separate the ball joint. Use the appropriate ball joint separation tool.
5. For replacement ball joints, use BDS081203. The ball joint is directional and must be installed with the dot facing either inward or outward on the vehicle, otherwise, damage may occur.
6. Special Service Tool 204-592 is recommended to dislodge the ball joint.

Installation

Difficulty Level :

Moderate

Specialty Tools Needed :

Ball Joint Separation Tool

Specification
