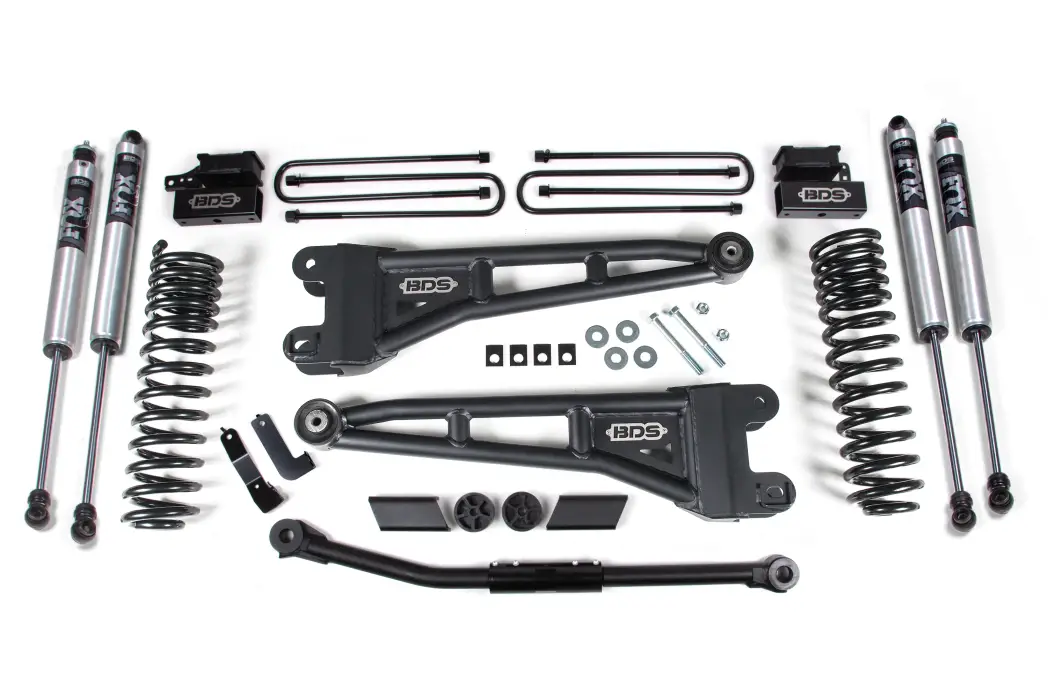

BDS1915FS | BDS Suspension 2.5 Inch Lift Kit With Radius Arm For Ford F-450 Super Duty 4WD | 2020-2024 | Diesel | Fox 2.0 Performance Series Shocks

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
2. Larger tires on stock wheels are not recommended due to the brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
3. Installation requires a torque wrench capable of 405 ft-lbs.
4. Wheel/Tire Specs:
   - Max Tire Size: 35x12.50
   - Front Wheel: 20x8.25, 8.76" BS
   - Rear Outer: 20x8.25, -3.33" BS
   - Rear Inner: 20x8.25, 9.11" BS

Installation

Difficulty Level :

Moderate

Specialty Tools Needed :

30mm Socket, Basic Hand Tools, Torque Wrench, Jack / Jack Stands, Pitman Arm Puller
