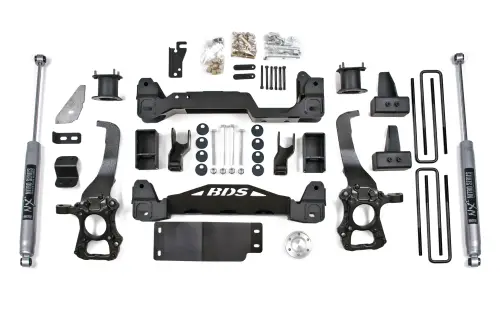

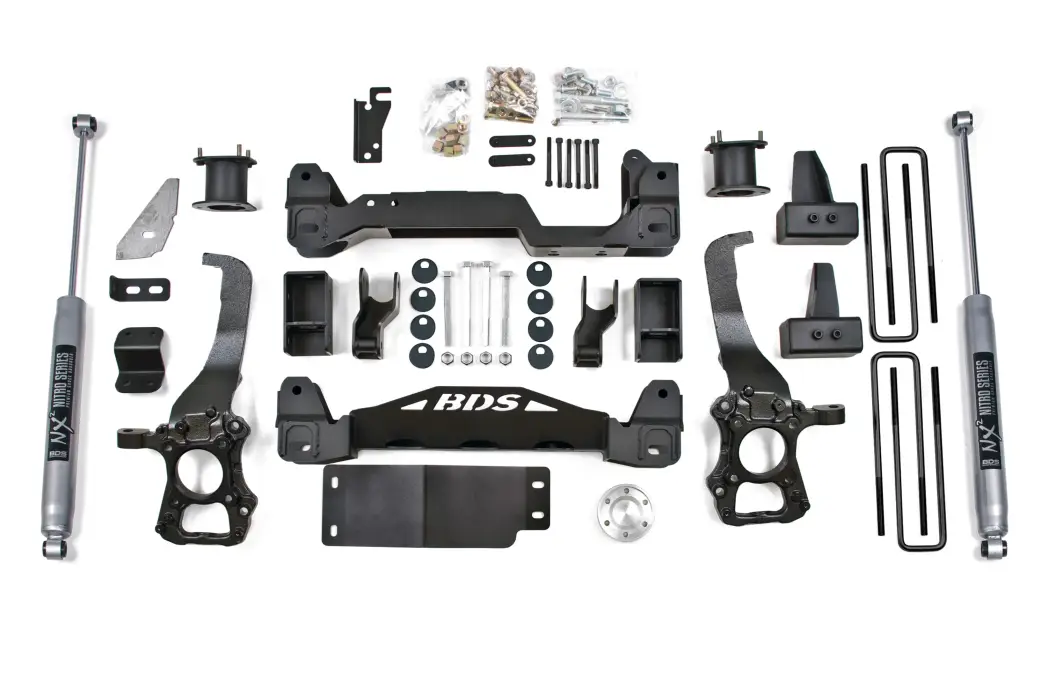

BDS1920H | BDS Suspension 4 Inch Lift Kit For Ford F-150 4WD | 2014-2014 | Rear 2 Inch Block Kit, Rear NX2 Nitro Series Shocks

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Lift Option

4 Inch Block Kit

• Level to tail high appearance

2 Inch Block Kit

• Tail low to level stance

Rear Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Important Notes

1. Requires frame bracket modification and welding.
2. 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tire.
3. E-brake bracket required for factory powersteps (123018) Block kits replace factory 1-1/4" block.
4. For a level-to-tail low appearance use #023415 in place of included 023425
5. Will not fit HD models (7 lug).
6. FMVSS No.126 Compliant

Installation

Specialty Tools Needed :

Cut-off Tool, Welding Equipment

Specification
