BDS1923FS | BDS Suspension 6 Inch Lift Kit For Ford F-250/F-350 4WD | 1999-2004 | Front U Bolt Square (MFG Prior 02-28-99), Rear Lift Block Kit Without Factory Overload, Rear Shocks Fox 2.0 Performance Series
Lift Kit For Ford F-250/F-350 4WD | 1999-2004 | Front U Bolt Square (MFG Prior 02-28-99), Rear Lift Block Kit Without Factory Overload, Rear Shocks Fox 2.0 Performance Series
Description
Take your 1999-2004 Ford F250 and F350 Super Duty truck to the next level with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36" tires.

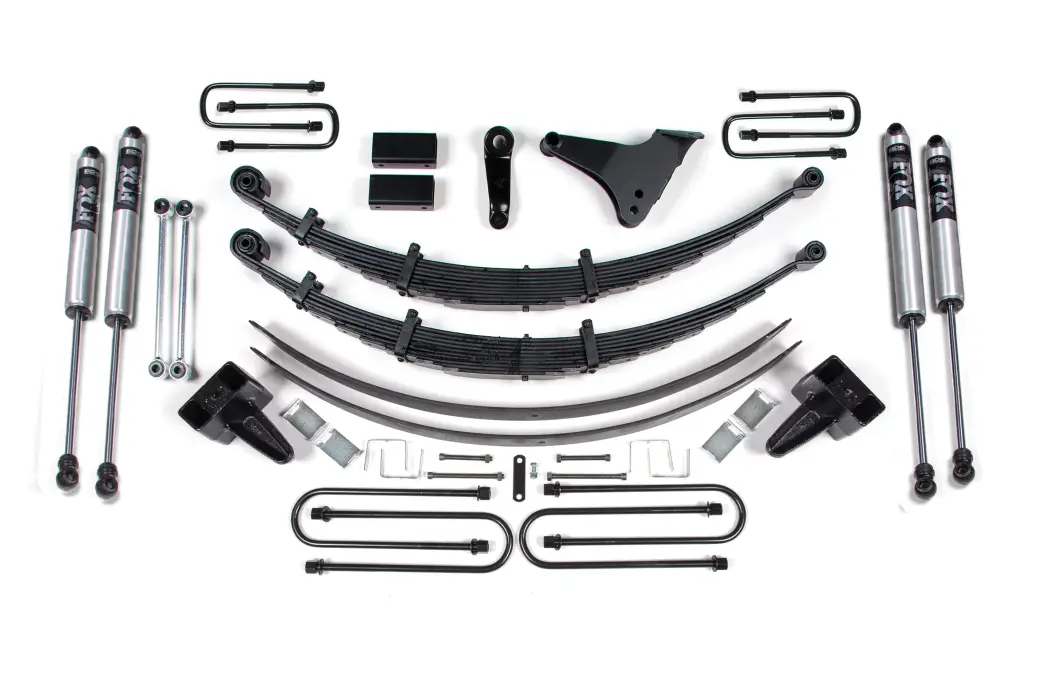

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks. Optional replacement full leaf spring packs for an improved ride on or off-road.
Features & Benefits
- Easy, 100% Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
- Cast steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
(Trimming may be required)
- 36 x 12.5 with 16 x 10 and 4 in. Backspace
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Front U-Bolt Type
This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case. The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar. Please make the appropriate selection for your particular vehicle.
Rear Lift Option
Block Kit
- Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
- Blocks made of steel for high strength.
- Designed to provide correct pinion angles.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
- Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
- The Superduty came from the factory with a 2", 3", or 4" rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
- Will not fit dually applications.
- If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the options section.
- The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.
Installation
Est. Install Time :
8-10 hrsDifficulty Level :
ModerateSpecialty Tools Needed :
N/A
Specification
- Front Lift Method : Leaf Spring
- Rear Lift Method : Block & Add-A-Leaf
- Shocks Included : Yes
- Front Lift Height : 6"
- Rear Lift Height : 5"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
1999 | Ford | F-250 Super Duty | ALL | ALL | ALL | ALL | ALL |
1999 | Ford | F-350 Super Duty | ALL | ALL | ALL | ALL | ALL |
2000 | Ford | F-250 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2000 | Ford | F-350 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2001 | Ford | F-250 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2001 | Ford | F-350 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2002 | Ford | F-250 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2002 | Ford | F-350 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2003 | Ford | F-250 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2003 | Ford | F-350 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2004 | Ford | F-250 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2004 | Ford | F-350 Super Duty | ALL | 4WD | ALL | ALL | ALL |
Component List
1 BDS013004 Pre 2/99 Ford F250/350 6&8in Front Bx Kt
1 BDS013329 1999-2007 Ford F250/F350 Rear Box Kit w/o overload
1 BDS113218 2005-2007 Ford F250/F350 Add-a-leaf
2 FOX98224660 Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
2 FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
Tires & Wheels
36 x 12.5 with 16 x 10 and 4 in. Backspace
Details
- BDS1923FS
- BDS1923FS
- 840416411034
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
