BDS1927H | BDS Suspension 2.5 Inch Lift Kit For Ford F-250/F-350 Super Duty 4WD | 2011-2016 | Diesel | Rear Lift No Block Kit, NX2 Nitro Series Shocks

Lift Kit For Ford F-250/F-350 Super Duty 4WD | 2011-2016 | Diesel | Rear Lift No Block Kit, NX2 Nitro Series Shocks

BDS1927H
Pricing: $1,334.05
Qty:
Free Ground Shipping | Exclusions Apply*

Description

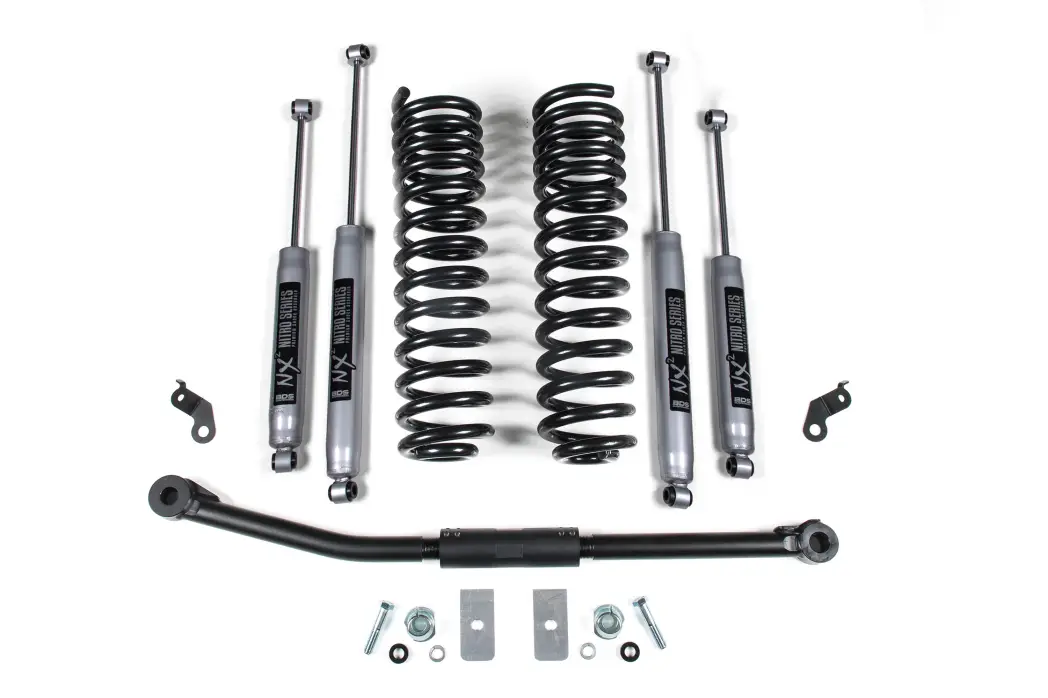

Improve the ride and level out your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Rear Lift Option

No Block

  • Tail low stance

4 Inch Block Kit

  • Level stance

5 Inch Block Kit

  • Tail high stance

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Designed for Diesel models w/o top mounted overload rear springs
  2. Models equipped with a 3-3/4" rear block from the factory do not require a rear block kit in order to achieve a more level stance.
  3. For a more tail-high stance, substitute #013519 5" rear block kit

Installation

Est. Install Time :

4 hrs

Difficulty Level :

Moderately/Easy

Specialty Tools Needed :

Basic Hand Tools, Torque Wrench, Jack / Jack Stands

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 2.5"
  • Rear Lift Height : 0"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2011FordF-250 Super DutyALL4WDDIESELALLALL
2011FordF-350 Super DutyALL4WDDIESELALLALL
2012FordF-250 Super DutyALL4WDDIESELALLALL
2012FordF-350 Super DutyALL4WDDIESELALLALL
2013FordF-250 Super DutyALL4WDDIESELALLALL
2013FordF-350 Super DutyALL4WDDIESELALLALL
2014FordF-250 Super DutyALL4WDDIESELALLALL
2014FordF-350 Super DutyALL4WDDIESELALLALL
2015FordF-250 Super DutyALL4WDDIESELALLALL
2015FordF-350 Super DutyALL4WDDIESELALLALL
2016FordF-250 Super DutyALL4WDDIESELALLALL
2016FordF-350 Super DutyALL4WDDIESELALLALL

Component List

1 BDS013254 2005-15 F250 2.5in Front Box Kit
1 BDS033251 2005-2022 Ford Super Duty 2.5" Coil Spring Box Kit, Front Diesel, Pair
2 BDS85713 Shock- 23.5 x 14.2 x 2-3/8 - S50/EB2
2 BDS85660 Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 17 x 9 and 5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
