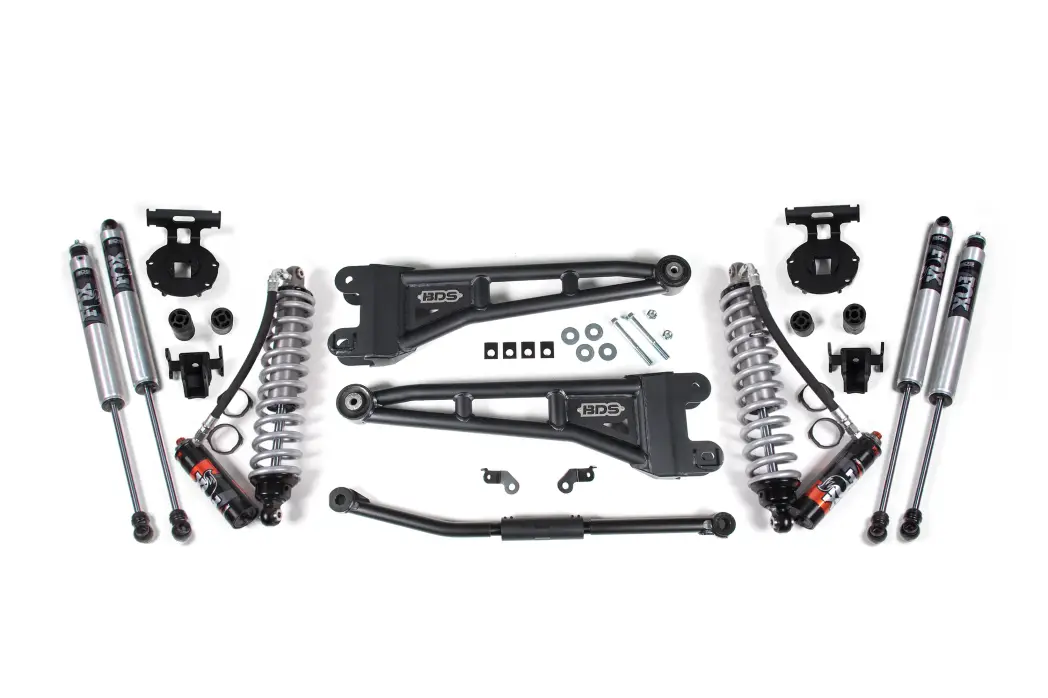

BDS1928FPE | BDS Suspension 2.5 Inch Lift Kit With Radius Arm & Fox 2.5 Performance Elite Coil-over Conversion For Ford F-250/F-350 Super Duty 4WD | 2011-2016 | Diesel | Rear Lift No Block

Lift Kit With Radius Arm & Fox 2.5 Performance Elite Coil-over Conversion For Ford F-250/F-350 Super Duty 4WD | 2011-2016 | Diesel | Rear Lift No Block

BDS1928FPE
Pricing: $6,858.38
Qty:
Free Ground Shipping | Exclusions Apply*

Description

BDS Suspension raises the bar with this 2.5-inch radius arm lift kit with FOX 2.5 Performance Elite coil-over shocks for 2011-216 Ford F250 and F350 Super Duty diesel powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of FOX Performance shocks.

Features & Benefits

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Rear Lift Option

No Block

  • Tail low stance

4 Inch Block Kit

  • Level stance

5 Inch Block Kit

  • Tail high stance

Important Notes

  1. Designed for Diesel models w/o top mounted overload rear springs
  2. Models equipped with a 3-3/4" rear block from the factory do not require a rear block kit in order to achieve a more level stance.
  3. For a more tail-high stance, substitute #013519 5" rear block kit

Installation

Est. Install Time :

7 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Basic Hand Tools, Drill / Bit Set, Reciprocating Saw

Specification

  • Front Lift Method : Coil-over
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 2.5"
  • Rear Lift Height : 0"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2011FordF-250 Super DutyALL4WDDIESELALLALL
2011FordF-350 Super DutyALL4WDDIESELALLALL
2012FordF-250 Super DutyALL4WDDIESELALLALL
2012FordF-350 Super DutyALL4WDDIESELALLALL
2013FordF-250 Super DutyALL4WDDIESELALLALL
2013FordF-350 Super DutyALL4WDDIESELALLALL
2014FordF-250 Super DutyALL4WDDIESELALLALL
2014FordF-350 Super DutyALL4WDDIESELALLALL
2015FordF-250 Super DutyALL4WDDIESELALLALL
2015FordF-350 Super DutyALL4WDDIESELALLALL
2016FordF-250 Super DutyALL4WDDIESELALLALL
2016FordF-350 Super DutyALL4WDDIESELALLALL

Component List

1 BDS013255 2011-2015 F250 2.5in Front Box Kit
1 BDS123212 2005-2016 Ford F250/F350 Super Duty Coil-over Mount Kit (2-4in)
1 BDS123251 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
1 FOX88406426 Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck PES, R/R 2.5" Lift, DSC
2 FOX98224710 Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
2 FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 17 x 9 and 5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
