BDS1931FPE | BDS Suspension 4 Inch Lift Kit With Radius Arm & Fox 2.5 Performance Elite Coil-over Conversion For Ford F-250/F-350 Super Duty 4WD | 2005-2007 | Diesel | Rear Lift Block Kit Without Factory Overload
Lift Kit With Radius Arm & Fox 2.5 Performance Elite Coil-over Conversion For Ford F-250/F-350 Super Duty 4WD | 2005-2007 | Diesel | Rear Lift Block Kit Without Factory Overload
Description
Go farther and upgrade your 2005-2007 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and secondary FOX 2.0 shocks.
In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of FOX Performance shocks.
Features & Benefits
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Adjustable solid steel track bar designed to recenter the front axle
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option
Block Kit
- Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
- Blocks made of steel for high strength.
- Designed to provide correct pinion angles.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Important Notes
- These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering.
- If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
Installation
Est. Install Time :
8 hrsDifficulty Level :
Moderate
Specialty Tools Needed :
Pitman Arm Puller
Specification
- Front Lift Method : Coil-over
- Rear Lift Method : Block
- Shocks Included : Yes
- Front Lift Height : 4"
- Rear Lift Height : 3"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2005 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2005 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2006 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2006 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2007 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2007 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |

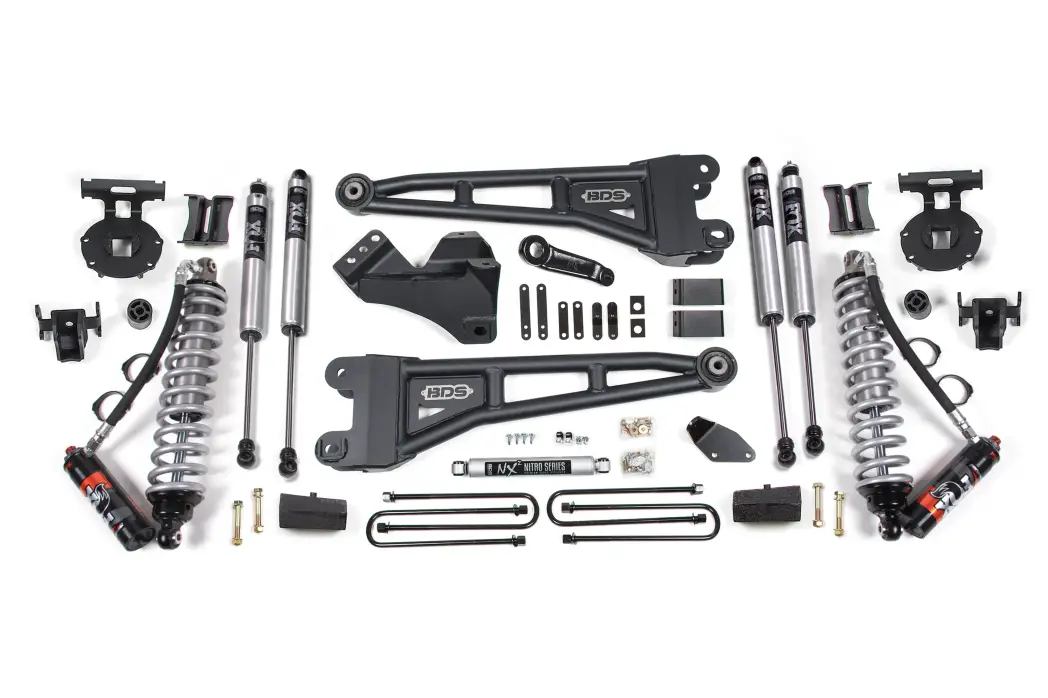

Component List
1 BDS013431 2005-2007 Ford F250/F350 4" Radius Arm Front Box Kit
1 BDS123212 2005-2016 Ford F250/F350 Super Duty Coil-over Mount Kit (2-4in)
1 BDS123251 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
1 BDS85415 Steering Stab 23.9 x 14.3 - EB1/EB1
1 FOX88406427 Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC
2 FOX98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
2 FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
Tires & Wheels
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Details
- BDS1931FPE
- BDS1931FPE
- 840416411263
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
