BDS1953H | BDS Suspension 6 Inch Lift Kit With Radius Arm For Ford F-250/F-350 Super Duty 4WD | 2008-2010 | Diesel | Rear Lift Block Kit Without Factory Overload, NX2 Nitro Series Shocks

Lift Kit With Radius Arm For Ford F-250/F-350 Super Duty 4WD | 2008-2010 | Diesel | Rear Lift Block Kit Without Factory Overload, NX2 Nitro Series Shocks

BDS1953H
Pricing: $2,308.46
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Best way to fit 37 inch tires on your 2008-2010 Ford Super Duty F250 and F350 diesel truck is to install this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

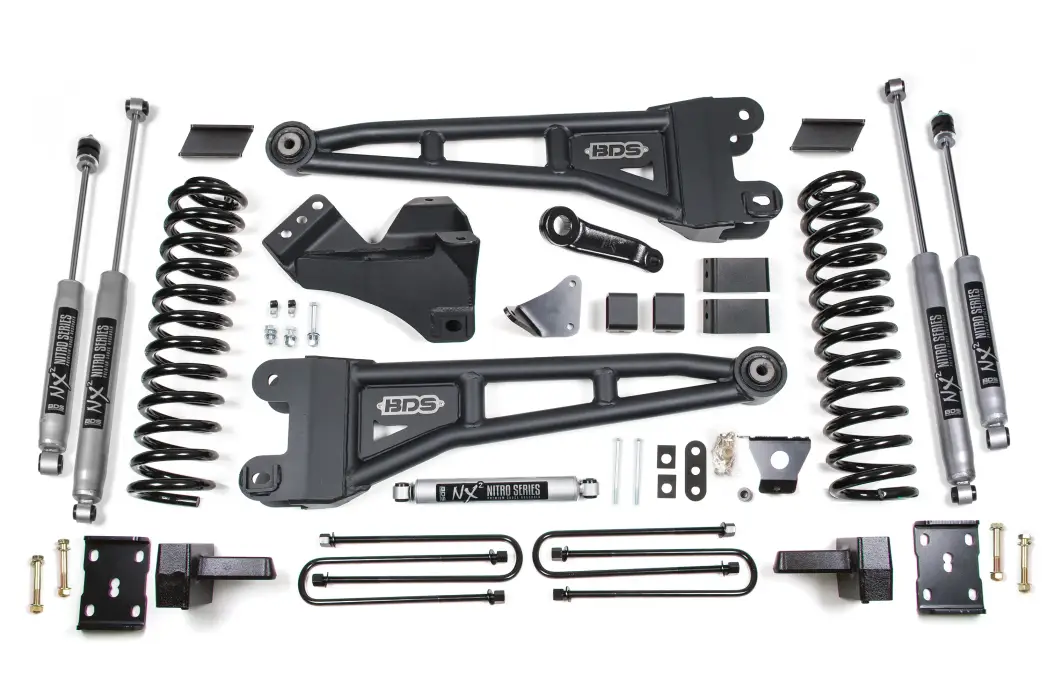

Up front the lift kit includes diesel-specific 6-inch lift Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

In the rear the base kit utilizes a high strength lift blocks, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Rear Lift Option

Block Kit

  • Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
  • Blocks made of steel for high strength.
  • Designed to provide correct pinion angles.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Removal of the factory block is required.
  2. Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2" lower than the front. To get a level stance you must upgrade to the rear leaf spring option.
  3. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
  4. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
  5. Although extremely rare, front driveline vibration may occur.
  6. Front exhaust modification may be required to clear the front driveshaft on gas models.
  7. U-bolts will not fit dually models.
  8. Dropped pitman arm will not fit 10 lug wide track F350 models.

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 3"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2008FordF-250 Super DutyALL4WDDIESELALLALL
2008FordF-350 Super DutyALL4WDDIESELALLALL
2009FordF-250 Super DutyALL4WDDIESELALLALL
2009FordF-350 Super DutyALL4WDDIESELALLALL
2010FordF-250 Super DutyALL4WDDIESELALLALL
2010FordF-350 Super DutyALL4WDDIESELALLALL

Component List

1 BDS013519 2005-up Ford F250/F350 5in Rear Block
1 BDS013621 2008-2010 Ford F250/F350 4wd 6" Radius Arm Box Kit - Front
1 BDS123251 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
1 BDS033611 2005-2022 Ford F250/F350 6" (Diesel) Coil Kit
1 BDS85415 Steering Stab 23.9 x 14.3 - EB1/EB1
2 BDS85750 Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2
2 BDS85760 Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
