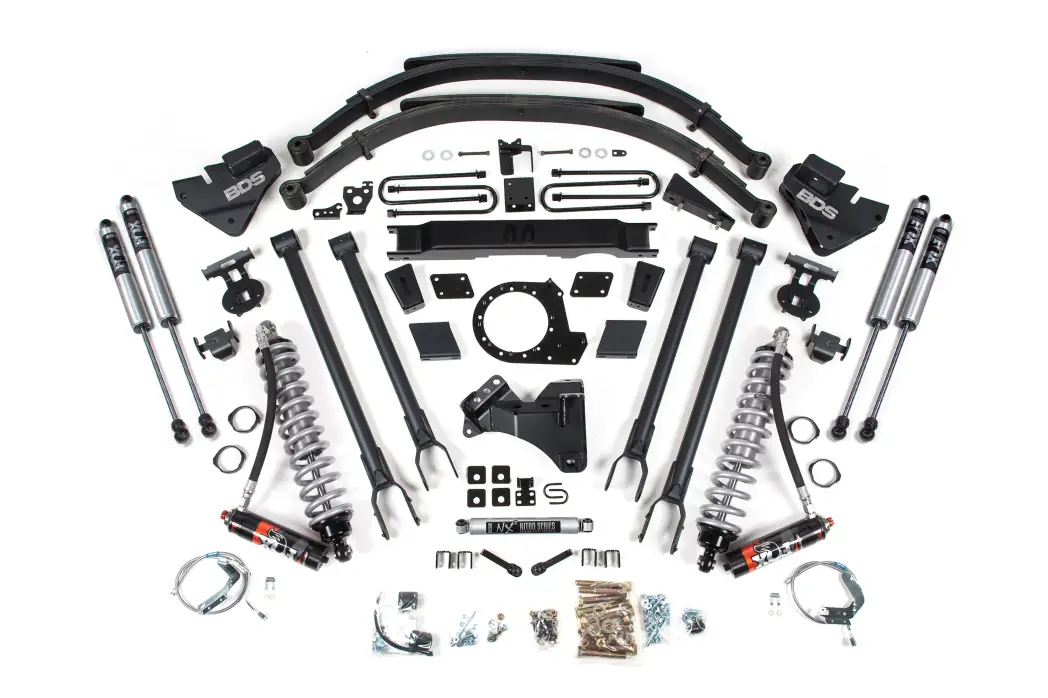

BDS1959FPE | BDS Suspension 9 Inch Lift Kit With 4 Link & Fox 2.5 Performance Elite Coil-over Conversion For Ford F-250/F-350 Super Duty 4WD | 2020-2022 | Diesel

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Important Notes

1. The transfer case indexing ring is designed for diesel models only and will not fit gas models equipped with the 6R100 transmission.
2. If equipped with a 2-piece rear driveshaft, a carrier-bearing drop kit may be required (BDS123402)
3. 40x13.50 tires WILL require trimming.
4. If your truck is equipped with a factory rear sway bar add BDS123009
5. The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.

Installation

Difficulty Level :

N/A

Specialty Tools Needed :

N/A

Specification
