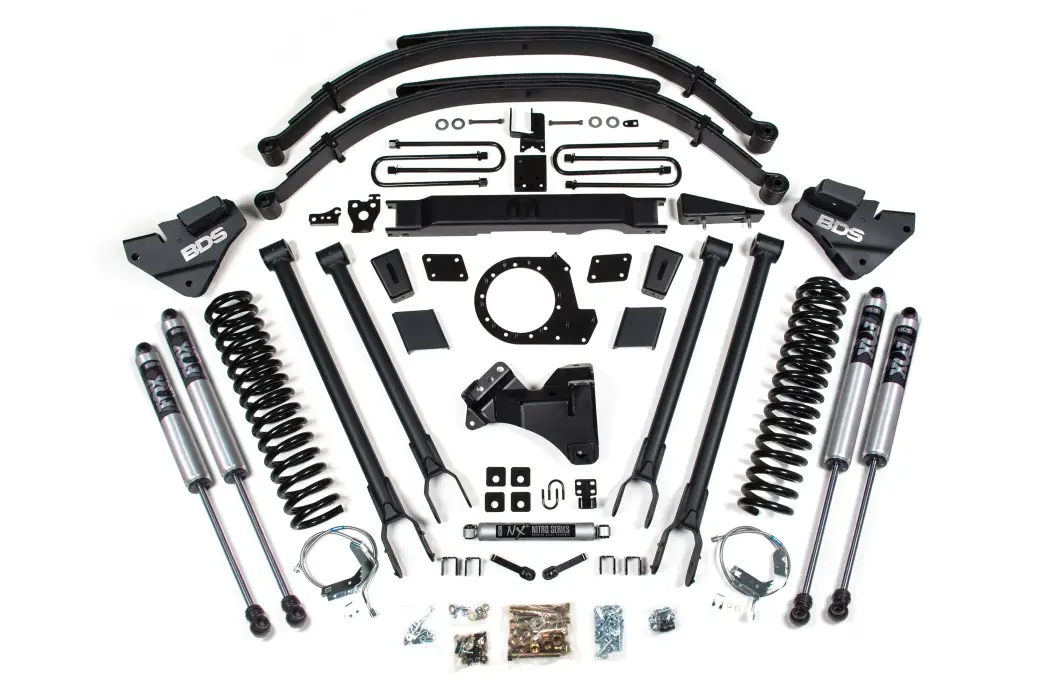

BDS1959FS | BDS Suspension 9 Inch Lift Kit With 4 Link For Ford F-250/F-350 Super Duty 4WD | 2020-2022 | Diesel | Fox 2.0 Performance Series Shocks

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Important Notes

1. The transfer case indexing ring is designed for diesel models only and will not fit gas models equipped with the 6R100 transmission.
2. If equipped with a 2-piece rear driveshaft, a carrier-bearing drop kit may be required (BDS123402)
3. 40x13.50 tires WILL require trimming.
4. If your truck is equipped with a factory rear sway bar add BDS123009
5. The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.

Installation

Difficulty Level :

Moderate

Specialty Tools Needed :

30mm Socket, Cut Off Wheel or Equiv., Pitman Arm Puller
