RT11160297 | RideTech Air Suspension System (1967-1969 Camaro, Firebird | Pin Spindle)

1967-1969 Camaro, Firebird | Pin Spindle

11160297
Pricing: $8,569.35
Qty:
Free Ground Shipping | Exclusions Apply*

Description

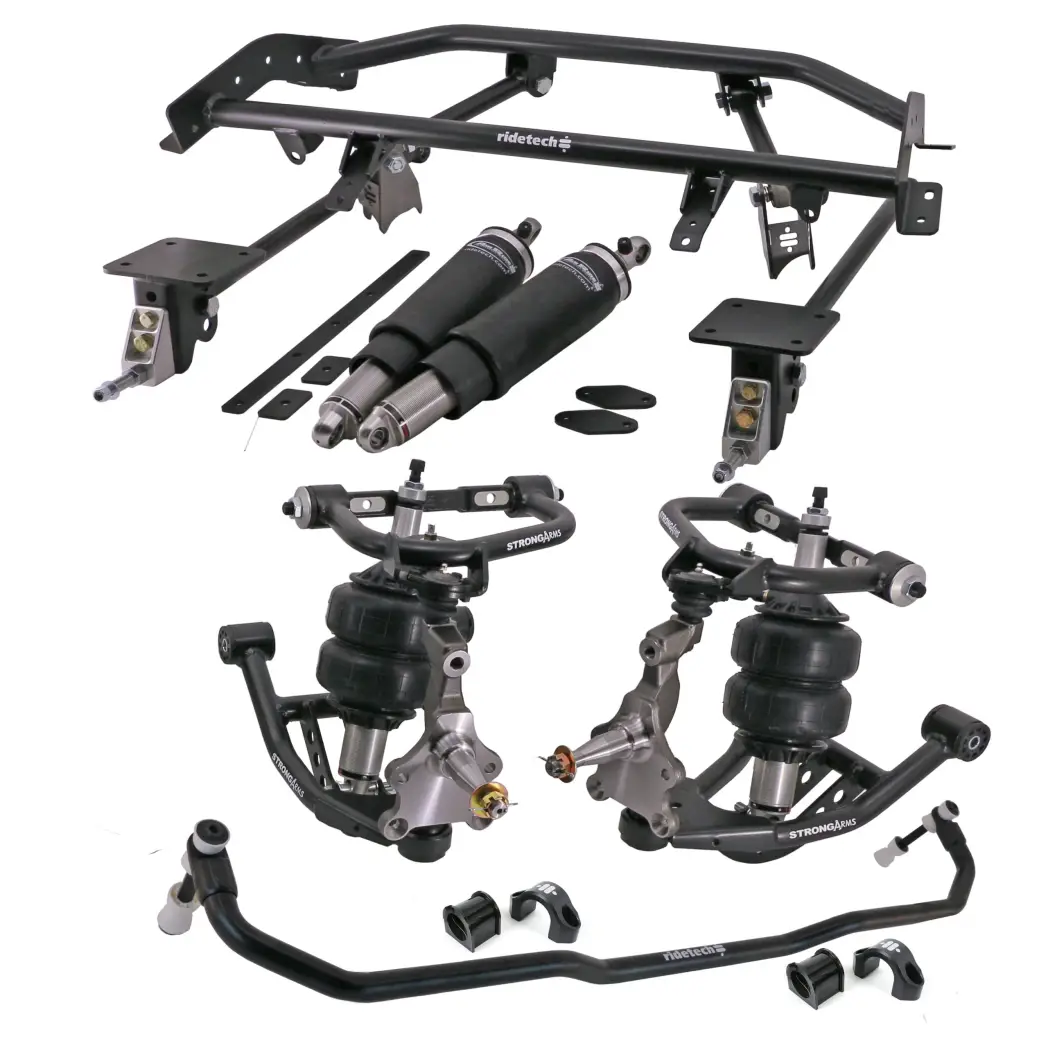

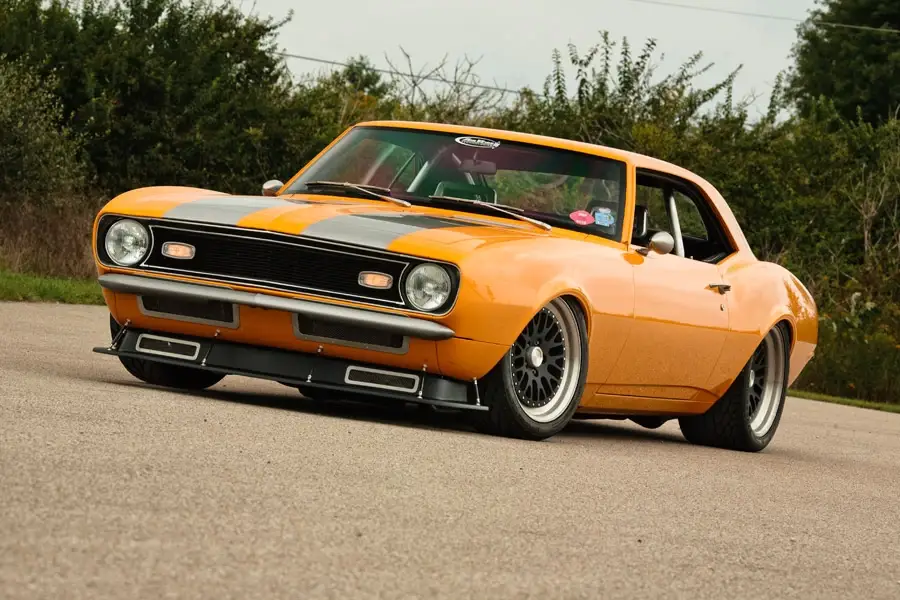

Complete Air Suspension System | 1967-1969 Camaro / Firebird

Air suspension for 1st gen F-body Camaro and Firebirds. Air Ride provides ultra-low show stance with modern ride quality and handling. Includes several components that will dramatically improve the suspension geometry to give your old muscle car modern drivability.

Features:

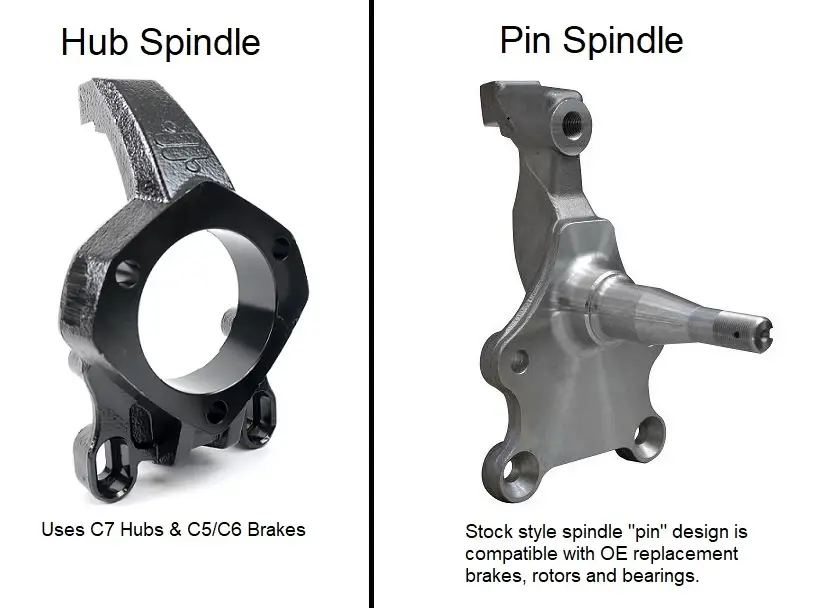

  • Tall  “Pin” Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” drop which allows for the use of longer shocks creating more suspension travel.  Compatible with all brake kits designed to fit the stock disc brake spindle.
  • Optional “Hub” Spindles offer the same geometry improvements as the pin spindle but add the performance and simplicity of late-model Corvette hubs and brakes.  Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking, and reduced maintenance. (Hubs not included). Compatible with C5/C6 Corvette brake systems, OE, and aftermarket (caliper brackets included).  Minimum 17″ wheels.

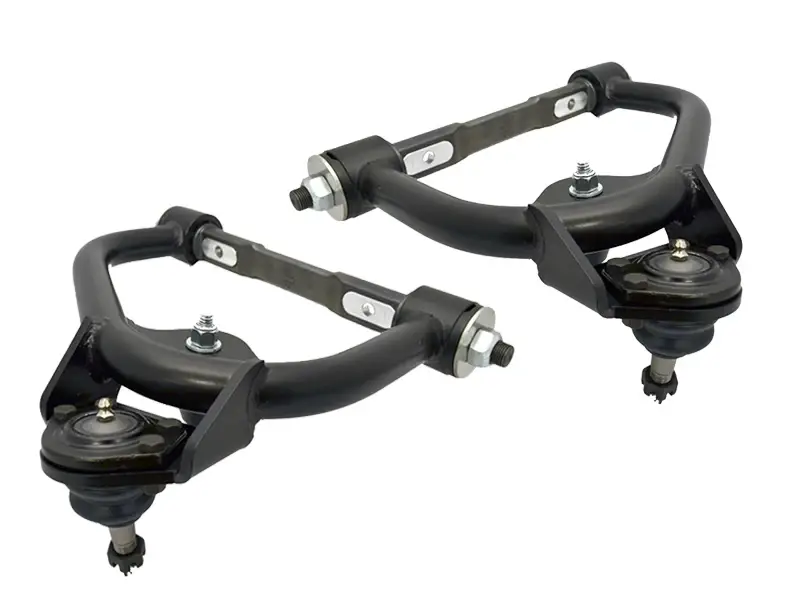

  • The Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joints have been moved back to allow for additional caster settings to improve high-speed stability and steering feel. Offset slugs are also available for additional caster. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

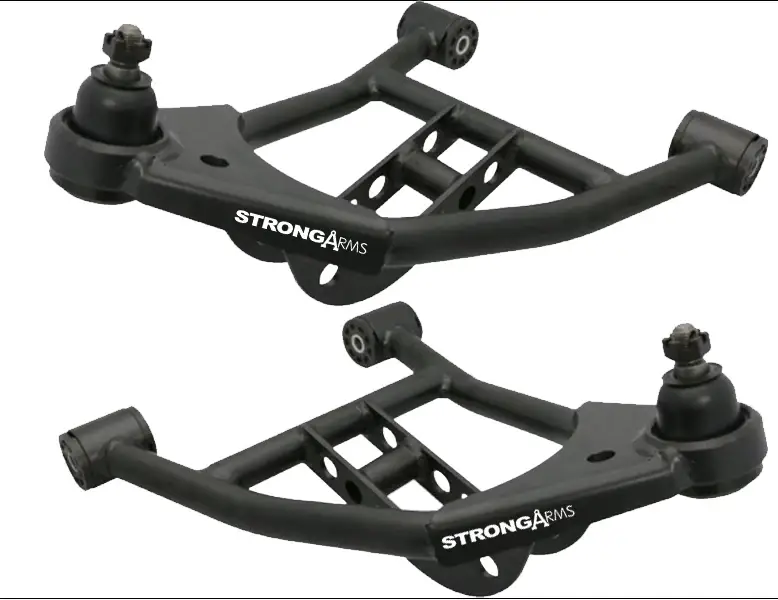

  • The Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

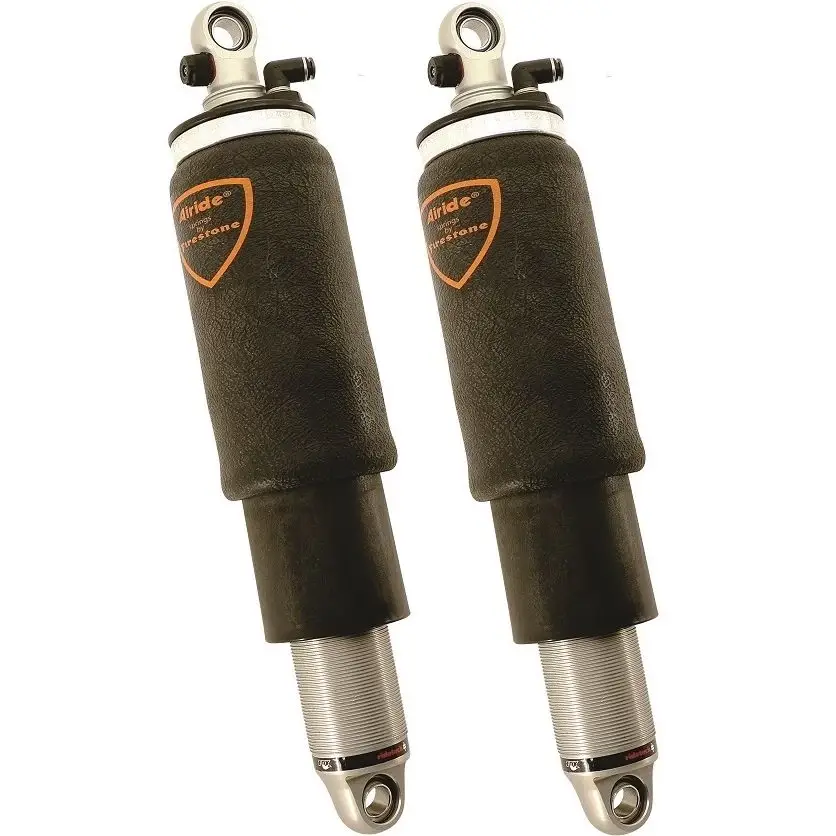

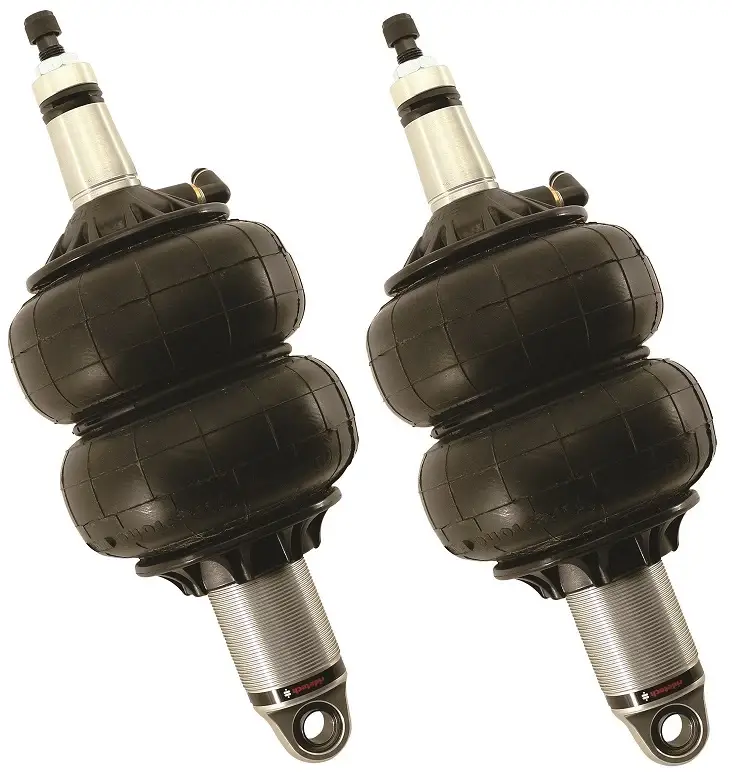

  • HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling. The rebound knob is at the top of the shock for easy under-hood access. They come standard with a 1,000,0001 Mile Warranty.
  • Front Sway Bar reduces body roll and creates room for wider front tires. Includes billet aluminum frame straps (anodized black) and low friction bushings.

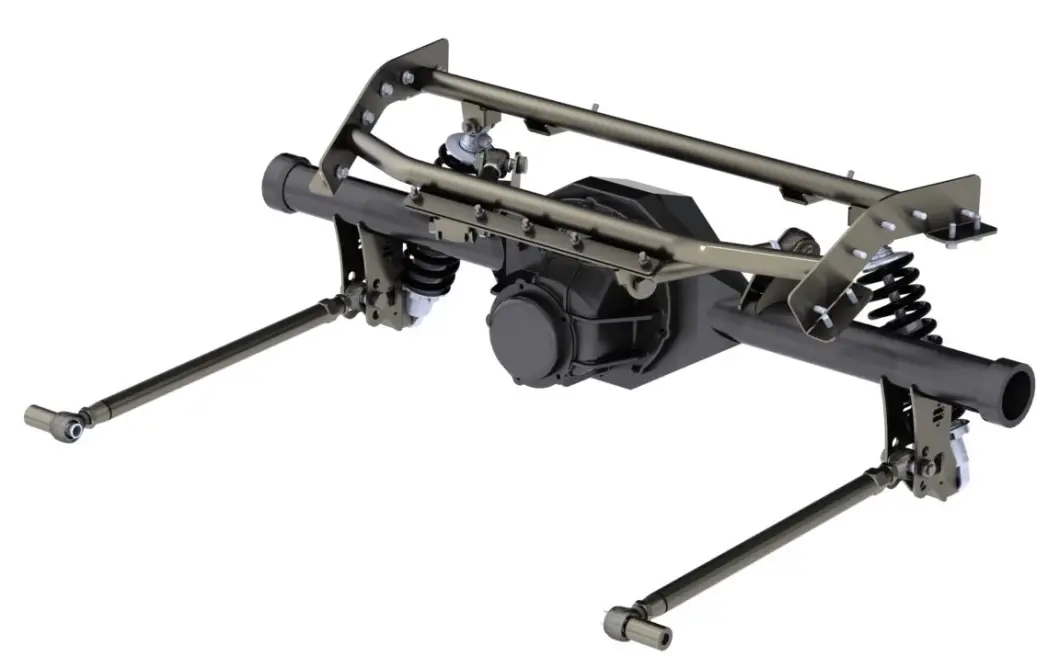

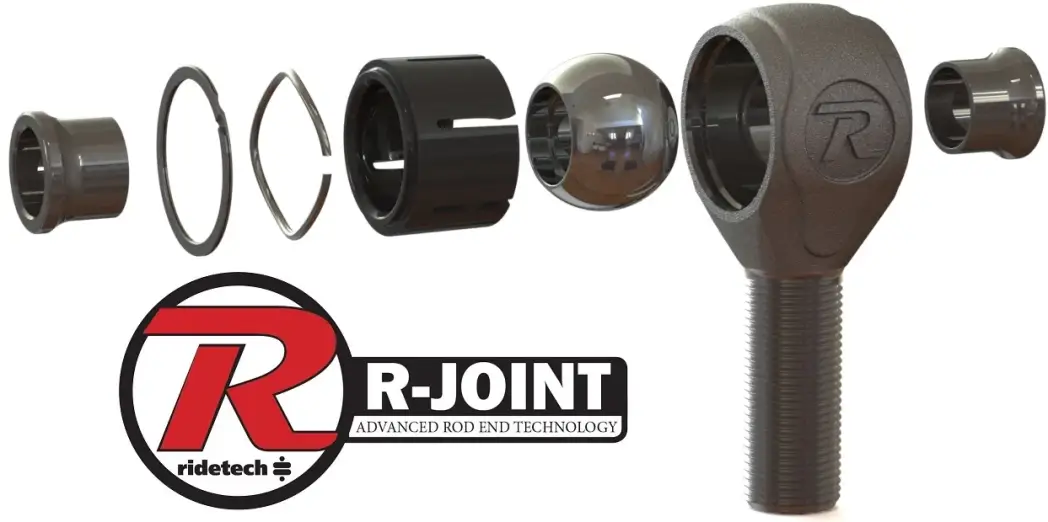

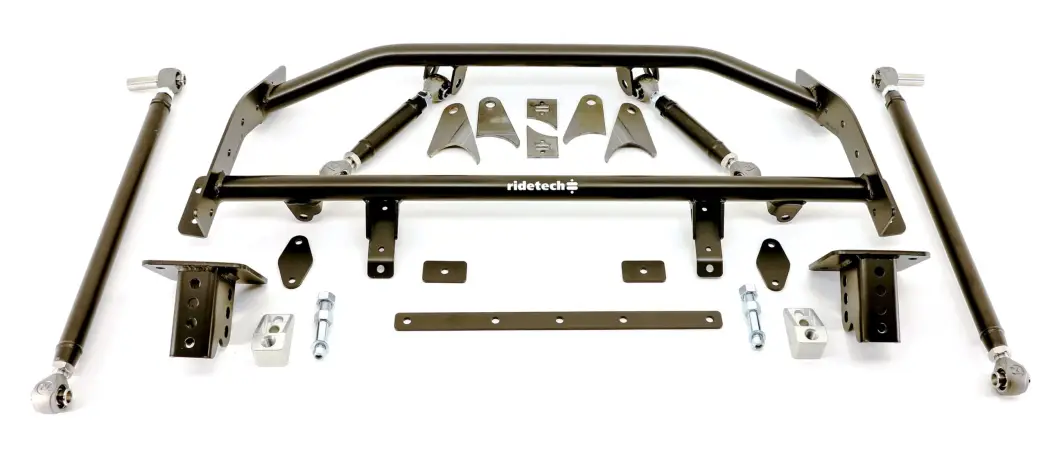

  • The Bolt-On 4-Link dramatically improves traction, handling, and ride quality. Installation does not require significant modifications to the floor pan and requires only minimal welding to the axle tube. Works with mini-tubs.  All links are double adjustable with R-Joint rod ends, combining the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as on the racetrack!

Upgrades:

  • TruTurn System- The early Camaro/Nova frontends have very poor suspension geometry…the tires lean outward around turns, the bumpsteer is bad, and there is little room to run a wide wheel because of the oem steering arm interference with the inside of the wheel. The Tru Turn system resolves ALL these issues…the tires now lean INTO the turn, the bumpsteer is UNDER .050″ through 5″ of suspension travel, and you now have clearance to run up to a 10″ wide wheel with a 275mm tire! Compatible with both the Ridetech “Pin” spindle and the “Hub” spindle.
  • Rear Sway Bar- The addition of the rear sway bar is for the true track car. Wide tires + Big horsepower typically means faster corner speeds. The MuscleBar sway bar helps keep those rear tires hooked up through the corner.
  • Compressor Sytems – We offer our RidePro E5 air suspension control systems as a pre-assembled, all-in-one module as the “AirPOD” or, you can purchase the RidePRO E5 systems as a component kit you can install how you like.  Both paths provide the same performance and features, the AirPod can be installed a few hours quicker, but the flexibility of mounting individual components in locations of your choosing can be advantageous in some applications.
  • Weld-on lower axle brackets are available if using an aftermarket axle housing without stock-style leaf spring pads.   Part # 70010122, sold separately.

Application List

1967-1969 Chevrolet Camaro
1967-1969 Pontiac Firebird

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
