RT11260298 | RideTech Air Suspension System (1968-1974 Nova Without "Bump" | Pin Spindle)

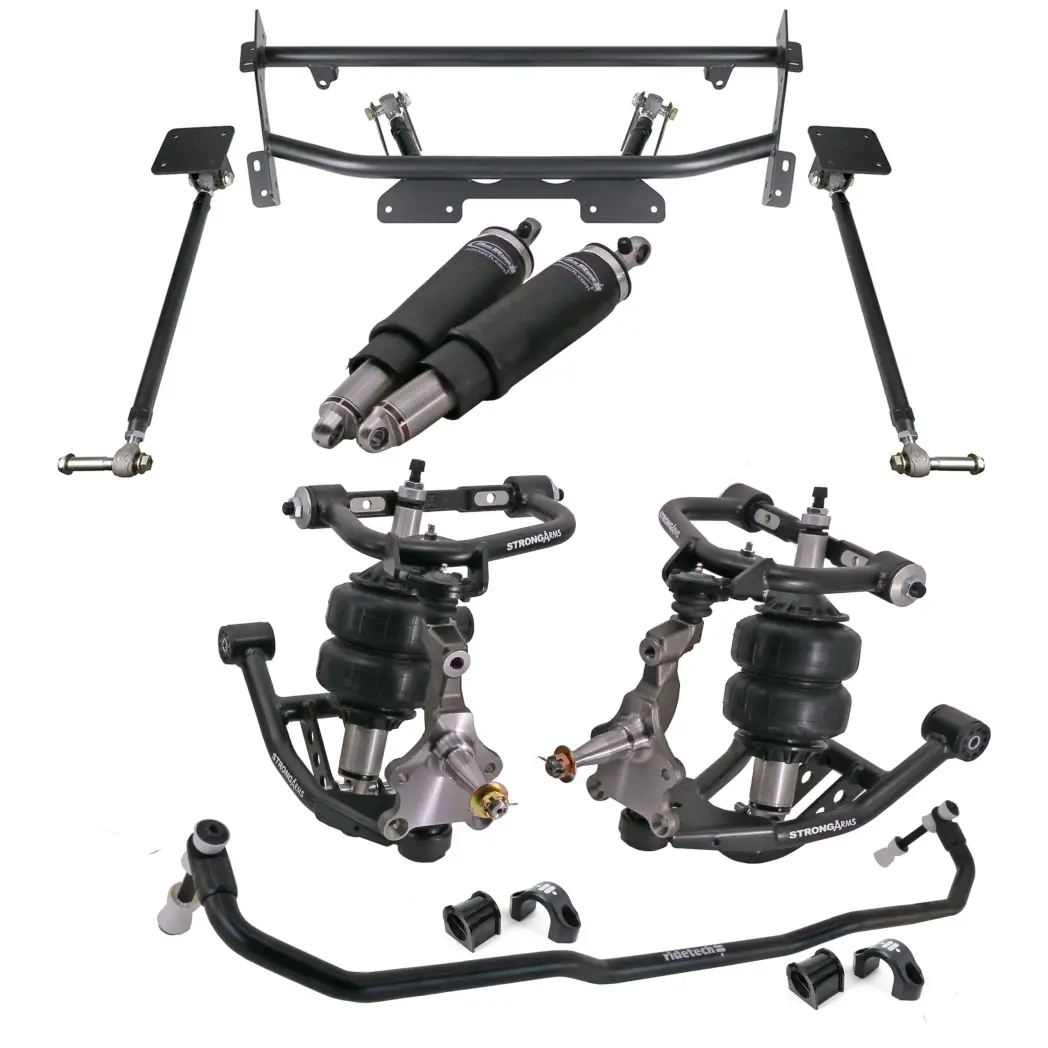

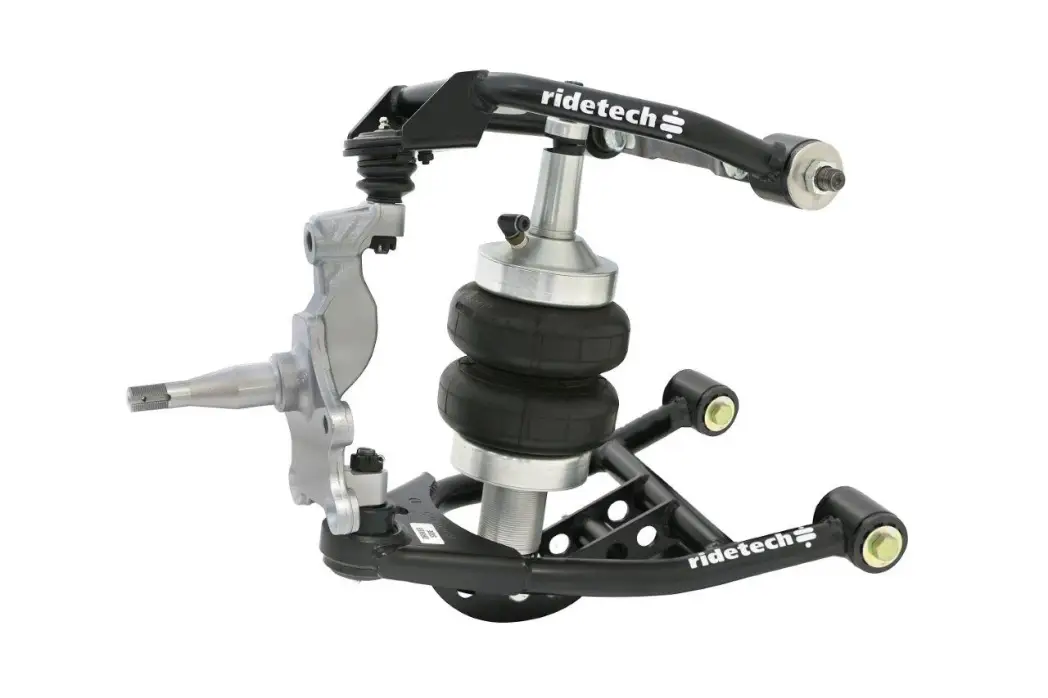

Complete Air Suspension System | 1968-1974 Nova

This Air Suspension System is designed to fit the 1968-1974 Nova. This system will allow you to achieve that ultra-low show stance and includes several components that will dramatically improve the suspension geometry to give your old muscle car modern drivability.

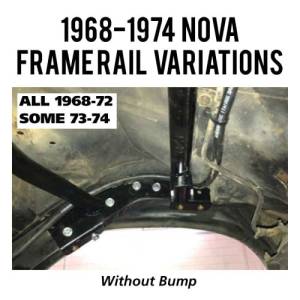

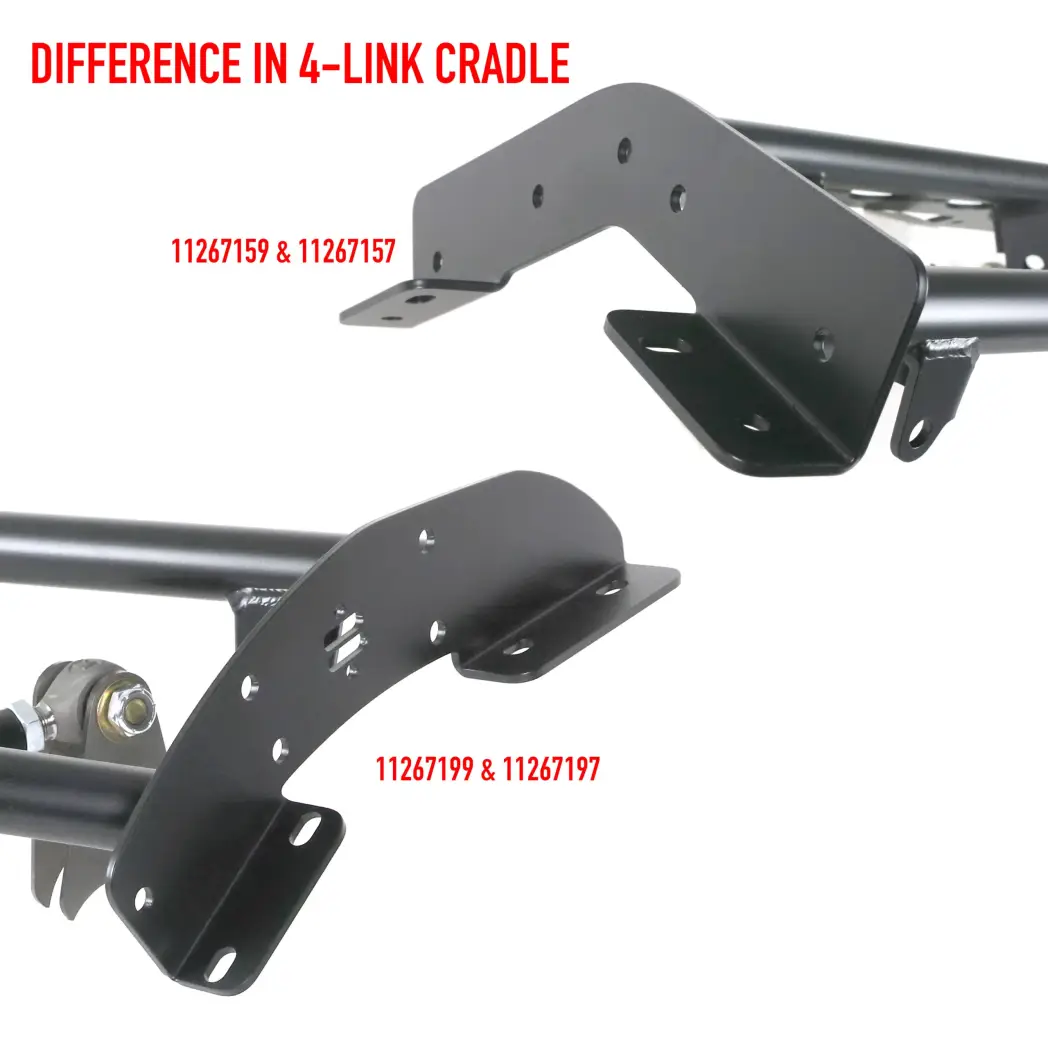

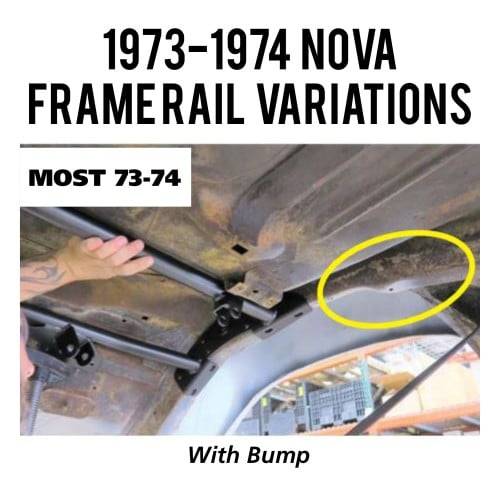

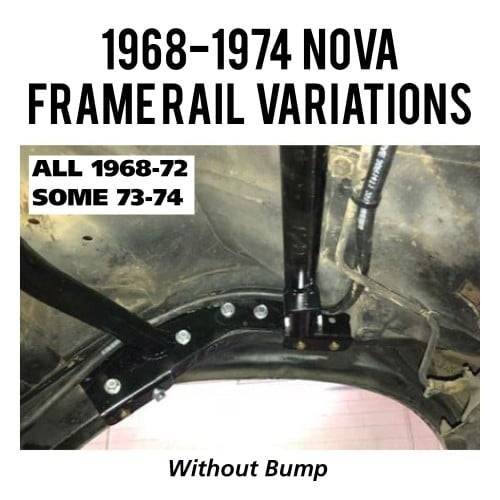

*Some 1973-1974 cars have a different shape frame rail and require an alternate 4-link cradle.

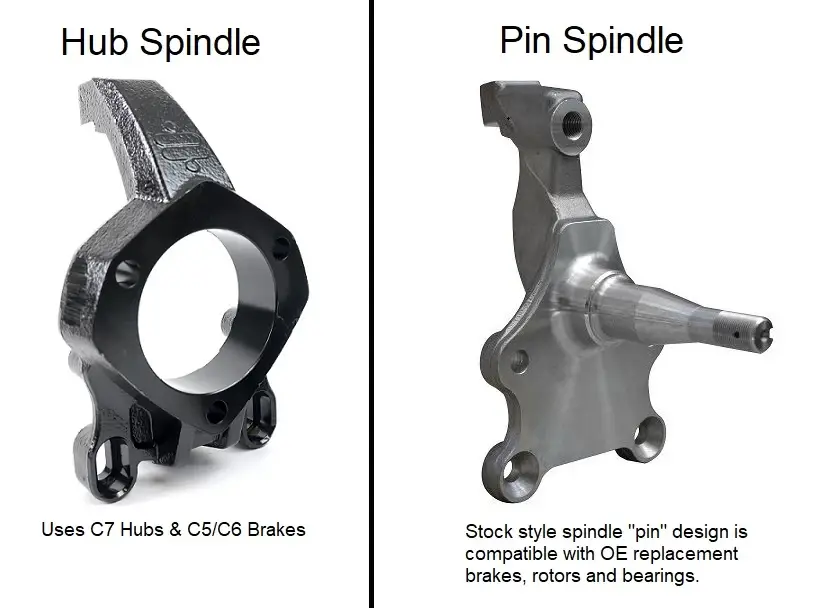

• Tall  “Pin” Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” drop which allows for the use of longer shocks creating more suspension travel.  Compatible with all brake kits designed to fit the stock disc brake spindle.
• Optional “Hub” Spindles offer the same geometry improvements as the pin spindle but add the performance and simplicity of late model Corvette hubs and brakes.  Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking and reduced maintenance. (Hubs not included). Compatible with C5/C6 Corvette brake systems, OE and aftermarket (caliper brackets included).  Minimum 17″ wheels.

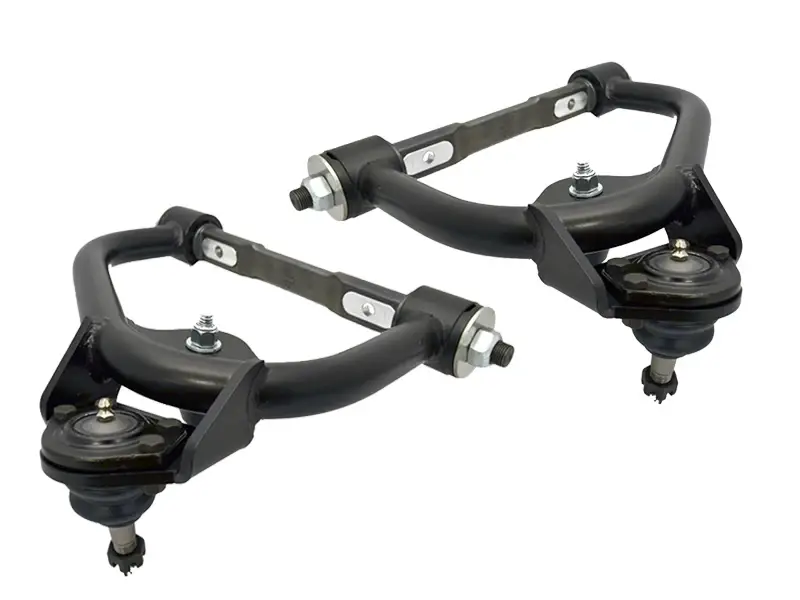

• Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joints have been moved back to allow for additional caster setting to improve high-speed stability and steering feel. Offset slugs are also available for additional caster. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

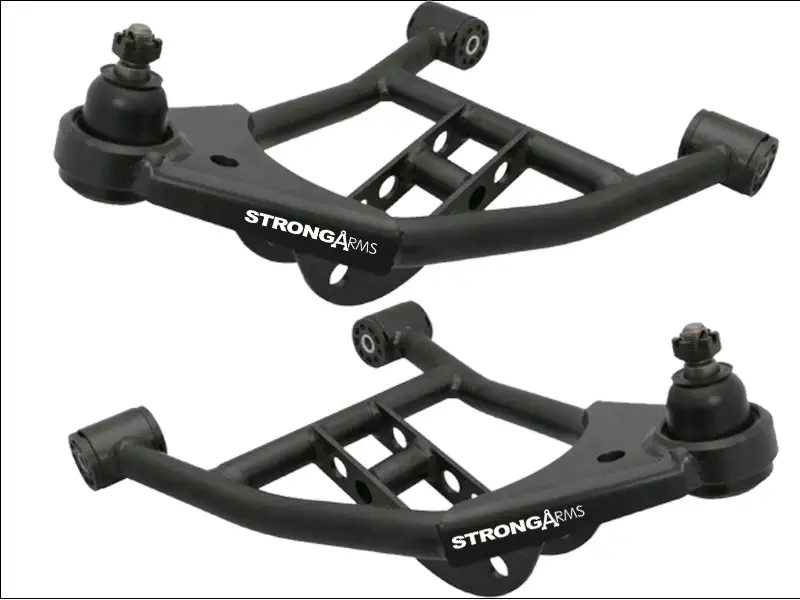

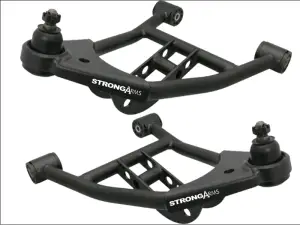

• Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

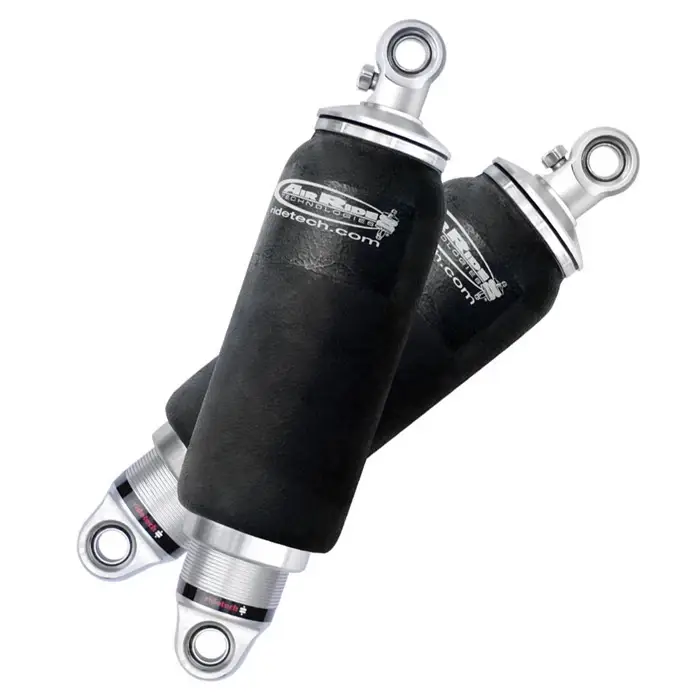

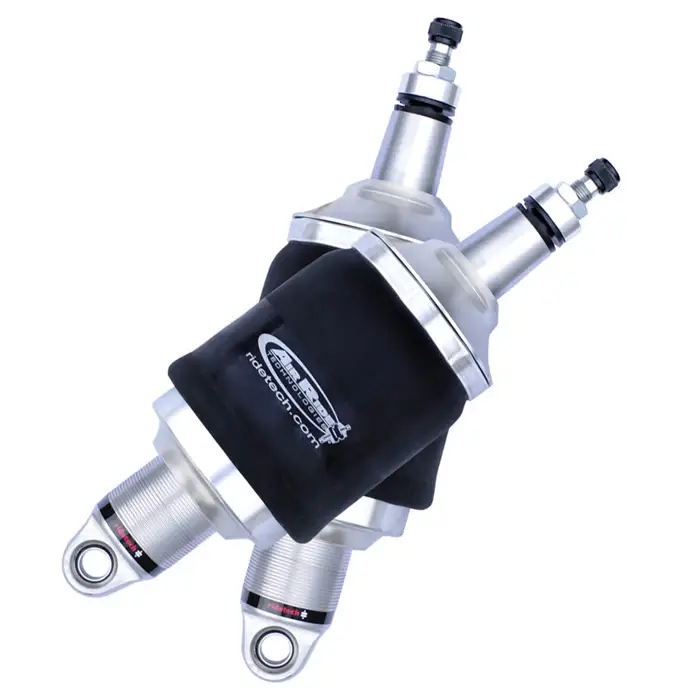

• HQ Series Shockwaves utilize an impact-forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling the rebound knob is located at the top of the shock for under-hood access. They come standard with a 1,000,0001 Mile Warranty.

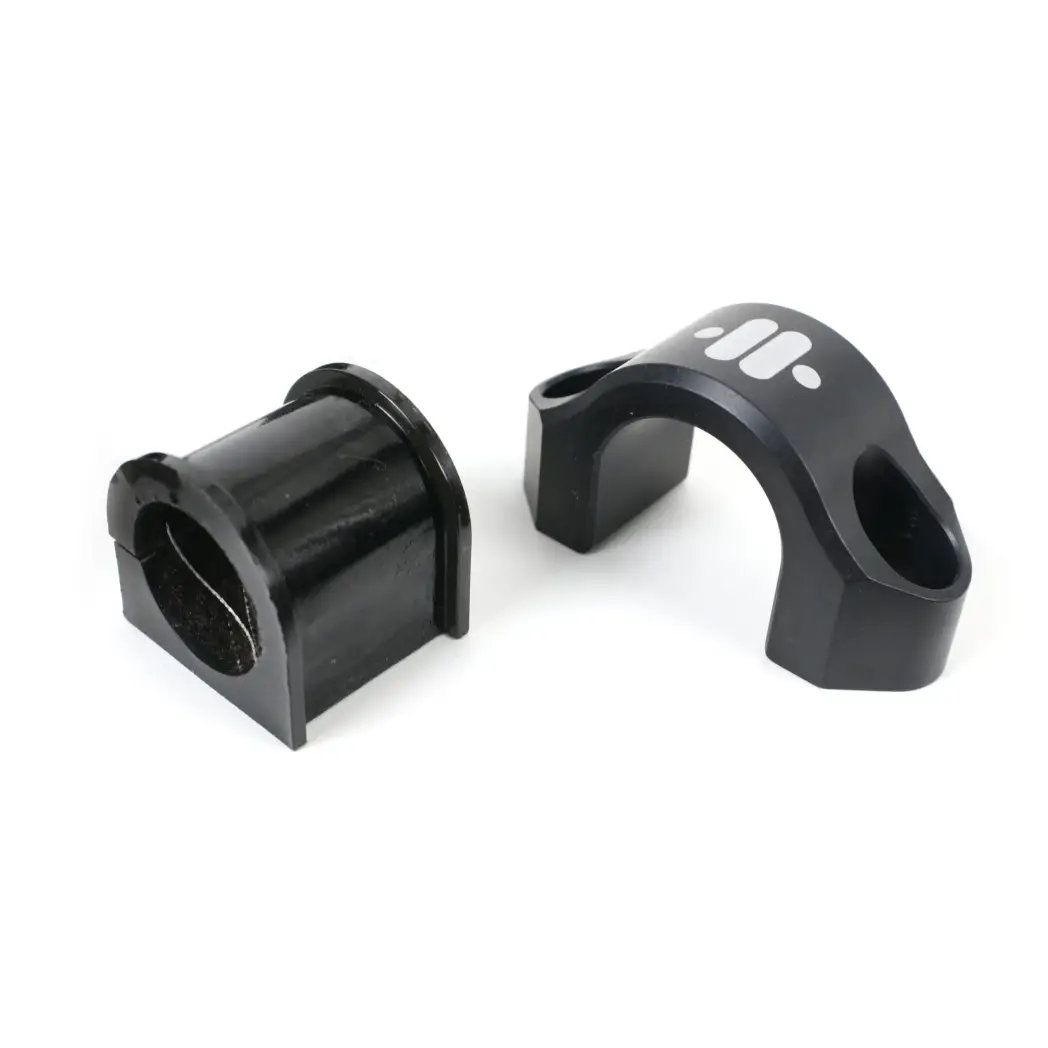

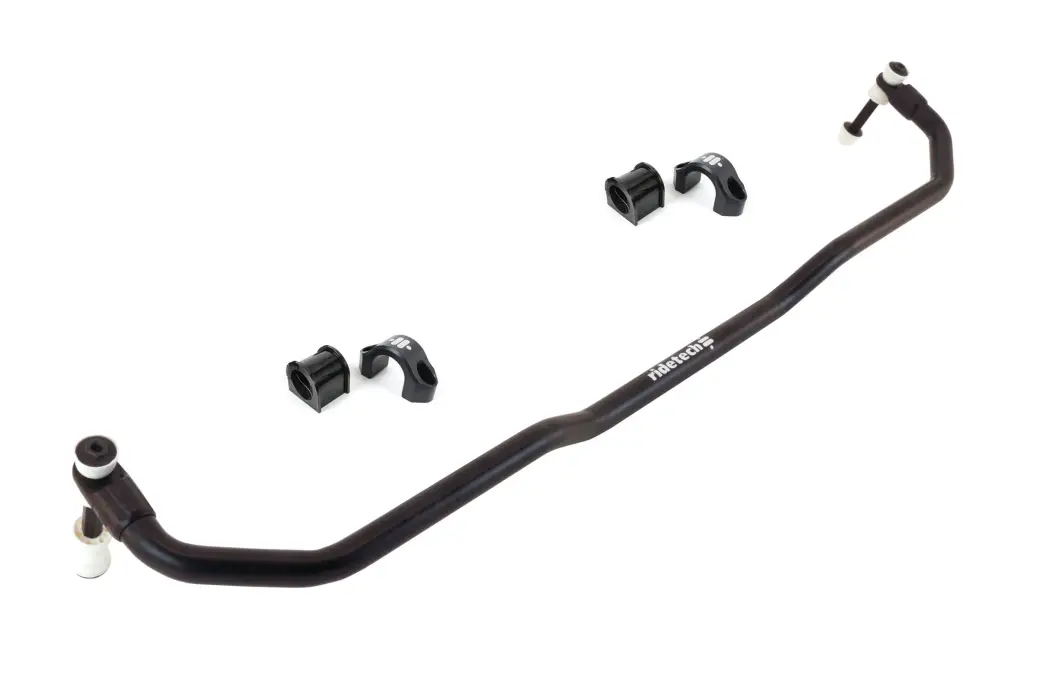

• Front Sway Bar reduces body roll and creates room for wider front tires. Includes billet aluminum frame straps (anodized black) and low friction bushings.

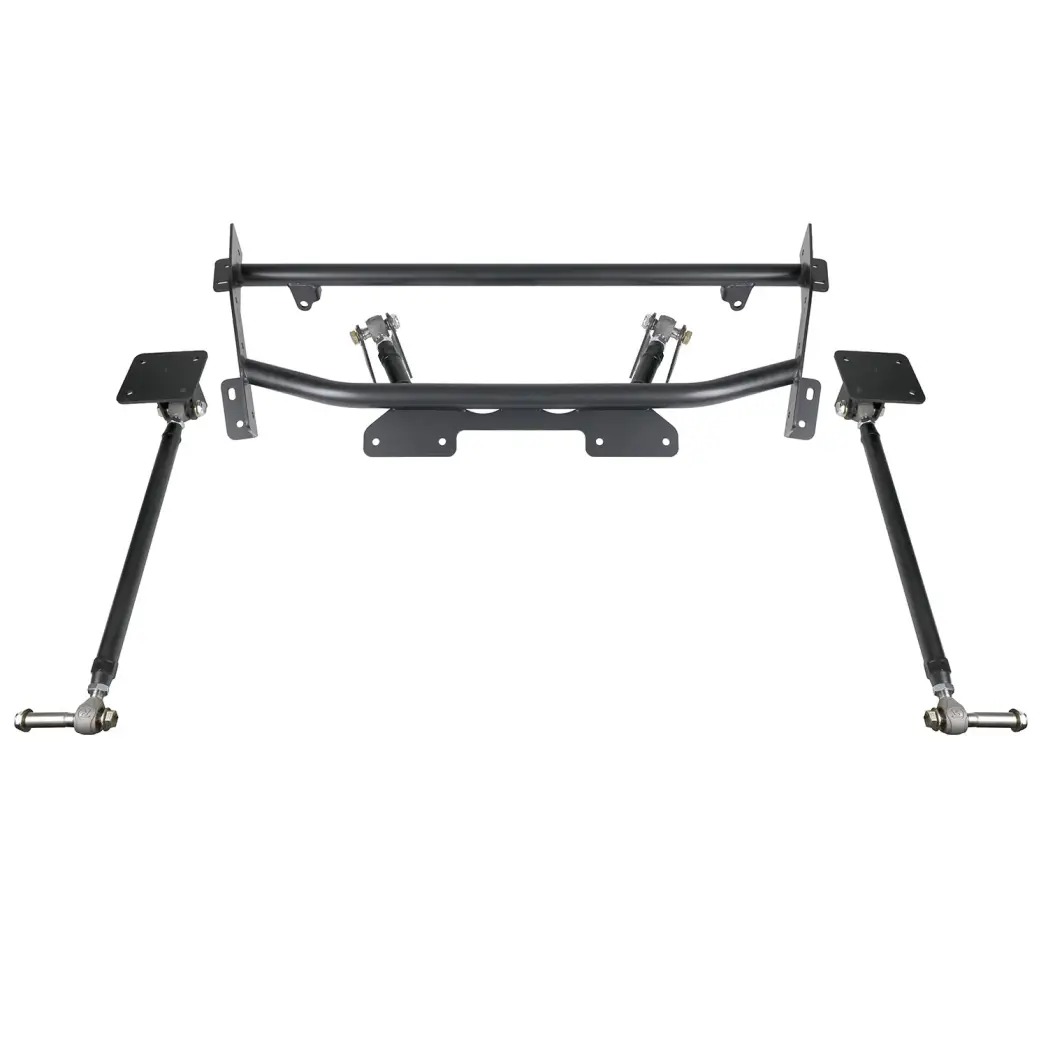

• Bolt-On 4-Link greatly improves traction, handling, and ride quality. Installation does not require any major modifications to the floor pan and requires only minimal welding to the axle tube. Works with mini-tubs.   The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!

UPGRADES

• TruTURN System- The early Camaro/Nova frontends have very poor suspension geometry…the tires lean outward around turns, the bump steer is bad, and there is little room to run a wide wheel because of the oem steering arm interference with the inside of the wheel. The Tru Turn system resolves ALL these issues…the tires now lean INTO the turn, the bump steer is UNDER .050″ through 5″ of suspension travel, and you now have clearance to run up to a 10″ wide wheel with a 275mm tire! Compatible with both the Ridetech “Pin” spindle and the “Hub” spindle.
• Weld-on lower axle brackets are available if using an aftermarket axle housing without stock style leaf spring pads.   Part # 70010122, sold separately.
