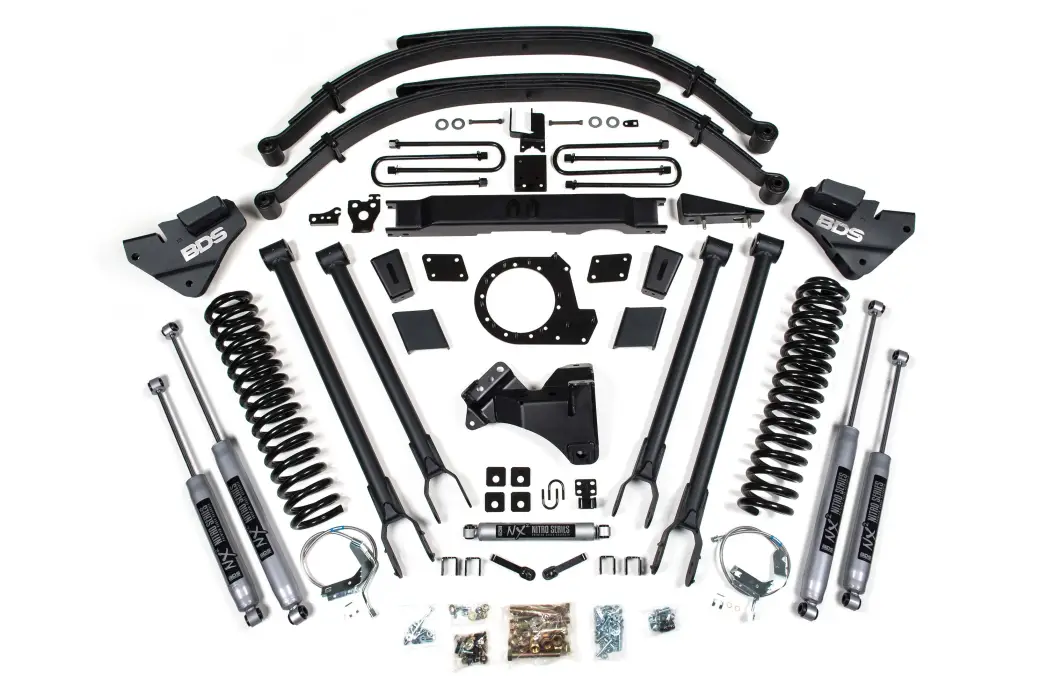

BDS1960H | BDS Suspension 9 Inch Lift Kit With 4 Link For Ford F-250/F-350 Super Duty 4WD | 2020-2022 | Gas | NX2 Nitro Series Shocks

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Important Notes

1. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
2. 40 x 13.50 tires WILL require trimming.
3. Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
4. If your truck is equipped with a factory rear sway bar add: 123009
5. Indexing ring has not been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.
6. Gas models will require exhaust modification due to driveshaft interference.

Installation

Difficulty Level :

Moderate

Specialty Tools Needed :

30mm Socket, Cut Off Wheel or Equiv., Pitman Arm Puller

Specification
