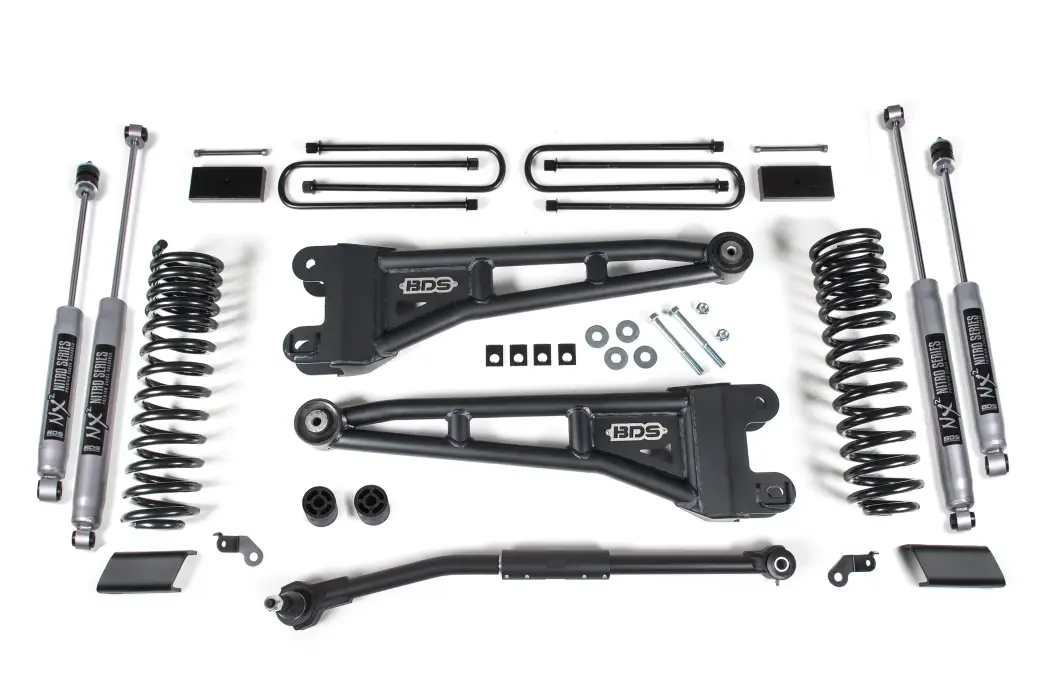

BDS2200H | BDS Suspension 3 Inch Lift Kit With Radius Arm For Ford F-250/F-350 Super Duty 4WD | 2023-2024 | NX2 Nitro Series Shocks

Lift Kit With Radius Arm For Ford F-250/F-350 Super Duty 4WD | 2023-2024 | NX2 Nitro Series Shocks

BDS2200H
Pricing: $2,355.16
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Level out and take your 23-24 Ford Super Duty diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. This kit is not compatible with trucks equipped with radius arm mounted ride height sensors.
  2. Designed for use on diesel models, but can be installed on gas trucks, will achieve additional 1/2 inch front ride height.
  3. Installation requires a torque wrench capable of 406 ft-lbs.
  4. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
  5. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
  6. Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase seperately.

Installation

Est. Install Time :

5 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

30mm Socket, Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 3"
  • Rear Lift Height : 1"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2023FordF-250 Super DutyALL4WDALLALLALL
2023FordF-350 Super DutyALL4WDALLALLALL
2024FordF-250 Super DutyALL4WDALLALLALL
2024FordF-350 Super DutyALL4WDALLALLALL

Component List

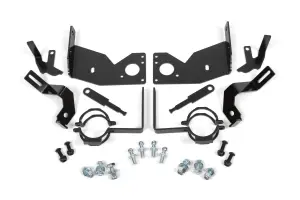

1 BDS013261 2020-2022 F250/350 2.5in Front Box Kit
1 BDS013108 2017-2022 F250/F350 1in Rear Block Kit
1 BDS033251 2005-2022 Ford Super Duty 2.5" Coil Spring Box Kit, Front Diesel, Pair
1 BDS123263 2023 Ford F250/350 4wd Radius Arm Kit, Pair
2 BDS85720 Shock- 24.00 x 14.50 x 2-3/8 - S50/EB2
2 BDS85717 Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 17 x 9 and 5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
