98316222 | Rough Country Electric Tilt Windshield For Honda Pioneer 1000 / 1000-5 | 2017-2024 | Glass

Rough Country Electric Tilt Windshield For Honda Pioneer 1000 / 1000-5 | 2017-2024 | Glass | Fit Most Factory Roofs

98316222
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $977.95
Qty:

Description

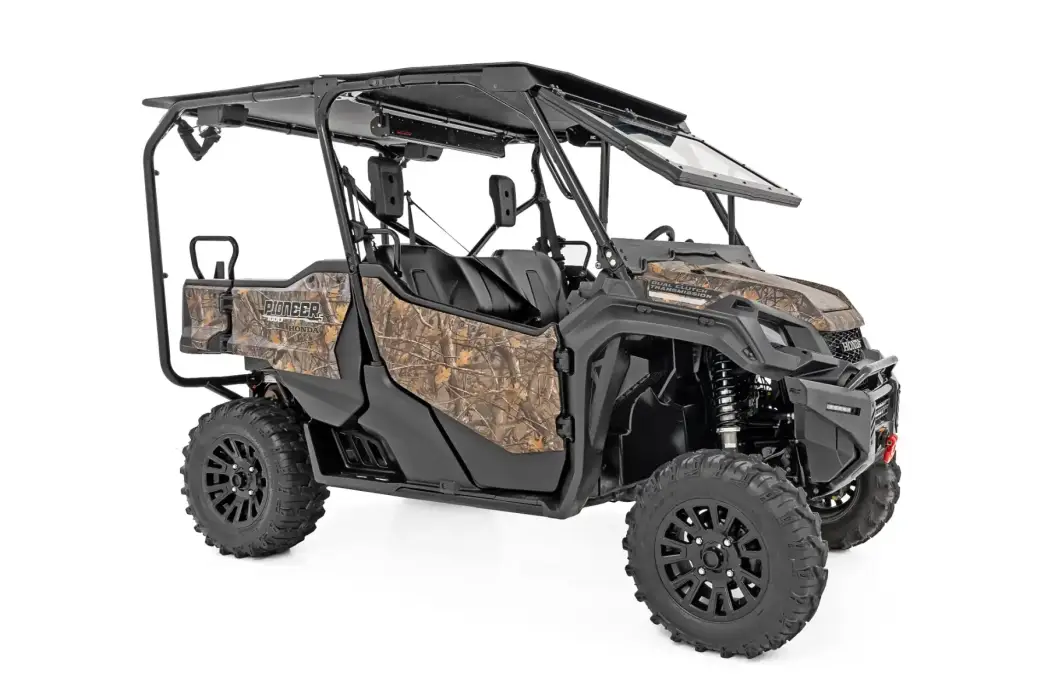

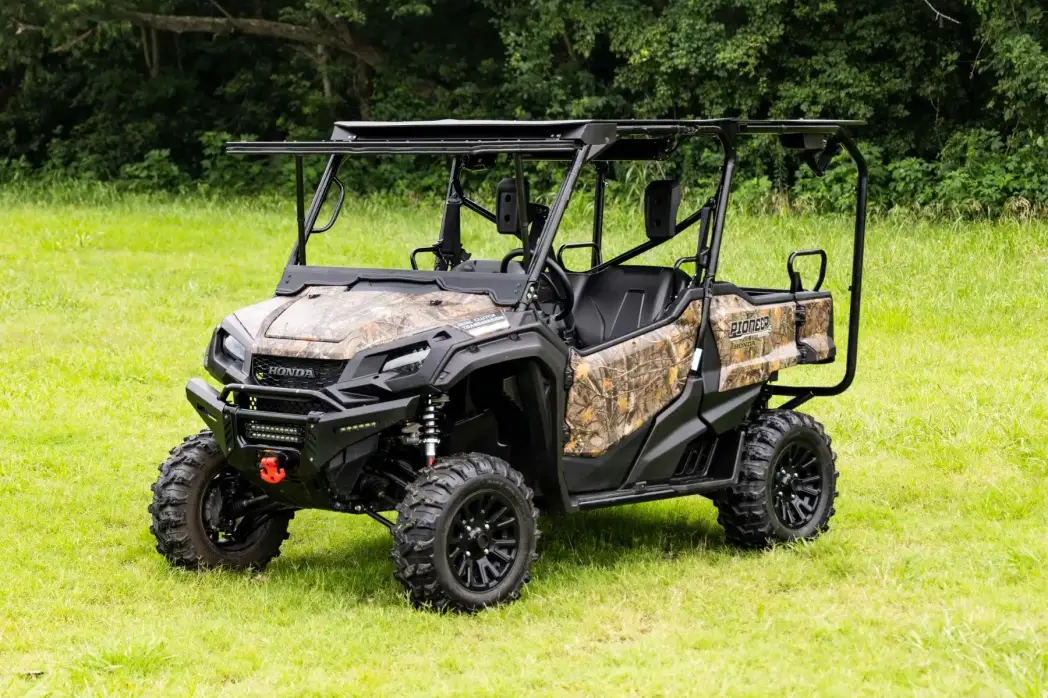

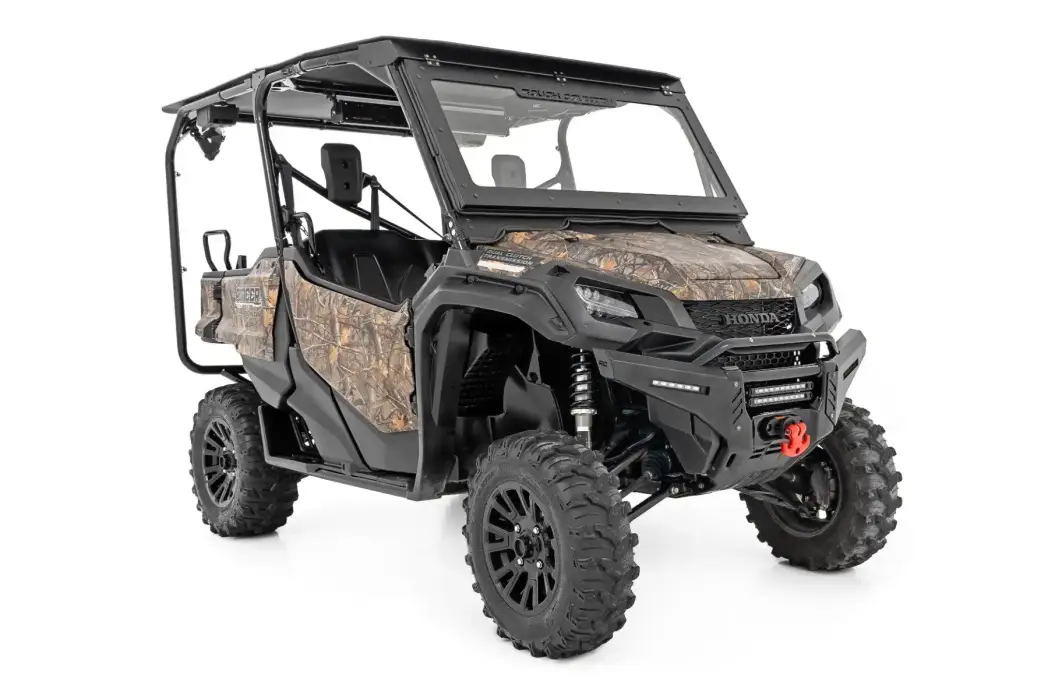

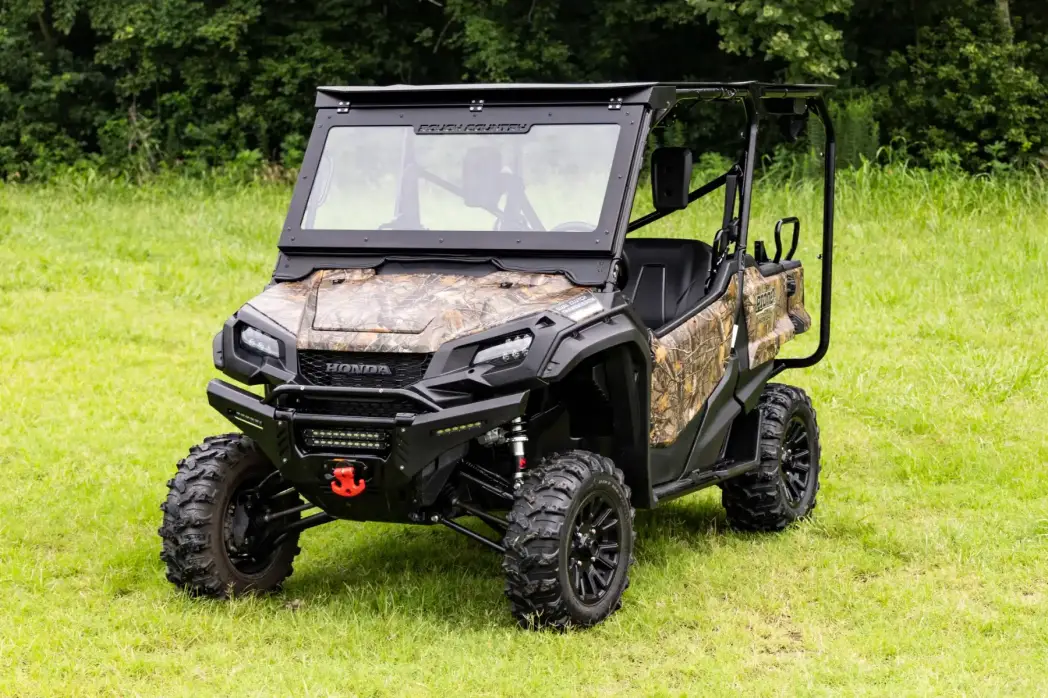

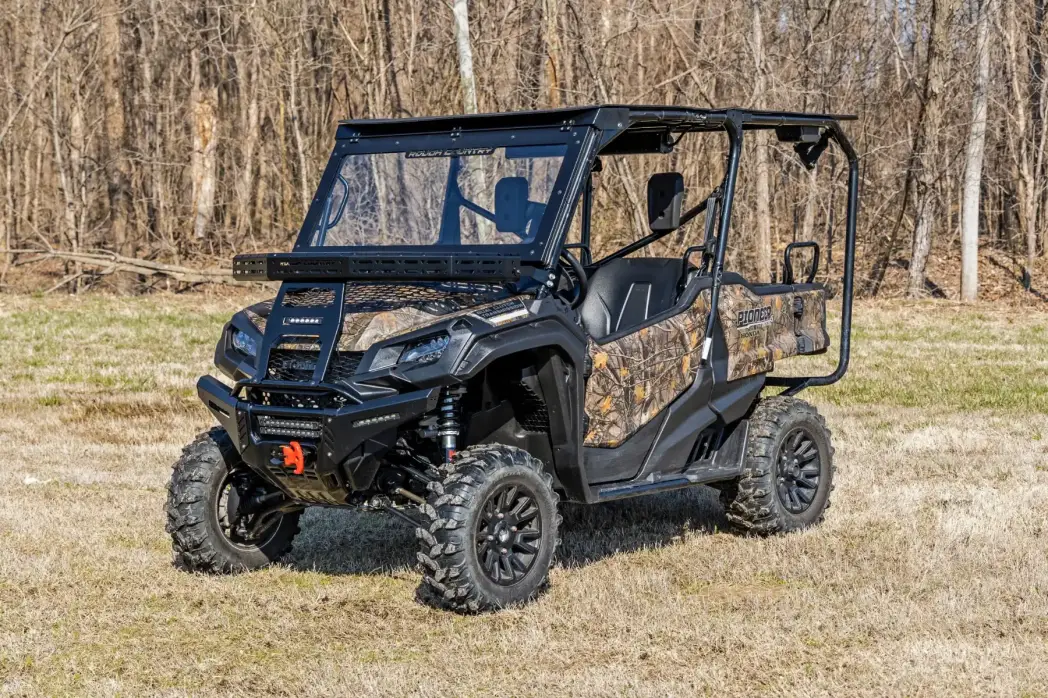

Maximum Durability and Visibility. Say hello to a whole new view with Rough Country's Auto-Tilt Glass Windshield for the Honda Pioneer 1000/1000-5. With its DOT-approved glass and sturdy construction, this windshield is less likely to crack or break, even when driving through rough terrain. The Auto-Tilt Glass Windshield for Honda Pioneer is the perfect accessory for your off-road vehicle, giving you unobstructed visibility. Our windshield is built to make your ride safer, so you can focus on the trail ahead.

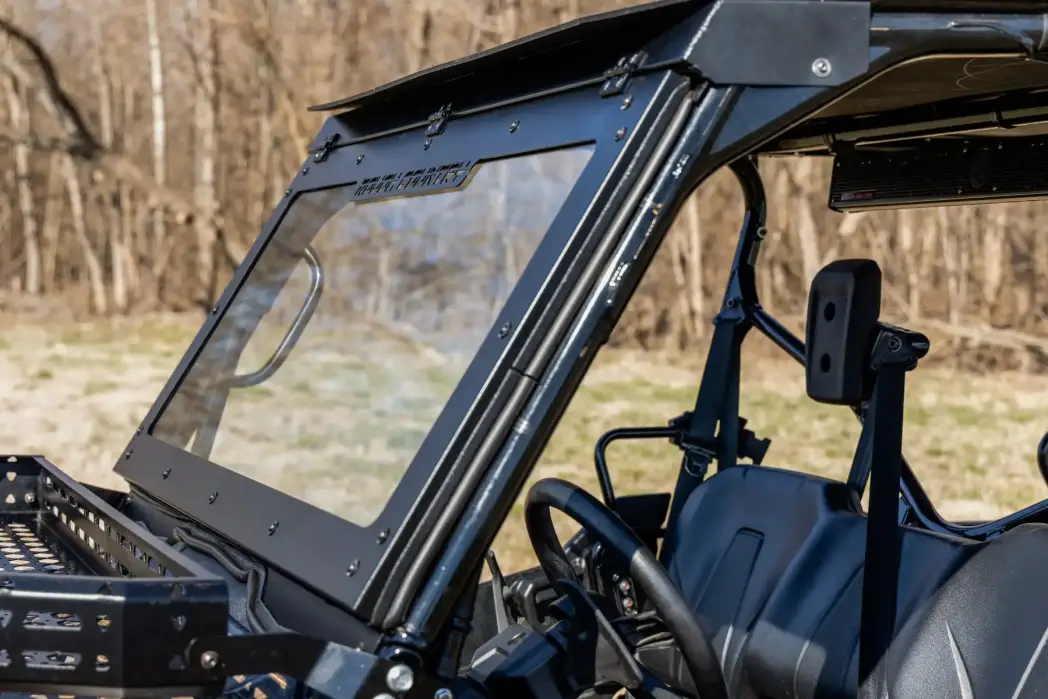

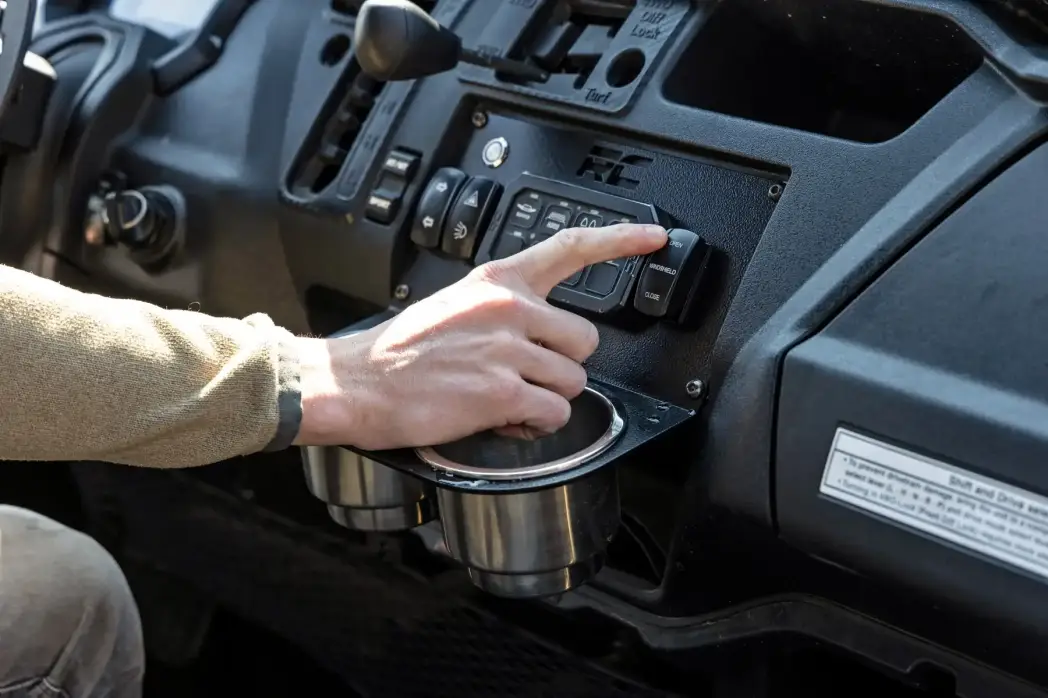

Heavy-Duty Reliability. The Auto-Tilt Windshield is installed in a heavy-duty metal frame with UV and scratch-resistant powder coating that can withstand all weather conditions. And with weather seal protection, the glass will stay in excellent condition for years to come. It features an easy-to-use rocker switch, so you can open the windshield slightly for minimum airflow or fully open it for maximum airflow. The push-button control with dual linear actuators is so easy to use that you can even adjust mid-ride. The glass is built for long-lasting reliability because the rugged design of your Pioneer deserves a windshield that is just as tough.

Installation. Our new Auto-Tilt Glass Windshield can be installed on Honda Pioneer models for a clear view and added protection. The windshield comes with the hardware needed for an easy install that includes some minor drilling.

Warranty.  Rough Country's Auto-tilt Glass Windshield is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty, give yourself peace of mind when using Rough Country's products!

Features

  • Frame Dimensions Width: 50.75" Height: 29.5"
  • Glass Dimensions Width: 44.66" Height: 21.75"

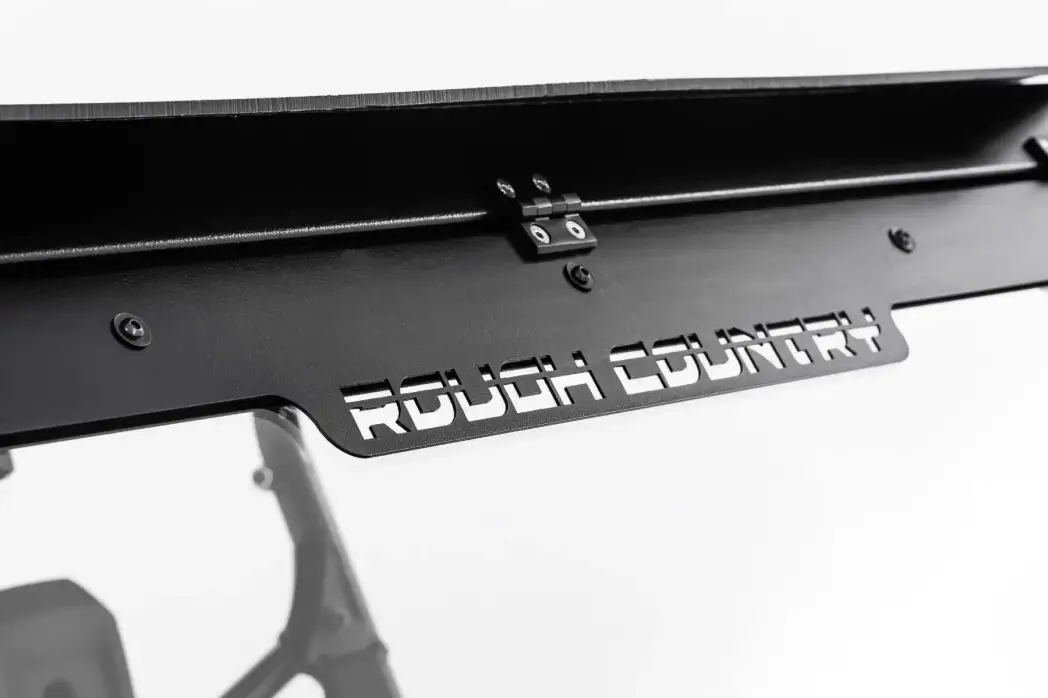

  • Metal Frame with UV and Scratch Resistant Powder Coating.
  • DOT Approved Glass – Scratch & Impact Resistant

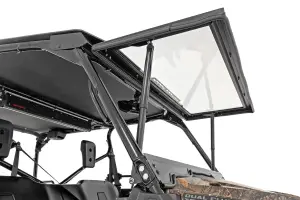

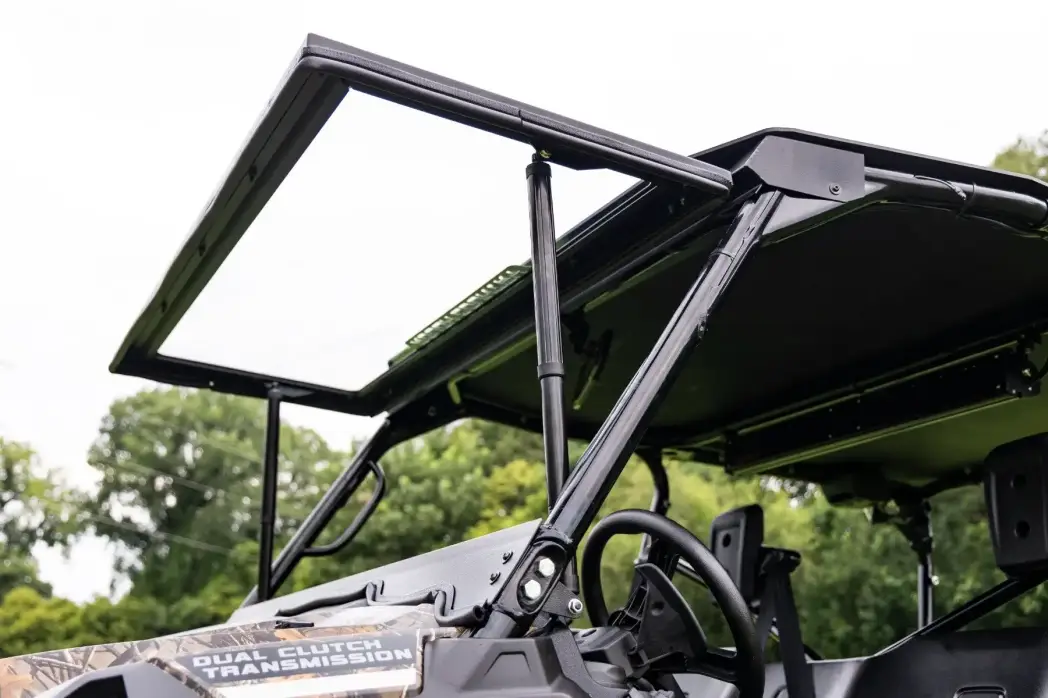

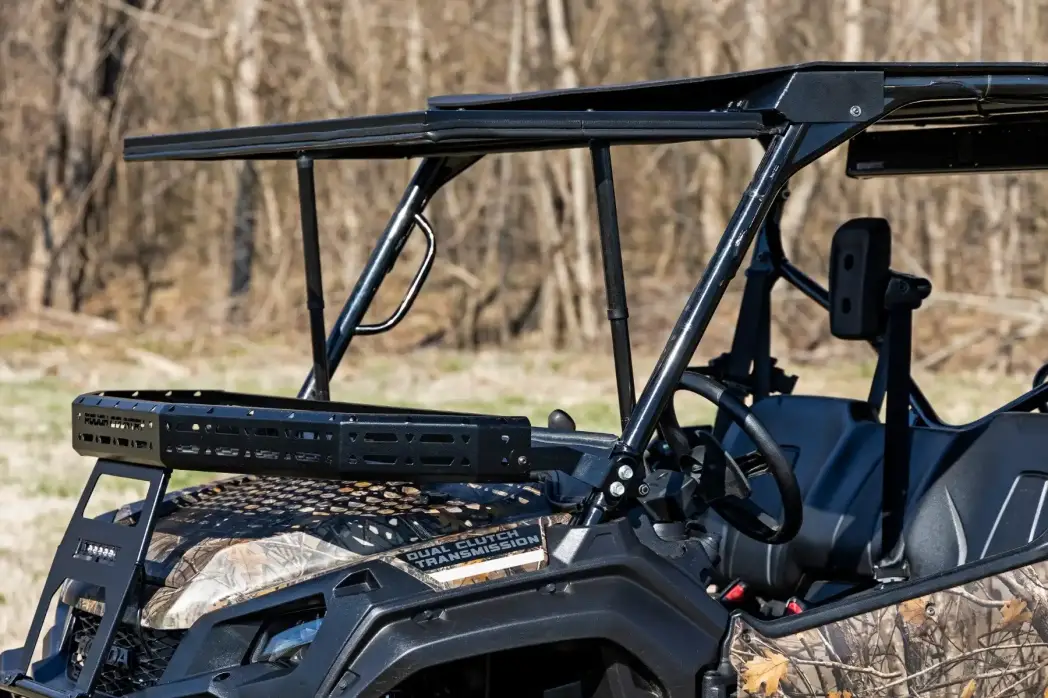

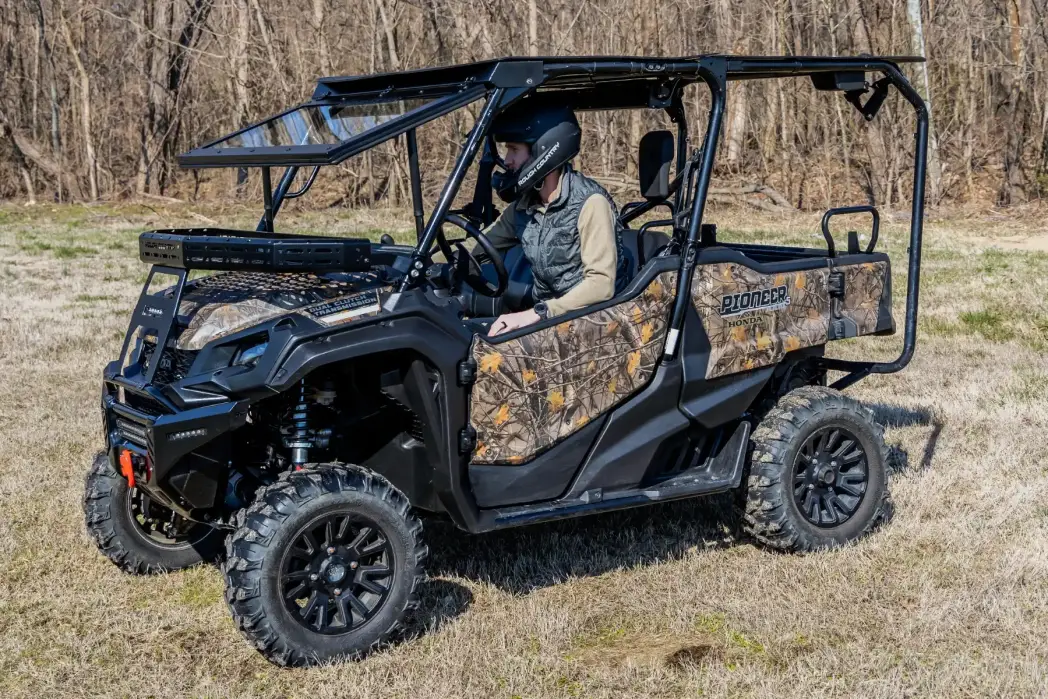

  • Electrically actuated with position control – Open slightly for airflow or fully open for max airflow.
  • Open and close with the push of a button.
  • Edge seal creates a seal against the face of the vehicle blocking out most dust and water.
  • Easy installation.

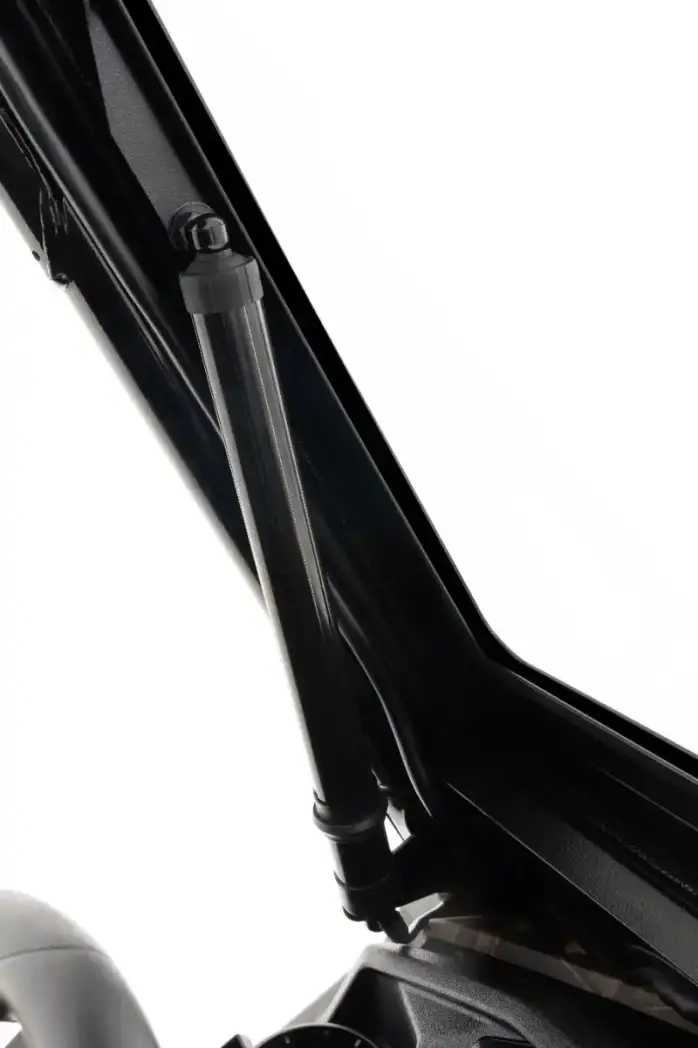

Cylinder Specifications:

  • Input Voltage: 12V
  • Stroke: from 382±3mm to 586±3mm
  • Force: 410N. Max support 45KGs
  • Speed(no load): 10mm/s
  • IP Rating: IP65
  • Working Temp: -5-50℃
  • Current(full load): 5A

Fitment Notes

  • Fits with most factory roofs but in some cases requires the roof to be trimmed ¼ to 3/8” along the front edge to clear windshield movement.

Specifications

  • Est. Install Time 1-2 hours

Application List

2017 - 2019 Honda SXS1000M3 Pioneer 1000 Limited Edition
2017 - 2021 Honda SXS1000M5 Pioneer 1000-5 Limited Edition
2016 - 2023 Honda SXS1000M3 Pioneer 1000
2020 - 2023 Honda SXS1000M3 Pioneer 1000 Deluxe
2023 - 2024 Honda SXS10M6 Pioneer 1000-6 Deluxe Crew
2016 - 2024 Honda SXS1000M5 Pioneer 1000-5
2016 - 2024 Honda SXS1000M5 Pioneer 1000-5 Deluxe

Fitment Notes
Fits with most factory roofs but in some cases requires the roof to be trimmed ¼ to 3/8” along the front edge to clear windshield movement.

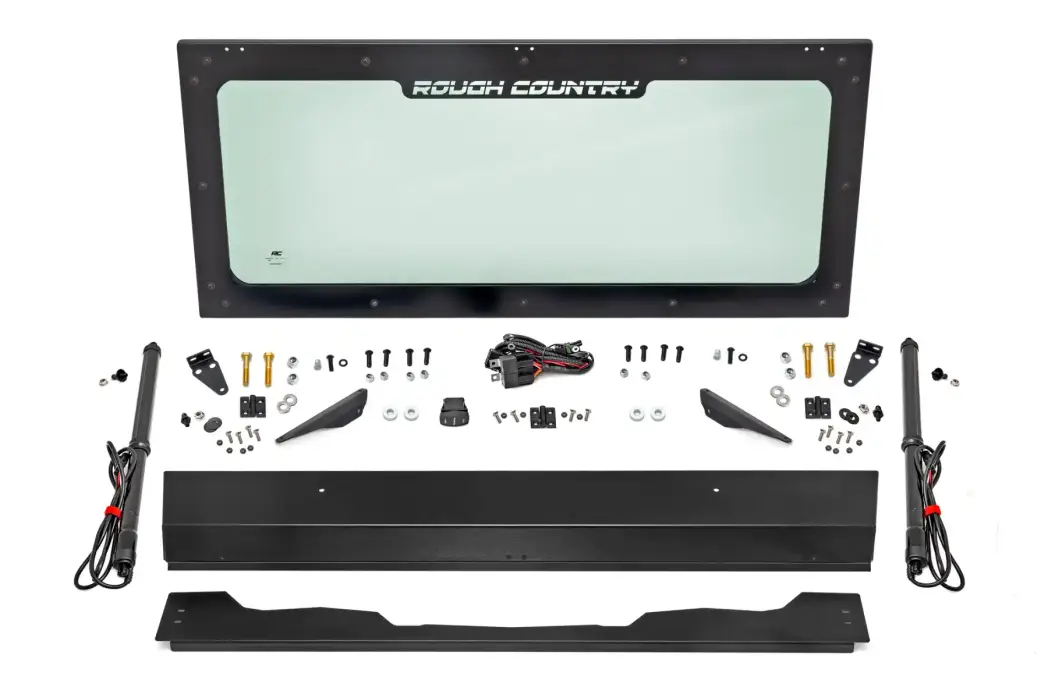

Component List

(1) Windshield Frame
(1) Hinge Support
(1) Driver Side Hinge
(1) Passenger Side Hinge
(1) Driver Side Actuator Bracket
(1) Passenger Side Actuator Bracket
(1) Glass
(2) Actuators
Glass Retainers
Seals

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 120.0 lbs.
  • W31.0000” x H10.0000” x L62.0000”
  • $250.00
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
