RT11380201 | RideTech HQ Coil-Over System (1999-2006 Silverado, Sierra 1500)

1999-2006 Chevrolet Silverado 1500 2WD | 1999-2006 GMC Sierra 1500 2WD

11380201
Pricing: $9,903.75
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Complete Coil-Over Suspension System | 1999-2006 Silverado / Sierra 1500 2WD

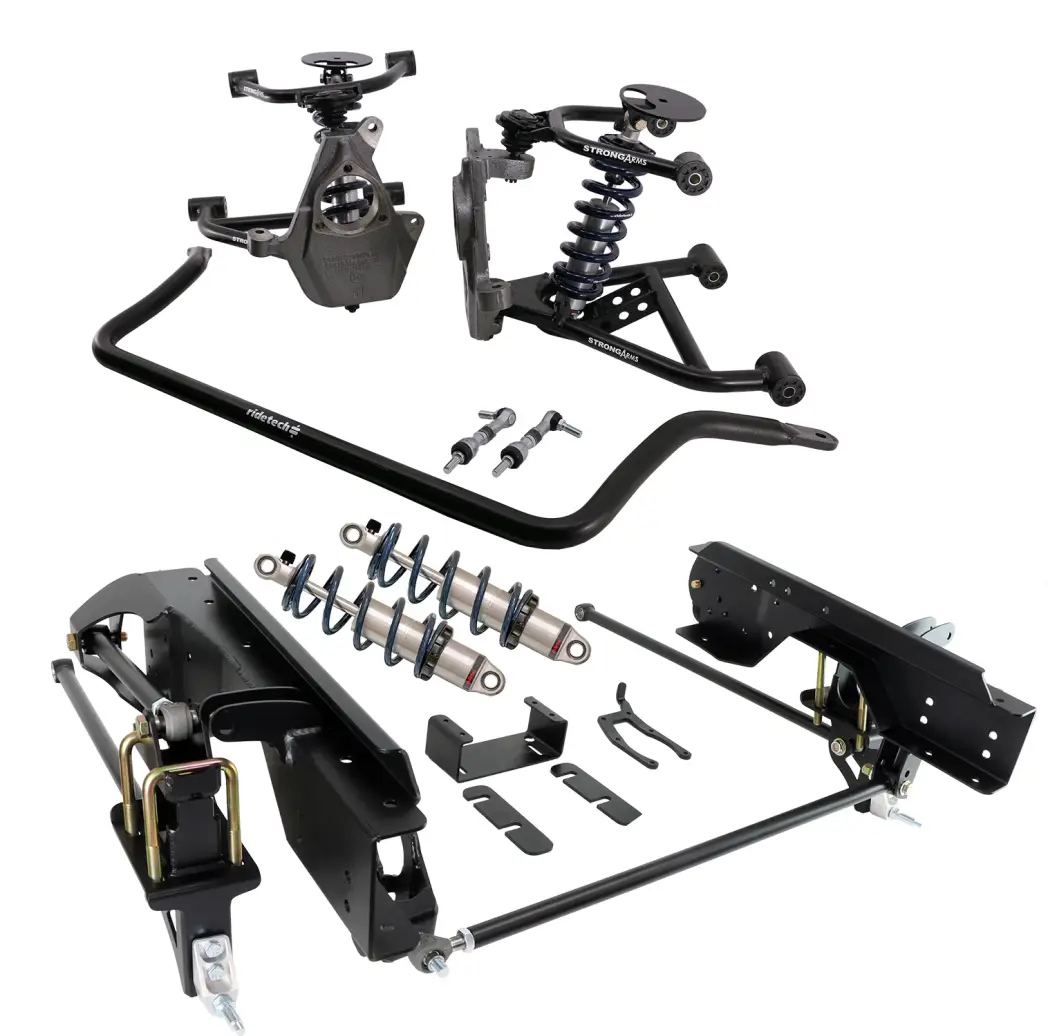

Complete CoilOver System for 1999-2006 Silverado & Sierra 1500 2WD.  (2007 Classic).  Includes front & rear HQ Series CoilOvers, front upper & lower control arms, bolt-on 4 link, drop spindles and front sway bar. Designed to lower your vehicle and improve handling and ride quality.

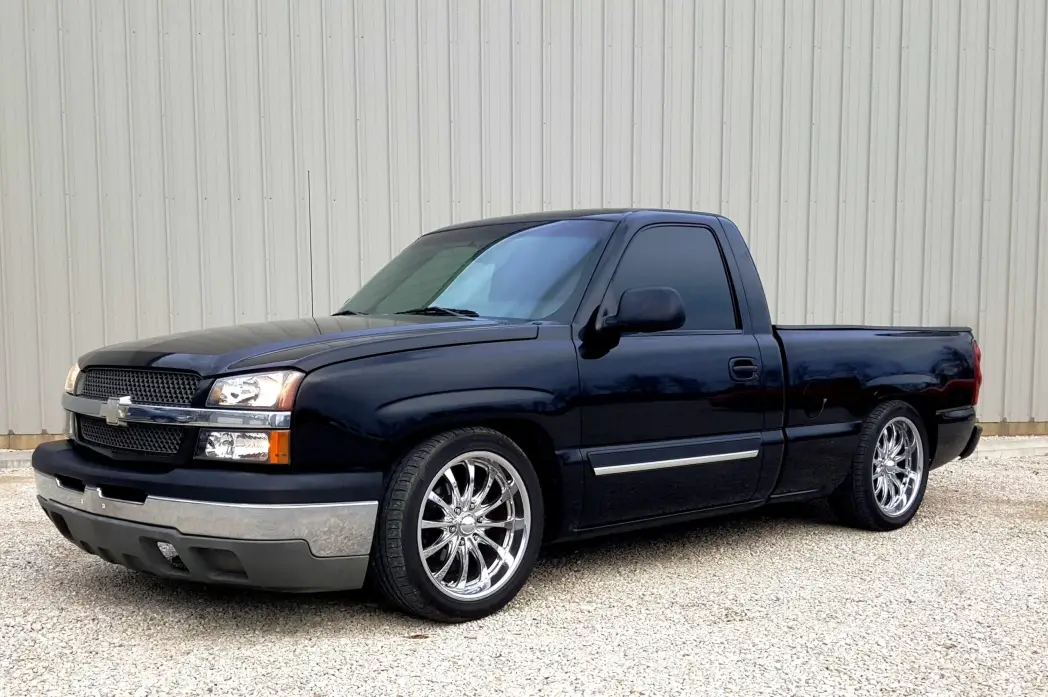

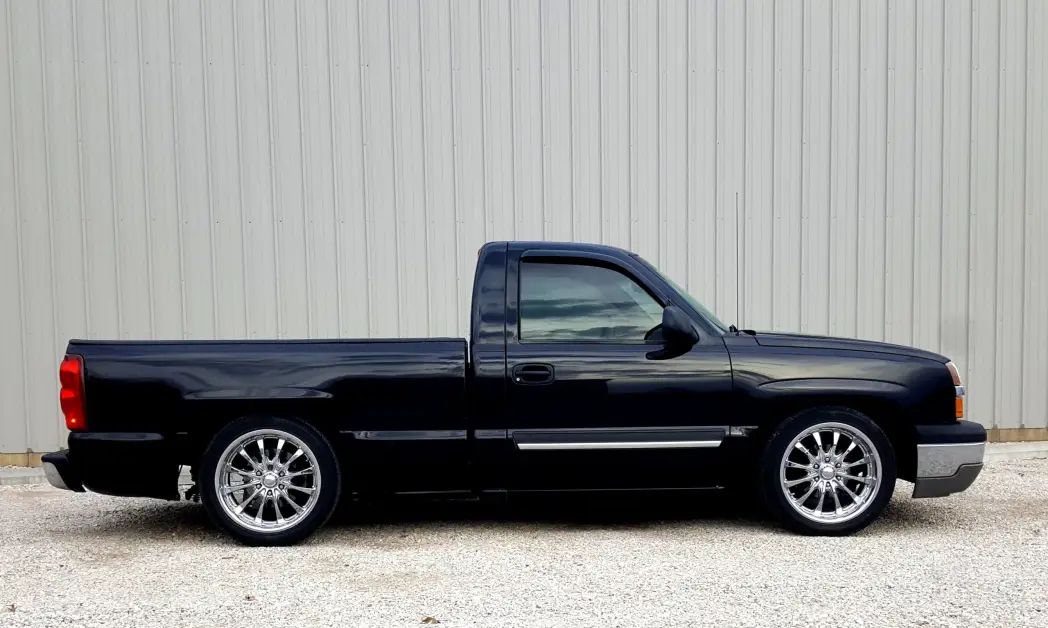

  • Offers a ride height that is approximately 4″ lower than stock in the front and 6″ in the rear.

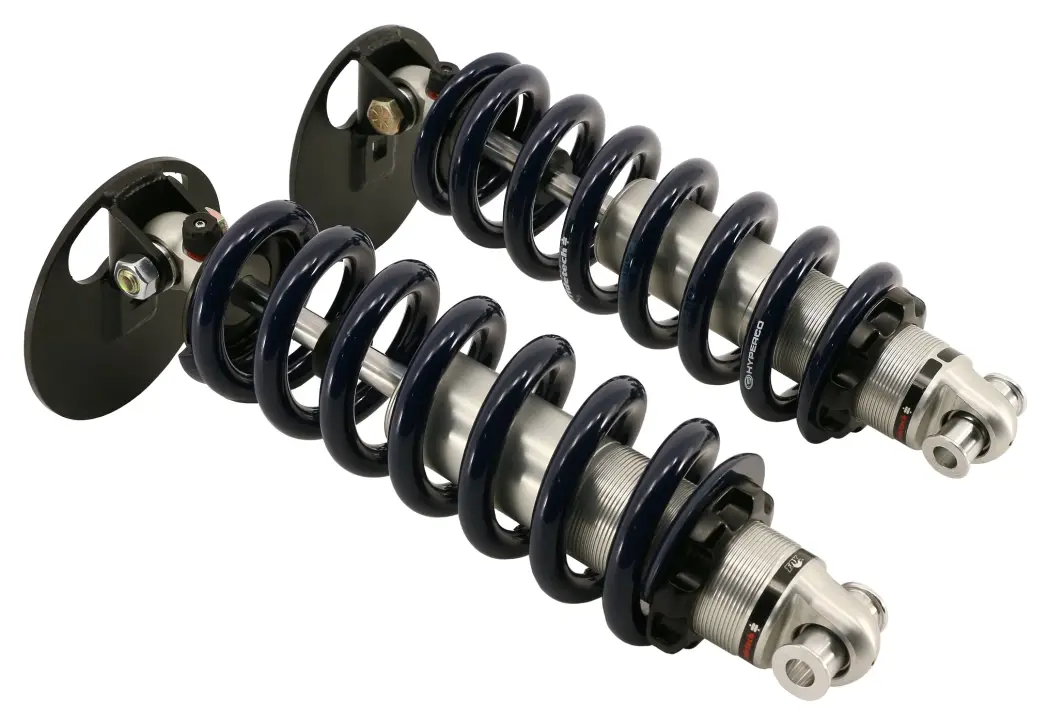

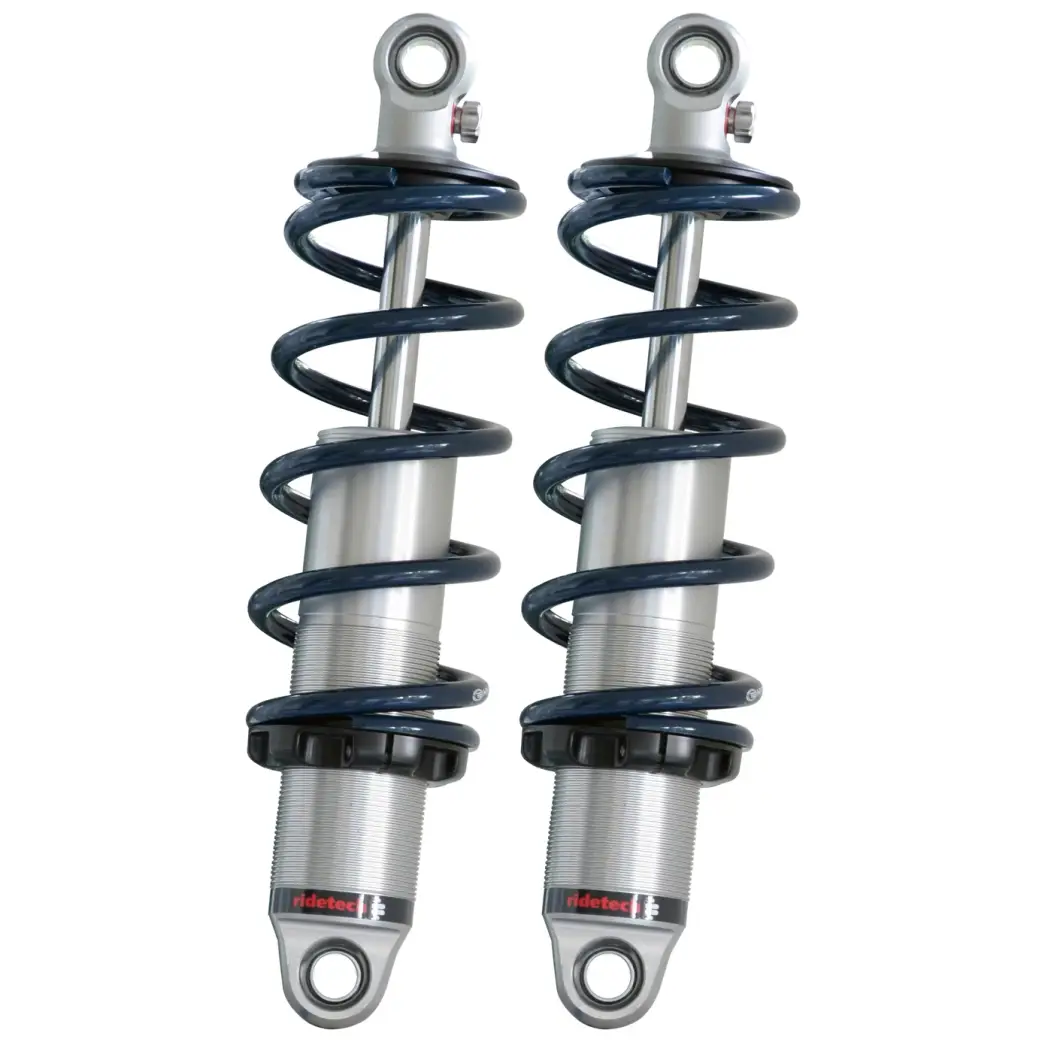

  • HQ Series CoilOvers utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty.  Interested in AutoCross or Road Course Racing?  Consider the TQ Series coilovers.

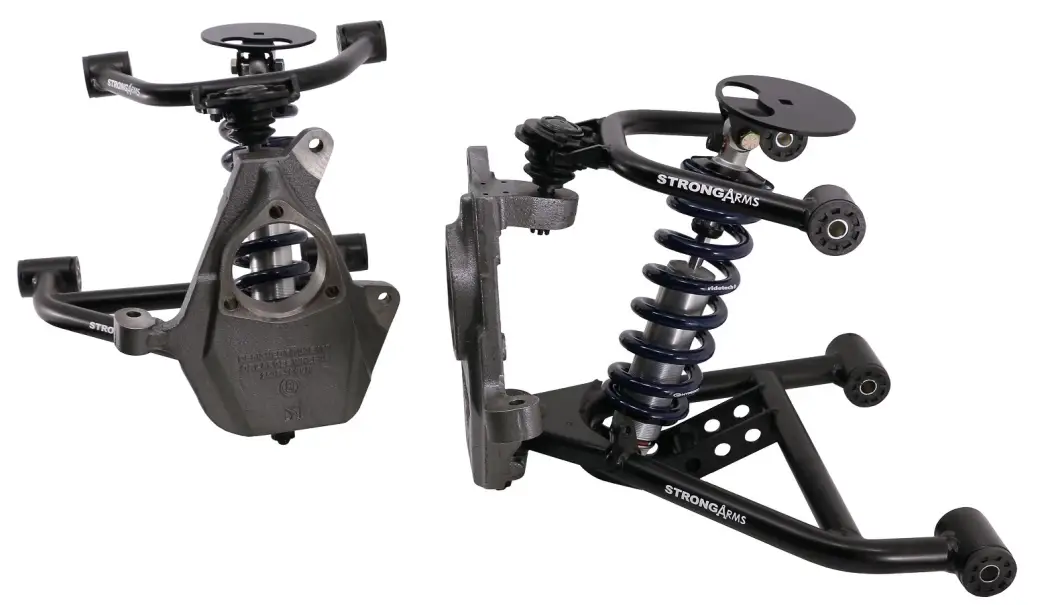

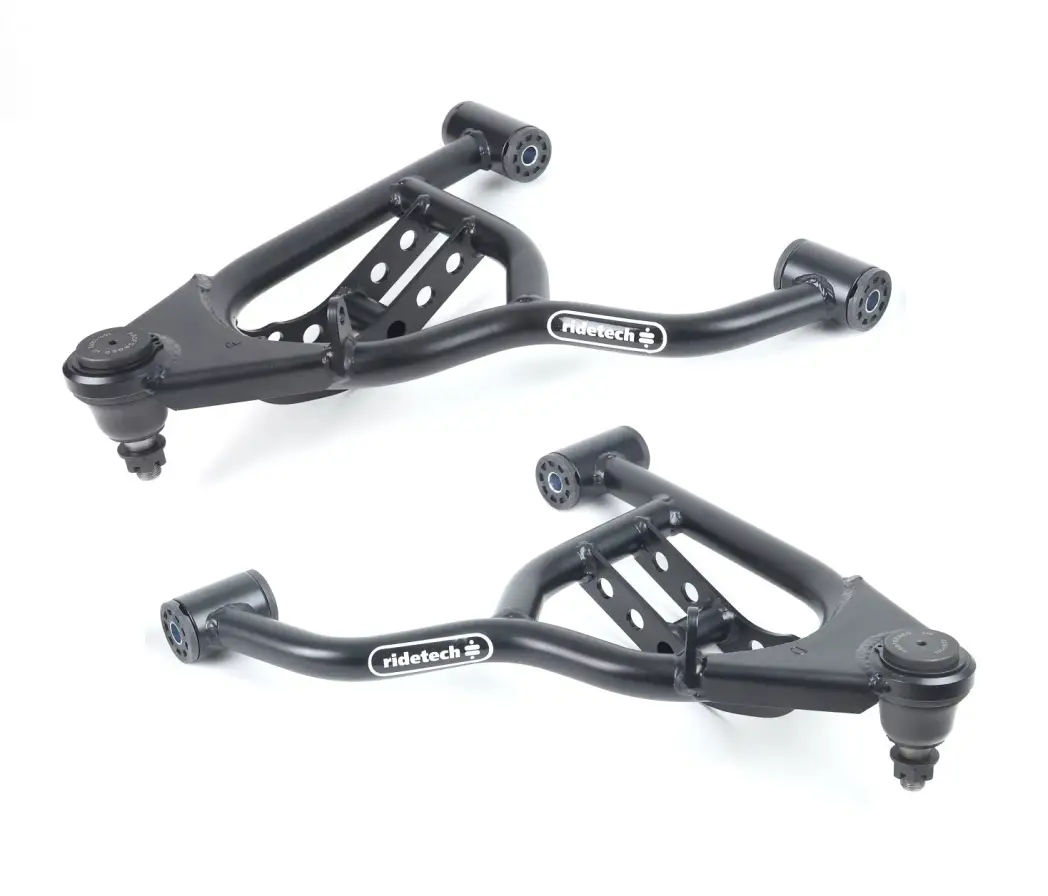

  • The Upper StrongArms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment.  Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.    The Lower StrongArms feature a double sheer lower shock mount for increased strength.  We have also dropped the lower shock mount to increase suspension travel and altered the length to create more camber adjustment.  Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

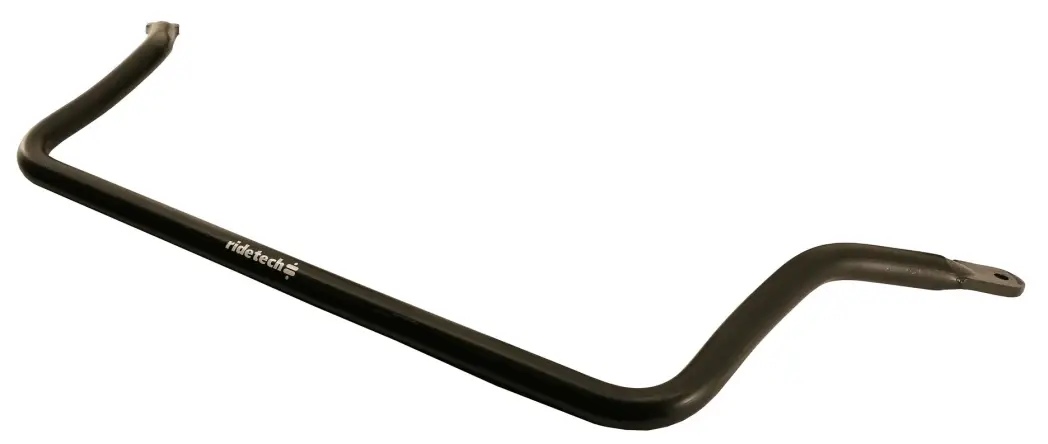

  • A Front MuscleBar is included to reduce body roll and includes the PosiLink End-links that provide immediate engagement between the chassis and control arms.
  • Drop Spindles are used to all the use of a longer stroke shock and improve suspension geometry and bump steer.  Fits 17″ or larger wheels.

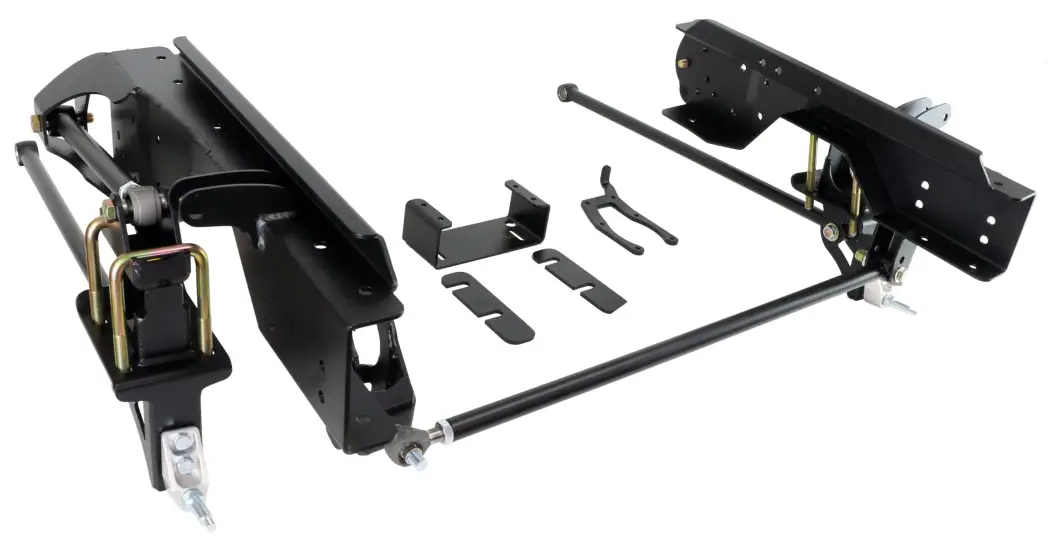

  • The Bolt On 4-Link greatly improves traction, handling and ride quality.  Installation does not require any welding or major modifications to the bed floor.  Includes patent-pending R-Joint rod ends to eliminate binding and noise.

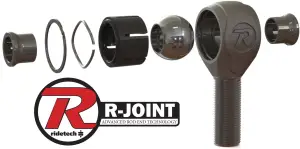

  • Includes patent-pending R-Joint rod ends to eliminate binding and noise.
  • Optimized anti-squat, roll center and pinion angle migration for dramatic improvements in handling and traction.
  • Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.
  • Designed for simple installation with minimal OEM rivet removal.
  • Compatible with all cab size and bed length configurations

*Not compatible with trucks equipped with factory torsion bar front suspension.

Upgrades:

  • TQ Series Shocks- The remote reservoir triple adjustable coil-over shocks feature rebound adjustment along with dual stage (High Speed & Low Speed) compression adjustment. High-speed adjustment allows tuning for impact harshness and low speed adjustment allows tuning of cornering characteristics, perfect for use on the autocross, road course and drag strip.

Application List

1999-2006 Chevrolet Silverado 1500
1999-2006 GMC Sierra 1500

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 317.0 lbs.
  • W22.0000” x H11.0000” x L22.0000”
  • Free Ground Shipping | Exclusions Apply*
