RT11700203 | RideTech HQ Coil-Over System (2007-2016 Silverado, Sierra 1500 4WD with OE cast steel arms)

2007-2016 Chevrolet Silverado 1500 4WD | 2007-2016 GMC Sierra 1500 4WD with OE cast steel arms

11700203
Pricing: $7,446.00
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Complete Coil-Over Suspension System | 2007-2016 Silverado / Sierra 1500 4WD (with OE Cast Steel Arms)

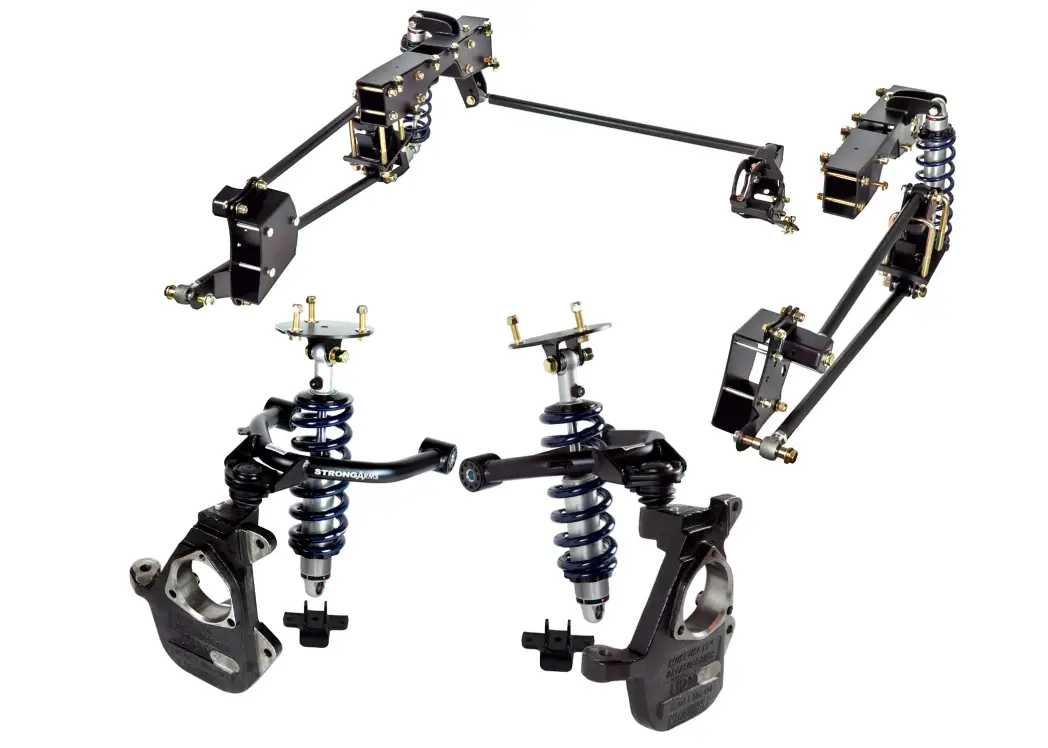

Complete Coil-Over System for 2007-2016 Silverado & Sierra 1500 2WD/4WD. Includes front & rear HQ Series rebound adjustable Coil-Overs, front tubular upper control arms, bolt-on 4 link with c-notch, and drop spindles. Designed to lower your vehicle and improve handling and ride quality.

Fitment includes 2007-2016 Chevrolet Silverado and GMC Sierra 1500 2WD & 4WD pickups WITH CAST STEEL OE CONTROL ARMS.
Some trucks (specifically 2014-2016 model years) may have stamped steel or aluminum control arms which use different spindles and ball joints (Kit # 11710202 & 11710203).
Trucks equipped with magnetic suspension require shock simulators.

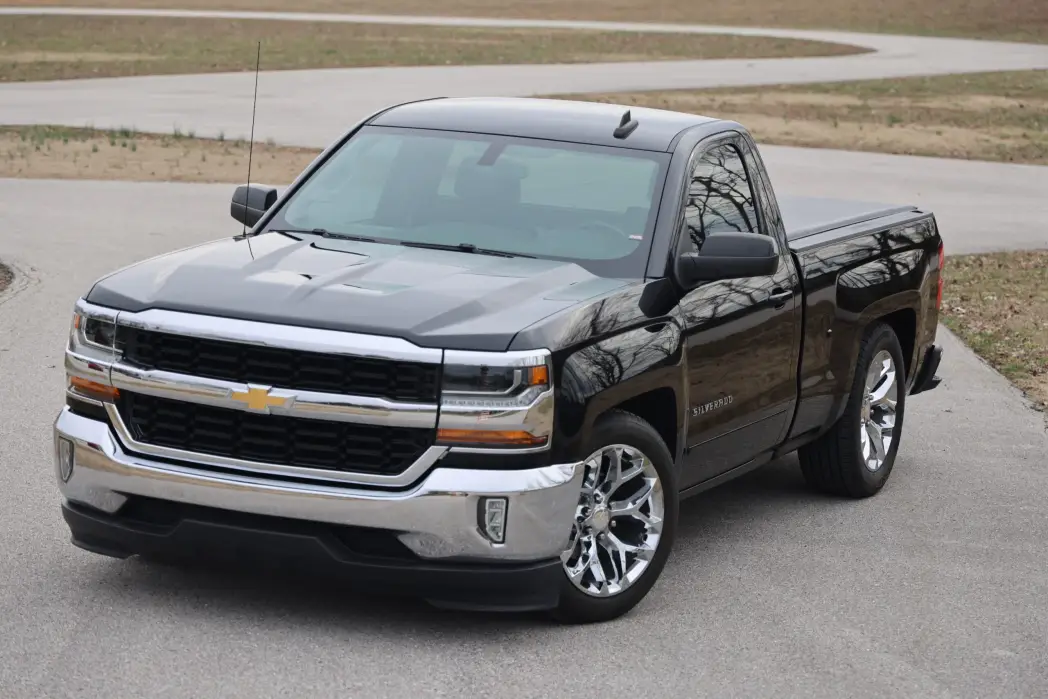

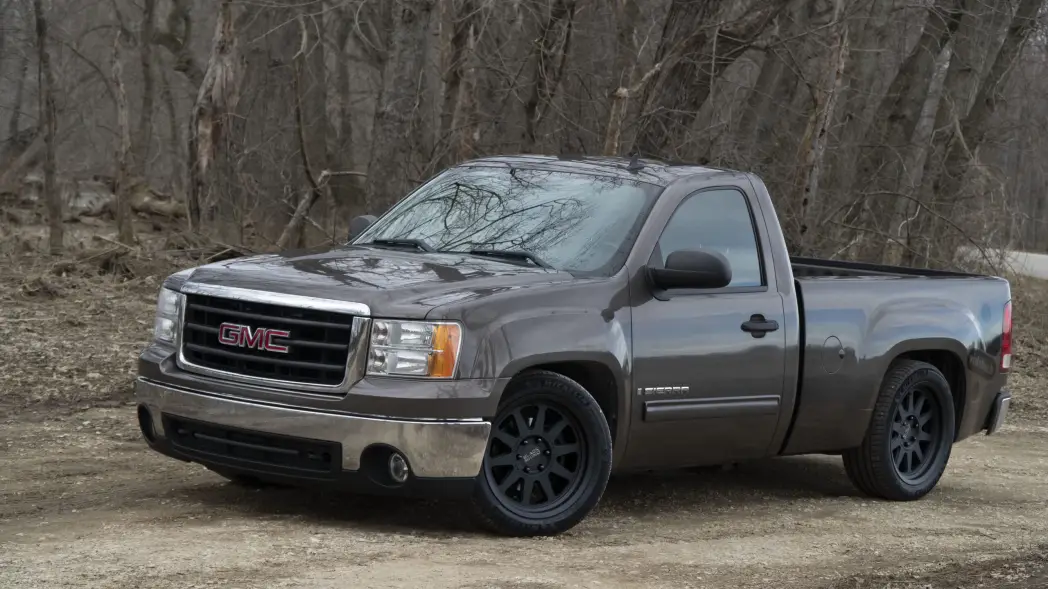

  • Offers a ride height that is approximately 4″ lower than stock in the front and 6″ in the rear.

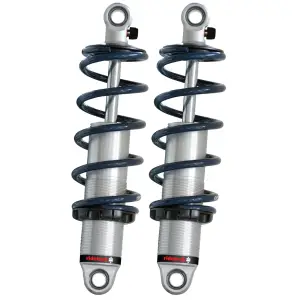

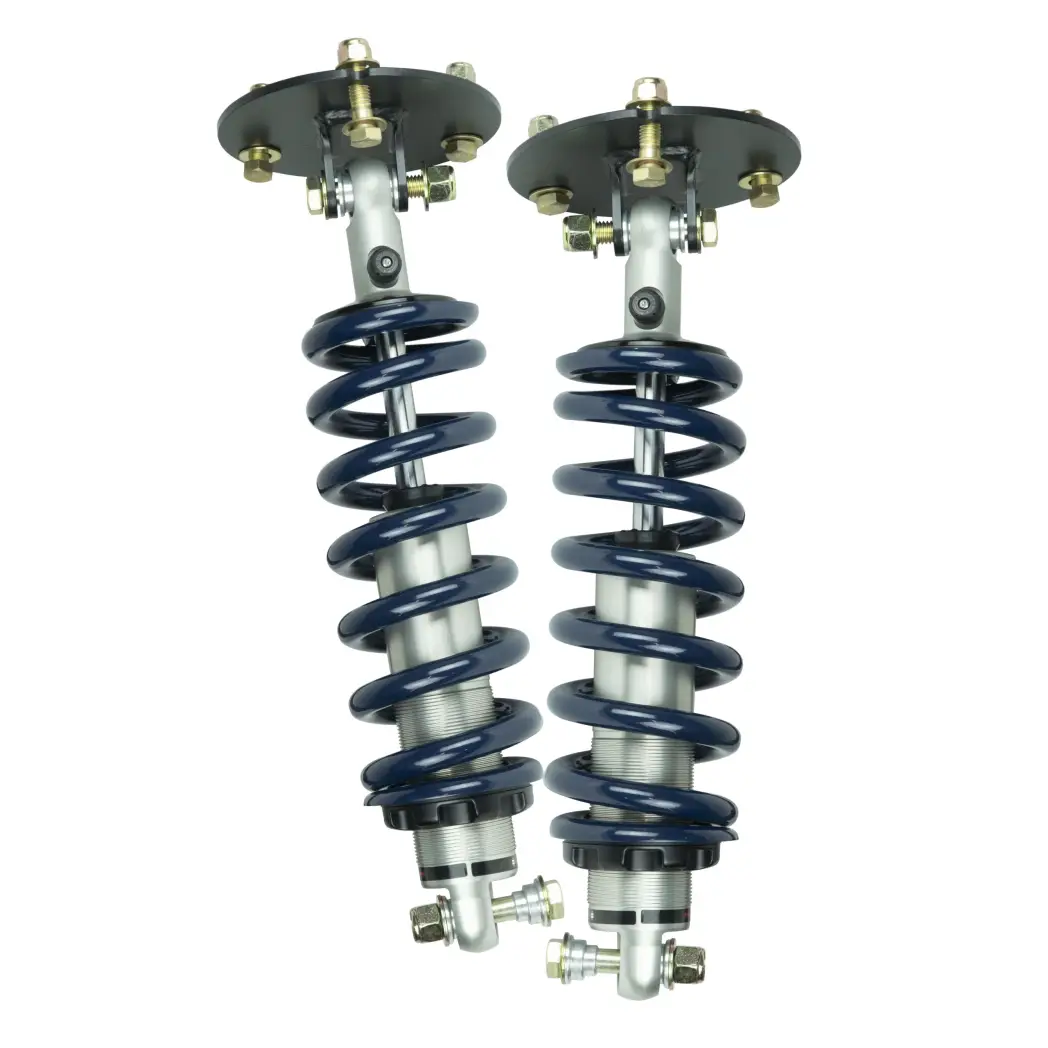

  • HQ Series Adjustable Coil-Overs utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty.

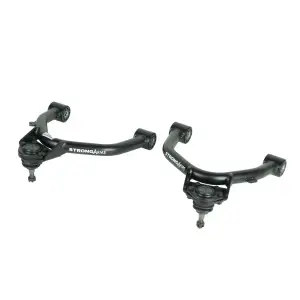

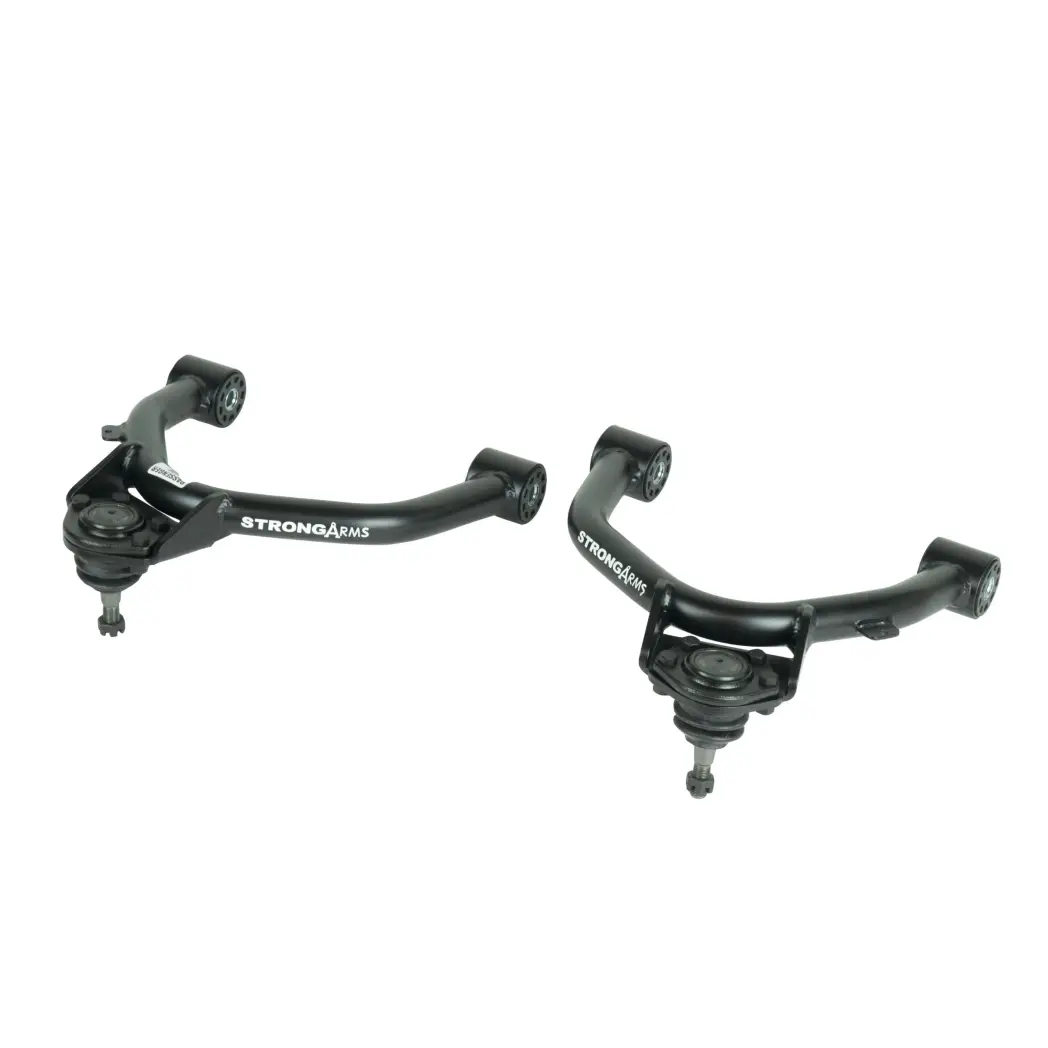

  • The Upper StrongArm tubular control arms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment.  Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

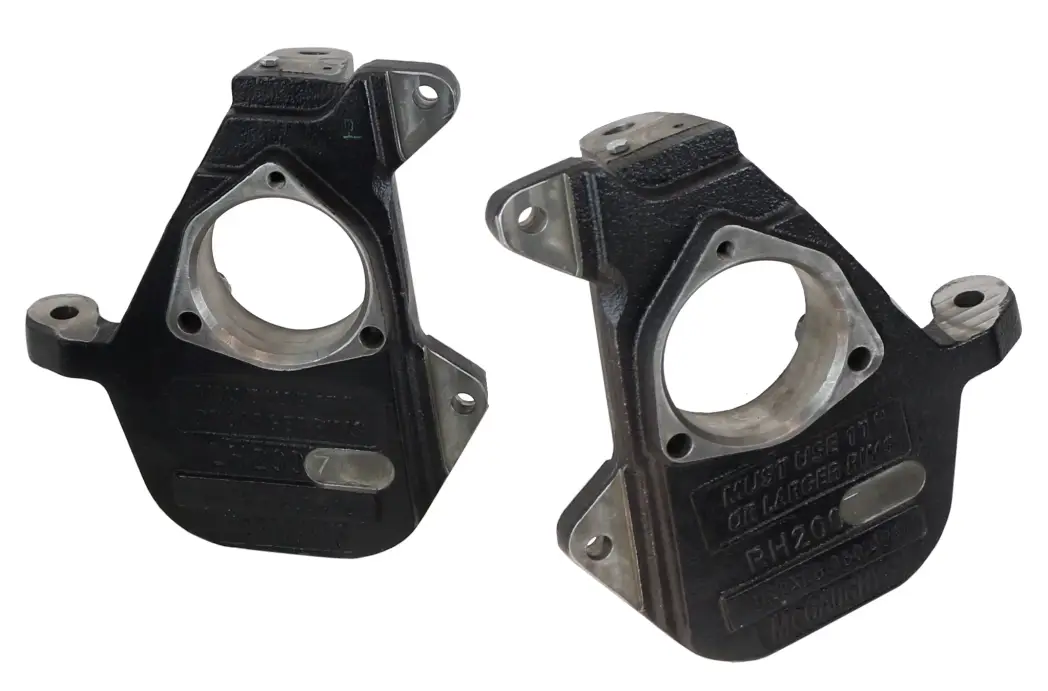

  • Drop Spindles are used to all the use of a longer stroke shock and improve suspension geometry and bump steer.  Fits 18″ or larger wheels.

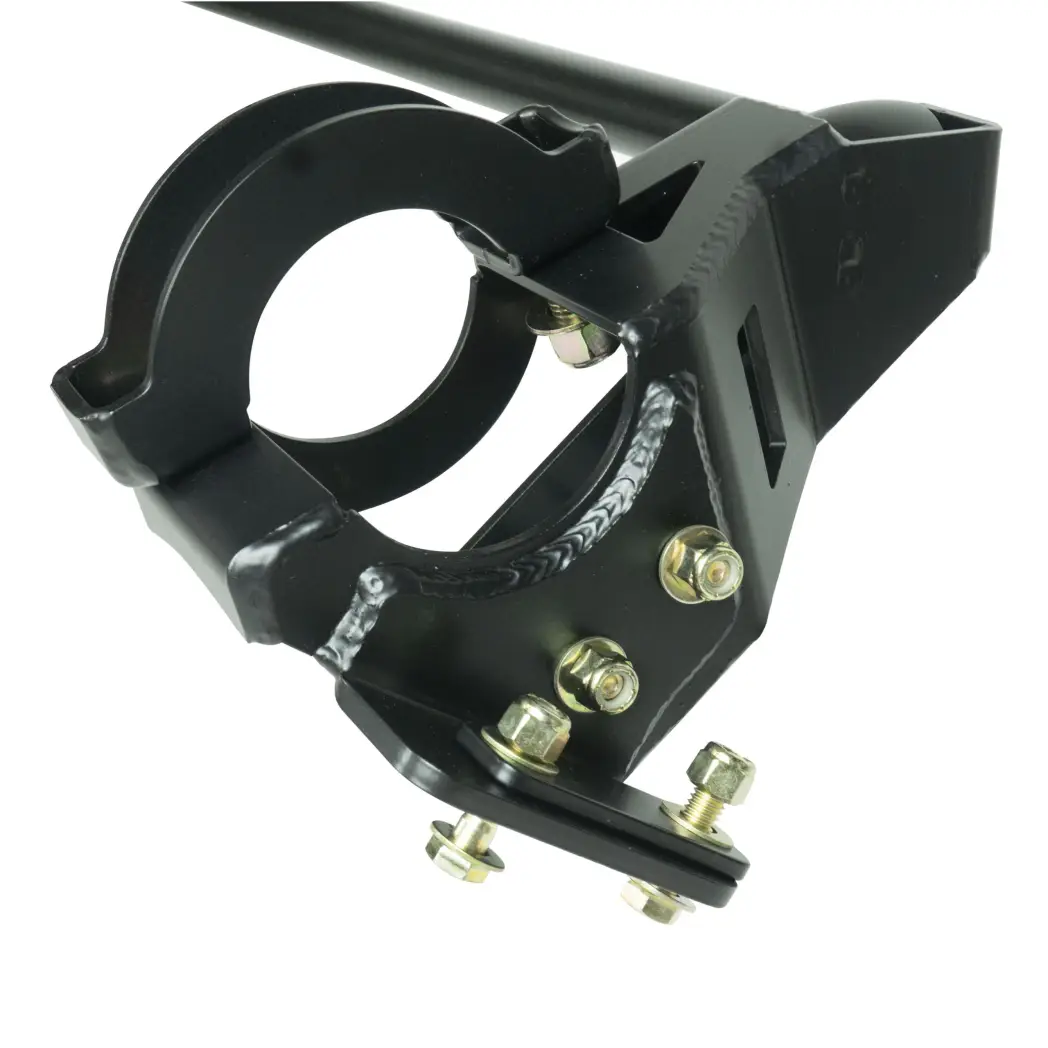

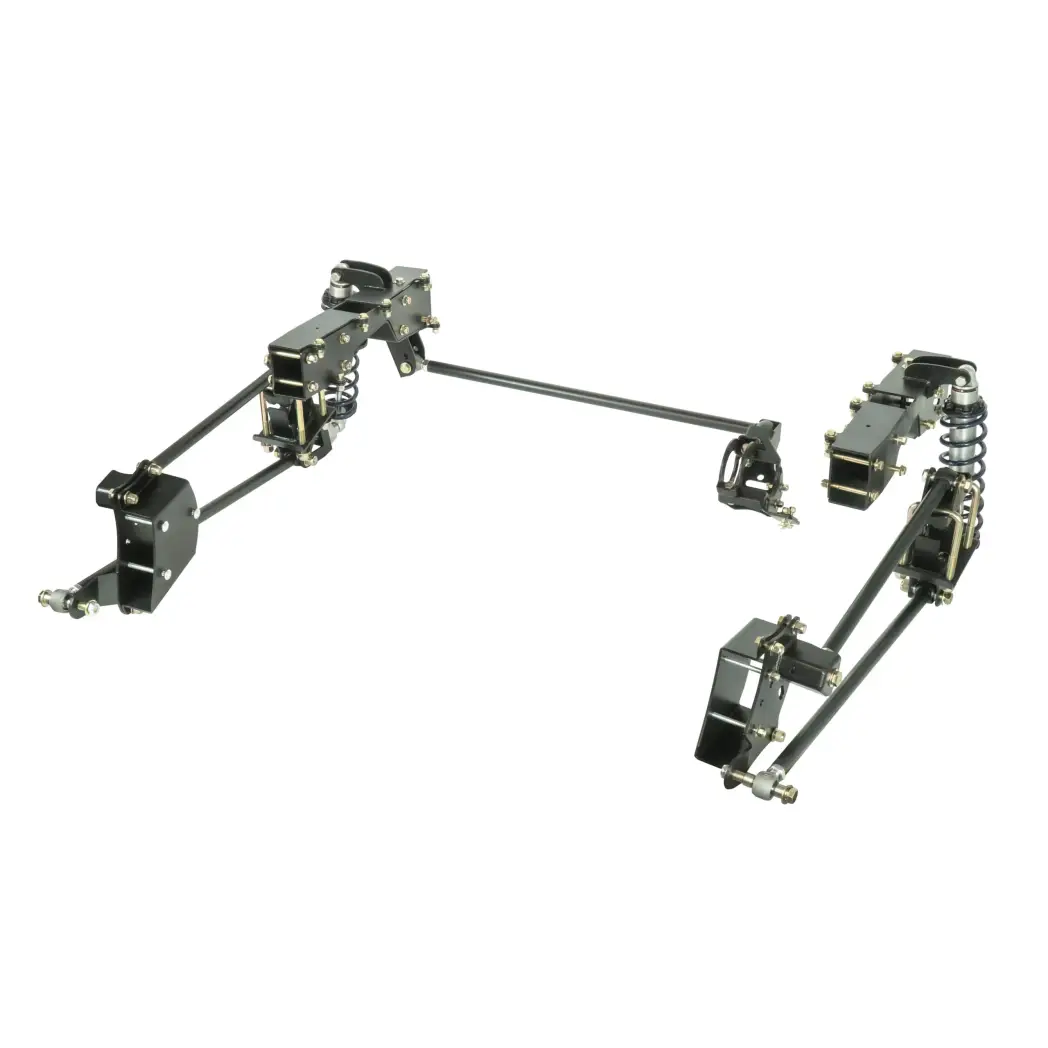

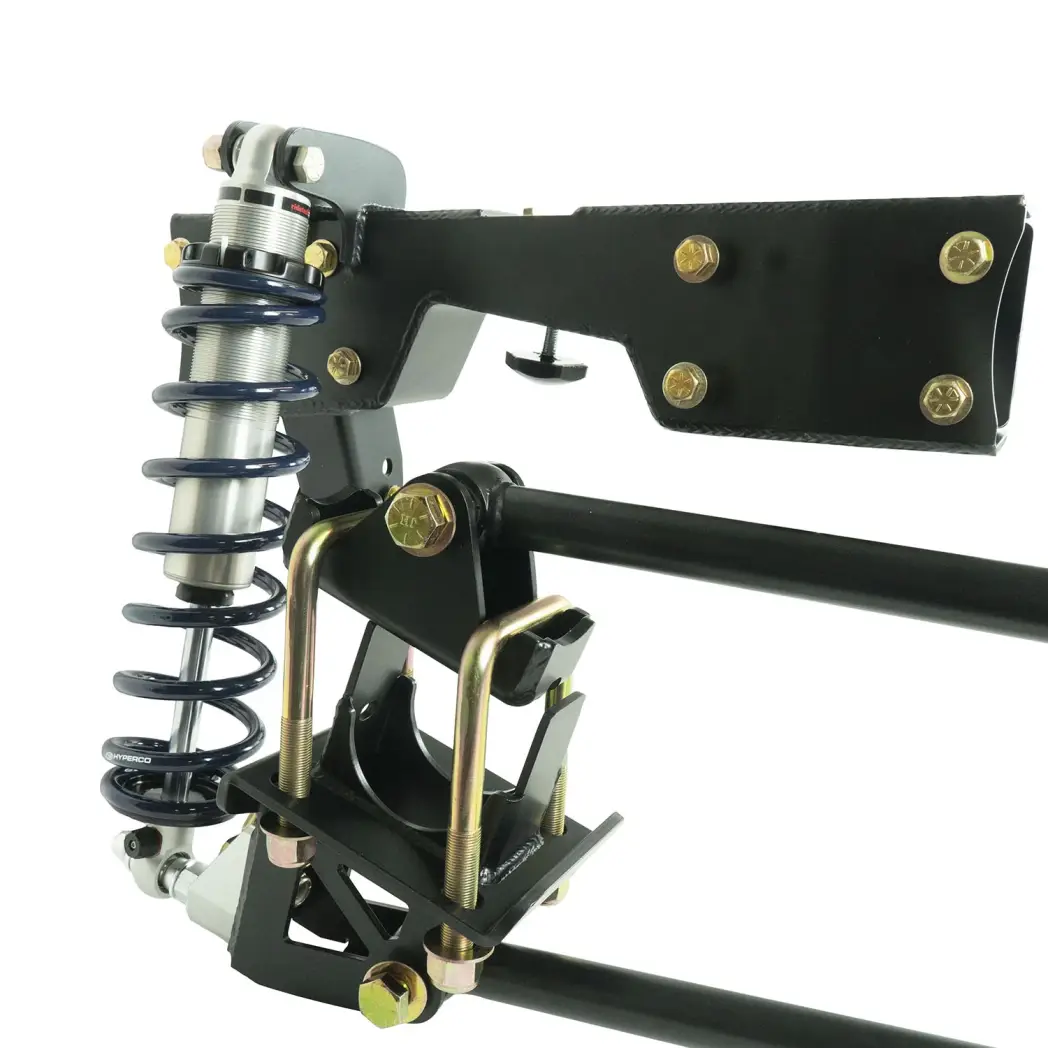

  • The Bolt On 4-Link greatly improves traction, handling and ride quality.  Installation does not require any welding or major modifications to the bed floor.  Includes patent-pending R-Joint rod ends to eliminate binding and noise.

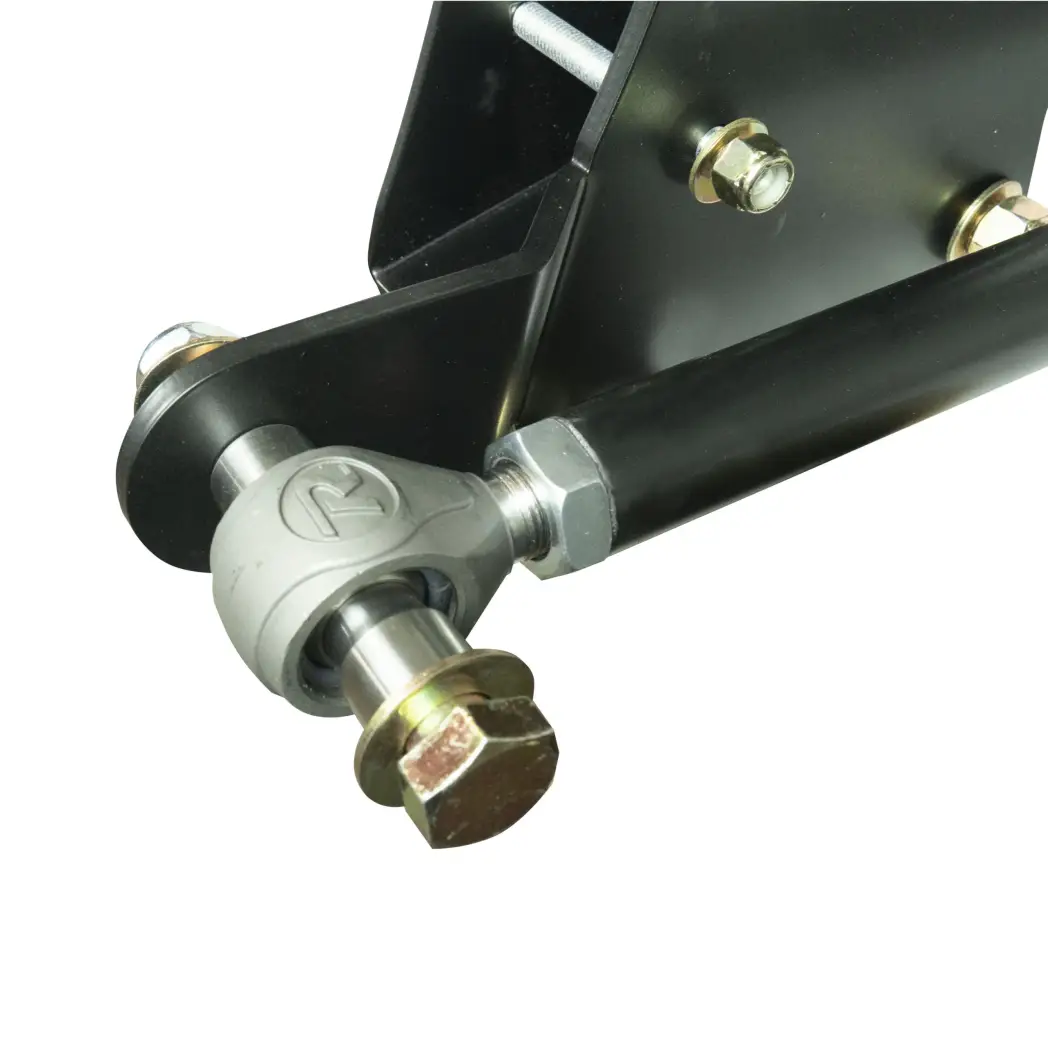

    • Includes patent-pending R-Joint rod ends to eliminate binding and noise.
    • Optimized anti-squat, roll center and pinion angle migration for dramatic improvements in handling and traction.

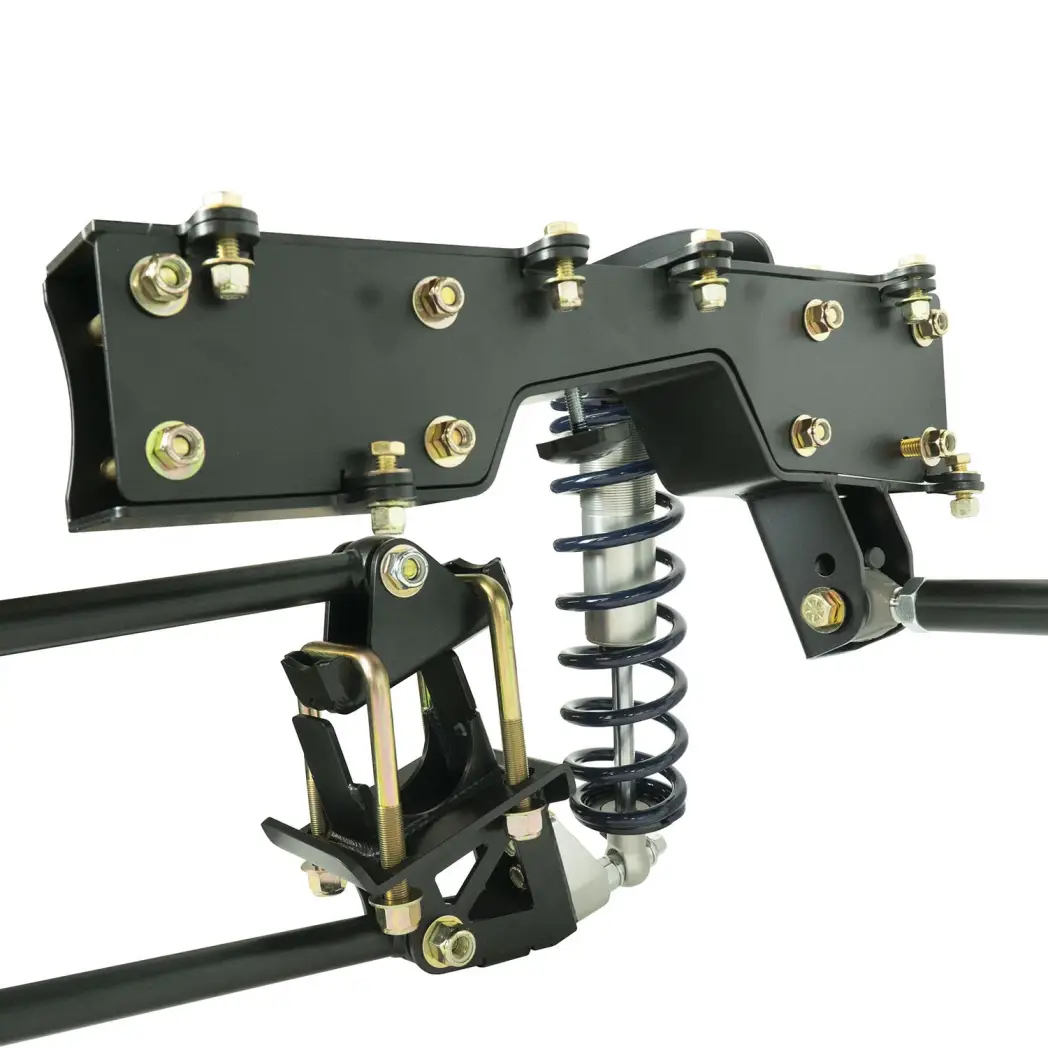

    • Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.
    • Designed for simple installation with minimal OEM rivet removal.
    • Compatible with all cab size and bed length configurations

Options:

  • Front Sway Bar will increase the sway bar rate by 52% and reduce suspension bind with Delrin lined bushings and performance end links.

Application List

2007-2016 Chevrolet Silverado 1500 4WD
2007-2016 GMC Sierra 1500 4WD

With OE Cast Steel Control Arms

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 245.0 lbs.
  • W10.0000” x H6.0000” x L27.0000”
